Product Overview

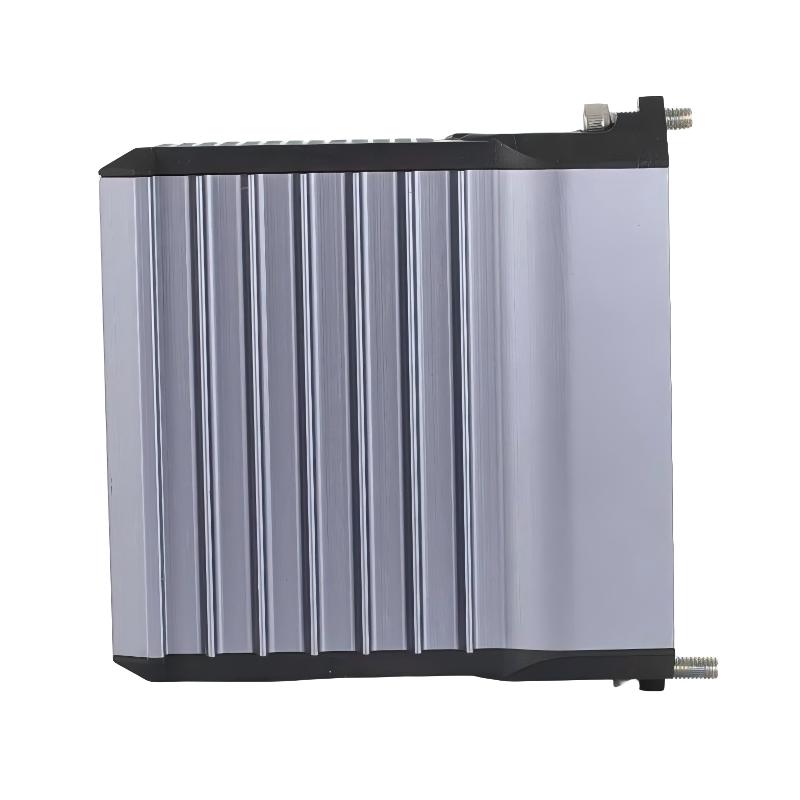

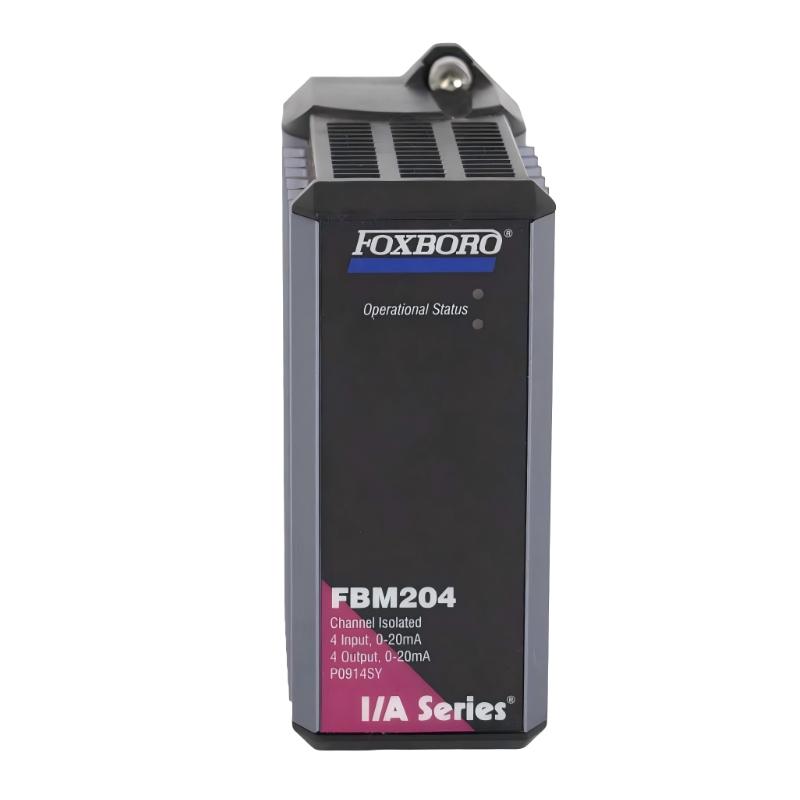

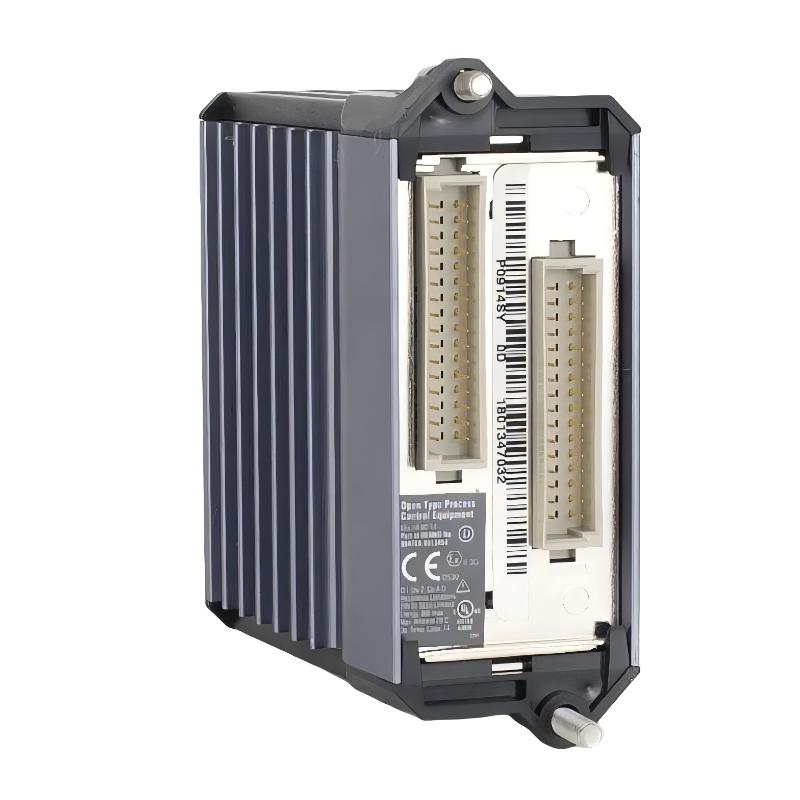

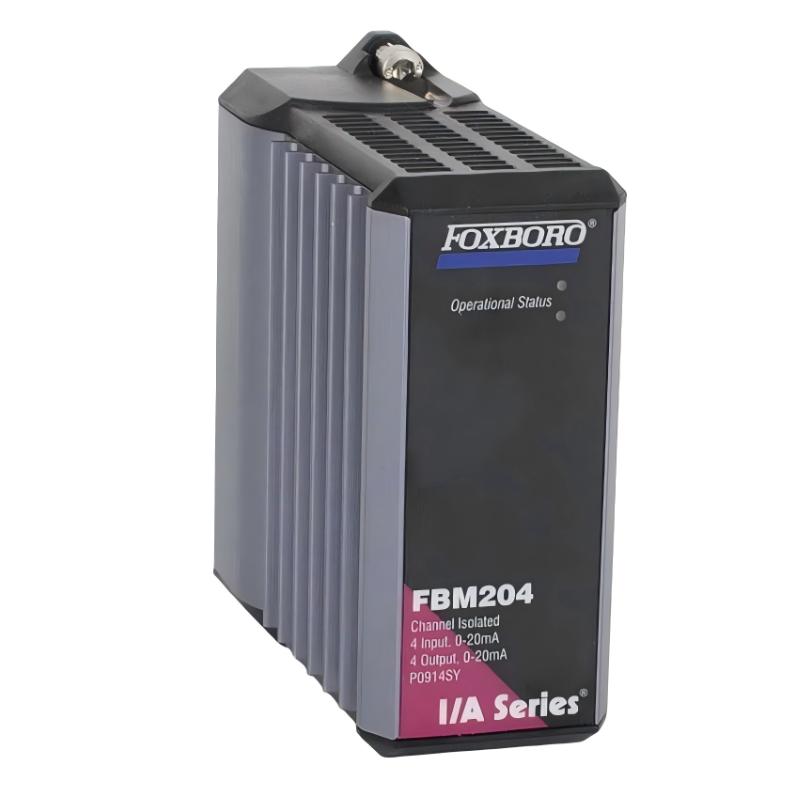

The Foxboro FBM204 P0914SY is an I/O Interface Module for the I/A Series 200 control system, combining analog input and analog output functions in one field bus module. It provides four isolated 0–20 mA input channels and four isolated 0–20 mA output channels, making it useful where a process control loop needs both measurement feedback and an analog command signal.
In a typical process-control cabinet, the FBM204 can receive signals from pressure, flow, level, or other transmitters while sending 0–20 mA control signals to compatible actuators, positioners, or other analog devices. This combination can be useful for control loops where the input and output points are located around the same process unit.
For example, a flow-control application may use one group of FBM204 input channels to acquire transmitter signals while the output channels send corresponding control signals to valve positioners. The control application running in the I/A Series system can then process the measured value, execute the control strategy, and return the required analog output.
The module is channel-isolated, so the individual analog I/O circuits are separated within the module. This is particularly relevant in process installations where different field instruments may have different grounding conditions or where analog signal wiring runs through electrically noisy areas.
The P0914SY is the earlier part number associated with the FBM204. Later documentation identifies RH914SY as the superseding module reference, so replacement work should take the installed I/A Series hardware revision and termination arrangement into account rather than treating the two references as automatically interchangeable in every installation.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM204 |
| Part Number | P0914SY |
| Product Family | I/A Series 200 |
| Product Type | I/O Interface Module |
| Input Channels | 4 |
| Input Signal | 0–20 mA DC |
| Output Channels | 4 |
| Output Signal | 0–20 mA DC |
| I/O Configuration | 4 analog inputs + 4 analog outputs |
| Channel Isolation | Galvanically isolated input and output channels |
| Signal Conversion | Sigma-delta conversion for analog I/O |
| Mounting | I/A Series 200 baseplate |
| Baseplate Installation | DIN rail or rack-mounted baseplate arrangement |
| Field Connection | Dedicated termination assembly |
| Power Supply | 24 V DC redundant supply via system baseplate |
| Maximum Power Consumption | 7 W |
| Maximum Heat Dissipation | 3.5 W |
| Operating Temperature | -20 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- I/A Series 200 I/O Interface Module
- Model FBM204
- Part number P0914SY
- Four 0–20 mA analog input channels
- Four 0–20 mA analog output channels
- Input and output channels are isolated
- Combines analog signal acquisition and output control in one module
- Sigma-delta conversion for analog signal processing
- Supports process transmitters and analog control devices
- Mounts on an I/A Series 200 baseplate
- Uses dedicated termination assemblies for field wiring
- Suitable for process control loops requiring both AI and AO functions
- Supports applications involving pressure, flow, level, and valve control
- Earlier P0914SY reference has a later RH914SY superseding reference
Working Principle
The FBM204 handles both sides of an analog control loop.
A typical arrangement can be represented as:
Field Transmitter → FBM204 AI → I/A Series Control System → FBM204 AO → Control Device
The four analog input channels receive 0–20 mA signals from field instruments. For example, a flow transmitter can send a current signal representing the measured flow rate. The FBM204 converts the incoming analog signal into data that can be processed by the I/A Series control application.
The four analog output channels work in the opposite direction. After the control application determines the required output, the FBM204 generates the corresponding 0–20 mA signal for a compatible field device.
This makes the module useful for compact control loops. A single FBM204 can handle several measurement and command signals without requiring separate input-only and output-only modules for every point.
Channel isolation is also relevant during real-world commissioning and troubleshooting. If field instruments have different signal references or grounding arrangements, isolated channels help prevent one analog circuit from directly becoming the electrical reference for another.
The termination assembly provides the field-side connection, while the FBM204 performs the electronic signal interface and communicates the resulting I/O data through the I/A Series architecture.
Role in an I/A Series 200 Control Architecture
The FBM204 P0914SY operates at the field I/O layer of an I/A Series 200 distributed control architecture.
Field Transmitters → Termination Assembly → FBM204 → I/A Series Nodebus → Control Processor → Control Application
For output loops, the signal path operates in the opposite direction:
Control Application → Control Processor → Nodebus → FBM204 → Termination Assembly → Field Control Device
| System Element | Function |
|---|---|
| Field Transmitter | Generates a 0–20 mA process measurement |
| Termination Assembly | Provides the physical field wiring connection |
| FBM204 | Acquires four analog inputs and generates four analog outputs |
| I/A Series Baseplate | Provides the module mounting and system interface |
| Nodebus | Transfers I/O data within the I/A Series architecture |
| Control Processor | Executes control logic and process calculations |
| Field Control Device | Receives the FBM204 analog output signal |
| I/A Series Control System | Manages the overall process-control application |
The FBM204 is therefore useful where an I/O position needs both analog measurement and analog command capability. The exact termination assembly and cable arrangement should be matched to the installed FBM204 version.
Industrial Applications
| Application | Typical Use |
|---|---|
| Flow Control | Receiving flow transmitter feedback and sending valve control signals |
| Pressure Regulation | Monitoring pressure while controlling a regulating device |
| Tank and Vessel Systems | Acquiring level-related analog signals and controlling process equipment |
| Chemical Processing | Combining process measurement and analog control points |
| Oil and Gas | Interfacing transmitters and analog field control devices |
| Water Treatment | Monitoring process variables and controlling valves or dosing equipment |
| Power Generation | Connecting analog process measurements with control outputs |
| HVAC Process Systems | Monitoring pressure or temperature-related transmitters and controlling equipment |
| Pump Systems | Acquiring process feedback and providing analog speed or control references |
| Manufacturing Equipment | Handling distributed analog feedback and command signals |
Installation and Maintenance
- Confirm that the existing control system uses an I/A Series 200 FBM204 configuration.
- Verify the complete module reference, including P0914SY, before ordering a replacement.
- Check whether the installed system documentation identifies RH914SY or another later reference as the applicable replacement.
- Identify all four analog input channels and four analog output channels before disconnecting field wiring.
- Verify that each connected input device uses a compatible 0–20 mA signal.
- Check the output-side devices to ensure their input requirements match the FBM204 analog output range.
- Inspect the termination assembly and field wiring for loose terminals, damaged conductors, or incorrect polarity.
- Confirm that the FBM204 is correctly seated on its I/A Series baseplate before energizing the system.
- Check the 24 V DC redundant supply arrangement and system power connections.
- Verify the channel assignments and engineering ranges in the I/A Series control configuration.
- During commissioning, compare input readings with the field transmitter values and verify that output channels produce the expected control signals.
- For a faulty channel, check the field device, wiring, termination assembly, module channel, and control configuration separately rather than immediately replacing the complete module.
When troubleshooting a 0–20 mA loop, measuring the actual current at the appropriate field termination point can quickly help determine whether the problem is on the transmitter side, wiring side, I/O side, or control-configuration side.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM204 | Combination analog I/O module with four inputs and four outputs |
| P0914SY | Original FBM204 module reference |
| RH914SY | Later/superseding FBM204 module reference |
| I/A Series 200 Baseplate | Provides the physical and electrical module interface |
| FBM204 Termination Assembly | Connects field wiring to the analog I/O channels |
| Termination Cable | Connects the termination assembly with the FBM baseplate |
| I/A Series Nodebus | Transfers module data within the control architecture |
| 24 V DC Power Supply | Provides the required system power |
| 0–20 mA Transmitter | Provides analog process measurements |
| Analog Control Device | Receives the FBM204 analog output signal |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Foxboro FBM204 P0914SY | I/O Interface Module | Four 0–20 mA inputs plus four 0–20 mA outputs |
| Foxboro RH914SY | FBM204 I/O Module | Later reference for the FBM204 architecture |
| Foxboro FBM201 | Analog Input Module | Eight-channel 0–20 mA analog input applications |
| Foxboro FBM202 | Thermocouple / mV Input Module | Temperature and millivolt signal acquisition |
| Foxboro FBM203d | RTD Input Module | RTD temperature measurement applications |
| Foxboro I/A Series 200 | Distributed I/O Platform | Process control and field instrumentation |
| Foxboro FBM Baseplate | Module Carrier | Mounting and system connection for Series 200 FBMs |
Key Advantages
- Combines four analog inputs and four analog outputs in one module.
- Supports standard 0–20 mA process signals.
- Provides isolated analog I/O channels.
- Useful for complete measurement-and-control loops.
- Reduces the need for separate AI and AO module positions in suitable applications.
- Supports dedicated field termination assemblies.
- Integrates with the I/A Series 200 control architecture.
- Suitable for process instrumentation and analog control devices.
Technical FAQs
Can the FBM204 P0914SY handle both analog input and analog output signals?
Yes. The FBM204 combines four 0–20 mA analog input channels with four 0–20 mA analog output channels. This allows the same module to receive process measurements and send analog control commands.
What is the difference between P0914SY and RH914SY?
P0914SY is the original part number associated with the FBM204. RH914SY is identified in later Foxboro documentation as the superseding reference. When replacing an older P0914SY, the installed baseplate, termination assembly, system revision, and application configuration should be checked before selecting the replacement.
What type of field devices can be connected to the FBM204?
The input channels can receive compatible 0–20 mA signals from devices such as flow, pressure, level, and other process transmitters. The output channels can send 0–20 mA control signals to compatible control devices, including suitable valve positioners and other analog actuators.
Why would an FBM204 output appear correct in the control system but produce an incorrect field response?
The problem may be outside the module itself. Check the configured output range, field wiring polarity, termination connection, receiving device input requirements, and actual current at the field connection. If the commanded output value and measured field current agree but the field device does not respond correctly, the receiving device or its configuration should be investigated.
