Product Overview

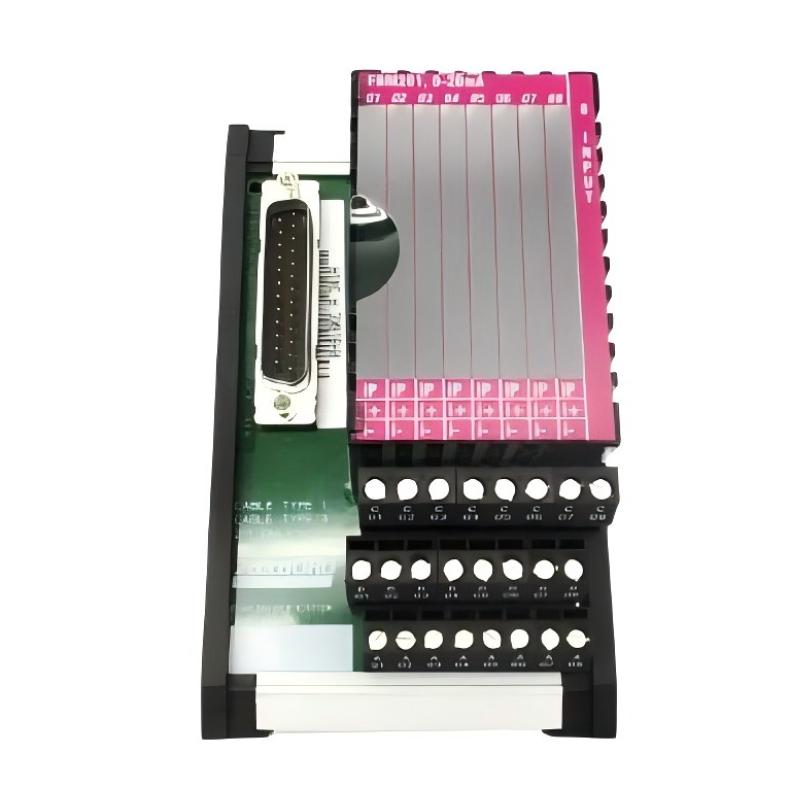

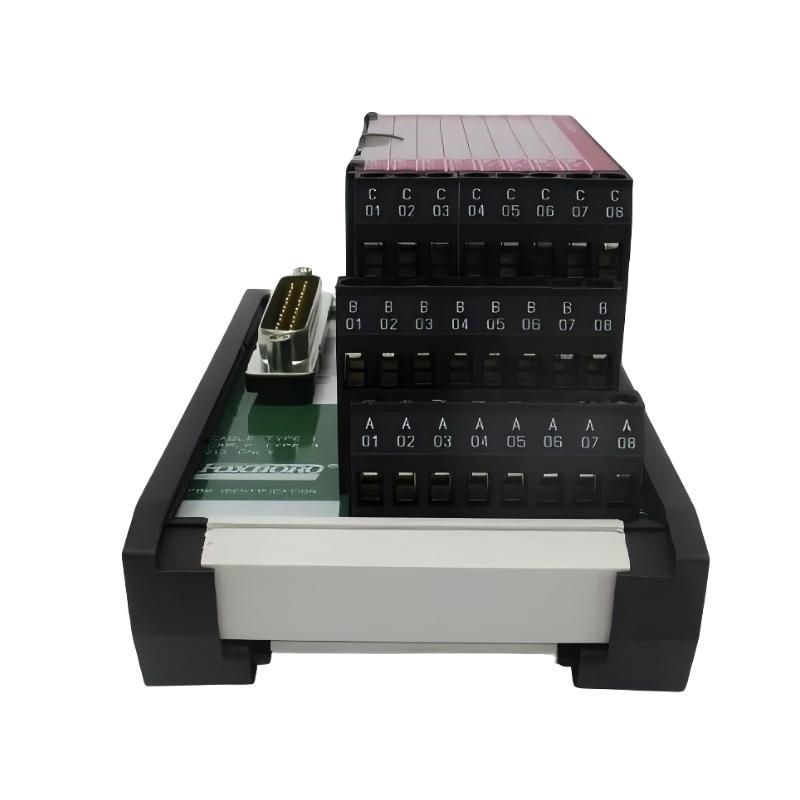

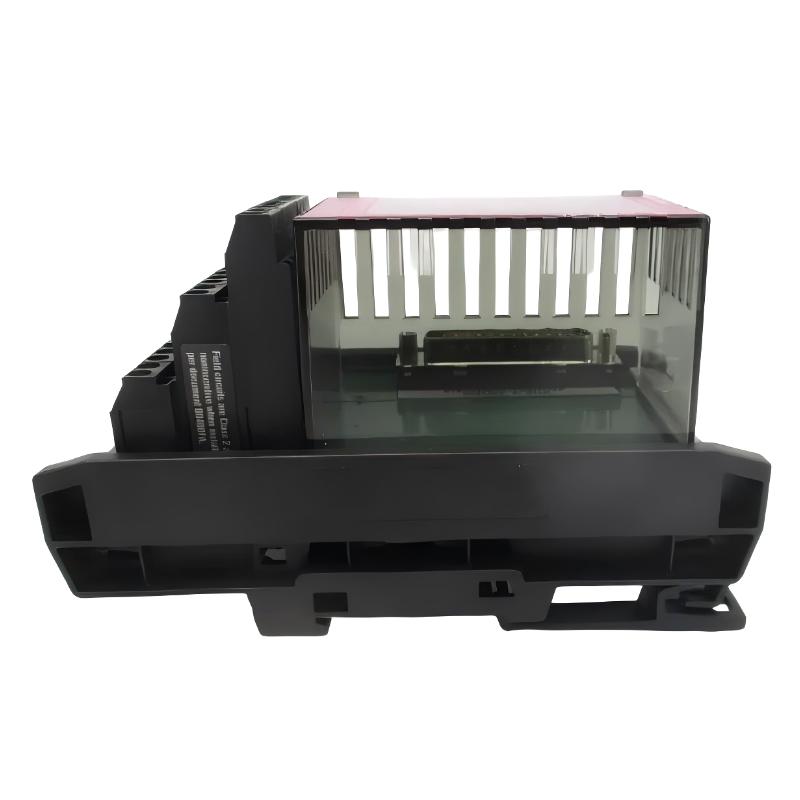

The Foxboro FBM201 RH916XG is an I/A Series 200 Termination Assembly used to provide the field wiring interface for compatible Foxboro Fieldbus Modules. It sits between the plant-side wiring and the electronic I/O hardware, giving each field circuit a defined termination point inside the control cabinet.
In a typical Foxboro I/A Series installation, field instruments, switches, and other process devices are wired into the termination assembly before their signals are passed to the associated FBM. This arrangement keeps field wiring organized while allowing the electronic I/O module to remain part of the system’s modular architecture.
For technicians, the FBM201 RH916XG is particularly relevant during cabinet wiring, loop checks, channel troubleshooting, and I/O replacement. If a field signal is missing or intermittent, the termination point should be checked along with the field device, cable, and associated FBM rather than immediately assuming an electronic module failure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FBM201 RH916XG |
| Series | I/A Series 200 |
| Product Type | Termination Assembly |
| Dimensions | 125 × 76 × 80 mm |
| Weight | 0.181 kg |
| System Application | Foxboro I/A Series field I/O termination |
Product Features
- Intended for compatible Foxboro I/A Series 200 installations.
- Provides a dedicated termination interface for field wiring.
- Interfaces field-side connections with the associated Fieldbus Module.
- Supports organized cabinet wiring and easier loop identification.
- Suitable for installation, commissioning, troubleshooting, and maintenance work.
- Keeps field termination physically separate from the signal-processing electronics.
Working Principle
The FBM201 RH916XG serves as the connection point between field wiring and the associated I/A Series I/O hardware. Field conductors are landed at the termination assembly, and the corresponding connections continue toward the Fieldbus Module through the system’s internal wiring arrangement.
The assembly itself is primarily a wiring interface rather than the component responsible for executing I/O signal processing. Once the field circuit reaches the associated FBM, the module handles the appropriate signal acquisition or processing required by the control system.
This distinction is useful when diagnosing channel problems. For example, a field instrument may produce the correct signal while an incorrectly landed conductor or poor termination prevents that signal from reaching the FBM. Checking the signal path from the field device through the FBM201 RH916XG helps isolate the actual fault location.
Role in the I/A Series 200 Control Architecture
| System Element | Function |
|---|---|
| Field Instrument | Generates process measurement or equipment status information. |
| Field Wiring | Carries electrical signals between the plant equipment and control cabinet. |
| FBM201 RH916XG | Provides the physical field termination interface. |
| Fieldbus Module | Processes the connected field signals for the control system. |
| I/A Series Control Network | Transfers processed I/O information within the control architecture. |
| Control Processor | Executes control strategies using the acquired process information. |
| Operator Interface | Displays process values, equipment status, alarms, and control information. |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Instrumentation | Termination of field signals connected to Foxboro I/A Series control systems. |
| Chemical Processing | Cabinet-level connection of process instruments and discrete devices. |
| Oil and Gas | Field wiring termination for distributed process-control signals. |
| Refining | Organized interface between field devices and I/A Series I/O hardware. |
| Power and Utilities | Connection of plant equipment signals to Foxboro control-system I/O. |
Installation and Maintenance
- Confirm the assembly identification before installation. Verify FBM201 RH916XG against the approved I/A Series system documentation.
- Isolate the relevant circuits before removing, installing, or rewiring the termination assembly.
- Record existing conductor locations before disconnecting field wiring to prevent channel-crossing or polarity errors.
- Inspect terminals and connection points for loose wires, corrosion, contamination, or signs of overheating.
- Check field cable condition for damaged insulation, excessive bending, moisture, or mechanical stress.
- Verify wiring against the control-system drawings before energizing circuits after installation.
- Inspect the connection toward the associated FBM when a field signal reaches the terminal but does not appear correctly in the control system.
- Perform continuity checks when an open field circuit or intermittent connection is suspected.
- Check terminal tightness according to the applicable installation procedure without applying excessive mechanical force.
- Maintain suitable cabinet conditions by controlling dust, moisture, contamination, and other environmental factors.
- Perform loop checks after replacement or rewiring to verify that each field circuit reaches the intended I/O channel.
- Document wiring changes and test results so future maintenance personnel can trace the field circuit without relying on assumptions.
Compatible System Components
| Component | Function |
|---|---|
| Foxboro I/A Series 200 Fieldbus Modules | Process field signals connected through the termination assembly. |
| I/A Series 200 Field Wiring | Provides the electrical connection between field equipment and the cabinet. |
| Process Instruments | Supply measurement signals to the control system. |
| Discrete Field Devices | Provide equipment status, alarms, and switching information. |
| I/A Series Control Processors | Execute control strategies based on processed I/O data. |
| I/A Series Communication Components | Transfer control and I/O information between system elements. |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Foxboro FBM201 | I/A Series 200 Termination Assembly | Field wiring termination |
| Foxboro I/A Series 200 FBM Family | Fieldbus Modules | Process I/O signal processing |
| Foxboro I/A Series 200 Termination Assemblies | Termination Hardware | Field-to-I/O cabinet connections |
| Foxboro I/A Series Controllers | Process Controllers | Process control and logic execution |
| Foxboro I/A Series Communication Hardware | Control-System Communication Components | I/O and controller data exchange |
Key Advantages
- Provides an organized field termination point for compatible I/A Series 200 systems.
- Simplifies field wiring and channel identification inside the control cabinet.
- Separates field connections from the electronic I/O processing hardware.
- Supports practical loop checking and signal-path troubleshooting.
- Suitable for maintenance and replacement of existing I/A Series installations.
Technical FAQs
What is the Foxboro FBM201 RH916XG used for?
The FBM201 RH916XG is an I/A Series 200 Termination Assembly used to provide the field wiring interface for compatible Foxboro I/O hardware.
Is the FBM201 RH916XG an I/O processing module?
No. The termination assembly provides the physical wiring interface. The associated Fieldbus Module performs the electronic signal-processing functions within the I/A Series control system.
What should be checked when a field signal does not reach the control system?
Check the field instrument, field cable, terminal connections at the FBM201 RH916XG, and the wiring toward the associated FBM. Continuity and loop checks can help determine whether the problem is located in the field wiring or the control-system hardware.
What is important when replacing an FBM201 RH916XG?
Verify the exact model and system configuration, document the existing wiring before removal, and confirm every conductor against the approved wiring documentation during reinstallation. A loop check should be performed after replacement to confirm correct channel connectivity.
