Product Overview

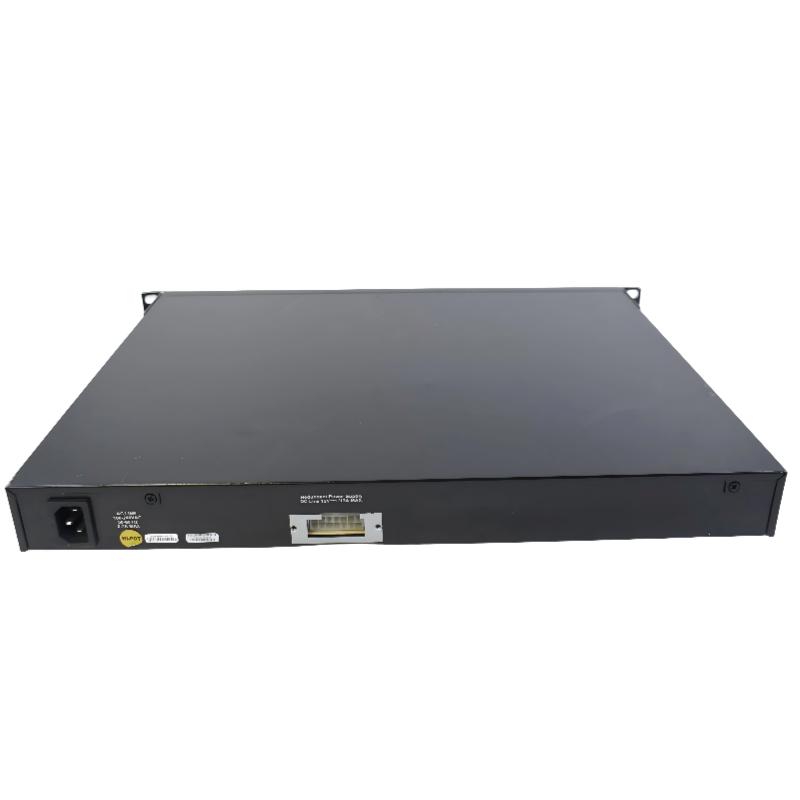

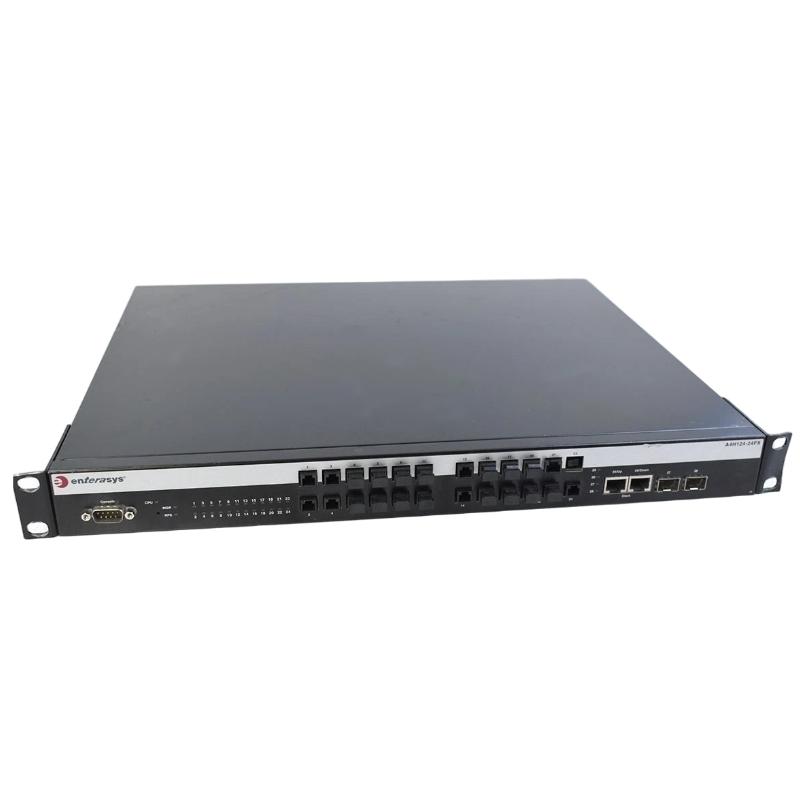

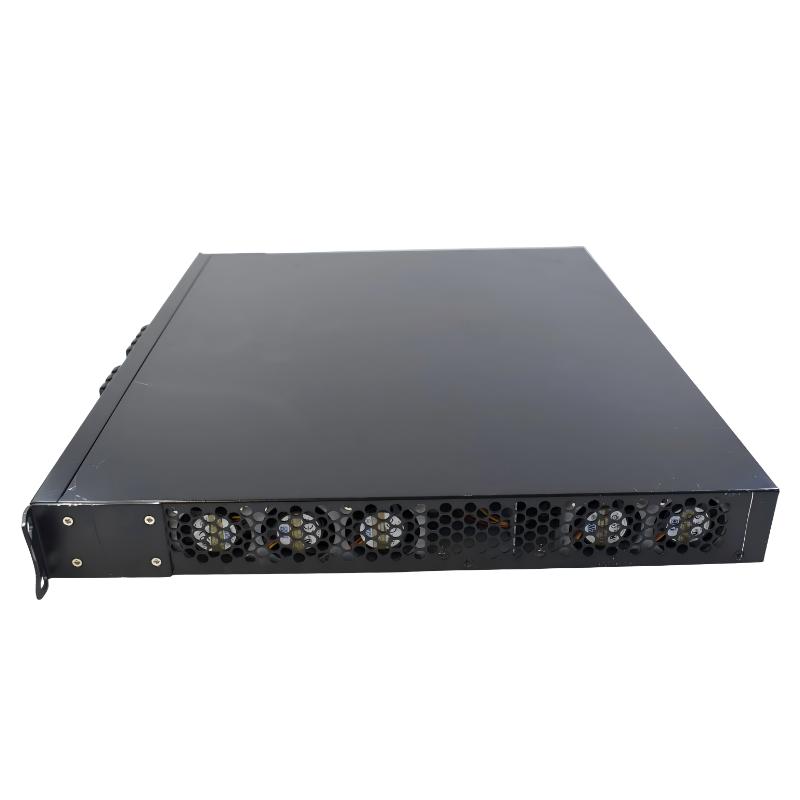

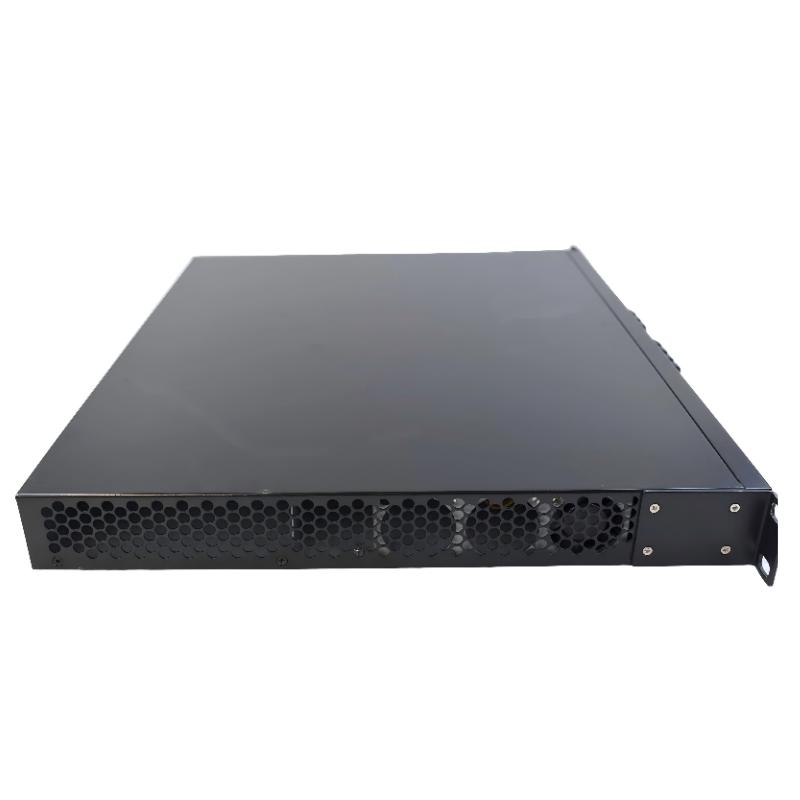

The Foxboro A4H124-24FX P0973JN Ethernet Switch is a high-performance industrial managed Ethernet switch engineered for Distributed Control Systems (DCS), industrial automation networks, and mission-critical Ethernet communication infrastructures. It provides reliable Layer 2 switching capabilities that enable high-speed communication between controllers, engineering workstations, operator stations, remote I/O devices, historians, and industrial servers.
Designed for continuous industrial operation, the A4H124-24FX utilizes fiber-optic communication technology to deliver long-distance, high-bandwidth data transmission with excellent immunity to electromagnetic interference (EMI). Its managed networking functions allow engineers to configure VLANs, Quality of Service (QoS), network redundancy, and traffic management, ensuring stable and secure industrial communication.
With overall dimensions of 350 × 45 × 120 mm and an approximate weight of 4.5 kg, this switch is suitable for installation in standard 19-inch equipment racks and industrial control cabinets.
As a key communication device within Foxboro control architectures, the A4H124-24FX supports reliable network connectivity and scalable Ethernet infrastructures for modern industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Foxboro |
| Model | A4H124-24FX |
| Part Number | P0973JN |
| Product Type | Industrial Managed Ethernet Switch |
| Switching Layer | Layer 2 Managed Switch |
| Communication Medium | Fiber Optic Ethernet |
| Primary Function | Industrial Ethernet Communication |
| Fiber Ports | 24 × 100BASE-FX Fiber Ports |
| Gigabit Uplink Ports | 2 × 1000BASE-X SFP Slots |
| Copper Ports | 2 × 10/100/1000Base-T RJ45 Ports |
| Switching Capacity | 12.8 Gbps |
| Forwarding Performance | 9.5 Mpps |
| MAC Address Table | 16K Entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| Network Management | SNMP, RMON, CLI, Web Management, SSH, Telnet |
| VLAN Support | IEEE 802.1Q VLAN |
| QoS Support | IEEE 802.1p Priority |
| Redundancy Protocols | STP / RSTP / LACP |
| Installation | Rack Mount / Control Cabinet |
| Dimensions | 350 × 45 × 120 mm |
| Weight | Approx. 4.5 kg |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Environment | Industrial Automation |
Function and Working Principle
The Foxboro A4H124-24FX P0973JN functions as the communication core of an industrial Ethernet network by forwarding Ethernet packets between connected automation devices.
Unlike unmanaged commercial switches, this managed industrial switch continuously monitors network traffic, learns MAC addresses, and intelligently forwards Ethernet frames only to the required destination ports, minimizing unnecessary network congestion.
Typical communication architecture:
Engineering Workstation
↓
A4H124-24FX Ethernet Switch
↓
Foxboro Controllers
↓
Remote I/O Stations
↓
Field Instruments
Its managed Layer 2 architecture supports:
- High-speed Ethernet communication
- Long-distance fiber transmission
- VLAN network segmentation
- Quality of Service (QoS)
- Rapid Spanning Tree Protocol (RSTP)
- Link Aggregation (LACP)
- Port mirroring
- Network diagnostics
- Secure remote management
These features help maximize network stability while reducing downtime in industrial environments.
Role in Industrial Control Systems
Within a Foxboro Distributed Control System, the A4H124-24FX acts as the central communication backbone.
It interconnects multiple automation devices including:
- Control Processors
- Operator Stations
- Engineering Stations
- SCADA Servers
- Remote I/O Systems
- Industrial Computers
- Historians
- Network Storage Devices
Typical communication topology:
Operator Station
↓
Engineering Station
↓
Industrial Ethernet Switch
↓
Control Processor
↓
Remote I/O Modules
↓
Transmitters, Sensors and Actuators
The switch enables stable communication throughout the entire industrial network while supporting system expansion and redundancy.
Industrial Applications
The Foxboro A4H124-24FX is suitable for numerous industrial sectors requiring dependable Ethernet communication.
Typical applications include:
- Distributed Control Systems (DCS)
- Oil & Gas Production
- Petrochemical Plants
- Chemical Manufacturing
- Power Generation
- Water Treatment
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- Mining Operations
- General Factory Automation
Its fiber-based communication infrastructure makes it especially suitable for large industrial facilities where long-distance communication is required.
Installation and System Integration
The switch is designed for installation inside industrial communication cabinets or standard 19-inch equipment racks.
General installation procedure:
- Disconnect system power.
- Mount the switch securely.
- Connect the AC power supply.
- Install fiber-optic communication cables.
- Connect industrial Ethernet devices.
- Configure IP address and management parameters.
- Configure VLANs and QoS if required.
- Configure redundancy protocols.
- Verify communication indicators.
- Test network connectivity.
- Save configuration files.
- Record network settings.
Proper cable management and optical connector cleaning are recommended to ensure long-term communication reliability.
Compatible System Components
The Foxboro A4H124-24FX P0973JN is commonly integrated with the following equipment:
| Component | Function |
|---|---|
| Foxboro Control Processors | Process Control |
| Operator Workstations | Process Monitoring |
| Engineering Stations | System Configuration |
| Remote I/O Modules | Signal Acquisition |
| Industrial Fiber Optic Cables | Data Transmission |
| Gigabit SFP Modules | Optical Uplink Expansion |
| Industrial Firewalls | Network Security |
| SCADA Servers | Supervisory Control |
| Industrial HMIs | Human Machine Interface |
| Historian Servers | Data Collection |
| Redundant Power Supplies | System Availability |
| Industrial Network Cabinets | Equipment Installation |
Together these components establish a reliable industrial Ethernet communication platform.
Advantages of Managed Industrial Ethernet
Compared with unmanaged switches, managed industrial Ethernet switches provide significant operational advantages.
These include:
- Intelligent traffic management
- VLAN network segmentation
- Quality of Service optimization
- Redundant network topology
- Remote diagnostics
- Port monitoring
- Improved cybersecurity
- High network availability
- Flexible system expansion
- Simplified maintenance
These features are particularly valuable in industrial automation systems where communication interruptions can affect production.
Routine Maintenance
Regular inspection helps maintain stable network performance.
| Inspection Item | Purpose |
|---|---|
| Fiber Connectors | Inspect and clean optical interfaces |
| RJ45 Ports | Check mechanical condition |
| Power Supply | Verify stable input voltage |
| LED Indicators | Confirm communication status |
| Cooling Openings | Remove dust accumulation |
| Cabinet Temperature | Prevent overheating |
| Network Performance | Monitor communication quality |
| Configuration Backup | Protect network settings |
| Fiber Cables | Inspect cable integrity |
| Event Logs | Review system operation |
Preventive maintenance minimizes unexpected communication failures.
Common Troubleshooting Symptoms
| Symptom | Possible Cause |
|---|---|
| Communication Failure | Cable or switch malfunction |
| Fiber Link Loss | Optical connector contamination |
| Device Offline | Configuration issue |
| Slow Network Performance | High network traffic |
| Port Inactive | Hardware or configuration fault |
| Broadcast Storm | Network loop |
| Redundancy Alarm | Network topology issue |
| Communication Timeout | Network interruption |
| No Power Indicator | Power supply failure |
| Packet Loss | Network congestion or damaged fiber |
Comprehensive troubleshooting should include inspection of connected controllers, communication cables, optical modules, network settings, and power supplies.
Recommended Alternative Models
| Model | Product Type | Key Feature | Typical Application |
|---|---|---|---|
| A4H124-24FX P0973JN | Managed Ethernet Switch | 24 Fiber Ports + Gigabit Uplinks | Foxboro DCS Networks |
| A2H124-24FX | Managed Ethernet Switch | Industrial Fiber Communication | Process Automation |
| Industrial Layer 2 Switch | Ethernet Switch | Managed Network Control | Industrial Networks |
| Fiber Optic Managed Switch | Communication Device | Long-Distance Transmission | Power Industry |
| Gigabit Backbone Switch | Industrial Switch | High-Speed Uplink | Manufacturing |
| Industrial Communication Switch | Managed Switch | Stable Network Infrastructure | Chemical Plants |
| Rack-Mount Ethernet Switch | Network Equipment | Centralized Network Management | Industrial Automation |
| Fiber Network Switch | Managed Ethernet Device | High Availability | Process Control Systems |
Alternative equipment should always be selected according to network architecture, communication requirements, interface configuration, and system compatibility rather than physical dimensions alone.
Key Advantages
- Industrial-grade managed Ethernet switch
- Supports 24 fiber-optic communication ports
- Gigabit uplink capability
- Layer 2 switching architecture
- High-speed industrial communication
- Long-distance fiber transmission
- Strong immunity to electromagnetic interference
- VLAN and QoS support
- Network redundancy capability
- Suitable for continuous industrial operation
- Rack-mounted design
- Dimensions of 350 × 45 × 120 mm
- Approximate weight of 4.5 kg
- Compatible with Foxboro DCS communication systems
Technical FAQs
What is the Foxboro A4H124-24FX P0973JN?
It is an industrial managed Ethernet switch designed for high-reliability communication within Distributed Control Systems and industrial Ethernet networks.
What is its primary function?
Its primary function is to provide reliable Ethernet communication between industrial controllers, workstations, servers, remote I/O systems, and field devices.
Does it support fiber-optic communication?
Yes. It supports high-density fiber-optic communication together with Gigabit uplink interfaces for backbone connectivity.
What are its dimensions?
The overall dimensions are:
350 × 45 × 120 mm
What is the weight?
Approximately:
4.5 kg
Where is it typically installed?
It is commonly installed inside industrial communication cabinets, control rooms, and standard equipment racks.
Which industries commonly use this switch?
Typical applications include:
- Oil & Gas
- Petrochemical
- Power Generation
- Chemical Processing
- Water Treatment
- Pharmaceutical Manufacturing
- Manufacturing Automation
- General Industrial Control
Is it suitable for continuous industrial operation?
Yes. It is specifically designed for continuous operation in industrial automation environments where network stability and reliability are essential.
Conclusion
The Foxboro A4H124-24FX P0973JN Industrial Managed Ethernet Switch is a robust communication platform developed for demanding industrial Ethernet applications. By combining high-density fiber-optic connectivity, advanced Layer 2 management functions, and industrial-grade reliability, it provides a dependable network backbone for Distributed Control Systems and large-scale automation infrastructures.
With dimensions of 350 × 45 × 120 mm and an approximate weight of 4.5 kg, the switch is suitable for rack-mounted installation within industrial communication cabinets. It integrates seamlessly with Foxboro controllers, engineering workstations, operator stations, remote I/O modules, industrial servers, and fiber-optic communication systems to create a scalable and highly reliable industrial network.
For industrial automation engineers and system integrators, the A4H124-24FX P0973JN delivers stable communication performance, simplified network management, and excellent long-term operational reliability, making it an ideal solution for modern industrial Ethernet infrastructures.
