Product Overview

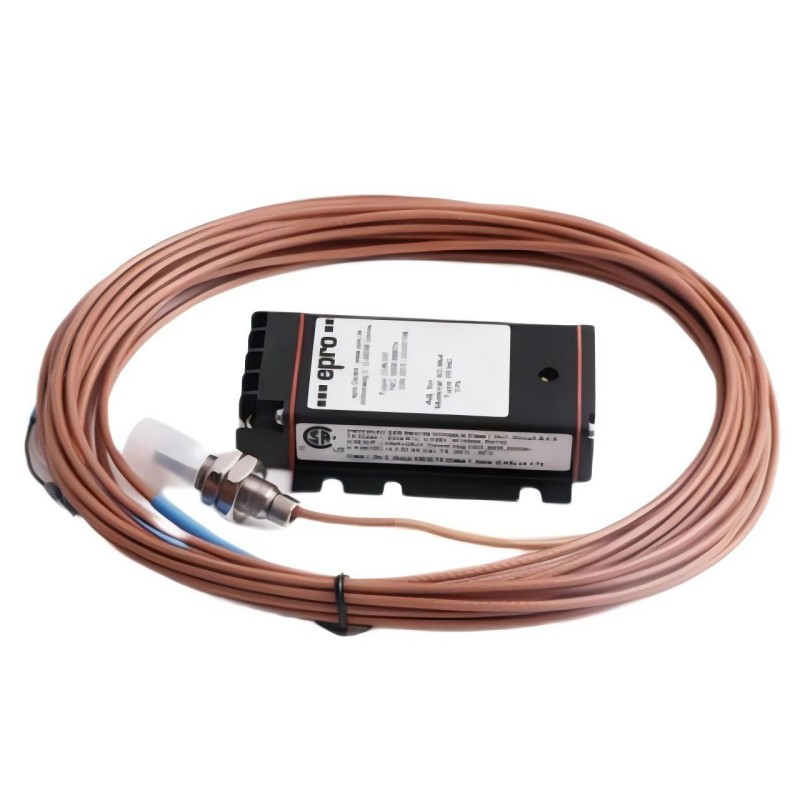

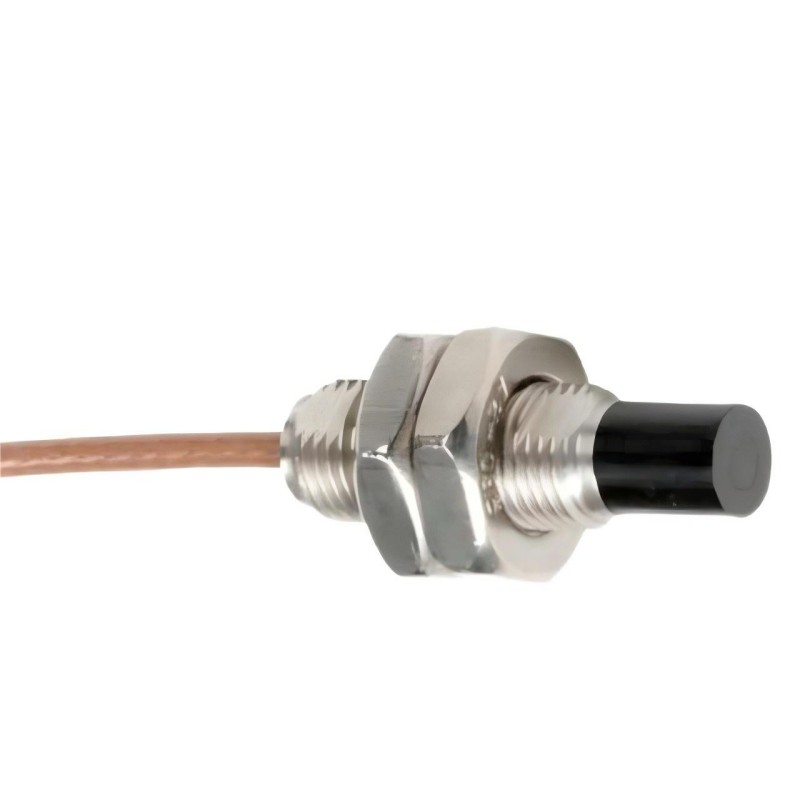

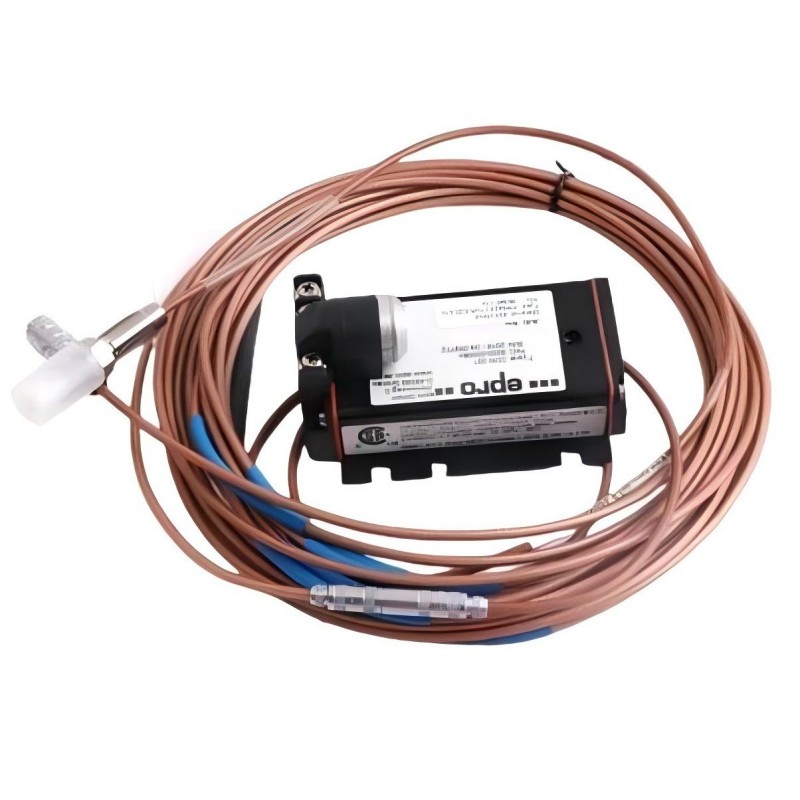

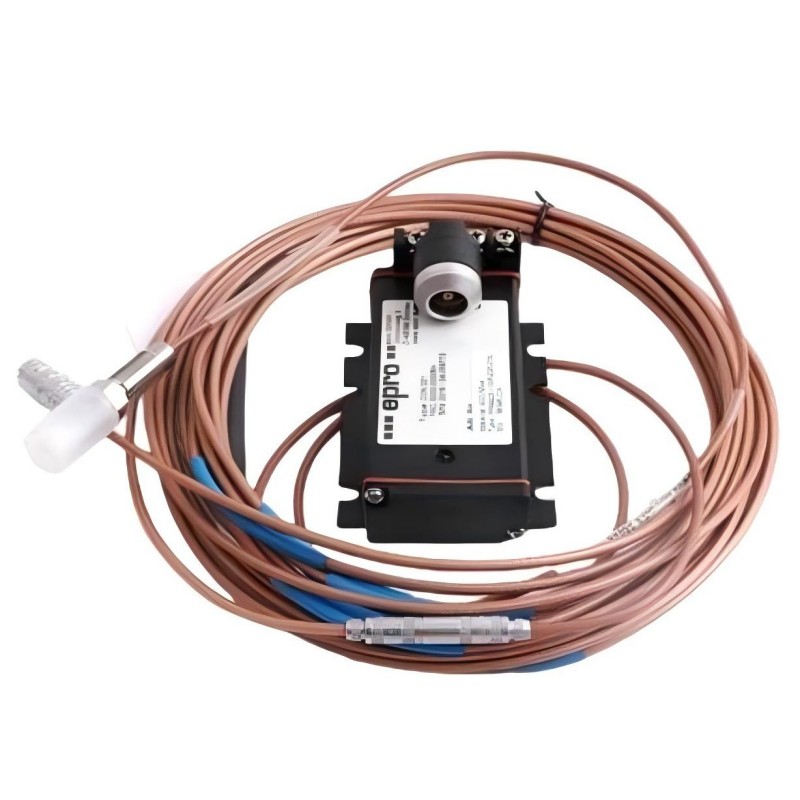

The Epro PR6423/014-121 is an 8 mm eddy current sensor used for non-contact monitoring of shaft movement in rotating machinery. It is part of the PR6423 sensor family and serves as the sensing element in machinery vibration, displacement, and position monitoring systems.
The sensor is installed close to a conductive shaft or other suitable target without making physical contact. As the target moves relative to the sensor, the resulting change in the electromagnetic field is used to detect variations in the sensor-to-target distance.
This type of sensing is commonly used on rotating equipment where direct mechanical contact with the monitored shaft is undesirable. Turbines, compressors, pumps, generators, and motors can use eddy current probes as part of continuous machinery condition monitoring and protection arrangements.
The PR6423/014-121 works together with compatible signal-conditioning electronics and monitoring equipment. Proper sensor positioning, target alignment, mounting stability, and the complete probe-to-monitoring interface should be considered during installation and replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/014-121 |
| Product Family | PR6423 Series |
| Product Type | 8mm Eddy Current Sensor |
| Primary Function | Non-contact shaft displacement measurement |
| Sensing Principle | Eddy Current |
| System Role | Rotating machinery displacement and vibration sensor |
| Typical Application | Turbine, compressor, pump, and generator monitoring |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
Product Features
- 8 mm eddy current sensing configuration
- Non-contact detection of conductive shaft movement
- Suitable for rotating machinery displacement monitoring
- Supports vibration and shaft-position measurement applications
- Part of the Epro PR6423 Series
- Suitable for continuous machinery monitoring systems
- Interfaces with compatible eddy current signal-conditioning equipment
- Useful for turbine, compressor, pump, motor, and generator monitoring
- Suitable for machinery protection and condition monitoring installations
Working Principle
The PR6423/014-121 generates an electromagnetic sensing field at the probe tip and responds to changes caused by the proximity of a conductive target. Relative movement between the probe and shaft changes the electrical response of the sensing circuit.
The associated signal-conditioning equipment converts this response into a measurement signal that can be evaluated by a machinery monitoring system. Depending on the installation, the resulting information can be used to observe shaft displacement, relative position, or vibration-related movement.
Conductive Shaft / Target → PR6423/014-121 Sensor → Eddy Current Signal Converter → Monitoring System → Alarm / Protection
The sensor is therefore one part of the complete measurement chain. It does not independently analyze machine condition or initiate a protective trip. Sensor installation conditions and the compatibility of the downstream signal-conditioning equipment directly affect the quality of the measurement.
Role in an Eddy Current Machinery Monitoring Architecture
The PR6423/014-121 occupies the field sensing layer of the machinery monitoring system. It converts relative mechanical movement between the sensor and conductive target into information that can be processed by downstream electronics.
Rotating Shaft → PR6423/014-121 → Signal Converter → Machinery Monitoring Module → Alarm / Trip → Machine Protection
| System Element | Function |
|---|---|
| Rotating Shaft | Provides the conductive target being monitored |
| PR6423/014-121 | Detects relative movement between the probe and target |
| Eddy Current Signal Converter | Conditions the sensor response for monitoring |
| Machinery Monitoring Module | Processes displacement or vibration-related information |
| Alarm System | Indicates abnormal machinery conditions |
| Protection Logic | Evaluates configured limits and required protective actions |
| Shutdown / Trip System | Initiates machine protection when required |
The measurement chain allows mechanical movement at the shaft to be converted into an electrical signal that can be evaluated by the wider machinery protection system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft displacement and vibration monitoring |
| Gas Turbines | Rotor movement and machinery protection |
| Compressors | Shaft movement and condition monitoring |
| Pumps | Non-contact shaft displacement measurement |
| Generators | Rotor position and vibration monitoring |
| Motors | Shaft condition monitoring |
| Expanders | High-speed rotating equipment monitoring |
| Industrial Turbomachinery | Continuous shaft monitoring |
| Process Plants | Critical rotating equipment protection |
| Power Generation | Turbine and generator monitoring |
Installation and Maintenance
- Verify the complete PR6423/014-121 model designation before installation.
- Confirm compatibility with the existing PR6423 measurement and signal-conditioning arrangement.
- Isolate the monitored machinery before performing probe installation or replacement.
- Inspect the sensor head for physical damage or contamination.
- Check the mounting location and ensure that the probe can be positioned correctly relative to the target.
- Establish the probe-to-target gap according to the requirements of the associated measurement system.
- Maintain correct sensor alignment with the conductive shaft or target surface.
- Inspect wiring, connectors, and terminations for damage or loose connections.
- Verify that the associated signal converter and monitoring equipment are correctly connected.
- Check the sensor signal during commissioning and confirm that the output remains within the expected operating range.
- Investigate unstable or unexpected readings by checking probe position, target condition, mounting, wiring, and signal-conditioning equipment.
- After replacement, verify the complete measurement chain and confirm correct monitoring operation before returning the machinery to service.
Compatible System Components
| Component | Function |
|---|---|
| Epro Eddy Current Signal Converter | Conditions the PR6423 sensor response |
| Epro PR6423 Series Sensors | Provides non-contact displacement measurements |
| Proximity Extension Cable | Connects the sensor to associated electronics |
| Probe Mounting Hardware | Maintains the sensor position relative to the target |
| Machinery Monitoring Module | Evaluates shaft displacement and vibration information |
| Rotating Shaft / Rotor | Provides the conductive measurement target |
| Alarm System | Indicates abnormal machinery operating conditions |
| Machine Protection System | Performs configured protective actions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/014-010 | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/014-030 | 8mm Eddy Current Sensor | Rotating machinery monitoring |
| Epro PR6423/014-040 | 8mm Eddy Current Sensor | Shaft movement measurement |
| Epro PR6423/014-121 | 8mm Eddy Current Sensor | Non-contact shaft monitoring |
| Epro PR6423 Series | Eddy Current Sensor Family | Machinery displacement monitoring |
| Epro PR6423 + CON021 | Sensor + Signal Converter | Complete eddy current measurement chain |
| Epro PR6423 + CON031 | Sensor + Signal Converter | Machinery monitoring applications |
| Epro Eddy Current Signal Converters | Signal Conditioning Equipment | Sensor signal processing |
Key Advantages
- Provides non-contact sensing of conductive shaft movement.
- Suitable for continuous rotating machinery monitoring.
- Supports shaft displacement, position, and vibration-related measurements.
- Fits into PR6423 eddy current measurement architectures.
- Can be integrated with compatible signal-conditioning and machinery protection equipment.
- Suitable for critical rotating equipment in industrial and power-generation applications.
Technical FAQs
What type of machinery can use the PR6423/014-121?
The sensor can be used in rotating machinery monitoring arrangements where non-contact measurement of a conductive target is required. Typical applications include turbines, compressors, pumps, generators, motors, and other critical rotating equipment.
How does the PR6423/014-121 detect shaft movement?
It uses an eddy current sensing principle to detect changes in the relationship between the sensor and a conductive target. Relative shaft movement changes the sensor response, which is then processed by compatible signal-conditioning electronics.
What factors can cause an unstable PR6423/014-121 signal?
Probe-to-target gap, sensor alignment, mounting stability, target surface condition, wiring, connectors, and signal-conditioning equipment can all influence the measurement. These areas should be inspected before replacing the sensor solely on the basis of an unstable reading.
Can the PR6423/014-121 be replaced without checking the signal-conditioning equipment?
The complete measurement chain should be considered when selecting a replacement. The sensor configuration, associated signal converter, wiring arrangement, mounting conditions, and monitoring-system interface should be compatible with the installed application.
