Product Overview

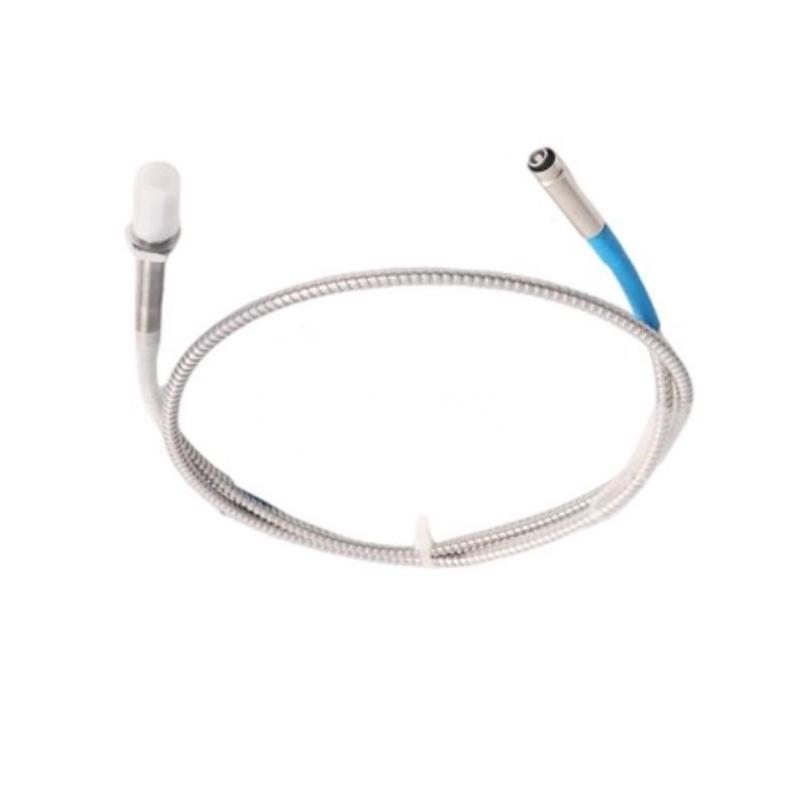

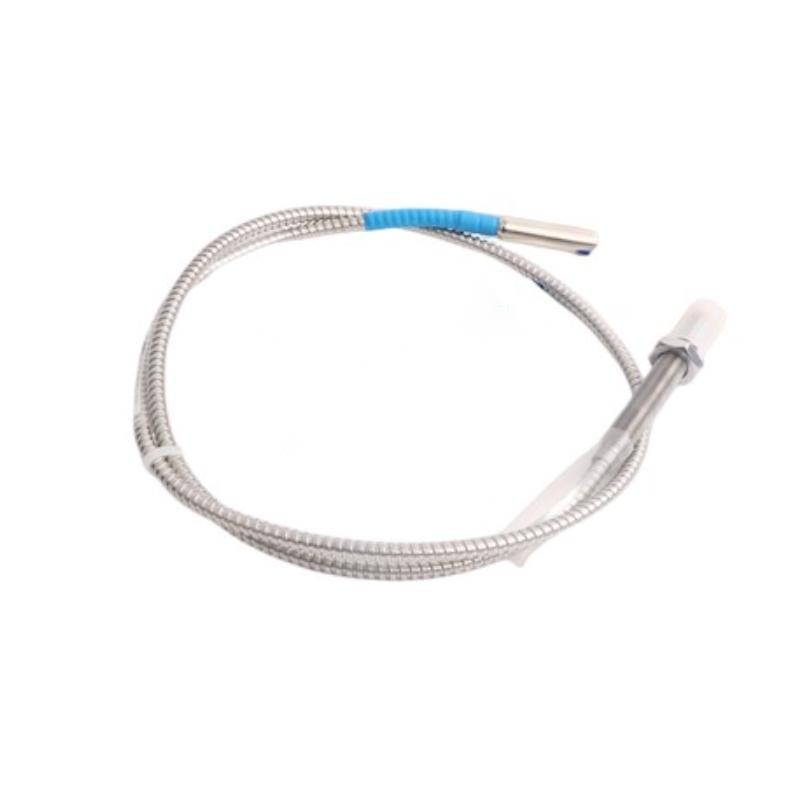

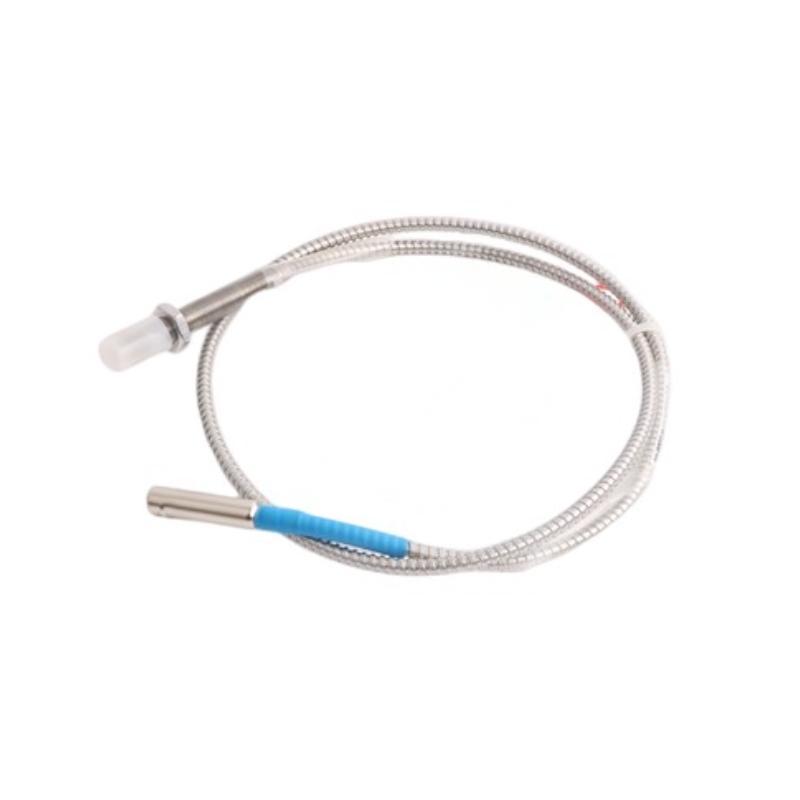

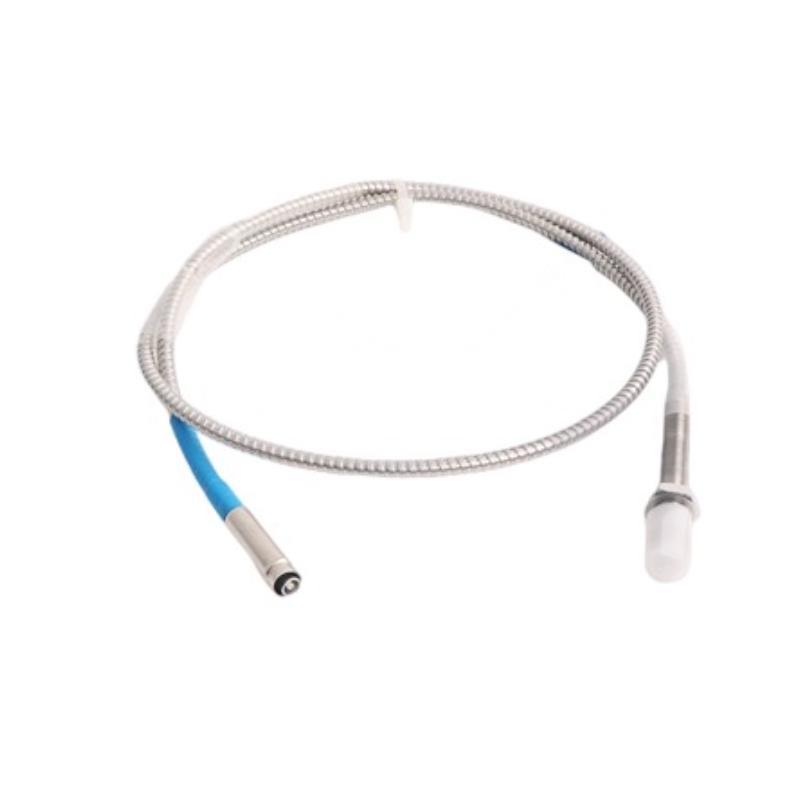

The Epro PR6423/014-030 is an 8 mm eddy current sensor for non-contact monitoring of relative movement between a conductive machine target and the sensor tip. It is suited to rotating machinery where mechanical movement must be detected without placing a physical sensing element against the moving component.

The sensor can be installed near shafts, rotors, thrust components, or other conductive surfaces to monitor changes in relative position. In machinery condition-monitoring systems, this type of measurement is commonly used to observe shaft displacement, vibration-related movement, and changes in running position.

The PR6423/014-030 functions as the sensing element within a larger measurement chain. A compatible driver or signal-conditioning device supplies the required sensor interface and processes the resulting signal before it is transferred to the machinery monitoring system.

Mechanical installation has a direct influence on measurement stability. Probe alignment, mounting rigidity, target geometry, and the operating gap should therefore be considered when installing the sensor on turbines, compressors, pumps, generators, and similar equipment.

Technical Specifications

Product Features

• 8 mm eddy current sensing head for industrial machinery monitoring.
• Non-contact detection of movement relative to conductive targets.
• Suitable for shaft displacement and proximity measurement.
• Can be used for vibration-related monitoring on rotating machinery.
• Requires compatible driver or signal-conditioning electronics.
• Suitable for continuous monitoring arrangements.
• Applicable to turbines, compressors, pumps, generators, and other rotating equipment.
• Useful where direct mechanical contact with the monitored component is undesirable.

Working Principle

The PR6423/014-030 uses an electromagnetic sensing field to detect the presence and relative position of a conductive target. Changes in the gap between the sensing head and the target alter the electrical characteristics of the sensing circuit.

When installed beside a rotating shaft, for example, shaft movement changes the probe-to-shaft distance. The resulting signal variation can be processed by the associated driver and used by the monitoring system to determine changes in shaft position or movement.

Conductive Machine Target → PR6423/014-030 → Compatible Driver / Signal Conditioner → Monitoring System

The sensor is therefore only one stage of the measurement system. Accurate machinery monitoring depends on the interaction between the probe, target surface, associated electronics, cabling, and monitoring equipment.

Role in a Rotating Machinery Monitoring Architecture

The PR6423/014-030 is normally installed at the machine as the physical sensing point, while the driver and monitoring electronics are connected elsewhere in the instrumentation system. This arrangement allows the sensor to remain close to the monitored mechanical component while signal processing is handled by compatible electronic equipment.

Machine Shaft / Conductive Target → PR6423/014-030 → Driver → Machinery Monitoring System → Alarm / Protection

This separation between sensing and signal processing allows the probe to be integrated into a broader machinery protection or condition-monitoring installation.

Industrial Applications

Installation and Maintenance

1. Confirm that the PR6423/014-030 is suitable for the intended measurement point and monitoring system.
2. Inspect the sensor and cable before installation for visible mechanical damage.
3. Mount the sensing head securely at the specified measurement location.
4. Maintain the appropriate probe-to-target relationship during installation.
5. Ensure the sensor is aligned with the intended conductive measurement surface.
6. Avoid mechanical contact between the probe and rotating equipment during operation.
7. Route the sensor cable to prevent excessive pulling, bending, or mechanical damage.
8. Verify the sensor connection to the compatible driver or signal-conditioning equipment.
9. Check the resulting measurement during initial commissioning.
10. Investigate sudden signal changes for possible probe movement or changes in the monitored target.
11. Inspect the complete sensor circuit if the monitoring system reports an intermittent or missing signal.
12. After replacement, confirm the mechanical position and verify stable measurement before placing the machinery back into normal operation.

Compatible System Components

Recommended Related Models

Key Advantages

• Enables non-contact monitoring of conductive machine components.
• Uses an 8 mm sensing head for proximity and displacement applications.
• Suitable for rotating machinery where shaft movement must be monitored continuously.
• Keeps the sensing element separate from the moving machine surface.
• Can be combined with compatible Epro drivers and monitoring electronics.
• Suitable for machinery condition monitoring and protection architectures.

Technical FAQs

What type of machine movement can the PR6423/014-030 detect?

The sensor can be used to detect changes in relative distance between its sensing head and a conductive target. In rotating machinery, this can support monitoring of shaft displacement, radial movement, or other relative positional changes depending on the installation.

Why is the probe-to-target gap important?

The sensor response depends on the relationship between the sensing head and the conductive target. An incorrect or unstable gap can affect the measurement and may produce an abnormal monitoring signal even when the sensor electronics are functioning correctly.

What should be investigated if a normal shaft signal suddenly becomes unstable?

First inspect the probe mounting and mechanical relationship with the shaft or target. The sensor cable, driver, connections, and monitoring channel should then be checked to determine whether the instability originates from the mechanical installation or the electrical signal path.

Is the PR6423/014-030 itself a complete machinery protection system?

No. The PR6423/014-030 is the sensing element. A complete monitoring or protection installation normally also requires compatible signal-conditioning electronics and a machinery monitoring system capable of evaluating the resulting measurement.
