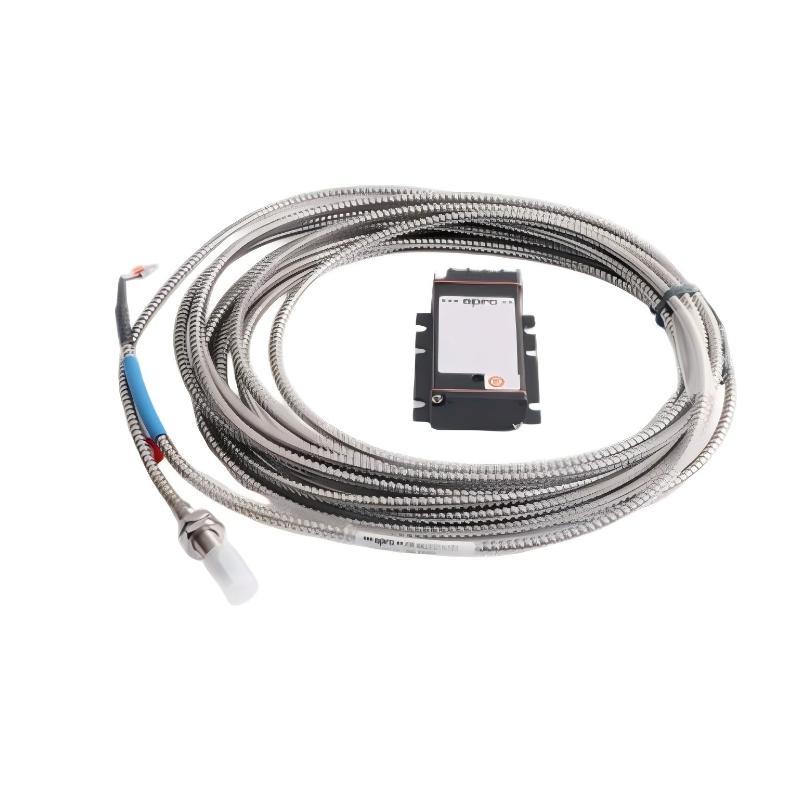

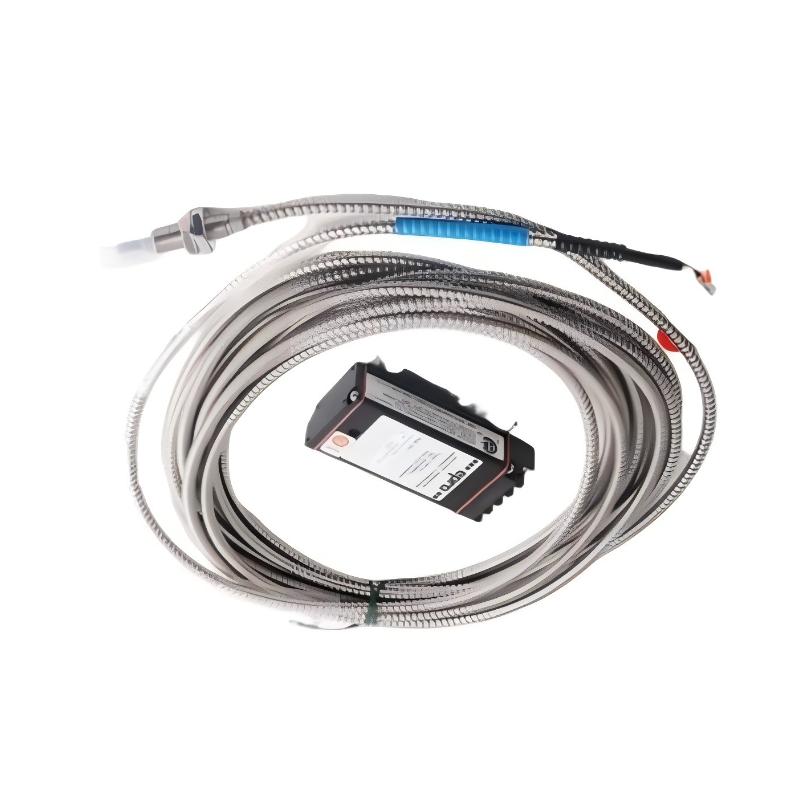

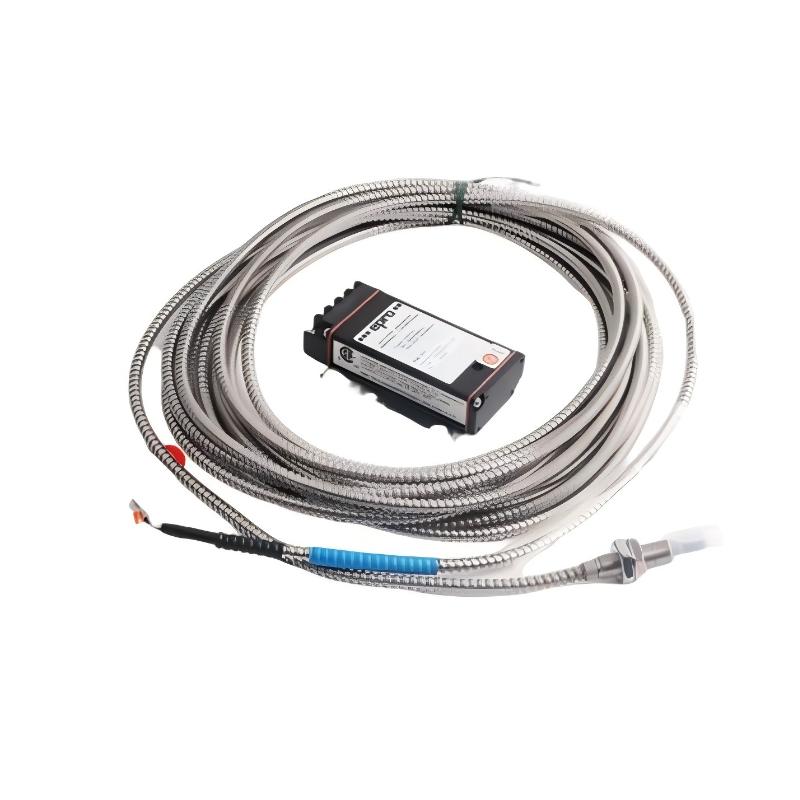

- Epro
- PR6423/012-010
- 8mm Eddy Current Sensor
- Germany
- 8 mm
- 0.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Epro PR6423/012-010 8mm Eddy Current Sensor is a non-contact displacement sensor used for monitoring the position and movement of conductive machine components. It is commonly applied to rotating machinery where shaft position, vibration, axial movement, or other mechanical changes need to be detected without physical contact between the probe and the target.
The sensor is typically installed with its sensing head facing a conductive rotating target such as a turbine shaft, compressor shaft, pump shaft, or other precision-machined surface. Changes in the distance between the probe and the target affect the electromagnetic field around the sensing element, allowing the associated electronics to determine changes in target position.
In machinery protection systems, the probe is normally installed as part of a complete measurement chain rather than operating as a standalone monitoring instrument. Its output is processed by compatible driver or signal-conditioning electronics before being delivered to a machinery monitoring or protection system.
Proper probe installation is particularly important for rotating equipment. Probe orientation, target material, mounting stability, and the operating gap between the sensor and shaft all affect measurement quality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/012-010 |
| Product Family | PR6423 Series |
| Product Series | PR6423 |
| Product Type | 8mm Eddy Current Sensor |
| Primary Function | Non-contact displacement and position measurement |
| System Role | Eddy current sensing element |
| Typical Application | Rotating machinery monitoring |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
Product Features
- 8 mm eddy current sensing head
- Non-contact measurement of conductive machine targets
- Suitable for rotating machinery applications
- Can detect changes in shaft position relative to the probe
- Applicable to vibration and displacement monitoring arrangements
- Works with compatible eddy current driver electronics
- Suitable for machinery condition monitoring and protection systems
- Useful where mechanical contact with the rotating target is undesirable
Working Principle
The PR6423/012-010 operates through an eddy current measurement principle. When the probe is positioned near a conductive target, its sensing coil generates an electromagnetic field. The presence and position of the conductive target influence this field.
As the rotating shaft moves closer to or farther from the probe, the electrical characteristics of the sensing circuit change. The associated driver electronics convert these changes into a usable measurement signal representing the relative position between the probe and the target.
Rotating Shaft → PR6423/012-010 → Eddy Current Driver → Machinery Monitoring System → Alarm / Protection
For shaft vibration measurement, the probe observes the changing radial position of the shaft during rotation. For axial-position monitoring, an appropriately positioned probe can detect movement along the shaft axis. The actual measurement function depends on the mechanical installation and the monitoring system configuration.
The sensor therefore forms the front end of the measurement chain. Signal conditioning, scaling, alarm limits, and protection decisions are handled by the associated electronics and machinery monitoring system.
Role in a Machinery Monitoring System
The PR6423/012-010 acts as the sensing element between the rotating machine and the electronic monitoring equipment. It converts changes in the electromagnetic interaction with the conductive target into a signal that can be processed by compatible driver electronics.
Rotating Shaft / Conductive Target → PR6423/012-010 → Driver / Signal Conditioning → Monitoring System → Alarm / Protection
| System Element | Function |
|---|---|
| Rotating Shaft | Provides the conductive measurement target |
| PR6423/012-010 | Detects changes in the target-to-probe relationship |
| Eddy Current Driver | Supplies the sensor and conditions the measurement signal |
| Machinery Monitoring System | Processes and evaluates the measured condition |
| Protection System | Generates configured alarms or protective actions |
| Control System | Uses monitoring information for equipment operation and supervision |
The probe does not independently determine machine health or generate the final protection decision. Those functions depend on the connected driver and monitoring equipment.
Industrial Applications
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft vibration and position monitoring |
| Gas Turbines | Rotating shaft displacement measurement |
| Centrifugal Compressors | Shaft movement and machinery condition monitoring |
| Pumps | Monitoring rotating-shaft mechanical behavior |
| Generators | Rotor position and vibration measurement |
| Large Motors | Shaft movement and condition monitoring |
| Gearboxes | Rotating component displacement monitoring |
| Industrial Machinery | Non-contact measurement of conductive rotating targets |
Installation and Maintenance
- Confirm that the PR6423/012-010 is suitable for the intended monitoring application and associated electronics.
- Select a mechanically stable mounting location with a clear view of the conductive target.
- Verify that the target surface is suitable for eddy current measurement.
- Install the probe with the correct orientation relative to the shaft or monitored component.
- Set the probe-to-target gap according to the applicable sensor and driver requirements.
- Secure the probe mounting arrangement to prevent movement caused by machine vibration.
- Route the sensor cable away from sources of excessive mechanical stress and electrical interference.
- Check the sensor and cable connections before energizing the driver electronics.
- Verify the sensor output at standstill before starting the rotating equipment.
- Confirm that the measurement remains stable as machine speed increases.
- Inspect the probe mounting and cable condition during scheduled machinery maintenance.
- After replacement or adjustment, verify the measurement signal and monitoring-system alarm limits before returning the machine to service.
Compatible System Components
| Component | Function |
|---|---|
| Eddy Current Driver | Excites the probe and converts the sensing response into a usable signal |
| Probe Extension Cable | Connects the sensor to the associated driver when required |
| Machinery Monitoring System | Receives and evaluates the conditioned measurement |
| Vibration Monitoring Module | Processes shaft vibration or displacement information |
| Machine Protection System | Uses measured conditions for alarm and protective functions |
| Shaft / Conductive Target | Provides the monitored machine surface |
| Probe Mounting Hardware | Maintains the required probe position and alignment |
| Control System | Uses available machinery condition information for supervision |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423 Series | Eddy Current Sensor | Rotating machinery displacement measurement |
| Epro PR6423/010 Series | 8mm Eddy Current Sensor | Shaft vibration and position monitoring |
| Epro PR6423/011 Series | 8mm Eddy Current Sensor | Non-contact shaft displacement measurement |
| Epro PR6423/012 Series | 8mm Eddy Current Sensor | Rotating machinery monitoring |
| Epro CON Series | Eddy Current Signal Converter | Sensor signal conditioning |
| Epro MMS Series | Machinery Monitoring System | Vibration, displacement, and protection monitoring |
Key Advantages
- Non-contact measurement avoids physical contact with the rotating shaft.
- The 8 mm sensing head is suitable for applications requiring a compact probe arrangement.
- Detects relative movement between the sensor and conductive machine target.
- Can be incorporated into shaft vibration and displacement measurement systems.
- Suitable for continuous monitoring of critical rotating machinery.
- Allows mechanical movement to be evaluated by downstream monitoring electronics.
- Can support machinery protection applications when integrated with the appropriate monitoring system.
Technical FAQs
How should the PR6423/012-010 be positioned relative to a rotating shaft?
The probe should be mounted so that its sensing axis faces the intended conductive target and remains mechanically stable during operation. The probe-to-target gap must be established according to the requirements of the associated driver and monitoring arrangement.
What could cause an unstable PR6423/012-010 measurement?
An unstable signal can result from probe movement, incorrect gap, shaft surface irregularities, cable problems, unsuitable target conditions, or issues with the associated driver electronics. Checking the mechanical installation before replacing the sensor can help isolate the cause.
Can the PR6423/012-010 be connected directly to a machinery monitoring system?
The probe normally works with compatible eddy current driver or signal-conditioning electronics. The driver provides the required sensor interface and converts the probe response into a signal that the monitoring system can process.
What should be checked after replacing the probe?
Verify the mechanical position, probe-to-target gap, cable connection, driver operation, and resulting measurement signal. The machine should then be checked at controlled operating conditions to confirm that the monitoring system receives a stable and correctly scaled signal.
