Product Overview

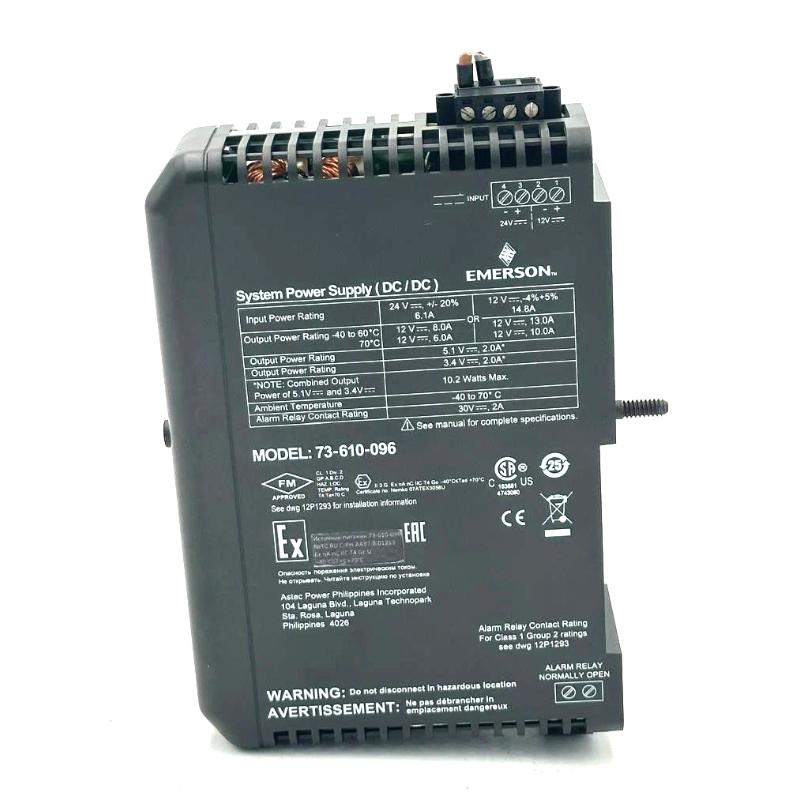

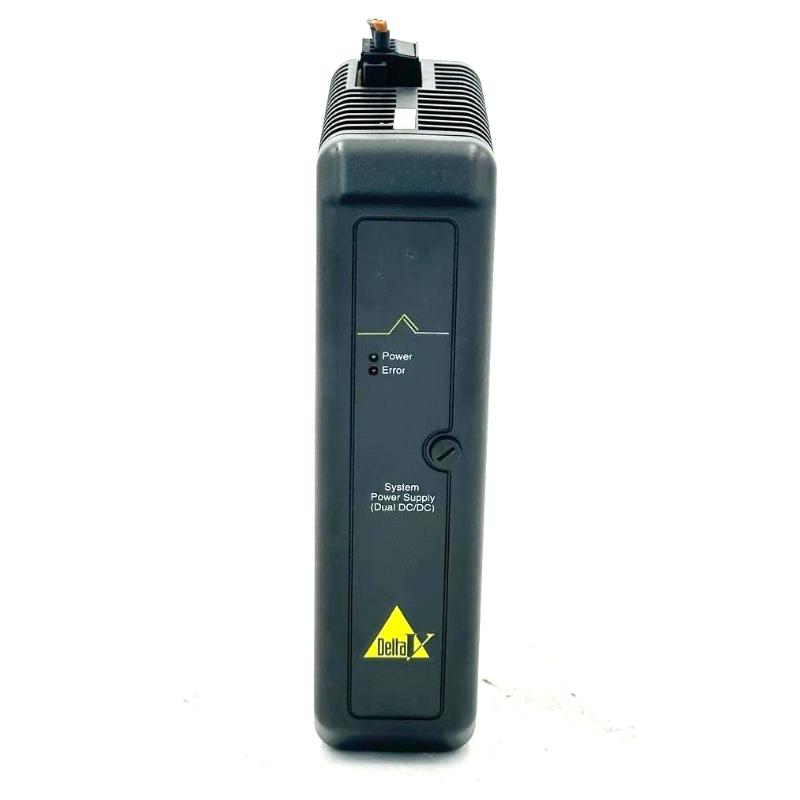

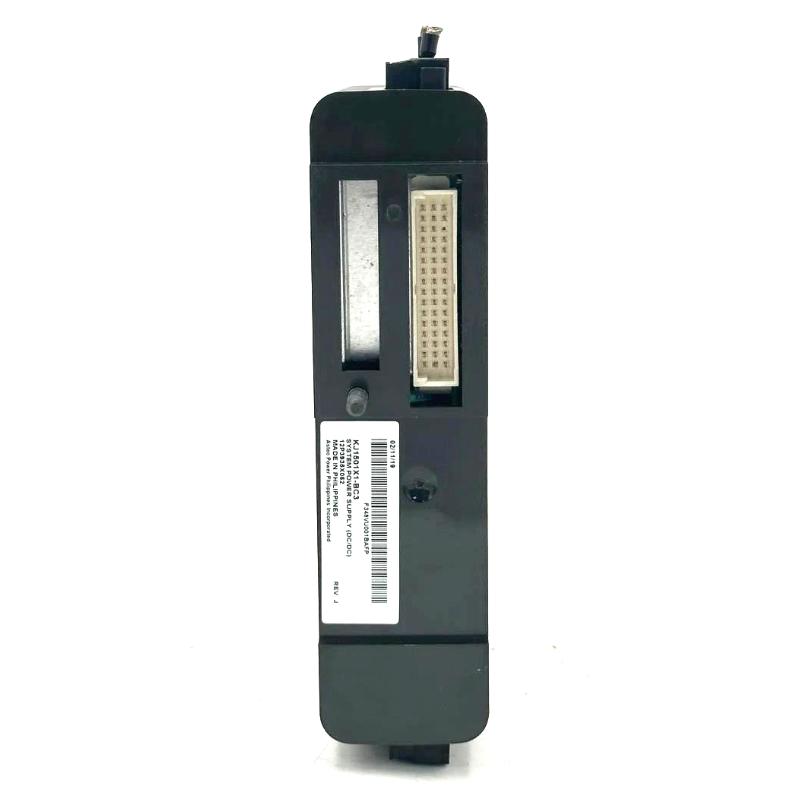

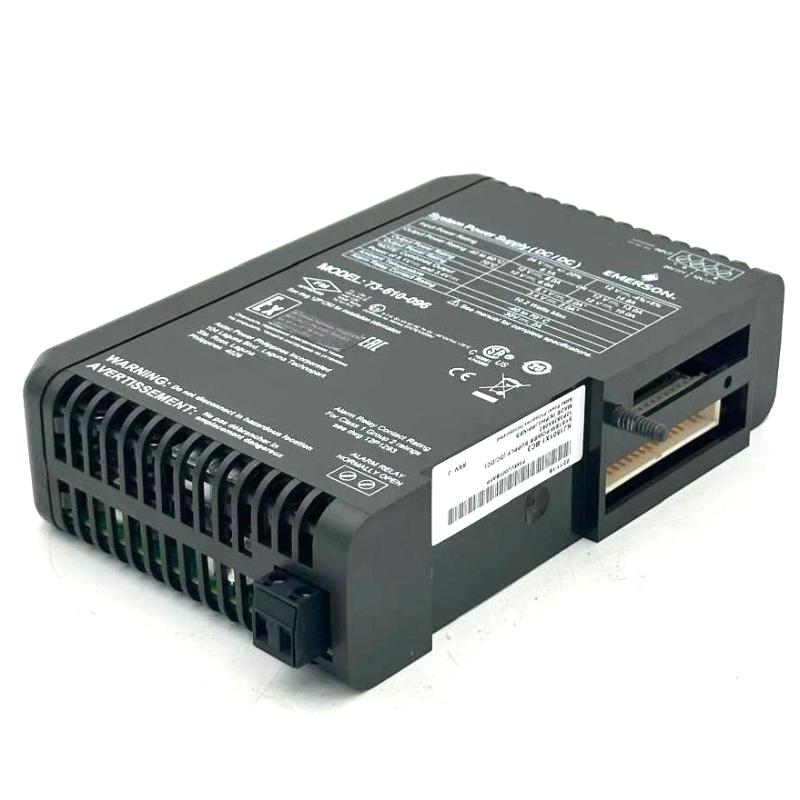

The Emerson VE5009 KJ1501X1-BC3 is identified as a DeltaV M-Series 24/12 VDC Enhanced System Power Supply. In a modular process-control cabinet, the system power supply converts incoming DC power into the voltage rails required by compatible control-system electronics.
The KJ1501X1-BC3 part number is important when selecting a replacement. DeltaV power supplies can share a similar physical format while differing in input requirements, output capability, or carrier compatibility. The complete model designation should therefore be checked against the installed system configuration rather than selecting a unit by its family name alone.
This supply belongs to the system-power layer of a DeltaV installation. Its role is distinct from that of field-power equipment, which supplies instruments, transmitters, valves, and other devices connected to the process.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Product Model | VE5009 |
| Part Number | KJ1501X1-BC3 |
| Product Family | DeltaV M-Series |
| Product Type | Enhanced System Power Supply |
| Power Conversion Class | 24/12 VDC |
| System Application | DeltaV M-Series control-system power architecture |
| Dimensions | 44 × 178 × 114 mm |
| Weight | 0.998 kg |
Product Features
- System-level DC power conversion: Converts incoming DC power into the supply rails required by compatible DeltaV system electronics.
- M-Series integration: Intended for use within the DeltaV M-Series modular control-system architecture.
- Model-specific selection: The KJ1501X1-BC3 part number provides a more precise identification for procurement and replacement planning than the VE5009 family designation alone.
- Separation of system and field power: Serves the control-system power architecture rather than automatically replacing a dedicated field-device supply.
- Cabinet-based installation: Integrates into a modular control cabinet alongside controller, carrier, and I/O hardware.
Working Principle
The power supply receives DC power from the cabinet supply circuit and converts it into regulated DC rails for compatible DeltaV M-Series electronics. Power is delivered through the system’s designated mounting and electrical interface, allowing the controller and associated modules to operate within the intended power architecture.
In service, the supply depends on a stable input source, sound electrical connections, and a load within its rated capability. An input-voltage problem, loose connection, excessive load, or failed supply can cause power-related faults in the connected control hardware.
During commissioning or troubleshooting, technicians should first verify the incoming DC source and its polarity, then inspect the module’s seating and the system’s power-status indications. Field-device power circuits should be checked separately so that an instrument or actuator fault is not mistaken for a failure of the system power supply.
Role in a DeltaV M-Series Control System Architecture
The VE5009 KJ1501X1-BC3 occupies the power-supply layer of the DeltaV M-Series architecture. The carrier provides the mounting and interconnection arrangement, the controller executes control strategies, and I/O modules exchange signals with field equipment. The system power supply provides the electrical power needed by compatible control-system electronics.
Correct model matching is essential when replacing the unit. The input supply class, required output rails, carrier arrangement, and system configuration must all be compatible. A similar-looking power supply from another DeltaV series or with a different part-number suffix should not be assumed interchangeable without confirming its electrical and mechanical requirements.
In fault diagnosis, separating the power supply, controller, I/O, and field-power functions helps narrow the cause of a shutdown or module fault. Confirming that the incoming source is stable before replacing control hardware can prevent unnecessary component changes.
Industrial Applications
- Process control cabinets: Supplies compatible control-system electronics in DeltaV-based process automation installations.
- Chemical and petrochemical plants: Forms part of the cabinet power arrangement for process monitoring and control.
- Oil and gas facilities: Supports DeltaV control hardware used in distributed process-control applications.
- Power and utility installations: Serves system electronics in plant monitoring and automation cabinets.
- Batch and continuous manufacturing: Powers compatible controller and I/O hardware used to coordinate process operations.
Installation and Maintenance
- Confirm the complete model number. Check that VE5009 KJ1501X1-BC3 matches the system’s required power-supply specification.
- Isolate the input source. Follow plant electrical safety procedures and lockout requirements before removing or installing the unit.
- Inspect the installation position. Check the mounting interface, connector condition, carrier, and nearby wiring for damage or contamination.
- Install the replacement correctly. Seat and secure the supply according to the applicable DeltaV hardware procedure.
- Verify input power. Check DC voltage, polarity, wiring integrity, and terminal tightness before restoring power.
- Check system status. After energizing, inspect the power-supply indications and confirm that the controller and connected I/O modules return to their expected states.
- Investigate recurring faults systematically. If the issue persists, check the input source, system connections, and load conditions before attributing the fault to another module.
- Record maintenance details. Document the full part number, installation position, observed indications, and corrective action for future service.
Related Components
| Component | Function |
|---|---|
| DeltaV M-Series Controller | Executes control strategies and coordinates control-system operation. |
| DeltaV M-Series I/O Modules | Interface process signals between the controller and field devices. |
| M-Series Carrier | Provides mounting and electrical interconnections for compatible modules. |
| Cabinet DC Power Source | Supplies the DC input to the system power supply. |
| Field Instrument Power Supply | Powers field devices where required by the instrument and loop design. |
Recommended Related Models
| Model or Component | Selection Consideration |
|---|---|
| Emerson VE5008 KJ1501X1-BC2 | Compare the complete part number, input requirements, output characteristics, and carrier compatibility before considering substitution. |
| Emerson VE5009 System Power Supply | Confirm the specific part-number suffix and electrical ratings; the family designation alone is not enough to establish interchangeability. |
| DeltaV M-Series Controller | Verify that the controller and its carrier match the intended power-supply configuration. |
| DeltaV M-Series I/O Modules | Consider the installed module configuration when checking system power requirements and diagnosing load-related faults. |
Key Advantages
- Converts DC input power for compatible DeltaV M-Series system electronics.
- Integrates into a modular process-control cabinet architecture.
- Provides a clearly identifiable part number for replacement planning and maintenance records.
- Allows system-power faults to be investigated separately from field-device power issues.
- Supports structured troubleshooting of cabinet power, carrier connections, and connected control hardware.
Technical FAQs
1. What is the function of the VE5009 KJ1501X1-BC3?
It is identified as a DeltaV M-Series 24/12 VDC Enhanced System Power Supply. Its system role is to convert incoming DC power into the power rails required by compatible control-system electronics.
2. Is the KJ1501X1-BC3 interchangeable with the KJ1501X1-BC2?
Do not assume interchangeability from the shared VE5009 family designation. Compare the complete part numbers, input and output ratings, carrier compatibility, and the requirements of the installed DeltaV system before making a substitution.
3. What should be checked before installing this power supply?
Verify the model and part number, the cabinet’s DC input source, polarity, mounting interface, connector condition, and system configuration. Restore power only after the installation has been checked according to the applicable electrical safety procedure.
4. What could cause a DeltaV system to remain unpowered after replacement?
Possible causes include an absent or unstable DC input, incorrect wiring, poor connector engagement, an incompatible replacement, or a problem elsewhere in the carrier and system power path. Check the input source and power-status indications before replacing additional modules.
