Product Overview

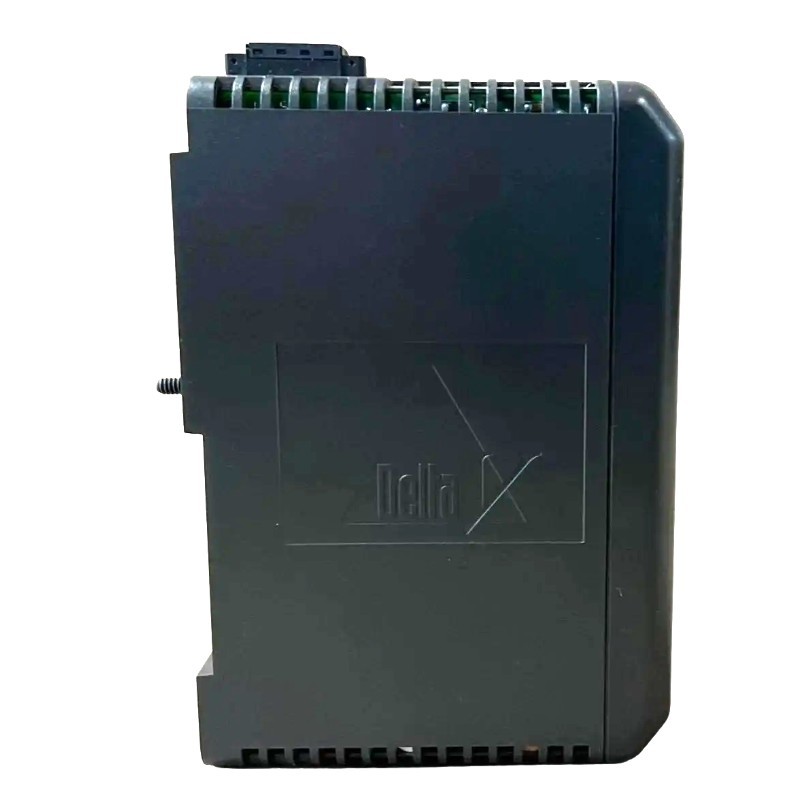

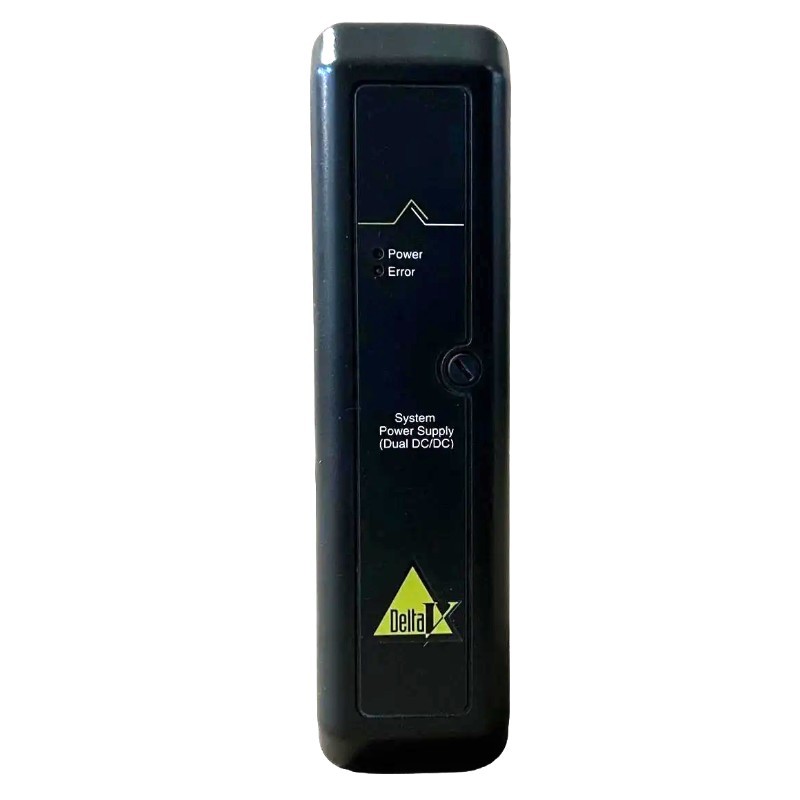

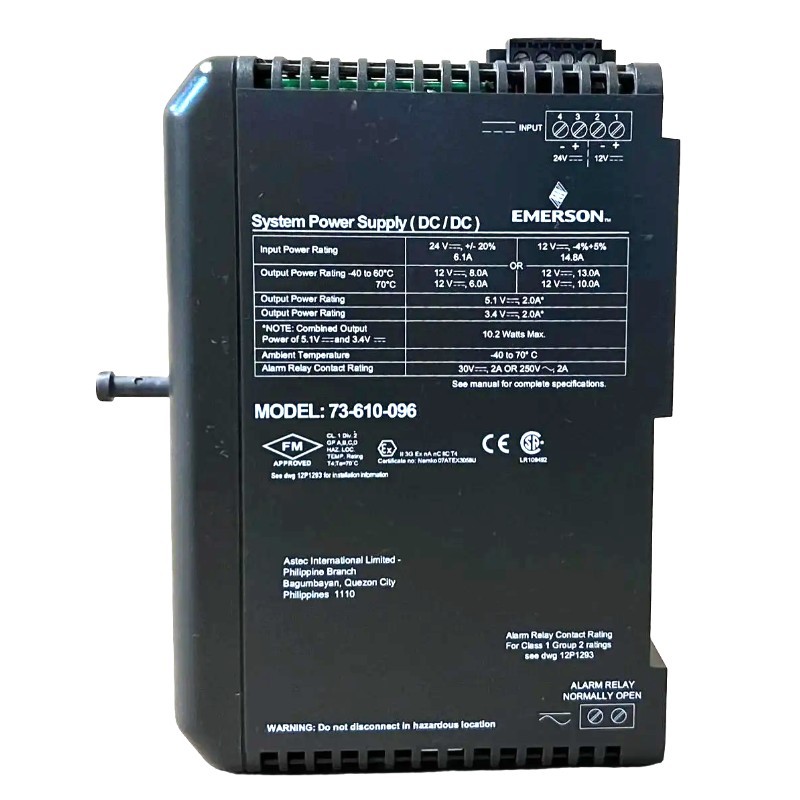

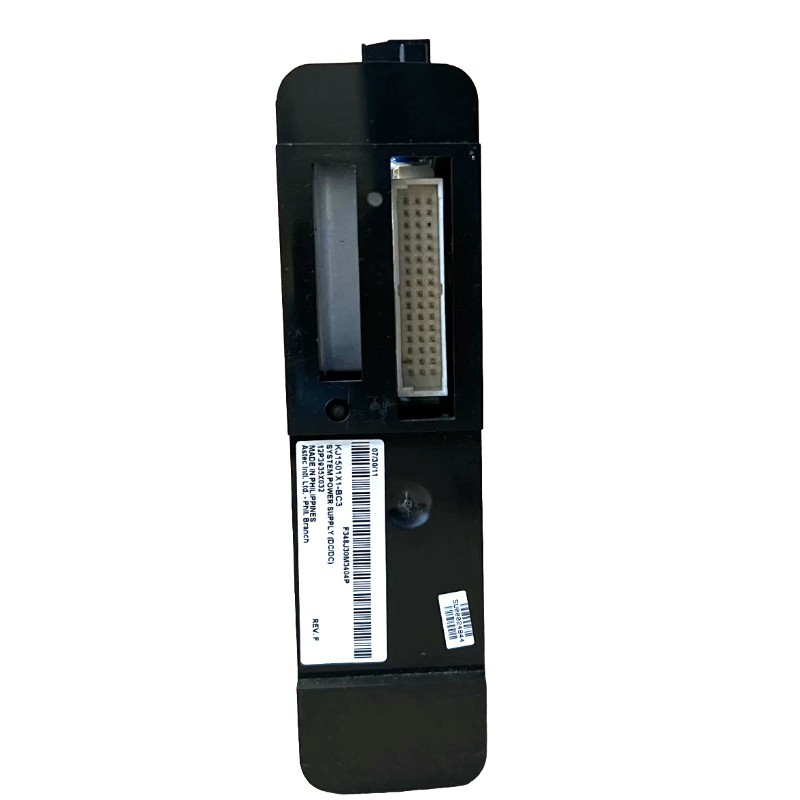

The Emerson VE5009 DeltaV M-Series 24/12 VDC Enhanced System Power Supply supplies regulated DC power to the internal power rails of a DeltaV M-Series control system. It is intended for installations where the available cabinet supply is 24 VDC and the controller or I/O carrier requires the appropriate lower-voltage rails for electronic modules.
Within a DeltaV cabinet, the power supply works with the system carrier and associated controller or I/O hardware. Its role is to convert the incoming DC supply into operating power for the system electronics, while power-status monitoring helps the control system identify supply conditions that could affect module operation.
The “24/12 VDC” designation identifies the power-conversion class, rather than a general-purpose 24 VDC field-power output. When selecting this unit, engineers should distinguish the system power rails from the separate power circuits used by field instruments, transmitters, solenoids, and other process devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE5009 |
| Product Family | Emerson DeltaV M-Series |
| Product Type | Enhanced System Power Supply |
| Input Power Class | 24 VDC |
| Conversion Class | 24 VDC to system-level DC rails |
| System Application | DeltaV M-Series controller and I/O carrier power architecture |
| Dimensions | 44 × 178 × 114 mm |
| Weight | 0.998 kg |
Product Features
- DC-to-DC power conversion: Converts the cabinet’s DC source into the voltage rails required by compatible DeltaV system electronics.
- System-level power delivery: Intended for the DeltaV M-Series power architecture rather than direct distribution of field-device power.
- Enhanced power-supply design: The VE5009 designation distinguishes this unit within the M-Series system power supply range.
- Integration with control hardware: Operates as part of a carrier-based control system, where power availability is essential to controller and I/O operation.
- Power-condition monitoring: System power status is relevant to identifying supply problems during commissioning, operation, and maintenance.
Working Principle
The VE5009 receives DC power from the cabinet supply and converts it into the regulated DC rails used by compatible DeltaV M-Series electronics. After installation in the designated system power position, it supplies power through the system’s carrier architecture rather than through individual field-wiring terminals.
During normal operation, the supply must remain within its specified input range and provide sufficient power for the connected system load. If the incoming source falls outside the permitted range, the supply is overloaded, or a connection develops excessive resistance, the resulting voltage disturbance may affect controller or I/O operation.
For commissioning, engineers should check input polarity, source voltage, carrier seating, and the system’s power-status indications. The power supply should not be treated as a substitute for a separate field-power supply unless the relevant system design explicitly specifies that arrangement.
Role in a DeltaV M-Series Control System Architecture
In a DeltaV M-Series installation, the VE5009 belongs to the system power layer. It works alongside the controller and I/O carrier hardware, which provides the physical mounting and electrical connections for the control-system modules.
The controller executes control strategies, while I/O modules exchange process signals with field devices. The system power supply provides the electrical power needed by the compatible electronics. Keeping these functions distinct is important: system power faults can interrupt control or signal processing, while field-power faults may affect instruments or actuators without indicating a failure of the system power supply itself.
Before replacing a VE5009, confirm the required supply type, input voltage class, carrier compatibility, and system configuration. Similar-looking DeltaV power supplies should not be treated as interchangeable solely because they belong to the same product family.
Industrial Applications
- Process automation cabinets: Supplies system electronics in DeltaV-based process control installations.
- Chemical and petrochemical plants: Used within control-system cabinets where controller and I/O hardware must remain powered during continuous process operation.
- Oil and gas facilities: Forms part of the system power arrangement for distributed process control.
- Power and utility systems: Supports DeltaV control hardware used for monitoring and control of plant equipment.
- Manufacturing and batch-process systems: Supplies compatible control-system electronics in applications requiring coordinated controller and I/O operation.
Installation and Maintenance
- Verify the power architecture. Confirm that the VE5009 is the specified model for the carrier and DeltaV system configuration.
- Isolate the DC source. De-energize the relevant supply circuit and follow the plant’s electrical safety and lockout procedures before installation or removal.
- Inspect the mounting position. Check the carrier slot, mating connectors, retaining hardware, and surrounding wiring for damage or contamination.
- Install the module correctly. Seat the power supply fully in its designated position and secure it according to the applicable system hardware procedure.
- Check the incoming supply. Verify DC voltage, polarity, grounding arrangements, and terminal tightness before restoring power.
- Restore power and inspect status. Confirm that the supply and associated controller or I/O hardware reach their expected operating states.
- Troubleshoot by separating power domains. If faults persist, measure the incoming DC source and inspect system-side power connections before attributing the problem to a controller or I/O module.
- Record replacement details. Document the installed model, cabinet position, observed status indications, and any corrective actions.
Related Components
| Component | Function in the DeltaV System |
|---|---|
| DeltaV M-Series Controller | Executes control strategies and coordinates control-system operations. |
| DeltaV M-Series I/O Modules | Interface the control system with process signals and field devices. |
| M-Series Carrier | Provides module mounting and the required system interconnections. |
| Cabinet DC Power Source | Supplies the incoming DC power used by the system power supply. |
| Field Instrument Power Supply | Provides power to field devices where required by the instrument and loop design. |
Recommended Related Models
| Model or Component | Selection Consideration |
|---|---|
| Emerson VE5008 System Power Supply | Compare the input requirements, output rails, carrier fit, and system compatibility before considering it as an alternative. |
| Emerson VE5001 System Power Supply | Check the specific part number and input-power type; the family name alone does not establish interchangeability. |
| DeltaV M-Series Controller | Confirm the controller’s carrier and system power requirements when planning a replacement. |
| DeltaV M-Series I/O Modules | Verify total system load and the carrier’s power requirements when adding or replacing I/O hardware. |
Key Advantages
- Accepts a 24 VDC-class source for use in the DeltaV M-Series system power architecture.
- Converts incoming DC power for compatible control-system electronics.
- Fits into a modular control-system arrangement, simplifying cabinet-level organization.
- Allows power-related faults to be investigated separately from field-device power problems.
- Supports structured maintenance and replacement planning when the exact model and carrier requirements are confirmed.
Technical FAQs
1. What does the VE5009 power in a DeltaV M-Series system?
It supplies system-level DC power for compatible DeltaV M-Series control hardware. It should be distinguished from a general-purpose 24 VDC field supply used to energize instruments or actuators.
2. Can the VE5009 replace another DeltaV M-Series power supply?
Not based on family membership alone. Confirm the exact part number, input requirements, output rails, carrier compatibility, and system configuration before substituting another model.
3. What should be checked if the controller or I/O modules lose power?
Check the incoming DC source, polarity, wiring connections, carrier seating, and power-status indications. If the input supply is stable but the system remains unpowered, inspect the system power connections and verify that the installed supply is the specified model.
4. Can a VE5009 fault be caused by a field instrument?
A field instrument fault does not automatically indicate a system power supply failure. Determine whether the problem is on the field-power circuit or the DeltaV system-power side, then check for overloads, wiring faults, and voltage drops in the affected circuit.
