Product Overview

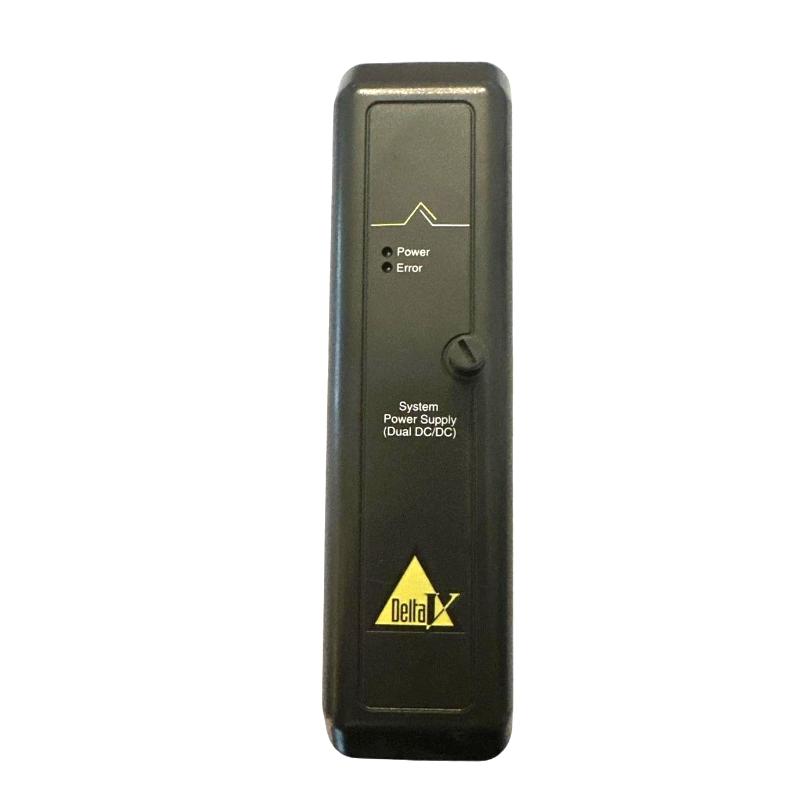

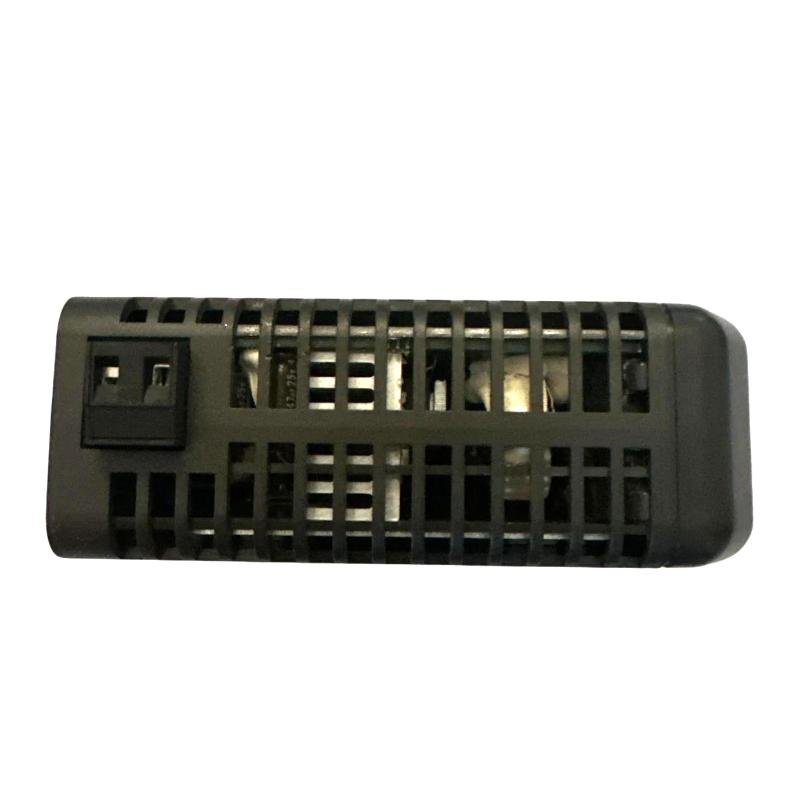

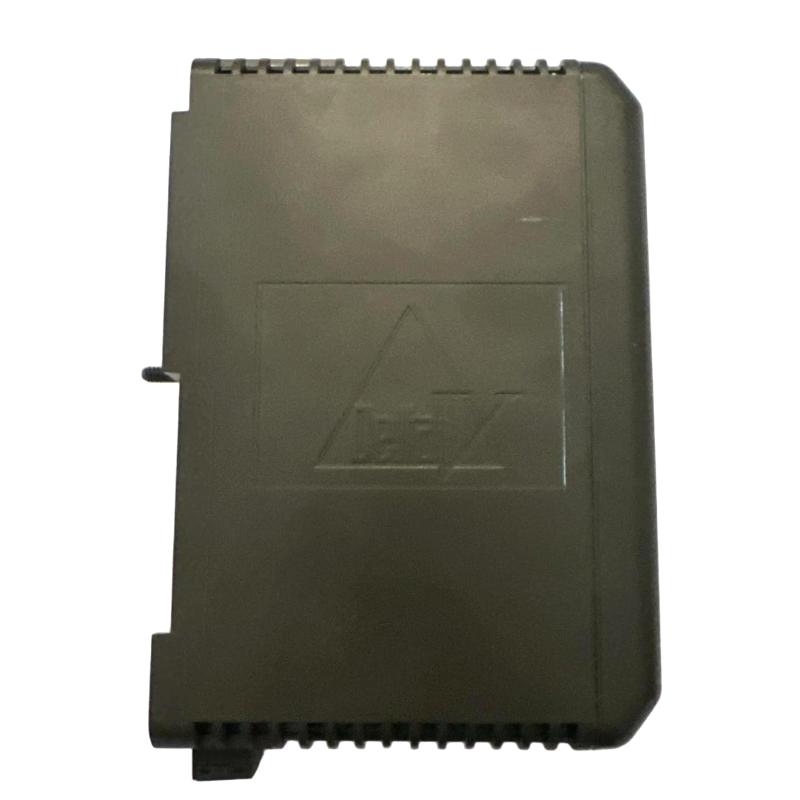

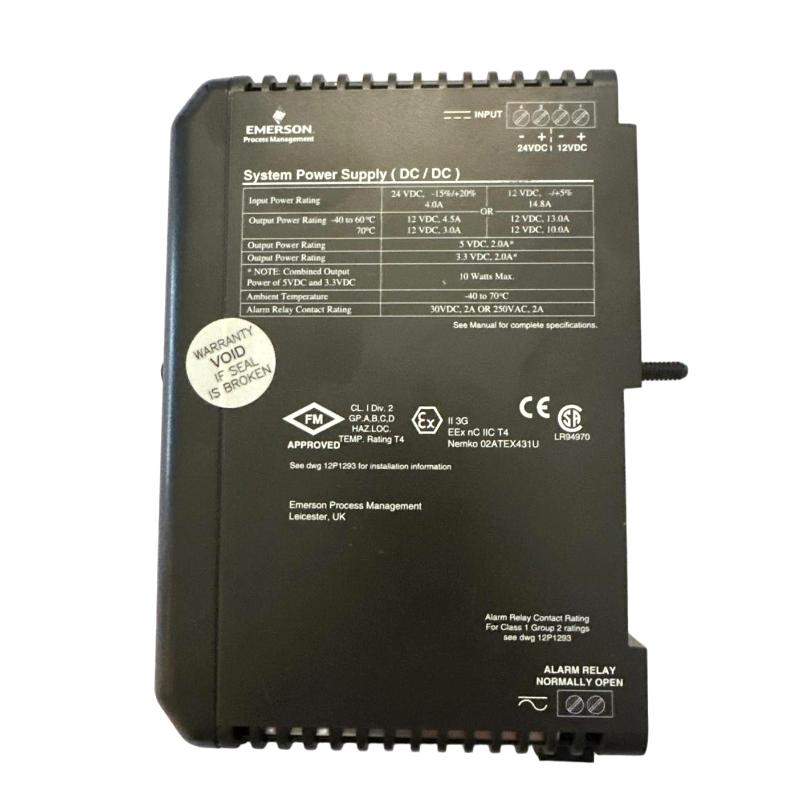

The Emerson VE5008 is a DeltaV M-Series system power supply used to provide DC power to compatible controller and I/O hardware. In a distributed control system, the power supply forms part of the system’s electrical infrastructure, supplying the power rails required by the installed control hardware.
Within an industrial control cabinet, system power must be matched to the controller, carrier, and I/O configuration. The supply selection affects the available power for the control electronics and the way the cabinet is organized for operation and maintenance.
The VE5008 belongs to the DeltaV M-Series power-supply family. It should be distinguished from bulk power supplies used to distribute 24 VDC to general cabinet loads, as well as DC-to-DC converters intended to produce a different voltage for auxiliary equipment.
For installation or replacement work, confirm the complete model and part number, input source, output requirements, carrier compatibility, and power-system configuration before connecting the supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE5008 |
| Product Family | DeltaV M-Series |
| Product Type | System Power Supply |
| Dimensions | 102 × 41.8 × 117 mm |
| Weight | 0.79 kg |
Product Features
- DeltaV M-Series integration: Intended for use within compatible DeltaV M-Series control-system power arrangements.
- System-level power supply: Provides electrical power for compatible control hardware rather than performing process-signal acquisition.
- Carrier-based installation: Fits into the appropriate system mounting and interconnection arrangement.
- Control cabinet integration: Can be incorporated into industrial automation cabinets with suitable wiring and power distribution.
- Power architecture planning: Allows the control-system power requirements to be considered alongside the controller and installed I/O modules.
- Maintenance access: Supports organized installation and replacement procedures within a properly configured control system.
Working Principle
The VE5008 supplies electrical power to compatible DeltaV M-Series control hardware through the system’s designated power and interconnection arrangement.
Power Input → VE5008 → System Power Distribution → Compatible Control Hardware
During operation, the connected controller and I/O modules draw power according to their individual requirements. The power supply must be compatible with the system’s input source and provide the output characteristics required by the installed hardware.
When troubleshooting a power-related fault, technicians should examine the input source, supply connections, carrier interfaces, and connected load. Checking the system’s power requirements against the installed configuration can help distinguish a supply issue from a wiring fault or a problem elsewhere in the control system.
The exact electrical limits and input requirements must be established from the specific VE5008 configuration rather than inferred from other DeltaV power-supply models.
Role in a DeltaV M-Series Control System Architecture
The VE5008 forms part of the power infrastructure serving compatible DeltaV M-Series control hardware. The controller executes control strategies, while the I/O modules exchange process signals with field instruments and equipment. The power supply serves the electrical requirements of the system rather than processing those signals.
Power Source → VE5008 → Compatible M-Series Hardware → Controller and I/O Operations
| System Element | Function |
|---|---|
| Power Source | Supplies the electrical input required by the configured power system |
| VE5008 | Provides system power to compatible DeltaV M-Series hardware |
| Power/Controller Carrier | Provides the mounting and electrical interconnection arrangement |
| DeltaV Controller | Executes control logic and coordinates system operation |
| Analog Input Modules | Acquire continuous process measurements |
| Analog Output Modules | Deliver analog control signals to compatible devices |
| Discrete I/O Modules | Exchange binary status and control signals |
| Field Instruments | Measure process variables or report equipment status |
| Control Cabinet | Houses the control hardware, wiring, and power distribution equipment |
The actual configuration depends on the installed M-Series hardware and its power requirements. Input voltage, output ratings, carrier compatibility, and redundancy arrangements should be established for the intended application before installation.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Supplying compatible control-system hardware in process-control cabinets |
| Oil and Gas | Supporting power arrangements for distributed control equipment |
| Water Treatment | Powering compatible control hardware used for pump and process monitoring |
| Chemical Processing | Forming part of the power infrastructure for process-control systems |
| Pharmaceutical Manufacturing | Supplying compatible automation hardware in process-control installations |
| Food and Beverage | Supporting DeltaV control-system installations for production processes |
| Power and Utilities | Providing system power within compatible industrial control arrangements |
| General Manufacturing | Supporting controller and I/O operation in industrial automation cabinets |
Installation and Maintenance
- Confirm the VE5008 model and complete part identification before installation or replacement.
- Verify that the intended DeltaV M-Series configuration is compatible with the supply.
- Check the required input source and electrical ratings for the specific unit.
- Isolate the power source and verify that the circuit is de-energized before installation or removal.
- Inspect the mounting location and carrier for damage, contamination, or loose connections.
- Install the supply using the correct mounting and connection arrangement.
- Check that the input and output connections follow the system’s wiring requirements.
- Review the controller and I/O configuration to ensure that the installed power arrangement meets the connected hardware’s requirements.
- Restore power according to the site’s commissioning procedure and inspect the available status indicators.
- If the system reports a power fault, check the input source, connectors, carrier interface, and connected hardware before replacing the supply.
- Record the installed model and system position to simplify future maintenance.
- For systems using redundant power arrangements, verify the complete redundancy configuration and confirm that the installed components are compatible.
Before replacing a supply, compare the complete part number and electrical requirements. Similar product-family names do not by themselves establish that two power supplies are interchangeable.
Related Components
| Component | Function |
|---|---|
| DeltaV M-Series Controller | Executes control strategies and coordinates process I/O |
| DeltaV M-Series Power/Controller Carrier | Provides mounting and interconnection for compatible system hardware |
| DeltaV Analog Input Modules | Acquire process measurement signals |
| DeltaV Analog Output Modules | Send analog control signals to field equipment |
| DeltaV Discrete Input Modules | Acquire binary status signals |
| DeltaV Discrete Output Modules | Control compatible discrete field devices |
| DeltaV System Power Distribution | Routes power according to the installed system configuration |
| AC or DC Input Distribution | Supplies the appropriate input source to the power arrangement |
| Protective-Earth Connection | Provides grounding in accordance with the cabinet design |
| Control Cabinet Wiring | Connects the power supply and compatible control hardware |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE5008 | DeltaV M-Series System Power Supply | System power for compatible M-Series hardware |
| Emerson VE5001 | DeltaV M-Series AC/DC System Power Supply | Powering compatible control hardware from an AC source |
| Emerson VE5003 | Bulk AC to 24 VDC Power Supply | Providing bulk 24 VDC power for compatible equipment |
| Emerson VE5005 | Bulk 24 VDC to 12 VDC Power Supply | Converting 24 VDC input to 12 VDC output |
| DeltaV M-Series Controller | Controller | Executing control logic and coordinating I/O |
| DeltaV M-Series I/O Modules | Analog and discrete I/O | Acquiring process signals and issuing control outputs |
Key Advantages
- Integrates into compatible DeltaV M-Series power arrangements.
- Serves the power requirements of control-system hardware.
- Fits within a structured industrial automation cabinet architecture.
- Separates power delivery from controller logic and I/O signal processing.
- Supports organized installation, maintenance, and system power planning.
- Can be evaluated as part of a larger control-system power configuration.
Technical FAQs
What is the function of the Emerson VE5008 DeltaV M-Series System Power Supply?
The VE5008 serves as a system power supply for compatible DeltaV M-Series control hardware. Its role is to provide electrical power within the control-system architecture rather than acquire process signals or execute controller logic.
How do I determine whether the VE5008 is compatible with my DeltaV M-Series controller and I/O modules?
Check the complete part number, the controller and carrier configuration, and the electrical requirements of the installed hardware. Compatibility should be based on the specified input and output characteristics and the system’s power architecture, not simply on the DeltaV M-Series product-family name.
Can the VE5008 replace another DeltaV system power supply?
A replacement should be selected by comparing the full model or part number, electrical ratings, mounting arrangement, and system compatibility. Supplies within the same product family may have different electrical characteristics, so a similar appearance or product description is not sufficient to establish interchangeability.
What should I check if a DeltaV M-Series system reports a power-related fault?
Check the incoming power source, supply connections, carrier interfaces, and connected hardware. Review the system’s power demand and confirm that the installed supply matches the required configuration. If the input and connections are correct but the fault persists, isolate the affected components systematically to determine whether the problem originates in the supply or another part of the system.
