Product Overview

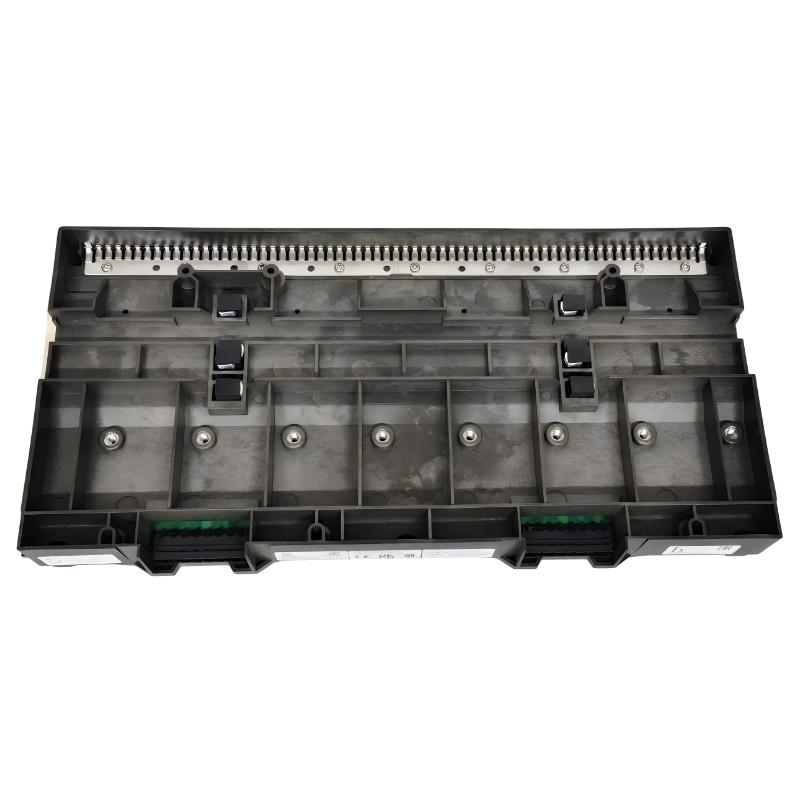

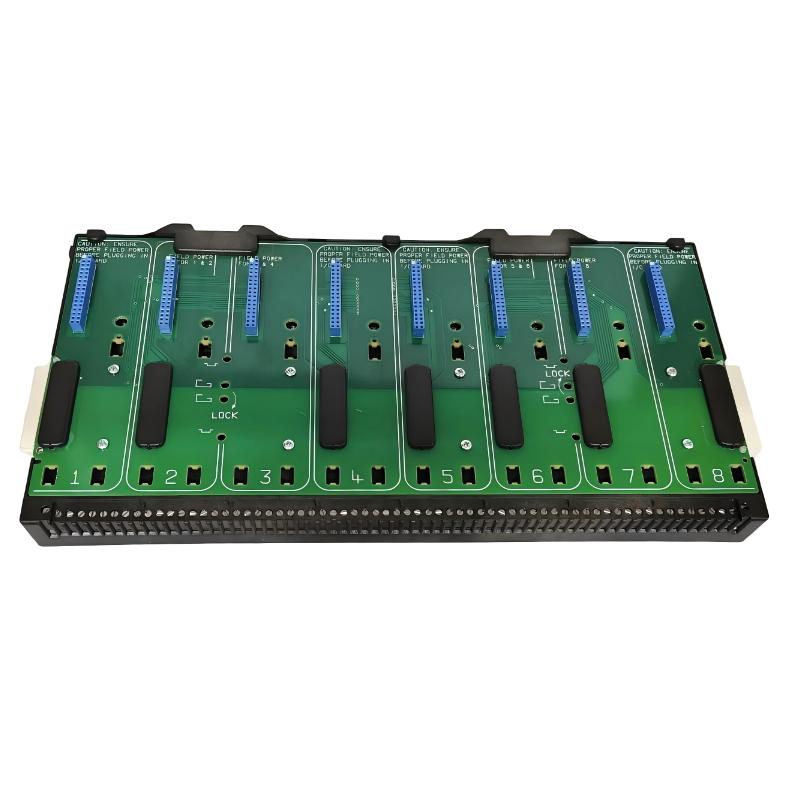

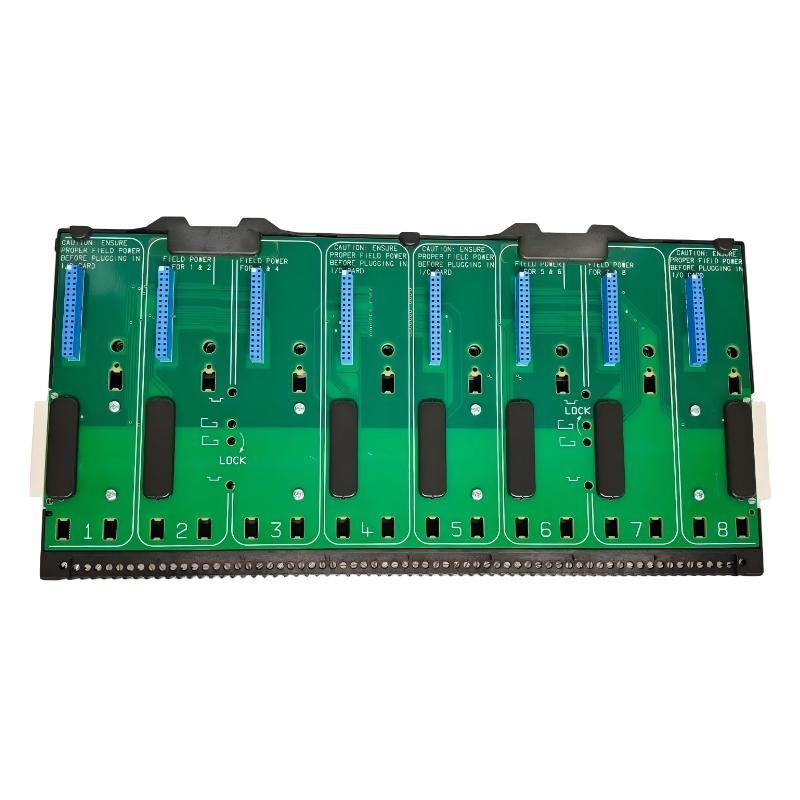

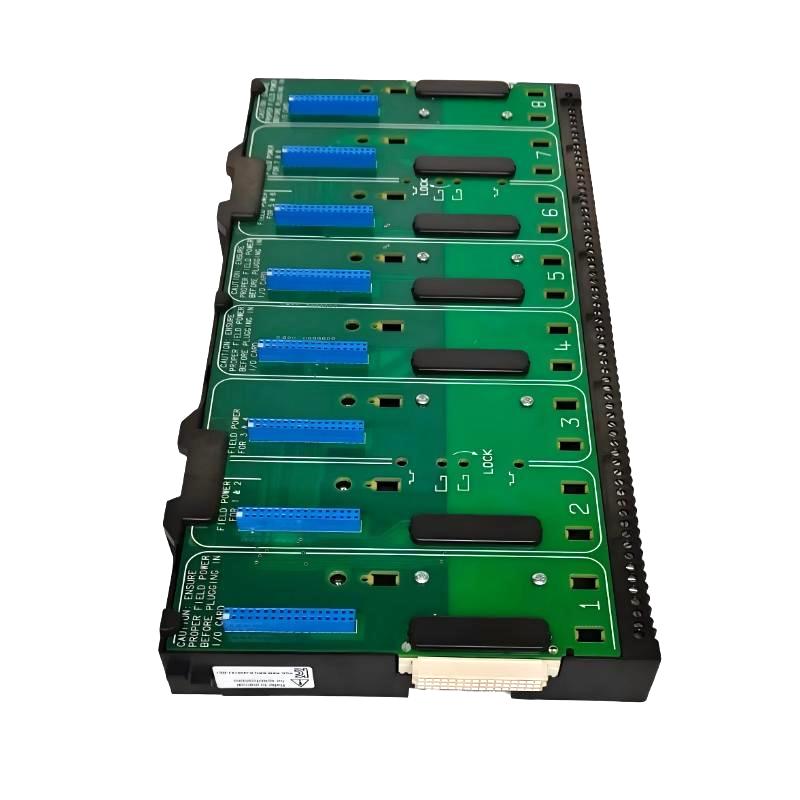

The Emerson VE4060C1 8 Wide Carrier is an industrial process automation hardware assembly designed to provide a structured mounting and interconnection platform for compatible I/O equipment. As part of an Emerson process control infrastructure, the carrier helps organize I/O components inside an industrial control cabinet and provides a consistent physical arrangement for system installation, wiring, maintenance, and future service activities.
In distributed process control environments, field instruments generate a wide range of process signals, including measurement and equipment status information. These signals must pass through an appropriate I/O architecture before they can be processed by the control system. A dedicated I/O carrier provides the physical infrastructure required to arrange compatible I/O hardware in a reliable and serviceable configuration.
The Emerson VE4060C1 is identified as an 8 Wide Carrier with listed dimensions of 336 × 31 × 165 mm and a weight of approximately 0.56 kg. Its compact profile allows it to be incorporated into industrial automation cabinets where efficient use of mounting space is important.
The VE4060C1 should be matched with the appropriate Emerson system architecture and associated hardware. Exact module compatibility, connector assignments, electrical interfaces, and system capacity should be verified against the applicable equipment documentation before installation or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4060C1 |
| Product Type | 8 Wide Carrier |
| Primary Function | I/O hardware mounting and system infrastructure |
| Carrier Configuration | 8 Wide |
| Application | Industrial Process Automation |
| Installation | Industrial Control Cabinet |
| Dimensions | 336 × 31 × 165 mm |
| Weight | 0.56 kg |
| Typical Use | Process Control I/O Infrastructure |
| Compatibility | Verify with the applicable Emerson system configuration |
What Is the Emerson VE4060C1?
The Emerson VE4060C1 is an 8 Wide Carrier intended to provide a structured physical platform for compatible I/O hardware used in industrial process control applications.
An I/O carrier is an important part of a modular control architecture because it provides an organized location for associated I/O components. Instead of installing each component independently, a carrier-based arrangement establishes a consistent physical layout that simplifies system construction and maintenance.
A simplified process automation architecture can be represented as:
Field Devices → Field Wiring → Termination / Interface → I/O Hardware → VE4060C1 Carrier Infrastructure → Control System
The exact signal path depends on the installed Emerson hardware and system configuration.
The VE4060C1 should therefore be understood primarily as an I/O infrastructure component, rather than as an independent PLC or process controller.
Understanding the 8 Wide Carrier
The 8 Wide designation describes the carrier’s intended physical organization for multiple compatible hardware positions.
Industrial process control systems frequently contain large numbers of field signals. These may come from:
- Pressure transmitters
- Temperature sensors
- Flow instruments
- Level transmitters
- Valve position feedback
- Motor status signals
- Equipment alarms
- Discrete switches
- Control valves
- Process analyzers
Organizing the associated I/O hardware into structured carrier assemblies makes the control cabinet easier to understand and maintain.
The VE4060C1 can therefore contribute to a modular cabinet architecture in which I/O components are arranged according to process area, equipment group, or control function.
The exact number and type of compatible modules should not be assumed solely from the 8 Wide designation and should be confirmed for the intended system.
Function and Working Principle
The VE4060C1 primarily provides physical and system-level infrastructure for compatible I/O equipment.
I/O Hardware Mounting
The carrier establishes a defined location for compatible I/O components.
A secure mounting arrangement helps maintain correct component positioning and reduces the possibility of mechanical movement during normal industrial operation.
Interconnection Infrastructure
The carrier can form part of the interconnection structure used by the associated I/O architecture.
Correct installation and connector engagement are important because an improperly seated component can result in intermittent or missing process signals.
Cabinet Organization
The carrier provides a repeatable arrangement for I/O hardware inside an industrial cabinet.
This is especially useful in larger process plants where multiple carrier assemblies and many I/O components may be installed.
Maintenance Support
A structured carrier arrangement makes it easier for maintenance personnel to locate associated hardware and perform inspection or replacement work.
Modular System Development
A carrier-based design can support structured system development and maintenance when the overall Emerson architecture permits additional compatible I/O equipment.
Role in Industrial Process Control Systems
The VE4060C1 forms part of the physical infrastructure between field-level devices and the higher-level process control system.
A simplified architecture is:
Process Equipment
↓
Field Instruments
↓
Field Wiring
↓
Termination / I/O Interface
↓
VE4060C1 Carrier and Associated I/O Hardware
↓
Control Processor
↓
Operator / Supervisory Interface
The carrier does not independently execute process control logic. Instead, it supports the physical installation and organization of the I/O hardware responsible for interfacing with field signals.
This distinction is useful during troubleshooting because an I/O fault does not automatically indicate that the carrier itself is defective.
Industrial Applications
The Emerson VE4060C1 can be incorporated into compatible industrial process automation systems.
Potential application environments include:
- Oil and Gas Facilities
- Petrochemical Plants
- Chemical Processing
- Power Generation
- Water Treatment
- Wastewater Treatment
- Refining
- Pharmaceutical Manufacturing
- Pulp and Paper
- Food and Beverage Processing
- Industrial Utility Systems
- General Process Automation
In these applications, the carrier can contribute to a structured I/O cabinet architecture supporting large numbers of process signals.
Installation and System Integration
Correct installation of the Emerson VE4060C1 requires both mechanical and system-level compatibility.
Before installation, technicians should verify:
- Complete VE4060C1 model identification
- Existing carrier arrangement
- Compatible I/O equipment
- Mounting location
- Connector configuration
- Associated termination hardware
- Cabinet space
- Cable routing
- Grounding arrangements
- Host control-system architecture
The carrier should only be installed after compatibility with the intended Emerson system has been confirmed.
VE4060C1 Installation Procedure
1. Verify the Model
Confirm that the replacement or new carrier is identified as VE4060C1.
Record the existing installation arrangement before removing a carrier from an operating system.
2. Inspect the Carrier
Check the carrier for visible signs of:
- Physical damage
- Cracks
- Bent components
- Damaged connectors
- Corrosion
- Contamination
- Loose mounting hardware
A damaged carrier should be evaluated before being placed into service.
3. Prepare the Control Cabinet
The listed dimensions of the VE4060C1 are:
336 × 31 × 165 mm
Make sure sufficient space is available for the carrier, associated modules, connectors, cables, and maintenance access.
4. Mount the Carrier
Install the VE4060C1 in the designated cabinet position according to the applicable Emerson system arrangement.
The carrier should be securely mounted and correctly aligned.
5. Install Compatible I/O Hardware
Install the appropriate compatible components according to the system design.
Avoid forcing modules or connectors into position. Correct alignment should be established before securing components.
6. Verify Connections
Inspect all associated connections and confirm that wiring and connectors correspond to the intended system configuration.
7. Perform Commissioning Checks
After installation, verify the operation of associated I/O equipment and confirm that expected process signals are correctly available to the control system.
Cabinet Layout and Space Planning
The physical dimensions of the VE4060C1 should be considered during cabinet engineering.
The carrier measures:
336 × 31 × 165 mm
The relatively narrow 31 mm dimension allows the carrier to occupy a compact section of the cabinet, while the overall length and height must be considered when arranging neighboring equipment.
Cabinet planning should include space for:
- I/O modules
- Field wiring
- Terminal connections
- Communication cables
- Power wiring
- Maintenance access
- Ventilation
- Labels and identification
- Future service activities
Cable routing should be planned to minimize unnecessary mechanical stress on connectors.
A well-organized cabinet improves both installation quality and long-term maintenance efficiency.
System Integration Considerations
The VE4060C1 should be considered one component within a complete process control architecture.
| System Layer | General Function |
|---|---|
| Field Devices | Measure or influence process conditions |
| Field Wiring | Transfers electrical signals |
| Termination Hardware | Organizes field connections |
| I/O Modules | Interface process signals |
| VE4060C1 Carrier | Provides I/O mounting and infrastructure |
| Control Processor | Executes control strategies |
| Operator Interface | Displays process information |
| Supervisory System | Provides higher-level monitoring |
The exact configuration depends on the Emerson system in which the carrier is installed.
Troubleshooting Guide
Troubleshooting should always consider the complete I/O signal path.
I/O Hardware Not Operating
If an associated I/O module does not operate correctly, inspect:
- Module seating
- Carrier connections
- Connector condition
- Associated power
- Field wiring
- Termination hardware
- Control-system diagnostics
A loose connection may produce symptoms similar to an electronic module failure.
Intermittent I/O Signals
Intermittent signals may result from:
- Loose connections
- Cable movement
- Connector contamination
- Mechanical vibration
- Wiring damage
- Improper module seating
- Power-related problems
Inspect the physical installation before replacing hardware.
Multiple I/O Points Affected
When several I/O points fail simultaneously, investigate common system infrastructure before replacing individual modules.
Potential areas include:
- Carrier connections
- Shared wiring
- Power distribution
- I/O interface hardware
- Communication infrastructure
- System-level faults
Difficulty Installing Modules
If an associated module cannot be installed correctly, inspect the carrier for:
- Misalignment
- Physical deformation
- Damaged mounting points
- Connector obstruction
- Foreign material
Modules should never be forced into an incorrectly aligned carrier.
Preventive Maintenance
Regular inspection of the VE4060C1 installation can help maintain reliable operation.
Inspect Mechanical Mounting
Confirm that the carrier remains securely mounted and correctly aligned.
Inspect Connectors
Check connectors for contamination, corrosion, physical damage, or signs of overheating.
Check Wiring
Verify that cables are supported correctly and are not exerting excessive force on carrier connections.
Maintain Cabinet Cleanliness
Control dust and contamination inside the cabinet to help protect electronic components and connections.
Check Identification
Keep carrier and module identification labels readable and consistent with cabinet documentation.
Monitor Recurrent Faults
Repeated I/O problems in the same area should prompt inspection of the carrier, connectors, wiring, and associated modules as a complete system.
Physical Dimensions and Weight
The Emerson VE4060C1 has the following listed physical specifications:
| Physical Parameter | Value |
|---|---|
| Length | 336 mm |
| Width | 31 mm |
| Height | 165 mm |
| Weight | 0.56 kg |
These specifications are useful for cabinet planning, spare-parts management, shipping preparation, and replacement logistics.
The listed 0.56 kg weight should be used for handling and logistics planning as provided.
Replacement Considerations
When replacing an Emerson VE4060C1 8 Wide Carrier, the complete model designation should be checked carefully.
Important considerations include:
- Full model number
- Existing carrier configuration
- Associated I/O modules
- Connector arrangement
- Cabinet mounting position
- Wiring configuration
- Host control-system architecture
- Applicable hardware revision
A carrier with similar dimensions should not automatically be considered an equivalent replacement.
The VE4060C1 should therefore be matched against the existing system configuration before installation.
Related Emerson Automation Components
The VE4060C1 may form part of an industrial control installation containing several functional hardware categories.
| Component | General Function |
|---|---|
| I/O Carrier | Provides structured mounting and interconnection infrastructure |
| I/O Module | Interfaces field signals with the control system |
| Terminal Hardware | Provides field wiring connections |
| Field Instrument | Measures process variables |
| Actuator | Performs physical process actions |
| Controller | Executes process control logic |
| Communication Hardware | Transfers system data |
| Operator Interface | Provides monitoring and operator interaction |
The exact compatible components depend on the specific Emerson system configuration.
Engineering Best Practices
Verify Complete Part Numbers
Always record the complete carrier model before ordering or installing replacement hardware.
Maintain Cabinet Documentation
Keep wiring diagrams, hardware identification, and cabinet layout documentation accurate and current.
Protect Mechanical Connections
Avoid excessive cable pulling, bending, or physical stress near carrier and module connectors.
Use Structured I/O Layouts
Arrange I/O components logically according to process area, equipment group, or control function where appropriate.
Provide Maintenance Clearance
Ensure that technicians have sufficient access to the carrier and associated hardware for future inspection and replacement.
Troubleshoot Systematically
When an I/O fault occurs, inspect the field device, wiring, termination, I/O module, carrier, and control-system interface as appropriate rather than replacing the carrier immediately.
Key Advantages
8 Wide I/O Organization
The VE4060C1 provides a structured platform for organizing compatible I/O hardware.
Compact Form Factor
With dimensions of 336 × 31 × 165 mm, the carrier can be integrated into appropriately designed industrial cabinets.
Improved Cabinet Organization
The carrier supports a consistent physical arrangement for process control I/O equipment.
Maintenance-Friendly Architecture
A structured I/O installation can simplify inspection, signal tracing, and component replacement.
Process Automation Integration
The VE4060C1 can serve as part of compatible Emerson process control infrastructure.
Technical FAQs
What is the Emerson VE4060C1?
The Emerson VE4060C1 is an 8 Wide Carrier designed to provide mounting and infrastructure for compatible I/O hardware in industrial process control systems.
What does 8 Wide mean?
The 8 Wide designation describes the carrier’s intended physical organization for multiple compatible hardware positions. Exact module compatibility should be confirmed against the relevant system configuration.
What are the dimensions of the VE4060C1?
The listed dimensions are 336 × 31 × 165 mm.
How much does the VE4060C1 weigh?
The listed weight is approximately 0.56 kg.
Is the VE4060C1 an I/O module?
No. The VE4060C1 is an I/O carrier that provides infrastructure for compatible I/O hardware.
What is the primary function of the VE4060C1?
Its primary function is to provide a structured mounting and interconnection platform for compatible I/O components within an industrial process control architecture.
Where can the VE4060C1 be used?
It can be used in compatible Emerson process automation and distributed I/O installations across industries such as oil and gas, chemical processing, power generation, water treatment, and manufacturing.
What should be verified before replacement?
The complete VE4060C1 model number, carrier arrangement, associated I/O hardware, connectors, mounting configuration, wiring, and host-system compatibility should be verified.
Can the VE4060C1 be replaced by another 8 Wide Carrier?
A different 8 Wide carrier should not automatically be considered interchangeable. Compatibility must be confirmed using the complete model identification and system configuration.
Conclusion
The Emerson VE4060C1 8 Wide Carrier is a compact industrial automation infrastructure component designed to support the organized installation of compatible I/O hardware. By providing a structured carrier arrangement, it helps maintain a consistent cabinet architecture for distributed process control and industrial automation applications.
With listed dimensions of 336 × 31 × 165 mm and a weight of 0.56 kg, the VE4060C1 is suitable for appropriately planned control cabinet installations where space efficiency, organized I/O placement, and maintenance accessibility are important.
For installation, replacement, or system expansion, the complete VE4060C1 model designation should be verified together with the associated I/O hardware and host-system configuration. Proper mounting, connector inspection, wiring verification, and system-level commissioning are essential for reliable long-term operation.
