Product Overview

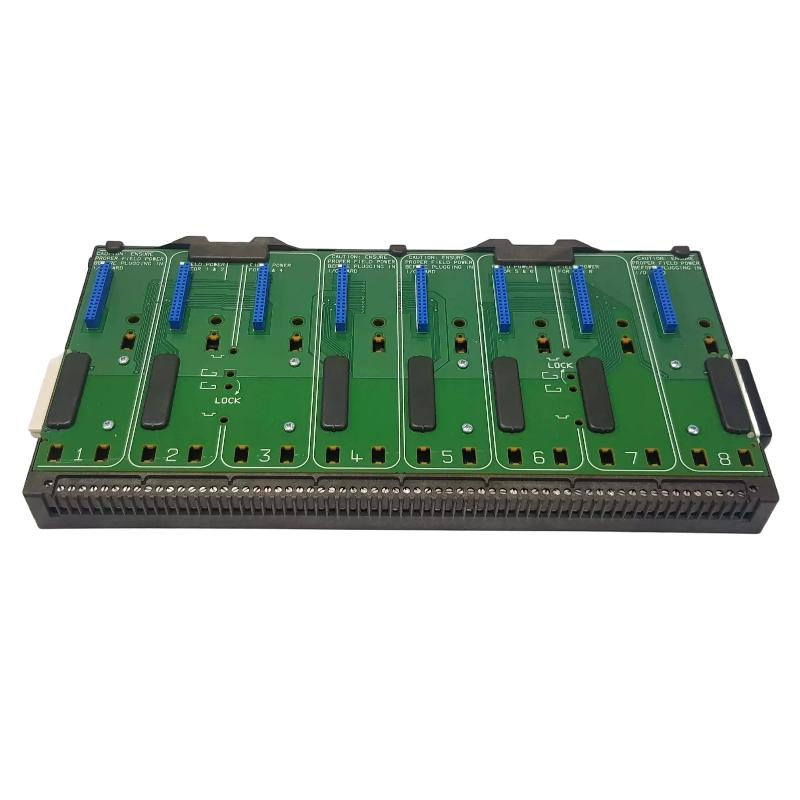

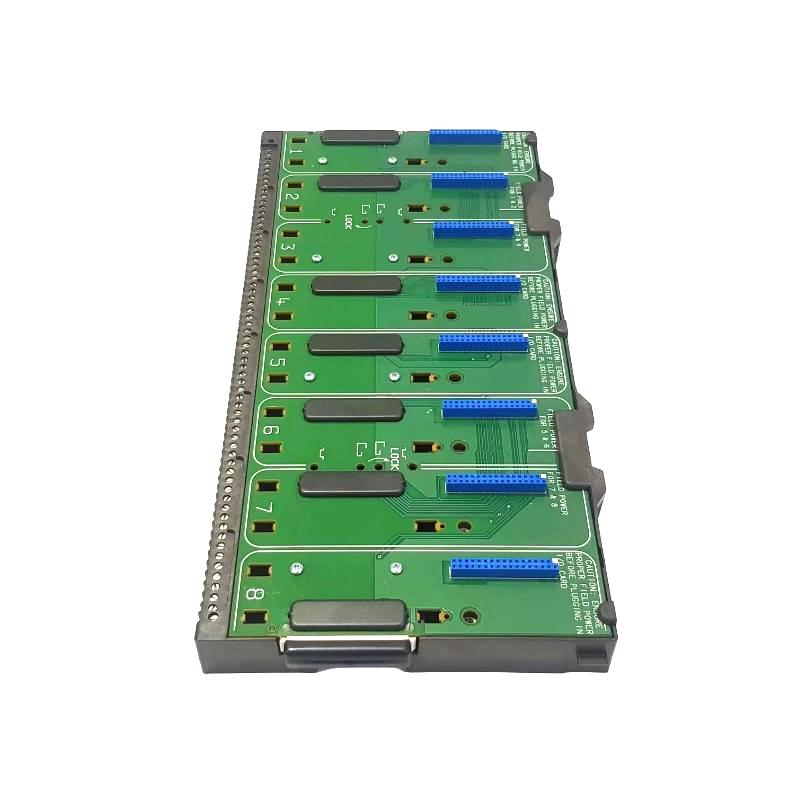

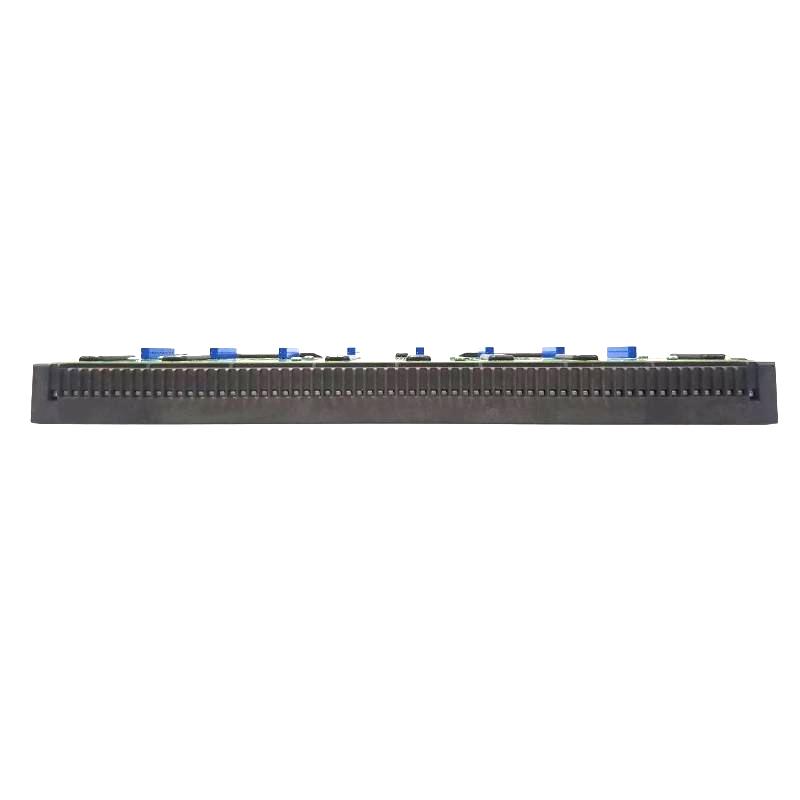

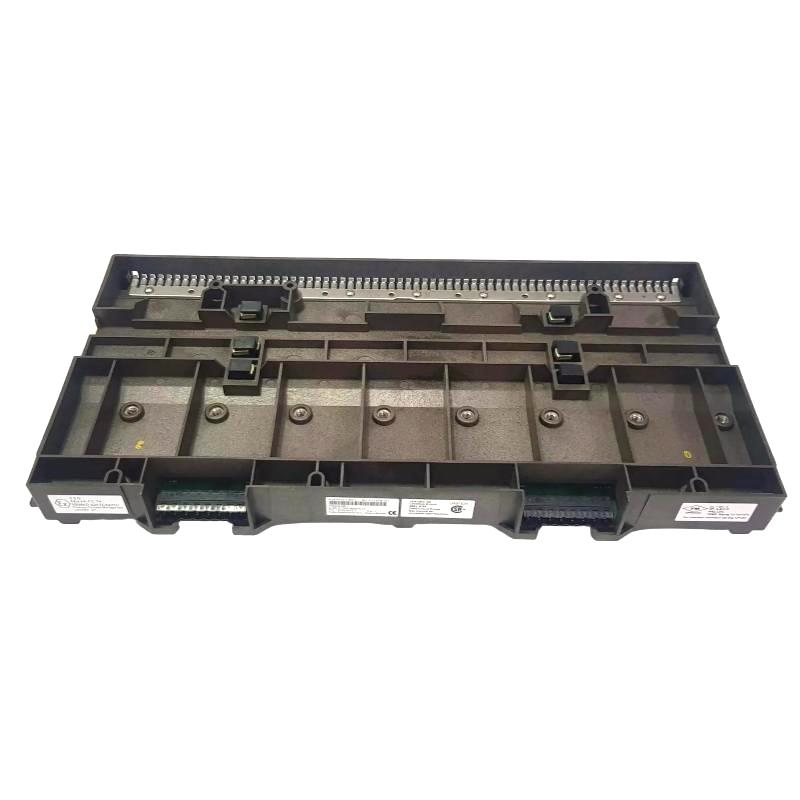

The Emerson VE4050S2K1C0 is a DeltaV M-Series 8-Wide I/O Interface Carrier used as part of the physical infrastructure for assembling M-Series I/O hardware within a DeltaV distributed control system. It provides the carrier structure needed to organize compatible I/O components within a control cabinet and maintain their required interface arrangement.

The VE4050S2K1C0 is not itself an analog, digital, or communication I/O module. It does not process process-variable signals or execute control strategies. Instead, it supports the installation and interconnection of the active I/O hardware that performs those functions.

In a DeltaV cabinet, the carrier works with M-Series I/O modules, termination or interface hardware, field wiring, and the controller-side system infrastructure. This arrangement keeps the physical I/O assembly organized and provides a defined platform for system installation, replacement, and expansion.

Technical Specifications

Product Features

• DeltaV M-Series 8-Wide I/O interface carrier for cabinet-based I/O assemblies.
• Provides the physical carrier structure for compatible M-Series I/O components.
• Supports organized installation of I/O hardware within a DeltaV subsystem.
• Maintains the interface arrangement between associated carrier-mounted components.
• Functions as I/O infrastructure rather than an active signal-processing module.
• Suitable for DeltaV control cabinet construction and I/O system expansion.
• Useful for replacement and refurbishment of established M-Series installations.
• Supports structured I/O hardware organization for maintenance and service activities.

Working Principle

The VE4050S2K1C0 operates at the physical infrastructure layer of the DeltaV M-Series I/O architecture. Compatible I/O components are installed within the carrier arrangement, allowing the I/O section to maintain its intended physical organization and associated interfaces.

The carrier does not independently acquire or generate process signals. Field devices connect through the applicable field wiring and termination or interface hardware, while the installed M-Series I/O modules perform the corresponding input or output functions.

Field Devices → Field Wiring → Termination / Interface → M-Series I/O → DeltaV Controller / I/O Network

For cabinet construction, the carrier establishes the physical framework for the applicable I/O assembly before the associated modules and interface components are installed. During maintenance, it can form part of a replacement I/O infrastructure while preserving the established M-Series system arrangement.

Role in a DeltaV M-Series I/O Control Architecture

The VE4050S2K1C0 occupies the carrier and physical infrastructure layer of a DeltaV M-Series I/O subsystem. It supports the mounting and interface arrangement of active I/O components while leaving signal processing and control functions to the appropriate DeltaV hardware.

Industrial Applications

Installation and Maintenance

1. Confirm that the VE4050S2K1C0 matches the existing DeltaV M-Series I/O architecture before installation.
2. Review the applicable cabinet drawings and I/O layout before removing existing carrier hardware.
3. Isolate the affected I/O section according to the plant’s approved maintenance procedure.
4. Identify the associated I/O modules and interface components before disconnecting the existing assembly.
5. Inspect the carrier and mating interfaces for visible mechanical damage, contamination, or deformation.
6. Install the carrier in the designated cabinet position and secure it according to the applicable installation procedure.
7. Ensure that compatible I/O components are correctly positioned and seated within the carrier assembly.
8. Check the applicable interconnections before restoring power to the I/O section.
9. Keep field wiring and cabinet cables organized so that I/O modules remain accessible for future service.
10. Compare the completed carrier and I/O arrangement with the applicable DeltaV system documentation.
11. After energization, verify the associated I/O subsystem for communication or channel abnormalities.
12. Record the carrier model and installed I/O configuration for future maintenance and system expansion activities.

Related Components

Recommended Related Models

Key Advantages

• Provides an organized carrier structure for DeltaV M-Series I/O hardware.
• Supports the assembly of an 8-Wide M-Series I/O section.
• Maintains the established cabinet-level I/O architecture.
• Separates physical I/O infrastructure from active signal-processing functions.
• Suitable for DeltaV cabinet construction, expansion, replacement, and refurbishment.
• Supports structured organization of M-Series I/O assemblies.

Technical FAQs

What is the primary function of the Emerson VE4050S2K1C0?

The VE4050S2K1C0 is an M-Series I/O interface carrier. It provides the physical mounting and interface structure used to assemble compatible DeltaV M-Series I/O hardware.

Is the VE4050S2K1C0 an active I/O module?

No. The VE4050S2K1C0 is carrier infrastructure rather than an active analog, digital, or communication I/O module. The associated M-Series I/O hardware performs the actual signal-processing functions.

What should be checked before replacing a VE4050S2K1C0?

The existing M-Series I/O arrangement, compatible interface components, cabinet layout, mating connections, and associated I/O hardware should be checked before replacement. The replacement configuration should correspond to the established DeltaV architecture.

How does the VE4050S2K1C0 fit into a DeltaV I/O cabinet?

The VE4050S2K1C0 forms part of the physical carrier layer of the M-Series I/O subsystem. Compatible I/O and interface components are arranged around the carrier, while field termination, signal processing, and control functions are handled by their respective system components.
