Product Overview

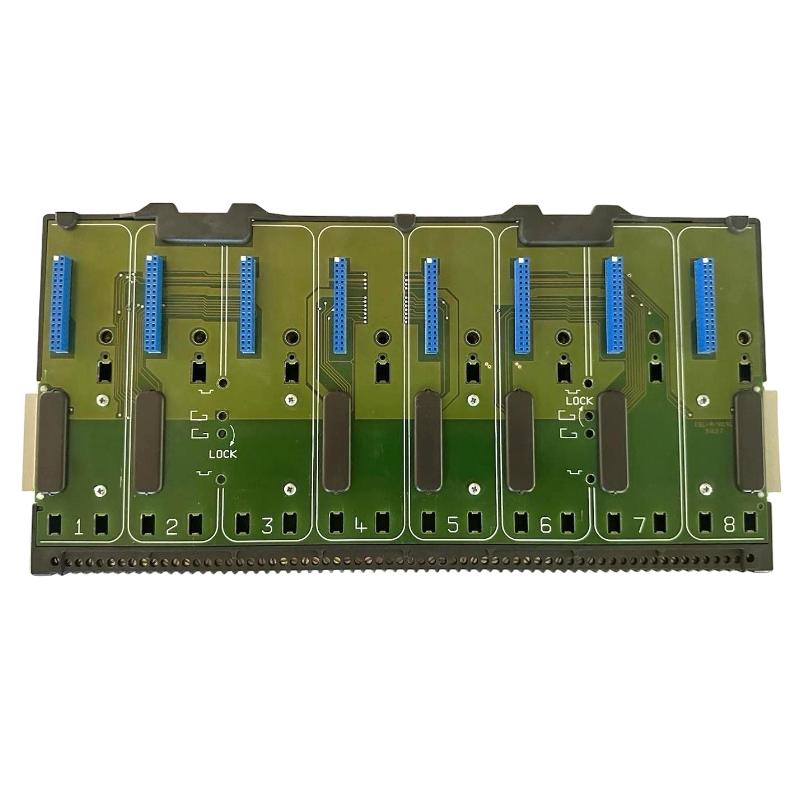

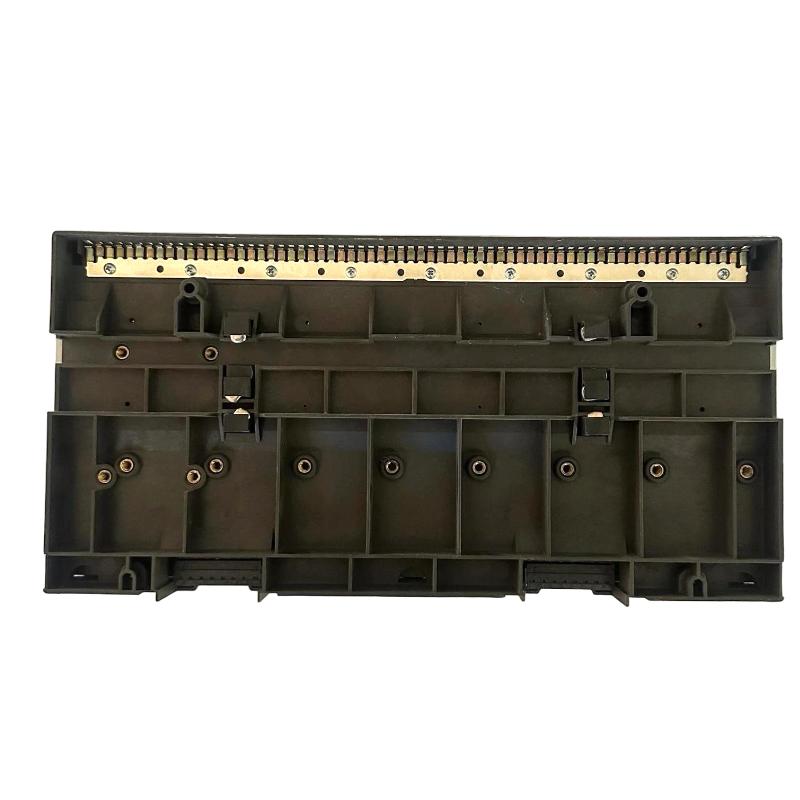

The Emerson VE4050S2 is a DeltaV M-Series 8-Wide I/O Interface Carrier used to support the physical assembly and interconnection of M-Series I/O hardware within a DeltaV distributed control system. It forms part of the cabinet-level I/O infrastructure and provides the carrier arrangement required for compatible I/O components.

The VE4050S2 is not an active I/O processing module. It does not independently acquire field measurements, generate process outputs, or execute control strategies. Its role is to provide the physical carrier structure that keeps the associated I/O hardware correctly arranged within the DeltaV cabinet.

In a typical DeltaV installation, the carrier works with M-Series I/O modules, termination hardware, interface components, field wiring, and the controller-side communication infrastructure. This separation allows active signal-processing hardware to be installed within a structured carrier assembly and simplifies maintenance or expansion of the I/O subsystem.

Technical Specifications

Product Features

• DeltaV M-Series 8-Wide I/O interface carrier for cabinet-based I/O assemblies.
• Provides the physical carrier structure for compatible M-Series I/O components.
• Supports organized installation of I/O hardware within the DeltaV subsystem.
• Maintains the required interface arrangement between carrier-mounted components.
• Functions as infrastructure rather than an active signal-processing module.
• Suitable for DeltaV I/O cabinet construction and system expansion.
• Useful for replacement and refurbishment of established M-Series I/O installations.
• Supports structured organization of I/O hardware for service and maintenance activities.

Working Principle

The VE4050S2 operates at the infrastructure level of the DeltaV M-Series I/O architecture. Compatible I/O components are installed into the carrier arrangement, allowing the I/O section to maintain its intended mechanical organization and associated interfaces.

The carrier does not directly process field signals. Field devices connect through the applicable field wiring and termination or interface hardware, while the M-Series I/O modules handle the actual input and output functions.

Field Devices → Field Wiring → Termination / Interface → M-Series I/O → DeltaV Controller / I/O Network

During cabinet construction, the VE4050S2 provides the carrier structure before the associated I/O components are installed. During system maintenance, the carrier provides the infrastructure needed to retain the established M-Series I/O arrangement when compatible replacement hardware is used.

Role in a DeltaV M-Series I/O Control Architecture

The VE4050S2 occupies the physical infrastructure layer of a DeltaV M-Series I/O subsystem. It supports the mounting and interface arrangement of active I/O hardware while leaving signal processing and control functions to the associated system components.

Industrial Applications

Installation and Maintenance

1. Confirm that the VE4050S2 matches the existing DeltaV M-Series I/O architecture before installation.
2. Review the applicable cabinet drawings and I/O layout before removing existing carrier hardware.
3. Isolate the affected I/O section according to the plant’s approved maintenance procedure.
4. Identify the associated I/O modules and interface components before disconnecting the existing assembly.
5. Inspect the carrier and mating interfaces for visible mechanical damage, contamination, or deformation.
6. Install the carrier in the designated cabinet position and secure it according to the applicable installation procedure.
7. Ensure that compatible I/O components are correctly positioned and seated within the carrier assembly.
8. Check the applicable interconnections before restoring power to the I/O section.
9. Keep field wiring and cabinet cables organized so that I/O modules remain accessible for future service.
10. Compare the completed carrier and I/O arrangement with the applicable DeltaV system documentation.
11. After energization, verify the associated I/O subsystem for communication or channel abnormalities.
12. Record the carrier model and installed I/O configuration for future maintenance and system expansion activities.

Related Components

Recommended Related Models

Key Advantages

• Provides an organized carrier structure for DeltaV M-Series I/O hardware.
• Supports the assembly of an 8-Wide M-Series I/O section.
• Maintains the established cabinet-level I/O architecture.
• Separates I/O infrastructure from active signal-processing functions.
• Suitable for DeltaV cabinet construction, expansion, replacement, and refurbishment.
• Supports structured organization of M-Series I/O assemblies.

Technical FAQs

What is the primary function of the Emerson VE4050S2?

The VE4050S2 is an M-Series I/O interface carrier. It provides the physical mounting and interface structure used to assemble compatible DeltaV M-Series I/O hardware.

Is the VE4050S2 an active I/O module?

No. The VE4050S2 is carrier infrastructure rather than an active analog, digital, or communication I/O module. The associated M-Series I/O hardware performs the actual signal-processing functions.

What should be checked before replacing a VE4050S2?

The existing M-Series I/O arrangement, compatible interface components, cabinet layout, mating connections, and associated I/O hardware should be checked before replacement. The replacement configuration should correspond to the established DeltaV architecture.

How does the VE4050S2 support DeltaV cabinet construction?

The VE4050S2 provides the carrier-level structure used to organize compatible M-Series I/O hardware within the cabinet. It establishes the physical framework for the I/O section while the installed modules and interface components perform their respective control and signal functions.
