Product Overview

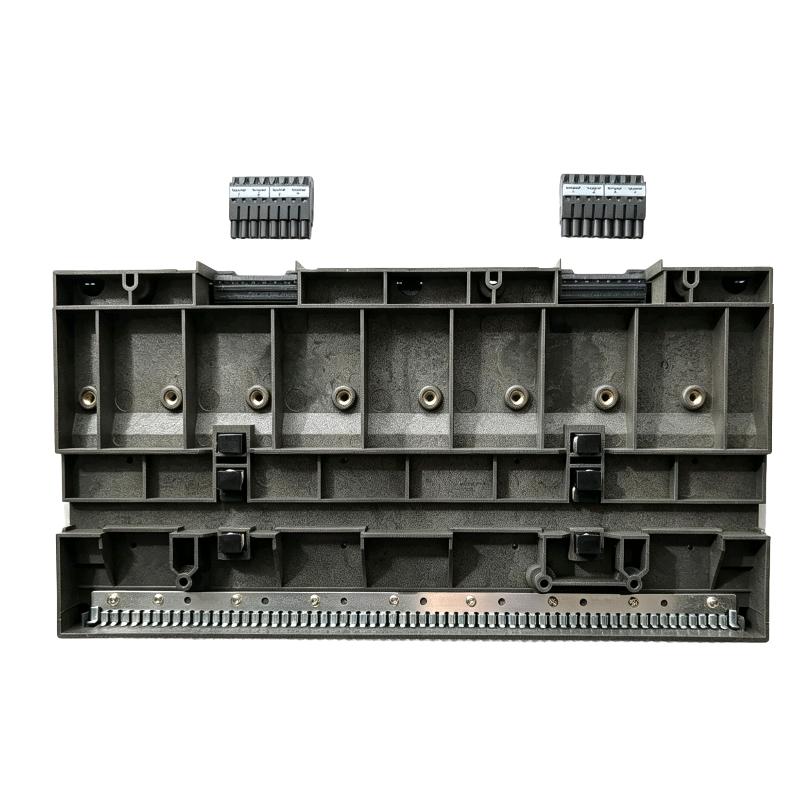

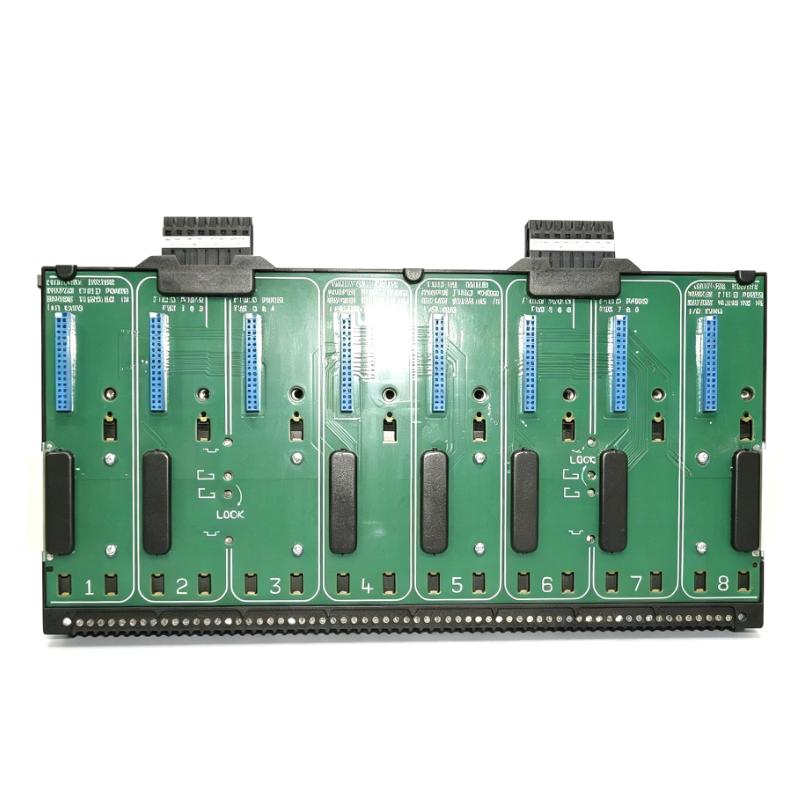

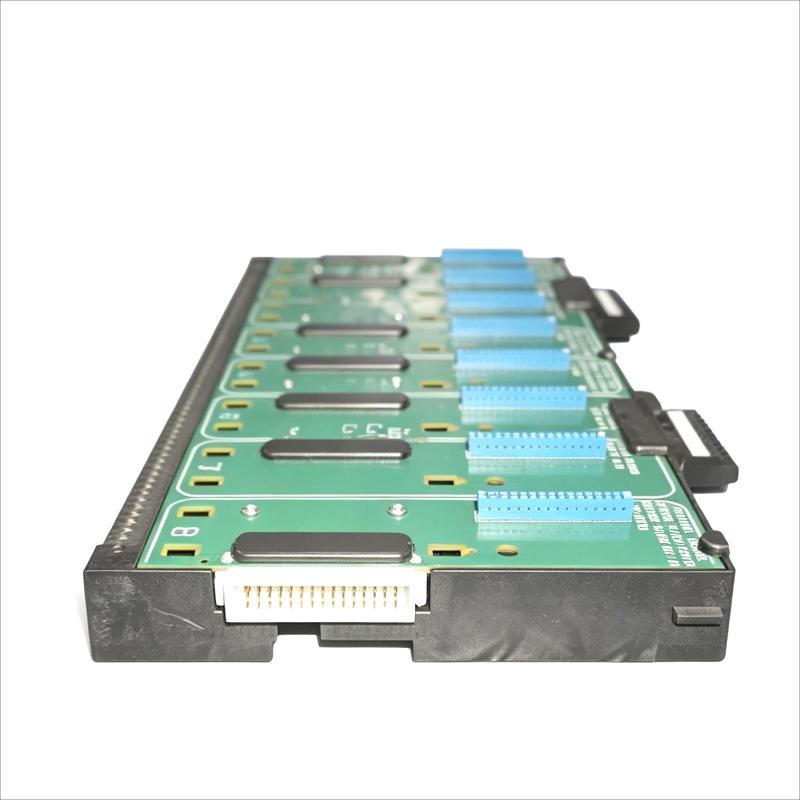

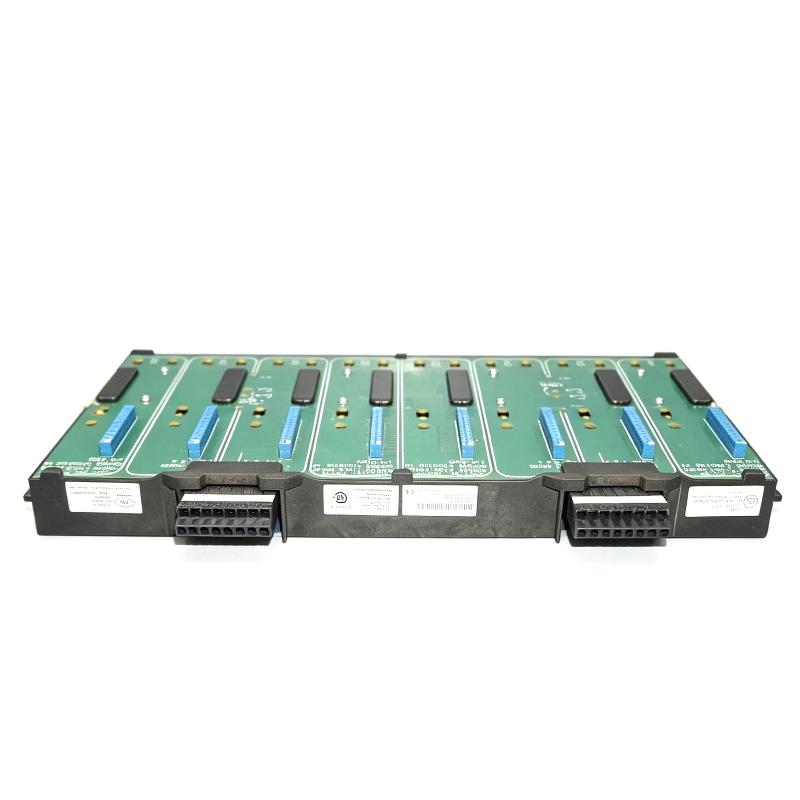

The Emerson VE4050E2 is a DeltaV M-Series 8-Wide I/O Interface Carrier used to assemble and support M-Series I/O hardware within a DeltaV distributed control system. It forms part of the physical I/O infrastructure inside the control cabinet, providing the mounting and interface arrangement required for compatible I/O components.

The carrier is not an active I/O module. It does not acquire process measurements, generate output signals, or execute control logic. Instead, it provides the physical framework through which the applicable M-Series I/O hardware is installed and interconnected.

In an operating DeltaV system, the carrier sits between the cabinet-level mechanical infrastructure and the active I/O components. This arrangement keeps the I/O section organized and makes it easier to build, service, or expand a DeltaV cabinet without changing the basic architecture of the control system.

Technical Specifications

Product Features

• DeltaV M-Series 8-Wide I/O interface carrier for cabinet-mounted I/O assemblies.
• Provides the physical structure for installing compatible M-Series I/O hardware.
• Supports organized assembly of multiple I/O components within the same subsystem.
• Maintains the interface relationship between carrier-mounted I/O components.
• Functions as passive I/O infrastructure rather than an active signal-processing device.
• Suitable for DeltaV cabinet construction and system expansion.
• Useful for replacement and refurbishment of established M-Series I/O installations.
• Supports a structured cabinet layout that simplifies access to associated I/O hardware during maintenance.

Working Principle

The VE4050E2 serves as the physical carrier layer within the DeltaV M-Series I/O architecture. Compatible I/O components are mounted and interconnected through the carrier arrangement, allowing the I/O subsystem to maintain the required physical and electrical organization.

The carrier does not directly process field signals. Field instruments connect through the applicable termination and interface hardware, while the M-Series I/O modules perform the actual input or output functions. The carrier provides the infrastructure that keeps these components correctly arranged within the cabinet.

Field Devices → Field Wiring → Termination / Interface → M-Series I/O → DeltaV Controller / I/O Network

For system expansion, the carrier forms part of the new I/O section before the associated I/O modules and interface components are installed. For maintenance, it can be replaced while retaining the overall DeltaV M-Series architecture, provided the replacement configuration is compatible with the existing installation.

Role in a DeltaV M-Series I/O Control Architecture

The VE4050E2 occupies the physical infrastructure layer of the DeltaV M-Series I/O subsystem. Its function is to support the installation and interconnection of active I/O hardware rather than to perform signal processing itself.

Industrial Applications

Installation and Maintenance

1. Confirm that the VE4050E2 matches the existing DeltaV M-Series I/O architecture before installation.
2. Review the applicable cabinet drawings and I/O layout before removing existing carrier hardware.
3. Isolate the affected I/O section according to the plant’s approved maintenance procedure.
4. Identify the associated I/O modules and interface components before disconnecting the existing assembly.
5. Inspect the carrier and mating interfaces for visible mechanical damage, contamination, or deformation.
6. Install the carrier in the designated cabinet position and secure it according to the applicable installation procedure.
7. Ensure that compatible I/O components are correctly positioned and seated within the carrier assembly.
8. Check all applicable interconnections before restoring power to the I/O section.
9. Keep field wiring and cabinet cables arranged so that I/O modules remain accessible for future service.
10. Compare the completed carrier and I/O arrangement with the applicable DeltaV system documentation.
11. After energization, verify the associated I/O subsystem for communication or channel abnormalities.
12. Record the carrier model and installed I/O configuration for future maintenance and expansion activities.

Related Components

Recommended Related Models

Key Advantages

• Provides an organized carrier structure for DeltaV M-Series I/O hardware.
• Supports the assembly of an 8-Wide M-Series I/O section.
• Maintains the established cabinet-level I/O architecture.
• Separates physical I/O infrastructure from active signal-processing functions.
• Suitable for DeltaV cabinet construction, expansion, and replacement work.
• Simplifies organization and maintenance of M-Series I/O assemblies.

Technical FAQs

What is the primary function of the Emerson VE4050E2?

The VE4050E2 is an M-Series I/O interface carrier. It provides the physical mounting and interface structure used to assemble compatible DeltaV M-Series I/O hardware.

Is the VE4050E2 an active I/O module?

No. The VE4050E2 is carrier infrastructure rather than an active analog, digital, or communication I/O module. The associated M-Series I/O hardware performs the actual signal processing functions.

What should be verified before replacing the VE4050E2?

The existing M-Series I/O arrangement, compatible interface components, cabinet layout, mating connections, and associated I/O hardware should be checked before replacement. The new carrier should match the established DeltaV configuration.

Where is the VE4050E2 used in a DeltaV system?

It is used within the DeltaV M-Series I/O subsystem as the carrier infrastructure for compatible I/O hardware. It can therefore be encountered in control cabinets used for process instrumentation, control, monitoring, and distributed I/O applications.
