Product Overview

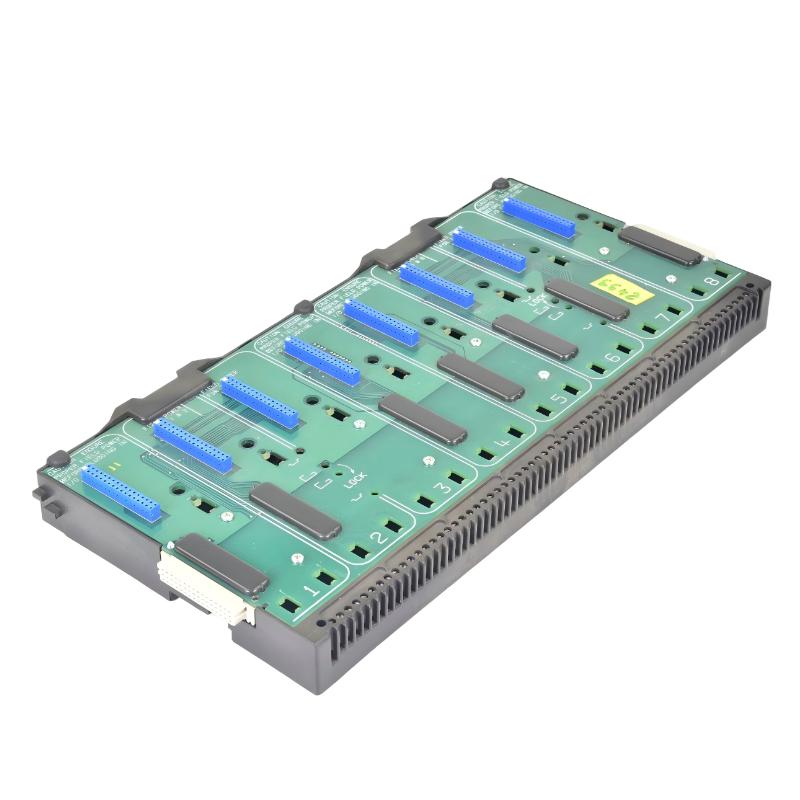

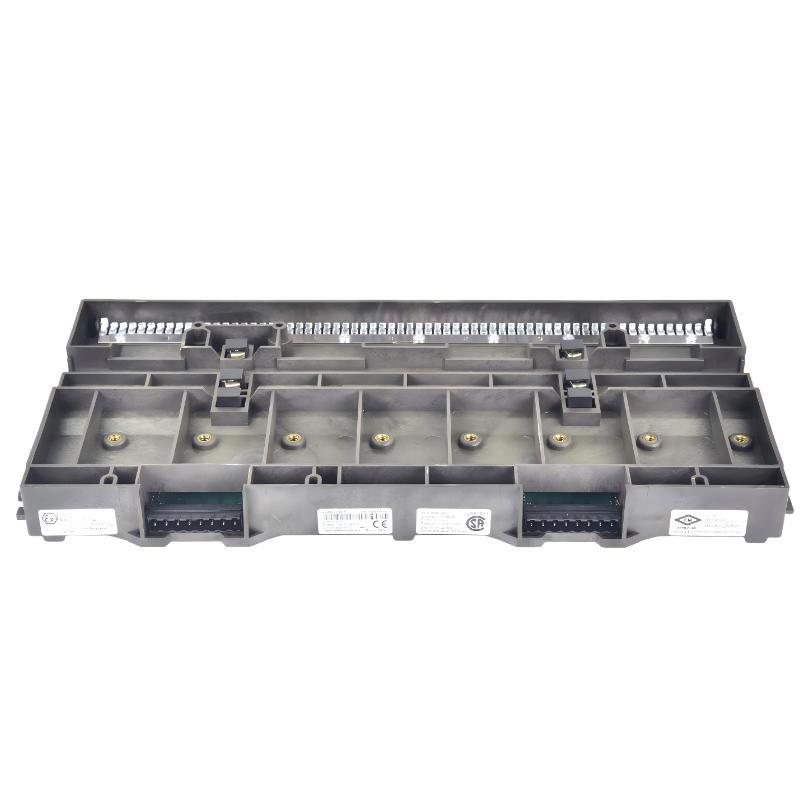

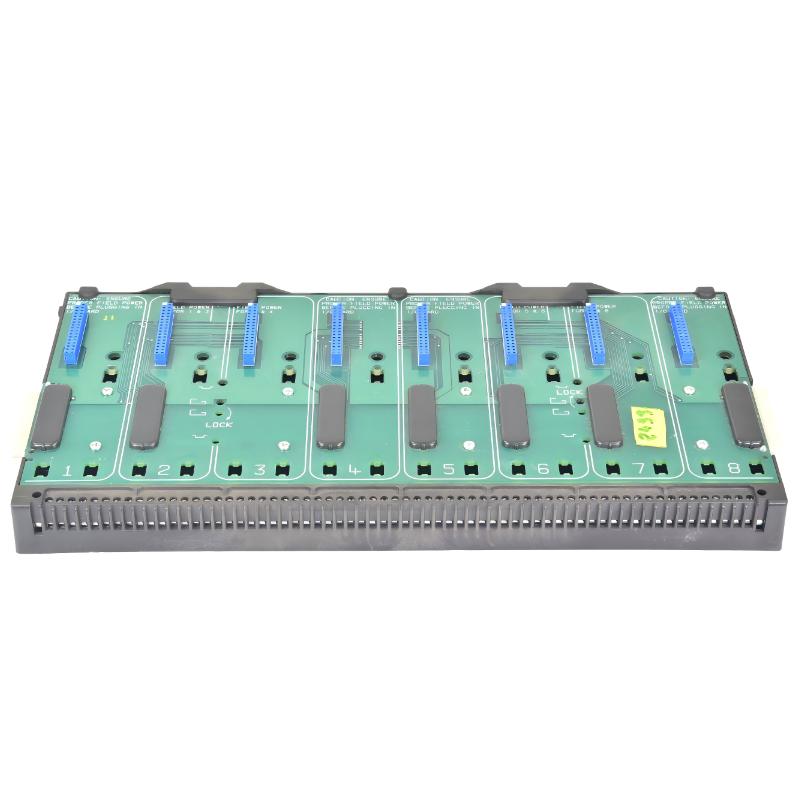

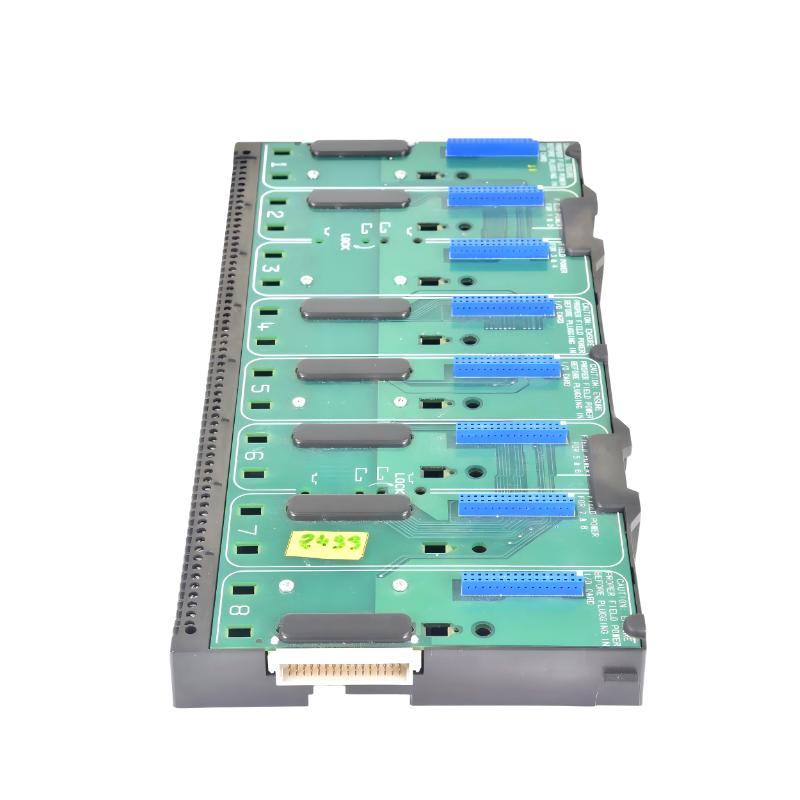

The Emerson VE4050E1C0 KJ4001X1-BE1 is a DeltaV M-Series 8-Wide I/O Interface Carrier with Shield Bar. It is a physical carrier component used to organize and support DeltaV M-Series I/O interface hardware within a control cabinet.
The carrier provides the mounting and electrical interface arrangement required for the associated I/O components. Its 8-wide configuration accommodates the corresponding M-Series interface arrangement while the shield bar supports orderly cable and signal shielding practices at the cabinet level.
In a DeltaV installation, the carrier is part of the hardware layer between field-side wiring and the electronic I/O modules. It does not execute control logic or independently process field signals. Instead, it provides the physical infrastructure needed to mount and interconnect the appropriate I/O interface components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Product Model | VE4050E1C0 |
| Alternate Model / Part Number | KJ4001X1-BE1 |
| Product Type | DeltaV M-Series 8-Wide I/O Interface Carrier with Shield Bar |
| Product Family | DeltaV M-Series |
| Carrier Type | 8-Wide I/O Interface Carrier |
| System Role | I/O Mounting and Interface Infrastructure |
| Shielding | Shield Bar Included |
| Application | DeltaV Distributed Control System |
| Installation | Control Cabinet / I/O Subsystem |
| Interface Function | Supports DeltaV M-Series I/O interface components |
| Physical Construction | Carrier and shield-bar assembly |
| Dimensions | 336 × 31 × 169 mm |
| Weight | 0.41 kg |
Product Features
- Designed for Emerson DeltaV M-Series I/O interface installations.
- Provides a physical carrier arrangement for associated DeltaV I/O hardware.
- Uses an 8-wide configuration for the corresponding M-Series interface architecture.
- Includes a shield bar for organized cable shielding and cabinet wiring practices.
- Supports orderly installation of I/O interface components within a control cabinet.
- Helps separate the mechanical mounting function from active I/O signal processing.
- Suitable for new installations, cabinet refurbishment, and replacement work.
- Provides a structured platform for connecting the I/O subsystem with associated field wiring.
- Integrates into DeltaV M-Series control-system hardware architectures.
Working Principle
The VE4050E1C0 KJ4001X1-BE1 functions primarily as a carrier and interface component rather than an active control or signal-processing device. Its job is to provide the physical mounting and connection arrangement for compatible DeltaV M-Series I/O interface hardware.
The carrier establishes the mechanical location of the associated I/O components within the cabinet. Field-side wiring and I/O hardware can then be organized around this interface structure, while the shield bar provides a defined mechanical arrangement for cable shielding.
A simplified DeltaV hardware path can be represented as:
Field Devices → Field Wiring → I/O Interface / Termination Hardware → M-Series I/O Components → DeltaV Controller / I/O Network
The carrier itself does not perform the signal conversion or execute control strategies. Those functions belong to the installed DeltaV I/O and control hardware. The carrier provides the infrastructure that keeps the relevant components correctly mounted and interconnected.
During maintenance, the carrier therefore needs to be considered together with the I/O components installed on it, the associated wiring, and the cabinet grounding and shielding arrangement.
Role in a DeltaV M-Series I/O Control Architecture
The VE4050E1C0 KJ4001X1-BE1 occupies the physical carrier and interface layer of a DeltaV M-Series I/O architecture. It supports the installation of compatible I/O interface hardware while providing the shield-bar arrangement needed for organized cabinet wiring.
| System Layer | Typical Component | Function |
|---|---|---|
| Process | Sensors / Transmitters / Actuators | Generates or receives process signals |
| Field Wiring | Instrument and Control Wiring | Carries signals between field devices and the I/O cabinet |
| I/O Interface | DeltaV M-Series I/O Interface Components | Provides the connection between field wiring and electronic I/O |
| Carrier | VE4050E1C0 KJ4001X1-BE1 | Supports and organizes the M-Series I/O interface installation |
| I/O Processing | DeltaV M-Series I/O Modules | Processes field input and output signals |
| Control | DeltaV Controller | Executes control strategies and system logic |
| Supervisory Layer | Operator / Engineering Workstations | Provides monitoring, configuration, and operator interaction |
Industrial Applications
| Application | Carrier Role |
|---|---|
| Process Control Systems | Provides the cabinet-level carrier infrastructure for DeltaV M-Series I/O installations |
| Chemical Processing | Supports organized I/O cabinet construction and field-signal integration |
| Oil and Gas Facilities | Provides a structured mounting arrangement for distributed I/O hardware |
| Power Generation | Supports DeltaV I/O interface installations within control cabinets |
| Pharmaceutical Manufacturing | Helps organize M-Series I/O hardware and associated field wiring |
| Water and Wastewater Treatment | Supports structured installation of DeltaV I/O subsystems |
| Manufacturing Automation | Provides cabinet-level infrastructure for M-Series control-system hardware |
| System Maintenance | Allows replacement or refurbishment of carrier hardware within established DeltaV installations |
Installation and Maintenance
- Confirm that the VE4050E1C0 KJ4001X1-BE1 matches the intended DeltaV M-Series I/O interface configuration before installation.
- Verify the cabinet mounting location and ensure the carrier can be securely installed in the designated position.
- Isolate the relevant control-system section according to the plant’s maintenance and electrical safety procedures.
- Inspect the carrier and shield bar for mechanical damage, deformation, contamination, or loose hardware.
- Confirm that compatible I/O interface components are correctly identified before mounting them on the carrier.
- Install the carrier securely and ensure that its mounting interfaces are properly engaged.
- Route field and system wiring according to the cabinet design while avoiding unnecessary mechanical stress on connectors.
- Verify that cable shields are correctly arranged around the shield-bar interface according to the applicable DeltaV installation documentation.
- Check that associated I/O components are fully seated and mechanically secured.
- Inspect wiring and connections for loose terminals, damaged insulation, or signs of overheating during scheduled maintenance.
- Before energizing the system, compare the completed installation with the cabinet drawings and approved I/O documentation.
- After installation or replacement, verify communication and I/O operation at the system level before returning the cabinet to normal service.
Related Components
| Component | Function in the System |
|---|---|
| Emerson DeltaV M-Series I/O Modules | Process field input and output signals |
| DeltaV M-Series I/O Interface Components | Provide field-side and module-side I/O connections |
| DeltaV Controller | Executes control strategies and system logic |
| DeltaV I/O Carrier Hardware | Provides physical support for M-Series I/O installations |
| Field Termination Hardware | Provides connection points for field wiring |
| Shield Bar | Supports organized cable shield termination and cabinet wiring |
| Control Cabinet | Houses the carrier, I/O hardware, wiring, and associated control-system equipment |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Emerson VE4003 Series | DeltaV M-Series I/O Termination Block | Associated field wiring interface family |
| Emerson VE4003S4 | DeltaV M-Series Analog Input Card | Related M-Series I/O hardware |
| Emerson VE4003S5 | DeltaV M-Series Thermocouple Analog Input Card | Related analog I/O hardware |
| Emerson VE4003S6 | DeltaV M-Series RTD Analog Input Card | Related analog I/O hardware |
| Emerson DeltaV M-Series I/O Carriers | I/O Interface Carrier | Related carrier hardware for M-Series installations |
Key Advantages
- Provides a dedicated carrier platform for DeltaV M-Series I/O interface hardware.
- Supports organized installation of I/O components within control cabinets.
- Incorporates a shield-bar arrangement for structured cable shielding.
- Helps maintain a clear separation between cabinet infrastructure and active I/O processing.
- Suitable for DeltaV system installation, refurbishment, and maintenance work.
- Supports orderly integration of field wiring and M-Series I/O hardware.
Technical FAQs
What is the purpose of the Emerson VE4050E1C0 KJ4001X1-BE1?
The VE4050E1C0 KJ4001X1-BE1 is an 8-wide DeltaV M-Series I/O Interface Carrier with Shield Bar. It provides the physical carrier and interface structure for compatible M-Series I/O hardware within a control cabinet.
Does the VE4050E1C0 perform I/O signal processing?
No. The carrier is a mounting and interface component. Actual field signal processing is performed by the compatible DeltaV I/O modules and associated system hardware installed within the M-Series architecture.
What is the purpose of the shield bar?
The shield bar provides a structured point for organizing cable shielding within the I/O cabinet. Correct shield termination and grounding practices depend on the specific DeltaV installation and applicable cabinet documentation.
What should be checked when replacing an M-Series I/O carrier?
The carrier configuration, compatible I/O hardware, cabinet mounting arrangement, field wiring, shield connections, and system documentation should be checked before replacement. After installation, the associated I/O channels and system communication should be verified before returning the control-system section to service.
