Product Overview

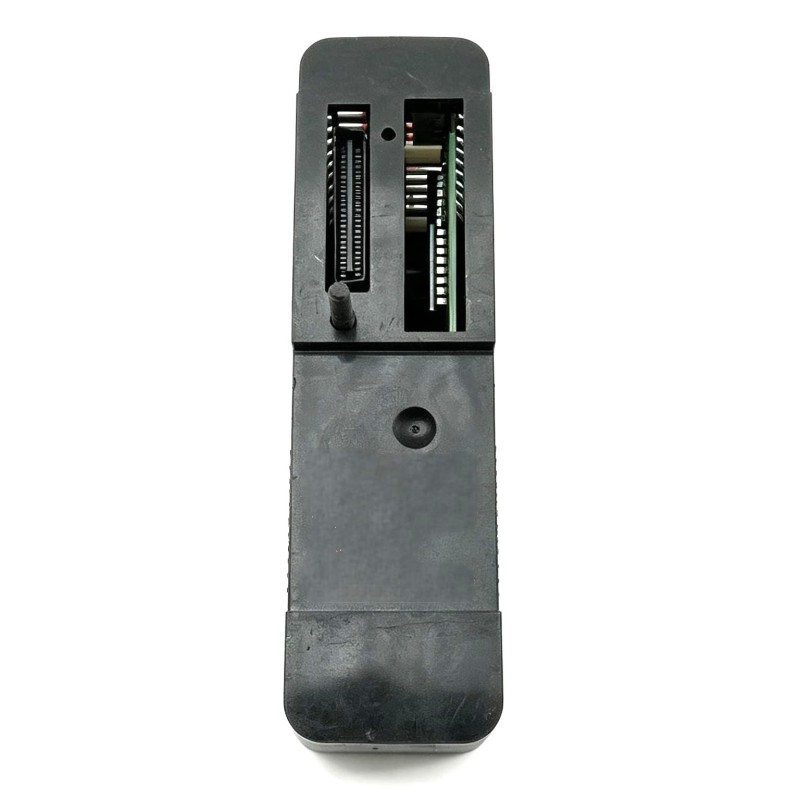

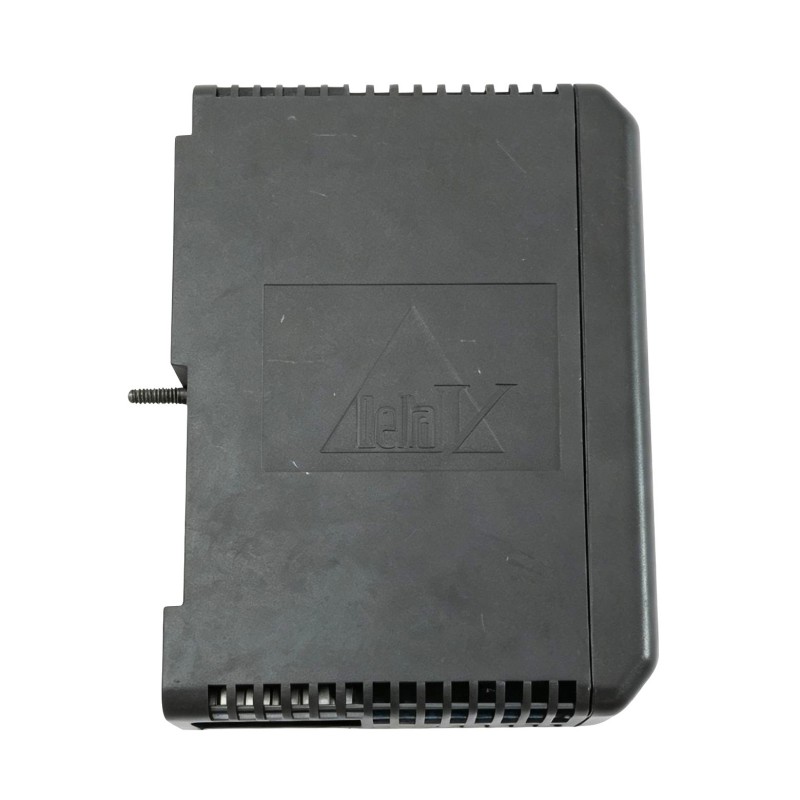

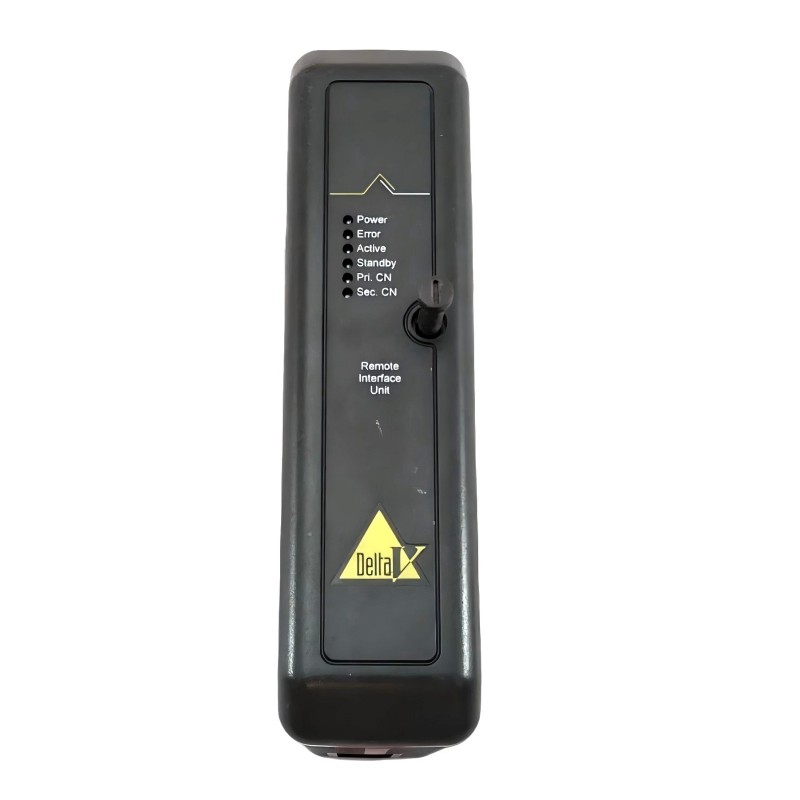

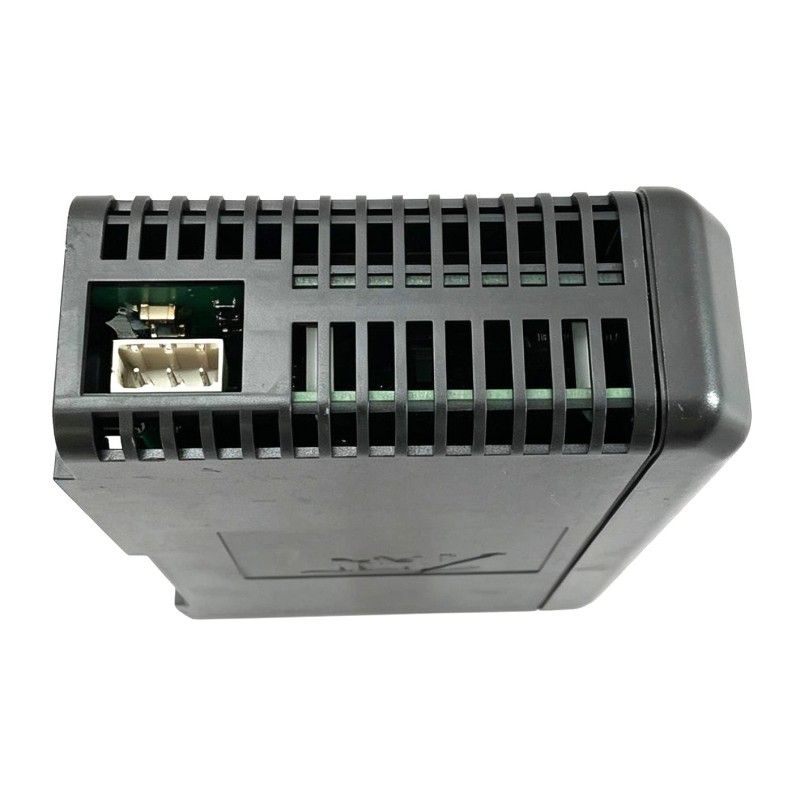

The Emerson VE4021 is a DeltaV M-Series Zone 2 Remote I/O Scanner used as an interface between remote I/O field equipment and the Emerson DeltaV control system. It is associated with distributed I/O installations where field signals need to be collected and communicated back to the central control architecture from a remote location.
In a DeltaV remote I/O arrangement, the scanner forms part of the communication path between the remote I/O assembly and the control system. This allows I/O hardware to be located closer to field instrumentation while keeping the central control architecture organized around the DeltaV system.
The Zone 2 designation is particularly relevant to industrial installations where the remote I/O equipment is deployed in a classified hazardous-area environment. Application suitability depends on the complete system design, applicable area classification, installation requirements, and the associated DeltaV hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4021 |
| Product Type | DeltaV M-Series Zone 2 Remote I/O Scanner |
| Product Family | DeltaV M-Series |
| Series | M-Series |
| I/O Type | Remote I/O |
| System Role | Remote I/O Scanning and Communication |
| Application | Distributed Process I/O |
| Area Application | Zone 2 Hazardous-Area Installation |
| Communication Function | Remote I/O Data Interface |
| System Integration | Emerson DeltaV Control System |
| Component Type | Remote I/O Scanner |
| Installation | Distributed / Remote I/O Location |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.3 kg |
Product Features
- DeltaV M-Series remote I/O scanner for distributed process-control architectures
- Intended for Zone 2 remote I/O applications
- Provides an interface between remote I/O equipment and the DeltaV control system
- Supports distributed placement of I/O closer to field instrumentation
- Helps extend the DeltaV I/O architecture beyond the main control cabinet
- Suitable for process plants requiring remote I/O installations
- Supports centralized monitoring and control through the DeltaV system
- Can be incorporated into remote I/O assemblies serving field instrumentation
- Relevant to maintenance and replacement work on established DeltaV remote I/O installations
- Designed to operate as part of a complete DeltaV system rather than as an independent controller
Working Principle
The VE4021 operates as the scanning and communication interface within a DeltaV remote I/O arrangement. Field devices connect to the associated remote I/O hardware, while the scanner manages the exchange of I/O information between that remote assembly and the DeltaV control architecture.
A typical signal and communication path can be represented as:
Field Devices → Remote I/O Modules → VE4021 → DeltaV Communication Architecture → DeltaV Controller
For input signals, field instruments provide process information to the remote I/O modules. The VE4021 participates in transferring the resulting I/O data toward the DeltaV system, where the information can be used by configured control strategies, monitoring functions, and operator applications.
For output signals, commands generated within the DeltaV control system are communicated toward the remote I/O assembly. The associated output hardware then delivers the required field signal to the relevant actuator or final control element.
Because the scanner is part of a distributed I/O architecture, troubleshooting should consider the complete path. A communication fault may involve the scanner, remote I/O assembly, network connection, I/O configuration, field wiring, or the central DeltaV system rather than the scanner alone.
Role in a DeltaV M-Series Remote I/O Control Architecture
The VE4021 occupies the remote I/O interface layer of the DeltaV M-Series architecture. It allows I/O information from a distributed field location to be incorporated into the central DeltaV control environment while supporting remote installation arrangements.
| Control Architecture Layer | Typical Component | Function |
|---|---|---|
| Supervisory Layer | DeltaV Operator / Engineering Environment | Provides monitoring, configuration, and operator interaction |
| Control Layer | DeltaV Controller | Executes configured process-control strategies |
| Remote I/O Communication Layer | VE4021 | Scans and communicates remote I/O information |
| Remote I/O Layer | DeltaV Remote I/O Modules | Interfaces directly with field signals |
| Field Interface Layer | Transmitters / Switches / Actuators | Provides or receives process signals |
| Field Network Layer | Remote I/O Communication Infrastructure | Carries information between remote I/O and the control system |
| Process Layer | Pumps / Valves / Industrial Equipment | Generates or responds to controlled process conditions |
Industrial Applications
| Application | Remote I/O Scanner Role |
|---|---|
| Process Control Systems | Connects distributed remote I/O assemblies with the DeltaV control system |
| Oil and Gas Facilities | Supports remote I/O deployment in distributed process areas |
| Chemical Processing | Collects and communicates field I/O information from remote process locations |
| Refining and Petrochemical Plants | Supports distributed instrumentation architectures |
| Power Generation | Provides remote I/O communication within DeltaV-based control systems |
| Hazardous-Area Installations | Supports applicable Zone 2 remote I/O arrangements |
| Water and Wastewater Treatment | Allows I/O equipment to be positioned closer to remote process equipment |
| Plant Expansion Projects | Supports extension of the DeltaV I/O architecture to additional field locations |
Installation and Maintenance
- Verify the model and application — Confirm that VE4021 is appropriate for the intended DeltaV M-Series remote I/O and Zone 2 installation.
- Review system documentation — Check the DeltaV architecture drawings, remote I/O documentation, network configuration, and applicable hazardous-area requirements.
- Isolate the relevant equipment — Follow approved plant shutdown, isolation, electrical safety, and hazardous-area procedures before maintenance.
- Identify the remote I/O assembly — Confirm the scanner location and its associated remote I/O modules and communication connections.
- Inspect the replacement unit — Check the scanner for physical damage, contamination, or abnormal connector condition before installation.
- Remove the existing scanner carefully — Follow the applicable DeltaV maintenance procedure and avoid disturbing adjacent remote I/O components.
- Verify the installation location — Confirm that the scanner is being installed in the documented remote I/O position and applicable Zone 2 arrangement.
- Install the replacement scanner — Seat and secure the VE4021 according to the applicable equipment installation procedure.
- Reconnect system interfaces — Restore communication and associated I/O connections while checking each connection against the installation documentation.
- Check configuration and diagnostics — After the system is energized, verify scanner recognition, communication status, and available DeltaV diagnostic indications.
- Perform a controlled I/O test — Confirm communication with the remote I/O modules and verify representative input and output points before returning the equipment to normal service.
- Document the maintenance activity — Record the scanner model, remote I/O location, communication status, test results, and maintenance date.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV Remote I/O Modules | Interface field input and output signals at the remote location |
| DeltaV Controller | Executes configured process-control strategies |
| DeltaV M-Series I/O Infrastructure | Provides the broader I/O architecture |
| Remote I/O Communication Network | Carries I/O information between the remote assembly and control system |
| Field Transmitters | Supply process measurement signals |
| Switches and Sensors | Provide discrete process-status information |
| Control Valves / Actuators | Receive output commands from the control system |
| Remote I/O Enclosure | Houses remote I/O and associated interface hardware |
| DeltaV Engineering Environment | Provides configuration, diagnostics, and maintenance functions |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Emerson DeltaV M-Series Remote I/O Hardware | Remote I/O Infrastructure | Associated distributed I/O hardware |
| Emerson DeltaV M-Series I/O Modules | M-Series I/O Hardware | Interfaces field signals within the remote I/O architecture |
| Emerson DeltaV Remote I/O Communication Components | Remote I/O Interface Hardware | Related communication infrastructure |
| Emerson DeltaV M-Series I/O Carriers | I/O Carrier Hardware | Supports installation of applicable M-Series I/O components |
| Emerson DeltaV Zone 2 I/O Components | Hazardous-Area I/O Hardware | Related equipment for applicable Zone 2 installations |
Key Advantages
- Extends the DeltaV M-Series architecture to remote I/O locations.
- Supports distributed placement of I/O closer to field instrumentation.
- Provides a scanning and communication interface for remote I/O.
- Supports applicable Zone 2 remote I/O installations.
- Helps integrate remote field signals into the central DeltaV control system.
- Suitable for maintenance, plant expansion, and distributed I/O applications.
Technical FAQs
What is the purpose of the Emerson VE4021?
The VE4021 is a DeltaV M-Series Zone 2 Remote I/O Scanner that provides the scanning and communication interface between a remote I/O assembly and the DeltaV control architecture.
What does the Zone 2 designation mean for the VE4021 application?
Zone 2 identifies a hazardous-area application category in which an explosive gas atmosphere is not expected during normal operation but may occur for a limited period. The actual suitability of the VE4021 depends on the complete certified system arrangement and site installation requirements.
Is the VE4021 itself a remote I/O module?
The VE4021 functions as a remote I/O scanner rather than as a conventional field signal I/O channel module. It works with the associated remote I/O hardware to communicate field I/O information with the DeltaV control system.
What should be checked if the DeltaV system cannot communicate with the remote I/O?
Check the VE4021 installation and connections first, then examine the remote I/O modules, communication network, configuration, power and diagnostic indications, and relevant field-side connections. A complete path check is useful for distinguishing scanner, network, configuration, and I/O faults.
