Product Overview

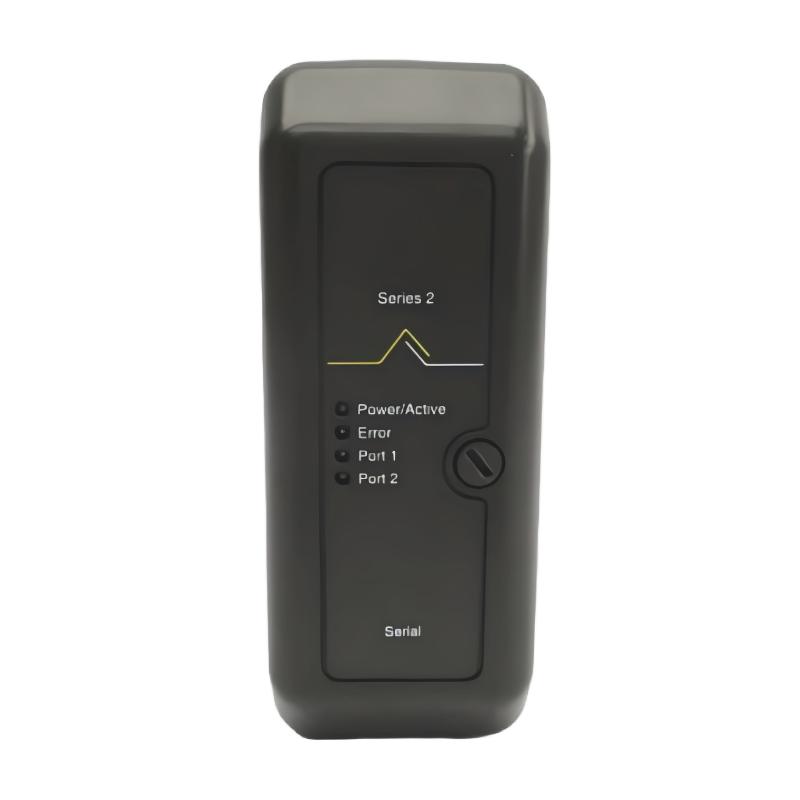

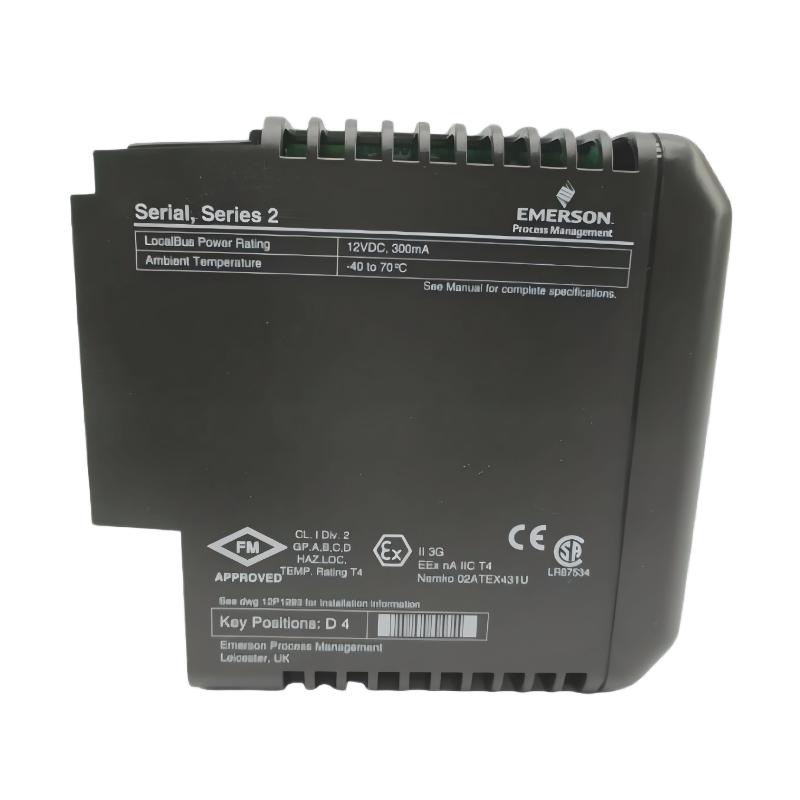

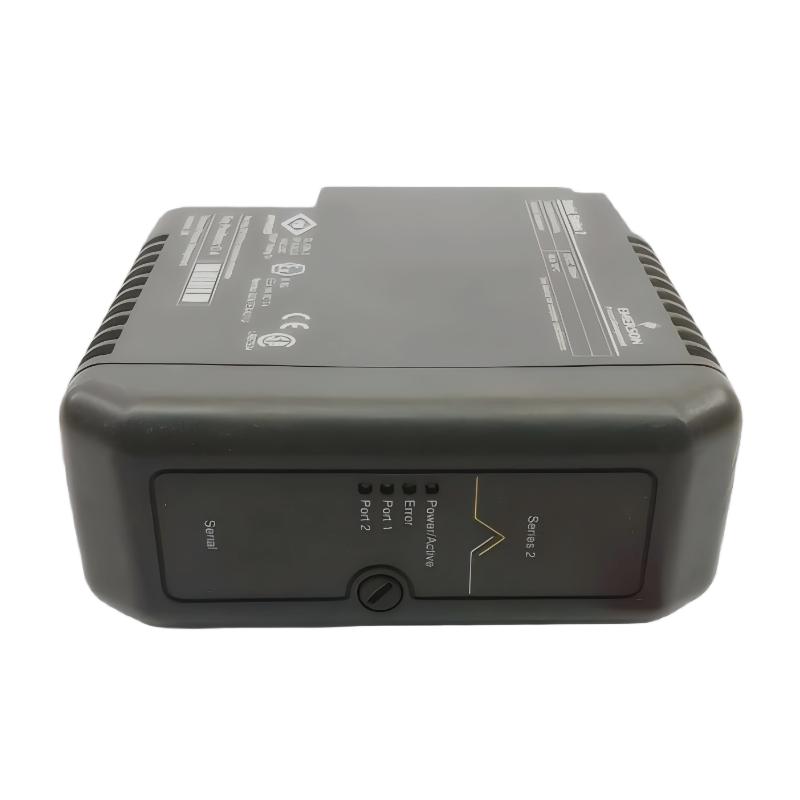

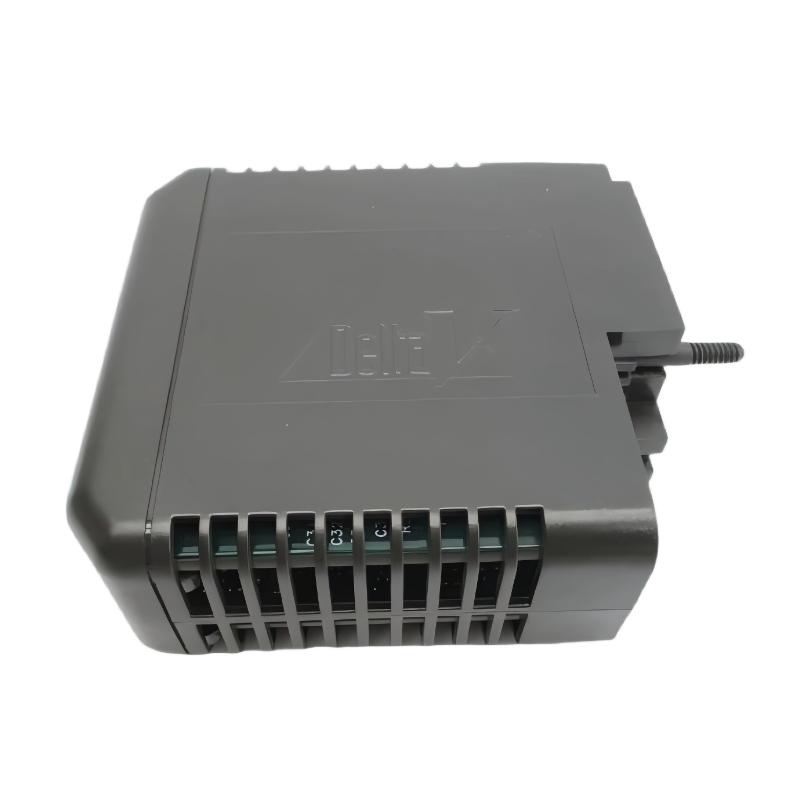

The Emerson VE4006P KJ3241X1-BA1 12P2506X042 Serial Interface Module is an industrial communication interface component designed to support serial communication within compatible Emerson process automation systems. It provides an interface between serial field devices or external equipment and the broader control architecture, helping exchange operational data between controllers, instrumentation, and connected devices.

Serial interfaces remain important in industrial environments because many legacy and specialized instruments, controllers, analyzers, meters, and intelligent field devices communicate through serial data connections. A dedicated serial interface module provides an organized connection point between these devices and the automation system while helping maintain reliable data exchange.

The module is identified by the Emerson VE4006P designation and the associated KJ3241X1-BA1 12P2506X042 hardware identification. Its listed dimensions are 107 × 41 × 105 mm, with a weight of approximately 0.2 kg. This compact form factor allows the module to be integrated into industrial I/O assemblies and control cabinets where space efficiency is important.

The exact serial protocol, port configuration, electrical interface, supported device types, and communication parameters should be verified against the applicable Emerson system documentation and hardware revision before installation. The module should always be selected according to the complete control-system architecture rather than physical dimensions alone.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4006P
Hardware Part Number	KJ3241X1-BA1
Additional Identification	12P2506X042
Product Type	Serial Interface Module
Product Family	Emerson VE4000 Series
Primary Function	Serial communication interfacing
Application	Industrial process automation and control
Interface Role	Serial field-device communication
Dimensions	107 × 41 × 105 mm
Weight	0.2 kg
Installation	Compatible Emerson industrial automation system
Typical Applications	Serial instrumentation, process devices, legacy equipment, industrial communication

Engineering note: Exact communication protocols, baud rates, parity settings, number of ports, electrical interface standards, isolation characteristics, cable requirements, and supported device profiles should be confirmed from the applicable Emerson documentation and the specific hardware revision.

---

What Is the Emerson VE4006P KJ3241X1-BA1?

The Emerson VE4006P KJ3241X1-BA1 12P2506X042 is a Serial Interface Module used to connect compatible serial communication equipment to an Emerson industrial control architecture.

In a process automation environment, information may need to travel between controllers and numerous external devices. While modern systems frequently use Ethernet-based communication, serial communication remains common in industrial instrumentation because of its long-established use in equipment such as analyzers, meters, intelligent instruments, and specialized controllers.

The VE4006P provides an interface between the serial device layer and the control system.

A simplified architecture can be represented as:

Serial Field Device → VE4006P Serial Interface → Emerson I/O / Control Architecture → Controller → Operator Interface

Depending on the application, the communication path may also operate in the opposite direction, allowing the controller to send commands or configuration information to an external serial device.

---

Function and Working Principle

Serial Data Acquisition

The module provides a communication interface through which serial data can be exchanged between compatible field equipment and the Emerson automation system.

A connected device may transmit information such as:

• Measurement values
• Equipment status
• Diagnostic information
• Operating parameters
• Alarm conditions
• Device identification
• Process-related data

The automation system can then use the received information for monitoring, control, alarming, trending, or maintenance purposes.

Data Transmission

Serial communication generally transfers information sequentially over a communication connection. The interface must interpret the incoming electrical communication signals and make the received information available to the host control architecture.

Similarly, commands generated by the control system can be transmitted toward compatible external equipment.

This creates a bidirectional communication path:

Controller → Serial Interface → Field Device

and:

Field Device → Serial Interface → Controller

The exact communication method depends on the configured system.

Communication Parameter Matching

Reliable serial communication requires both devices to use compatible communication settings.

Typical parameters that may need to be configured include:

• Communication speed
• Data format
• Parity
• Stop-bit configuration
• Device address
• Communication mode
• Protocol
• Timeout parameters

The exact settings supported by the VE4006P should be confirmed from the relevant system documentation.

---

Role in Emerson Process Automation

The VE4006P can serve as a communication bridge between traditional serial equipment and a larger Emerson process automation architecture.

A typical process-control structure may contain:

Field Instrumentation → Serial Communication → VE4006P → I/O Architecture → Controller → Control Strategy → Operator Interface

This architecture allows serial device information to become part of the overall automation system.

For example, a serial instrument may provide measurement information to the control system. The controller can use that information in an alarm strategy, display it to operators, store it for historical analysis, or incorporate it into a process-control algorithm.

The serial interface therefore contributes not only to communication but also to the availability of field-device information throughout the automation environment.

---

Industrial Applications

Process Instrumentation

Many industrial instruments communicate digitally rather than using only conventional analog signals. A serial interface can provide access to measurements and device information from compatible equipment.

Industrial Analyzers

Process analyzers may transmit measurement and diagnostic information through serial communication. The interface module can provide the communication path needed to bring that information into the control system.

Utility Systems

Water, steam, compressed-air, and other utility systems may contain intelligent meters or controllers with serial communication capabilities.

Legacy Equipment Integration

One important role of serial interfaces is connecting existing equipment to a modern automation architecture. Plants may retain specialized instruments or controllers that use established serial communication technology.

Manufacturing Systems

Serial communication can also be used for specialized machinery, instruments, testing equipment, and auxiliary controllers.

Process Monitoring

When a serial device provides operational information, the automation system can use the data for:

• Monitoring
• Alarm generation
• Trending
• Diagnostic analysis
• Equipment status
• Maintenance planning

---

Serial Communication Architecture

A reliable communication system should be considered as a complete network rather than as a single module.

A simplified architecture is:

External Device

↓

Serial Cable

↓

VE4006P KJ3241X1-BA1

↓

Emerson I/O Architecture

↓

Control Processor

↓

Operator / Engineering Interface

Each layer has a different responsibility.

The external device generates or receives serial data. The cable transfers the electrical signal. The VE4006P provides the interface. The control architecture handles the data, while the controller and operator system use the information for automation and monitoring.

---

Installation Guidelines

Verify the Hardware Identification

Before installation, confirm the complete identification:

VE4006P KJ3241X1-BA1 12P2506X042

Check the module markings, revision information, connector arrangement, and intended installation location.

Do not select a replacement only because another module has the same physical dimensions.

Inspect the Module

Before installation, inspect the module for:

• Physical damage
• Bent connectors
• Contamination
• Corrosion
• Damaged terminals
• Signs of overheating
• Mechanical damage

Any abnormal condition should be investigated before the module is placed into service.

Verify the Host System

Confirm that the VE4006P is intended for the specific Emerson control architecture and I/O position.

The host system configuration should correspond to the installed module.

Check Serial Cabling

Serial communication depends heavily on correct cabling.

Before commissioning, inspect:

• Cable continuity
• Connector condition
• Terminal assignment
• Shielding
• Cable routing
• Grounding
• Device connection

Incorrect cable wiring is one of the first areas to investigate when communication fails.

---

Communication Configuration

After physical installation, the serial interface must be correctly configured within the host control system.

Depending on the application, engineers may need to verify:

Device Address

Each device on a shared serial communication system may require a unique address. Duplicate addressing can result in communication conflicts.

Communication Speed

Both sides of the connection must use compatible communication speeds.

Data Format

Parameters such as character format, parity, and stop bits must correspond between communicating devices.

Protocol

The external device and control system must use a compatible communication protocol or configured interface method.

Timeout

Timeout parameters should be appropriate for the response characteristics of the connected device.

Incorrect communication configuration can produce symptoms that resemble hardware failure.

---

Commissioning Procedure

A structured commissioning process helps identify communication problems before the system enters normal operation.

Step 1: Verify Module Identification

Confirm the VE4006P model and KJ3241X1-BA1 12P2506X042 identification.

Step 2: Inspect Connections

Check the module installation, connectors, serial cable, and external device connection.

Step 3: Verify System Configuration

Confirm that the control-system configuration corresponds to the installed serial interface module.

Step 4: Configure Communication Parameters

Enter the appropriate communication parameters for the connected device.

Step 5: Establish Communication

Check whether the external device is detected and whether valid serial data is being received.

Step 6: Verify Data Integrity

Compare received values with the local device display or another trusted reference where practical.

Step 7: Test Bidirectional Communication

If the application requires two-way communication, verify both data reception and command transmission.

Step 8: Monitor During Operation

Observe communication status and device diagnostics during normal operation to confirm stable long-term communication.

---

Troubleshooting the VE4006P

No Communication

If the control system cannot communicate with the connected serial device, check:

• Module installation
• System configuration
• Serial cable
• Connector wiring
• Device power
• Device address
• Communication speed
• Protocol
• Parity and stop-bit settings
• Control-system diagnostics

A communication failure does not automatically indicate a defective VE4006P.

Intermittent Communication

Intermittent communication can be caused by:

• Loose connections
• Cable damage
• Electrical interference
• Incorrect grounding
• Poor shielding
• Communication parameter mismatch
• Device instability
• Environmental conditions

Trend communication diagnostics over time where the control system provides suitable diagnostic information.

Incorrect Data

If communication is established but the received information is incorrect, investigate:

• Data mapping
• Protocol configuration
• Device address
• Scaling
• Data format
• Register or variable assignment
• Device configuration

The serial link may be functioning correctly even when the application-level data configuration is incorrect.

Communication Timeout

Repeated timeouts can result from:

• Incorrect communication speed
• Incorrect protocol
• Device not responding
• Wiring problems
• Excessive electrical noise
• Incorrect timeout settings
• Device address conflicts

Check the external device before replacing the communication module.

Communication Drops After Startup

If communication initially works but later becomes unstable, inspect:

• Cable connections
• Temperature
• Electrical interference
• Power stability
• Device behavior
• Network loading
• Configuration consistency

Environmental or field-device issues can sometimes appear only after equipment reaches normal operating conditions.

---

Preventive Maintenance

Regular maintenance can help improve communication reliability.

Inspect Connectors

Check connectors for looseness, contamination, corrosion, or physical damage.

Inspect Serial Cables

Cables should be checked for:

• Mechanical damage
• Excessive bending
• Moisture
• Loose terminations
• Shielding problems

Maintain Cable Separation

Where required, communication cables should be routed away from high-power conductors and significant sources of electromagnetic interference.

Monitor Diagnostics

Communication diagnostics can provide early warning of:

• Repeated timeouts
• Device errors
• Communication interruptions
• Configuration problems

Maintain Accurate Documentation

Record the installed module, connected devices, communication settings, cable identification, and system configuration.

This information can significantly reduce troubleshooting time.

---

Replacement Considerations

When replacing an Emerson VE4006P KJ3241X1-BA1 12P2506X042 Serial Interface Module, technicians should verify the complete hardware identification rather than relying on the VE4006P family name alone.

Important replacement information includes:

• VE4006P model
• KJ3241X1-BA1 part number
• 12P2506X042 identification
• Hardware revision
• Connector configuration
• Host I/O architecture
• Serial communication requirements
• Field-device compatibility
• Existing configuration

The listed physical dimensions are 107 × 41 × 105 mm, and the listed weight is 0.2 kg.

Because different industrial interface modules may have similar mechanical dimensions, electrical and communication compatibility must be confirmed before installation.

---

Physical Dimensions and Cabinet Planning

The compact physical construction of the VE4006P is suitable for integration into industrial I/O assemblies.

Physical Parameter	Value
Height	107 mm
Width	41 mm
Depth	105 mm
Weight	0.2 kg

These dimensions are useful for:

• Cabinet planning
• Spare-parts management
• Replacement preparation
• I/O assembly planning
• Maintenance logistics
• Equipment inventory

The actual installation clearance should be determined from the host Emerson equipment and its mounting arrangement.

---

Compatible System Components

The VE4006P may be integrated with a wider Emerson automation system containing:

• Emerson controllers
• Emerson I/O systems
• Serial field instruments
• Intelligent process devices
• Industrial analyzers
• Serial communication cables
• Terminal assemblies
• I/O carriers
• Operator workstations
• Engineering workstations
• Process-control software
• Diagnostic systems
• Industrial instrumentation

The exact compatible components depend on the installed Emerson architecture and configured communication system.

---

Related Emerson Models

Model	Product Type	General Function
VE4006P	Serial Interface Module	Serial device communication
VE4005S2B5	Analog Output Card	Analog process output
VE4005S2B3	Analog Output Card	Analog output interfacing
VE4003S2	Analog Input Card	Analog signal acquisition
VE4003S2B3	Analog Input Module	Analog input and field interface
VE4003S6B1	Analog Input Card	Process measurement input
VE4002S2	Discrete Output Card	Discrete control output
VE3006	Digital Input Module	Digital field signal acquisition

These products represent related Emerson I/O and interface components. They should not be treated as direct substitutes for the VE4006P unless the complete electrical, communication, mechanical, and system requirements have been verified.

---

Engineering Best Practices

Document Communication Settings

Maintain a record of all configured serial communication parameters. This helps engineers restore the system quickly after module replacement or maintenance.

Avoid Unnecessary Cable Runs

Long or poorly routed communication cables can increase susceptibility to interference. Follow the applicable industrial wiring practices for the installation.

Separate Communication and Power Wiring

Where practical, keep serial communication wiring separated from high-current switching and power cables.

Verify Device Addressing

For systems using multiple serial devices, verify that device addresses do not conflict.

Test Before Full Process Operation

Communication should be tested under controlled conditions before relying on the data for important process-control functions.

Monitor Long-Term Stability

Successful startup does not necessarily guarantee long-term communication reliability. Monitoring communication diagnostics during normal operation can help identify intermittent problems.

---

Key Advantages

• Dedicated serial communication interface
• Designed for integration into compatible Emerson automation systems
• Supports communication between control architecture and serial field equipment
• Useful for intelligent instrumentation and legacy-device integration
• Compact industrial form factor
• Listed dimensions of 107 × 41 × 105 mm
• Listed weight of 0.2 kg
• Suitable for process monitoring and industrial communication applications
• Can help integrate serial device information into broader control strategies
• Supports structured troubleshooting and diagnostic workflows

---

Technical FAQs

What is the Emerson VE4006P?

The Emerson VE4006P is a Serial Interface Module designed to provide serial communication interfacing within compatible Emerson industrial automation systems.

What is the complete part number?

The associated identification provided for this module is KJ3241X1-BA1 12P2506X042.

What is the main function of the VE4006P?

Its primary function is to provide a communication interface between compatible serial devices and the Emerson control architecture.

Where can a serial interface module be used?

It can be used with compatible serial instruments, analyzers, meters, controllers, and other industrial devices that need to exchange data with the process-control system.

What are the dimensions of the VE4006P?

The listed dimensions are 107 × 41 × 105 mm.

How much does the VE4006P weigh?

The listed weight is approximately 0.2 kg.

Does the VE4006P support all serial protocols?

The supported protocols and electrical interfaces should not be assumed from the model name. The exact communication capabilities should be confirmed against the applicable Emerson documentation and hardware revision.

What causes serial communication failure?

Common causes include incorrect wiring, incompatible communication parameters, incorrect device addressing, damaged cables, electrical interference, device faults, configuration errors, or hardware problems.

Can another Emerson I/O module replace the VE4006P?

Not automatically. A replacement must provide compatible serial communication functionality and match the host-system architecture, configuration, connector arrangement, and field-device requirements.

How should the VE4006P be maintained?

Maintenance should include inspection of connectors, serial cables, installation conditions, system diagnostics, communication parameters, and connected field devices.

---

Conclusion

The Emerson VE4006P KJ3241X1-BA1 12P2506X042 Serial Interface Module is a compact industrial communication component designed to connect compatible serial field equipment with an Emerson process automation architecture. It can provide an important communication path for instrumentation, analyzers, meters, controllers, and other serial devices operating within industrial environments.

With listed dimensions of 107 × 41 × 105 mm and a weight of 0.2 kg, the VE4006P is suitable for compact I/O installations where reliable serial communication and efficient cabinet utilization are required.

Successful operation depends on correct module identification, compatible communication parameters, appropriate cabling, proper grounding, accurate controller configuration, and reliable field-device operation. For installation and replacement work, the complete VE4006P KJ3241X1-BA1 12P2506X042 identification should be verified before the module is placed into service.

When properly integrated, the VE4006P can help bring serial device data into the Emerson control environment, supporting process monitoring, equipment diagnostics, data collection, and automated industrial control.
