Product Overview

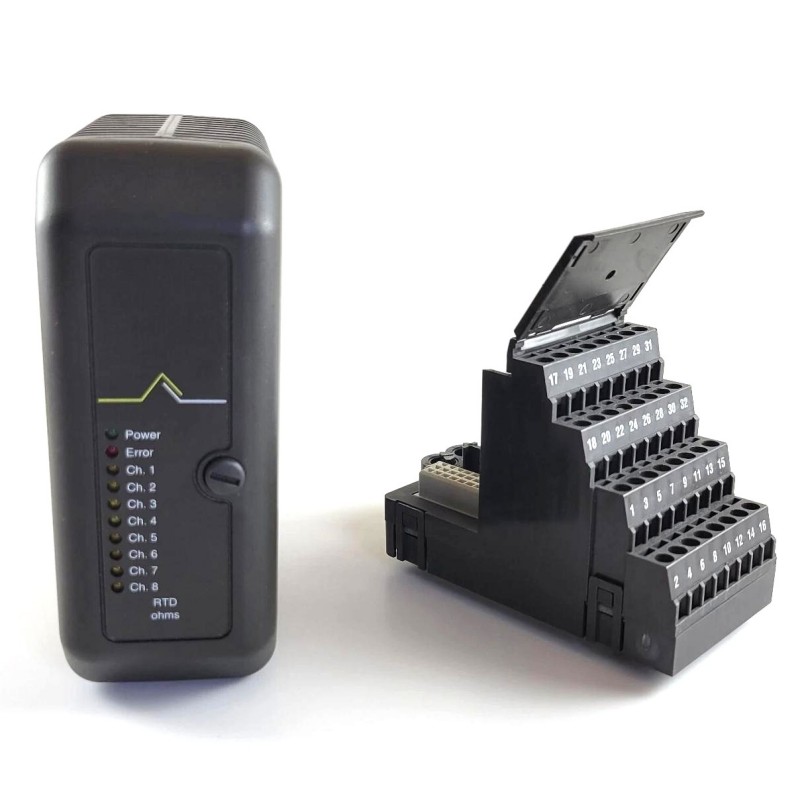

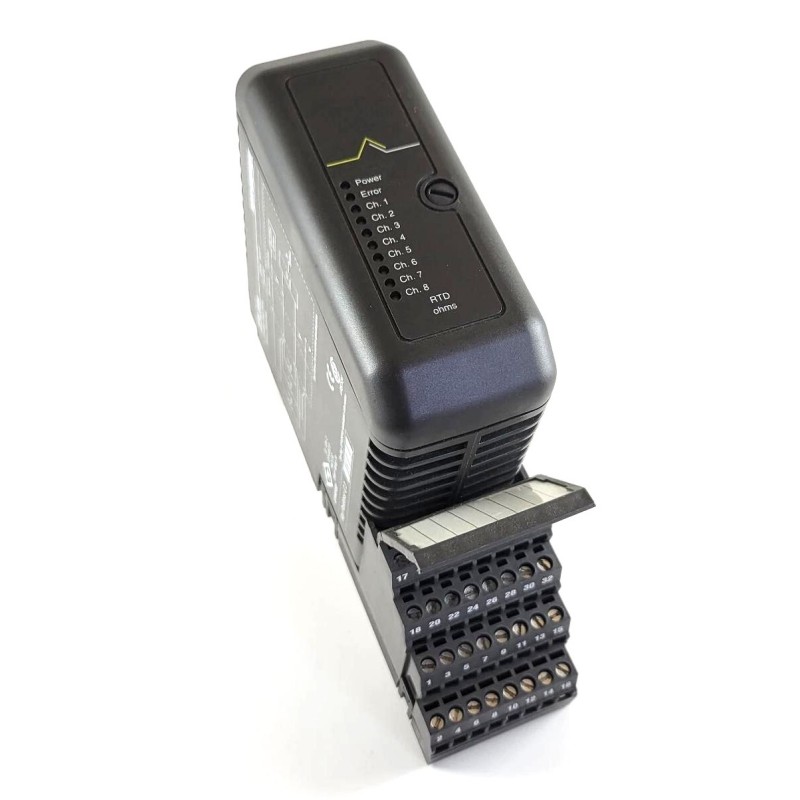

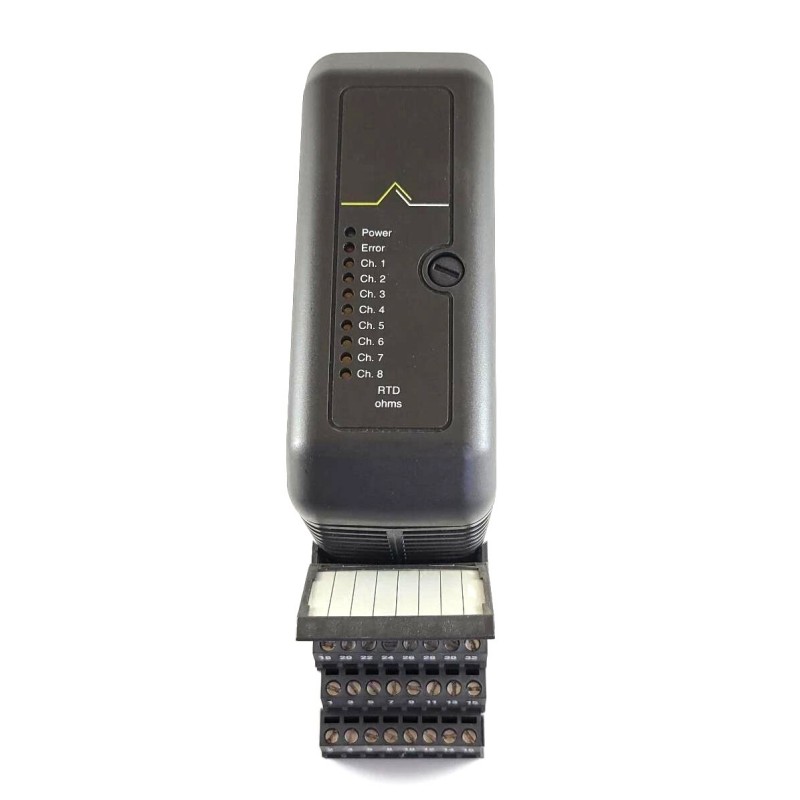

The Emerson VE4003S6B1 KJ3002X1-BF1+KJ4001X1-CH1 is a DeltaV M-Series RTD analog input assembly used to bring resistance-based temperature measurements from field sensors into the DeltaV control environment. The combination includes the RTD analog input function together with associated M-Series termination hardware, forming a more complete field-to-I/O connection arrangement.
RTD sensors are commonly installed on process vessels, pipelines, heat exchangers, rotating equipment, and utility systems where continuous temperature measurement is required. The sensor produces a resistance change corresponding to the measured temperature, and the M-Series I/O architecture receives this field measurement for use by configured control strategies and monitoring functions.
The KJ3002X1-BF1 and KJ4001X1-CH1 components form part of the physical I/O and termination arrangement around the input card. This makes the assembly relevant to replacement and maintenance work where the existing DeltaV cabinet architecture needs to be retained rather than rebuilding the field interface from individual components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4003S6B1 KJ3002X1-BF1+KJ4001X1-CH1 |
| Product Type | RTD Analog Input Card Assembly |
| Product Family | DeltaV M-Series |
| Manufacturer | Emerson |
| System | DeltaV |
| I/O Function | RTD Analog Input |
| Input Signal Type | RTD |
| Measurement Type | Temperature Measurement |
| Measurement Principle | Resistance-Based Temperature Measurement |
| Associated Hardware | KJ3002X1-BF1 + KJ4001X1-CH1 |
| Signal Direction | Field Device to Control System |
| I/O Architecture | Modular DeltaV M-Series I/O |
| System Integration | DeltaV Controller and M-Series I/O Architecture |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.5 kg |
Product Features
- RTD analog input assembly for the Emerson DeltaV M-Series control system.
- Combines the VE4003S6B1 RTD input function with associated M-Series hardware.
- Includes KJ3002X1-BF1 and KJ4001X1-CH1 components in the supplied assembly configuration.
- Acquires resistance-based temperature measurements from field RTD sensors.
- Provides a structured connection between field temperature instrumentation and the DeltaV I/O architecture.
- Suitable for distributed temperature monitoring in process plants.
- Supports temperature information used by configured DeltaV control, alarm, and monitoring functions.
- Useful for maintenance and replacement work on established DeltaV M-Series installations.
- Keeps the field termination and I/O arrangement aligned with the existing cabinet architecture.
Working Principle
The VE4003S6B1 assembly forms part of the complete RTD measurement path between a field temperature sensor and the DeltaV control system.
1. Temperature sensing
An RTD sensor changes its electrical resistance as its sensing element experiences a change in temperature. The resistance-based signal represents the process temperature at the measurement point.
2. Field wiring and termination

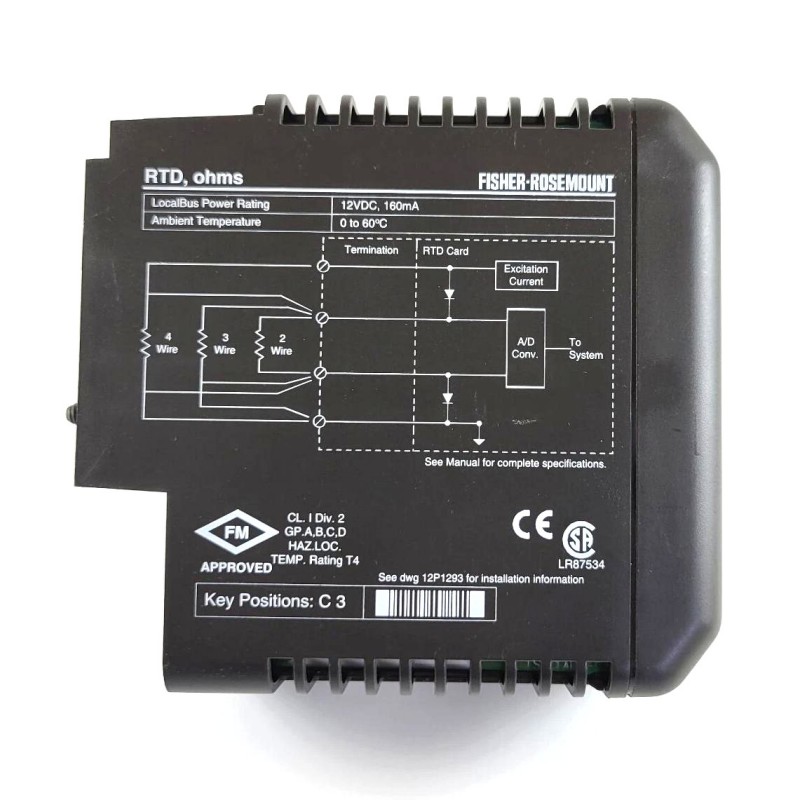

The RTD circuit travels through the field wiring toward the DeltaV cabinet. The associated M-Series termination hardware provides the physical interface required to connect the field circuit with the I/O arrangement.
3. RTD input acquisition
The VE4003S6B1 receives the RTD measurement through the M-Series I/O architecture. The KJ3002X1-BF1 and KJ4001X1-CH1 components form part of the associated connection and termination arrangement.
4. DeltaV processing
The acquired temperature information is passed into the DeltaV control environment. Configured control modules can use the measurement for process monitoring, alarming, trending, operator display, or temperature-related control functions.
RTD Sensor → Field Wiring → KJ3002X1-BF1 / KJ4001X1-CH1 → VE4003S6B1 → DeltaV Control Architecture
The complete measurement result depends on the condition and configuration of the sensor, field wiring, termination hardware, I/O card, and DeltaV input configuration.
Role in a DeltaV M-Series Temperature Measurement Control Architecture
The VE4003S6B1 assembly occupies the RTD measurement interface layer of the DeltaV M-Series architecture. Its associated termination components establish the field connection, while the analog input function brings the resistance-based temperature measurement into the control system.
| System Layer | Typical Component | Function |
|---|---|---|
| Process | Vessel / Pipeline / Heat Exchanger / Machine | Provides the temperature condition being measured |
| Field Sensing | RTD Sensor | Detects temperature through resistance change |
| Field Interface | KJ3002X1-BF1 / KJ4001X1-CH1 | Provides the associated M-Series termination and connection arrangement |
| Analog I/O | VE4003S6B1 | Acquires RTD measurement signals |
| Control | DeltaV Controller | Processes temperature information within configured strategies |
| Operator Interface | DeltaV Operator Station | Displays temperature values, alarms, and process information |
Industrial Applications
| Application | Assembly Role |
|---|---|
| Chemical Processing | Interfaces RTD measurements from reactors, vessels, and process equipment with DeltaV |
| Oil and Gas | Brings field temperature measurements into DeltaV process control |
| Power Generation | Supports temperature monitoring of plant equipment and process systems |
| Pharmaceutical Manufacturing | Acquires temperature measurements from process vessels and production equipment |
| Food and Beverage Processing | Connects RTD-based temperature measurement with process automation |
| Petrochemical Processing | Supports distributed temperature monitoring throughout process units |
| Utilities | Interfaces temperature sensors used in plant utility and support systems |
| General Process Automation | Provides an RTD measurement path within the DeltaV M-Series architecture |
Installation and Maintenance
- Confirm that the complete VE4003S6B1 KJ3002X1-BF1+KJ4001X1-CH1 assembly matches the existing DeltaV M-Series I/O arrangement before installation.
- Isolate the applicable I/O section according to the plant’s approved electrical and process safety procedures.
- Verify the intended installation position and associated field termination connections before removing the existing assembly.
- Inspect the input card, termination components, and mating interfaces for contamination, corrosion, or mechanical damage.
- Confirm that the RTD field wiring corresponds to the intended input channel before reconnecting the assembly.
- Verify the RTD wiring arrangement and maintain the correct connection configuration during installation.
- Route the field measurement wiring to minimize mechanical stress and unnecessary exposure to electrical interference.
- Ensure the KJ3002X1-BF1 and KJ4001X1-CH1 connections are fully seated and mechanically secured as applicable to the installation.
- Verify the DeltaV input configuration and confirm that the selected channel corresponds to the installed RTD measurement.
- After energization, compare the displayed temperature with the expected process condition and investigate abnormal readings.
- If the temperature signal is unstable or incorrect, inspect the RTD sensor, field wiring, termination components, I/O card, and DeltaV configuration as one complete signal path.
- Record the assembly model, associated components, I/O position, field sensor, channel configuration, and maintenance observations for future service work.
Related Components
| Component | Function in the System |
|---|---|
| DeltaV M-Series Controller | Executes configured process control strategies |
| KJ3002X1-BF1 | Associated M-Series I/O/termination hardware within the assembly |
| KJ4001X1-CH1 | Associated M-Series connection/termination component |
| RTD Sensor | Measures temperature through changes in electrical resistance |
| RTD Field Wiring | Carries the temperature measurement circuit between the field sensor and I/O system |
| DeltaV Operator Station | Displays temperature values, alarms, and process information |
| Process Equipment | Provides the temperature condition being measured |
| DeltaV Control Strategy | Uses acquired temperature information for monitoring or process control |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Emerson VE4003S6 | DeltaV M-Series RTD Analog Input Card | Related RTD analog input hardware |
| Emerson VE4003S4B1 | DeltaV M-Series Thermocouple/mV Analog Input Card | Related DeltaV temperature input hardware |
| Emerson VE4003S5 | DeltaV M-Series Thermocouple Analog Input Card | Related M-Series temperature input hardware |
| Emerson VE4003S2B1 KJ3222X1-BA1 | DeltaV M-Series Standard I/O Termination Block | Related M-Series field termination hardware |
| Emerson VE4003S2B3 KJ3222X1-BA1 | DeltaV M-Series 4-Wire I/O Termination Block | Related M-Series termination hardware |
Key Advantages
- Combines RTD analog input functionality with associated DeltaV M-Series connection hardware.
- Provides a structured field-to-I/O path for resistance-based temperature measurements.
- Supports integration of RTD signals into DeltaV control and monitoring functions.
- Suitable for established M-Series cabinets where the existing termination architecture must be retained.
- Useful for maintenance, replacement, and refurbishment of DeltaV temperature measurement channels.
- Supports distributed temperature monitoring across a range of process applications.
Technical FAQs
What does the VE4003S6B1 KJ3002X1-BF1+KJ4001X1-CH1 combination contain?
The supplied configuration combines the VE4003S6B1 RTD analog input function with KJ3002X1-BF1 and KJ4001X1-CH1 associated M-Series hardware. The combination should be treated as an integrated I/O and termination arrangement when checking replacement compatibility.
Why should the associated termination components be checked when replacing the assembly?
The termination components form part of the physical field connection between the RTD sensor and the DeltaV I/O architecture. Replacing only the input card without confirming the associated termination arrangement can result in connection or channel-matching problems.
What should be checked if an RTD channel reports an incorrect temperature?
The RTD sensor, field wiring, KJ3002X1-BF1 and KJ4001X1-CH1 connections, input card, and DeltaV channel configuration should all be inspected. Checking the complete signal path helps identify whether the problem originates in the field circuit, termination arrangement, I/O hardware, or configuration.
Is the VE4003S6B1 assembly a standalone temperature controller?
No. It is part of the DeltaV M-Series I/O architecture and provides the RTD measurement interface. The actual process control strategy is executed by the wider DeltaV control system using the acquired temperature information.
