Product Overview

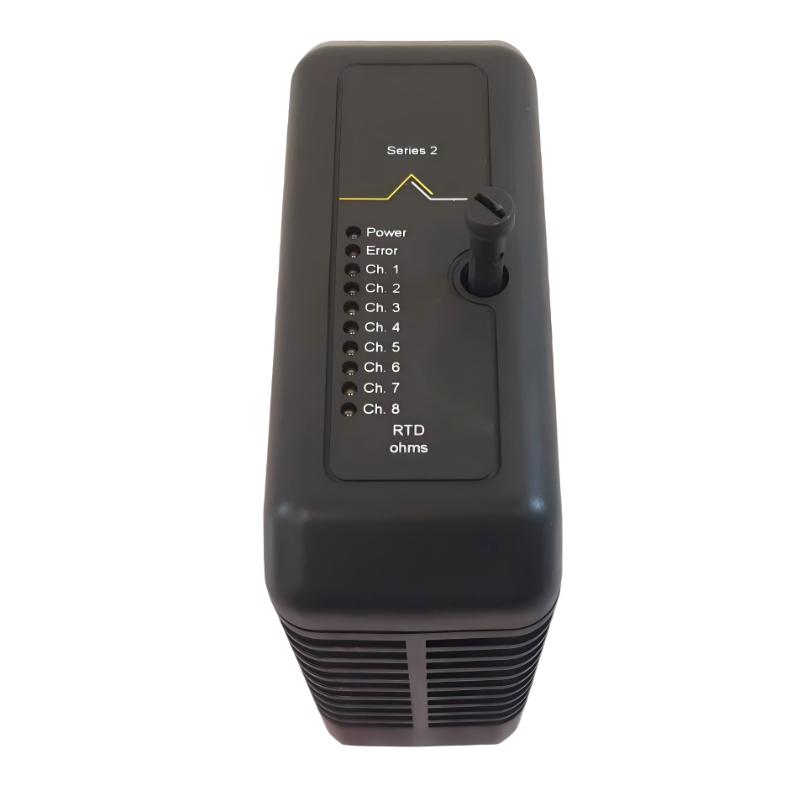

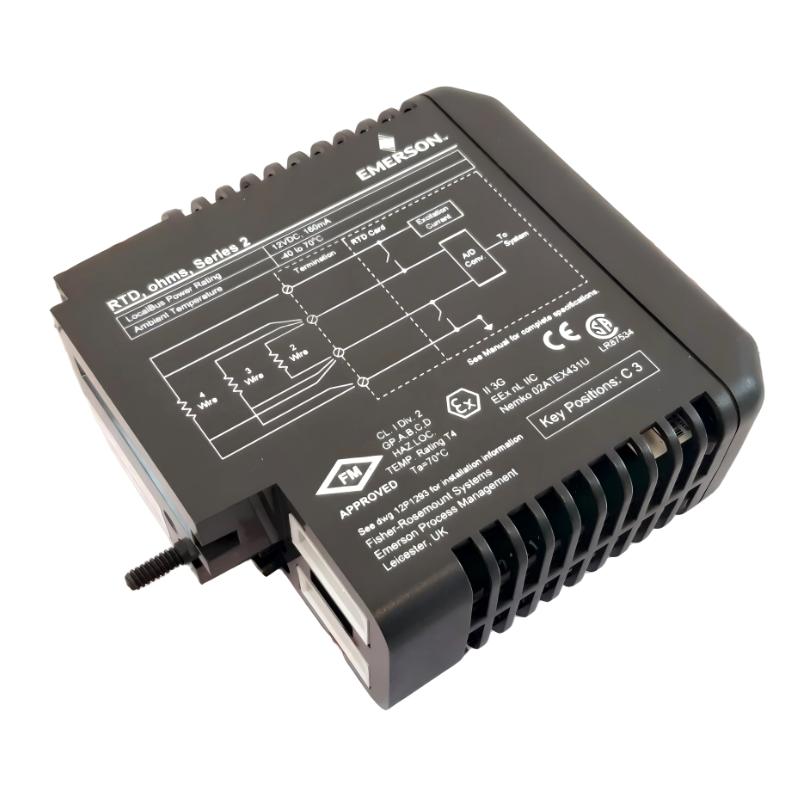

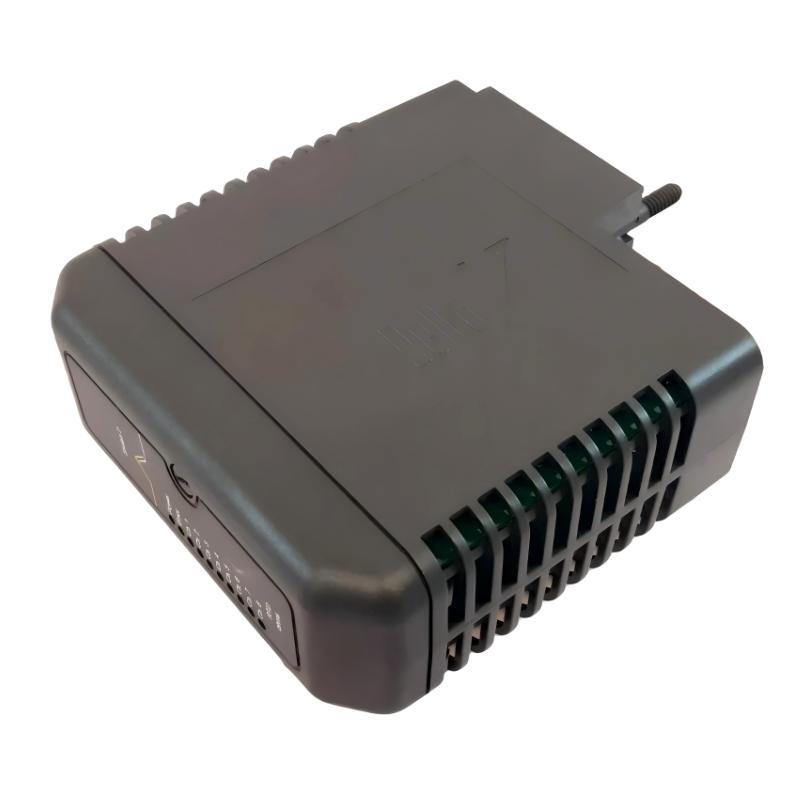

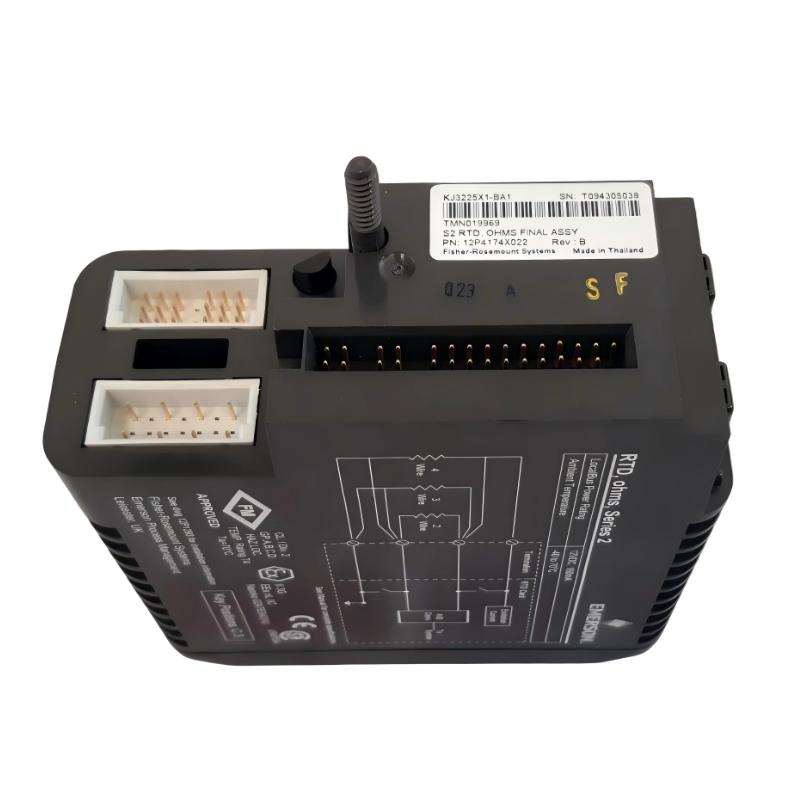

The Emerson VE4003S6 is a DeltaV M-Series RTD analog input card used to acquire resistance temperature detector signals from field temperature measurement points. It forms part of the analog I/O layer that brings temperature information from process equipment into the DeltaV control environment.
RTDs measure temperature through the predictable change in electrical resistance of their sensing element. The VE4003S6 provides the input interface for these resistance-based measurements, allowing temperature information from field sensors to become available to configured DeltaV control strategies, alarms, trends, and operator displays.
This type of input is useful in process applications where temperature monitoring is distributed across vessels, pipelines, rotating equipment, heat exchangers, utility systems, and other plant assets. The card works together with the applicable M-Series termination hardware, field wiring, RTD sensor, and DeltaV controller to form the complete measurement path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4003S6 |
| Product Type | RTD Analog Input Card |
| Product Family | DeltaV M-Series |
| Manufacturer | Emerson |
| System | DeltaV |
| I/O Function | Analog Input |
| Input Signal Type | RTD |
| Measurement Type | Temperature Measurement |
| Measurement Principle | Resistance-Based Temperature Measurement |
| Signal Direction | Field Device to Control System |
| I/O Architecture | Modular DeltaV M-Series I/O |
| Field Interface | RTD Temperature Sensors |
| System Integration | DeltaV Controller and M-Series I/O Architecture |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.2 kg |
Product Features
- RTD analog input card for the Emerson DeltaV M-Series control system.
- Acquires resistance-based temperature signals from RTD field sensors.
- Brings process temperature measurements into the DeltaV I/O architecture.
- Suitable for distributed temperature monitoring across process equipment.
- Works with the applicable M-Series termination and field wiring arrangement.
- Supports temperature information used by DeltaV control strategies and monitoring functions.
- Suitable for process alarming, trending, operator display, and temperature control applications.
- Provides a dedicated interface for RTD-based temperature measurement.
- Suitable for established DeltaV installations requiring RTD analog input capability.
Working Principle
The VE4003S6 operates as the RTD measurement interface between a field temperature sensor and the DeltaV control system.
1. Temperature sensing
An RTD changes its electrical resistance as the temperature of its sensing element changes. The resistance therefore provides the basic electrical representation of the measured process temperature.
2. Field signal transmission
The RTD measurement circuit is connected through field wiring to the DeltaV I/O cabinet. The applicable termination hardware provides the physical connection between the field sensor circuit and the M-Series I/O arrangement.
3. RTD signal acquisition
The VE4003S6 receives the RTD-related input through the DeltaV M-Series architecture. The card serves as the analog input interface that brings the resistance-based measurement into the control system.
4. Temperature processing
The acquired measurement is made available to the DeltaV control environment, where configured functions can use the temperature information for process monitoring, alarming, trending, display, or control.
RTD Sensor → Termination → VE4003S6 → DeltaV I/O Architecture → Controller → Operator / Control Application
The resulting temperature measurement depends on the complete field-to-control signal path, including the RTD sensor, wiring, termination, input configuration, and I/O hardware.
Role in a DeltaV M-Series Temperature Measurement Control Architecture
The VE4003S6 occupies the RTD analog input layer within the DeltaV M-Series architecture. It connects resistance-based temperature sensors with the control system, allowing temperature measurements from process equipment to be incorporated into configured automation functions.
| System Layer | Typical Component | Function |
|---|---|---|
| Process | Vessel / Pipeline / Heat Exchanger / Machine | Provides the temperature condition being monitored |
| Field Sensing | RTD Sensor | Detects temperature through resistance change |
| Termination | DeltaV M-Series Termination Hardware | Provides the field wiring interface |
| Analog I/O | VE4003S6 | Acquires RTD input signals |
| Control | DeltaV Controller | Processes temperature information within configured strategies |
| Operator Interface | DeltaV Operator Station | Displays temperature values, alarms, and process information |
Industrial Applications
| Application | Analog Input Card Role |
|---|---|
| Chemical Processing | Acquires RTD temperature measurements from reactors, vessels, and process lines |
| Oil and Gas | Interfaces field RTD sensors with DeltaV process control |
| Power Generation | Brings temperature measurements from plant equipment into the control system |
| Pharmaceutical Manufacturing | Supports temperature monitoring in process vessels and production systems |
| Food and Beverage Processing | Interfaces RTD sensors with process automation systems |
| Water and Wastewater | Collects temperature information for process monitoring |
| Utilities and HVAC Processes | Acquires temperature measurements from plant utility systems |
| General Process Automation | Provides RTD input capability within DeltaV M-Series I/O |
Installation and Maintenance
- Confirm that the VE4003S6 matches the existing DeltaV M-Series I/O architecture and required RTD input function.
- Isolate the applicable I/O section according to the plant’s approved electrical and process safety procedures before installation.
- Verify the intended card position and associated termination arrangement before removing an existing module.
- Inspect the card and mating interfaces for contamination, mechanical damage, or abnormal connector conditions.
- Confirm that the RTD field wiring corresponds to the intended input channel before reconnecting the I/O system.
- Verify the RTD wiring arrangement and maintain the correct sensor connection throughout installation.
- Route low-level RTD measurement wiring appropriately and minimize unnecessary exposure to electrical interference and mechanical stress.
- Ensure that the card and associated termination connections are fully seated and mechanically secured.
- Verify the DeltaV channel configuration and ensure that the selected input setup corresponds to the installed RTD application.
- After energization, compare the displayed temperature with the expected process condition and investigate abnormal readings.
- If a channel produces unstable or incorrect values, inspect the RTD sensor, wiring, termination, card connection, and DeltaV configuration as one complete measurement path.
- Record the installed card model, I/O position, associated RTD sensor, channel configuration, and maintenance observations for future troubleshooting.
Related Components
| Component | Function in the System |
|---|---|
| DeltaV M-Series Controller | Executes configured process control strategies |
| DeltaV M-Series Termination Hardware | Provides the field wiring interface for the I/O system |
| RTD Sensor | Measures temperature through changes in electrical resistance |
| RTD Field Wiring | Carries the resistance-based measurement circuit between the sensor and I/O system |
| DeltaV Operator Station | Displays temperature values, alarms, and process information |
| Process Equipment | Provides the temperature condition being measured |
| DeltaV Control Strategy | Uses acquired temperature information for monitoring or process control |
| Field Junction Box | Provides an intermediate field wiring connection where applicable |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Emerson VE4003S4B1 | DeltaV M-Series Thermocouple/mV Analog Input Card | Related DeltaV M-Series temperature input hardware |
| Emerson VE4003S5 | DeltaV M-Series Thermocouple Analog Input Card | Related M-Series thermocouple input hardware |
| Emerson VE4003S4 | DeltaV M-Series Analog Input Card | Related M-Series analog input hardware |
| Emerson VE4003S2B1 KJ3222X1-BA1 | DeltaV M-Series Standard I/O Termination Block | Associated termination hardware for M-Series I/O |
| Emerson VE4003S2B3 KJ3222X1-BA1 | DeltaV M-Series 4-Wire I/O Termination Block | Related M-Series field termination hardware |
Key Advantages
- Provides dedicated RTD temperature input capability within the DeltaV M-Series architecture.
- Brings resistance-based temperature measurements into the DeltaV control environment.
- Supports distributed temperature monitoring across industrial process equipment.
- Integrates RTD measurements with DeltaV control strategies and operator interfaces.
- Suitable for temperature monitoring, alarming, trending, and process control applications.
- Works as part of a structured field sensor, termination, I/O, and controller architecture.
Technical FAQs
What is the main function of the Emerson VE4003S6?
The VE4003S6 serves as an RTD analog input card within the DeltaV M-Series I/O architecture. It acquires resistance-based temperature measurements from compatible field sensors and makes the information available to the DeltaV control system.
How does an RTD differ from a thermocouple in the input signal path?
An RTD represents temperature through a change in electrical resistance, while a thermocouple generates a small voltage related to temperature. The field sensor type therefore needs to correspond to the input function and configuration of the I/O system.
What should be checked when an RTD temperature reading is incorrect?
The RTD sensor, field wiring, termination connections, I/O card interface, and DeltaV channel configuration should all be checked. An open or damaged sensor circuit, incorrect wiring, loose connection, or unsuitable input configuration can affect the resulting measurement.
Why is the complete RTD wiring arrangement important?
The RTD measurement depends on the electrical resistance observed by the input circuit. Wiring condition and connection arrangement can therefore affect the measured value, making correct field wiring, termination, and channel configuration important during installation and troubleshooting.
