Product Overview

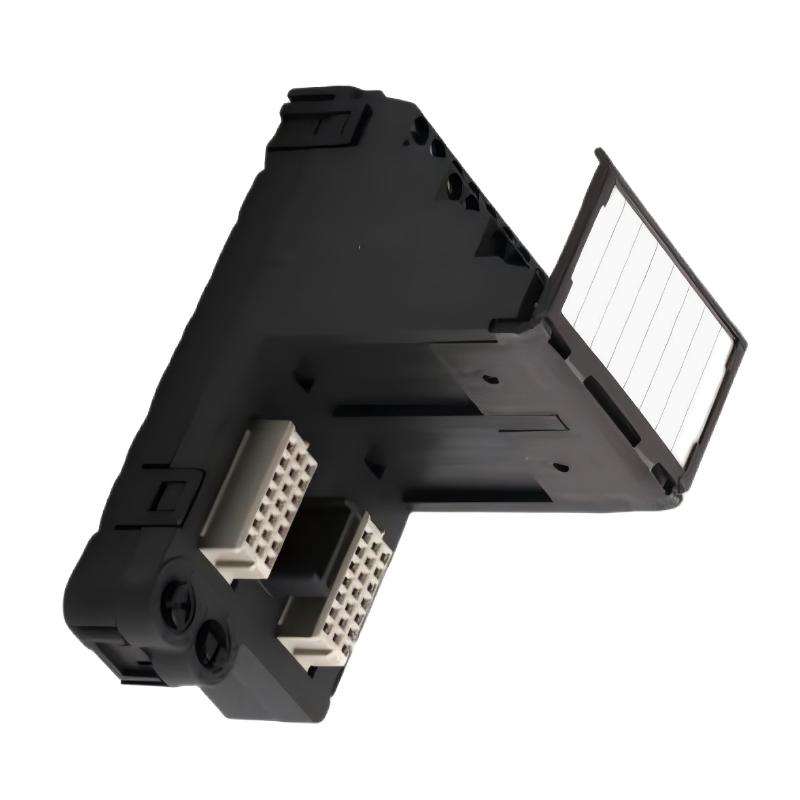

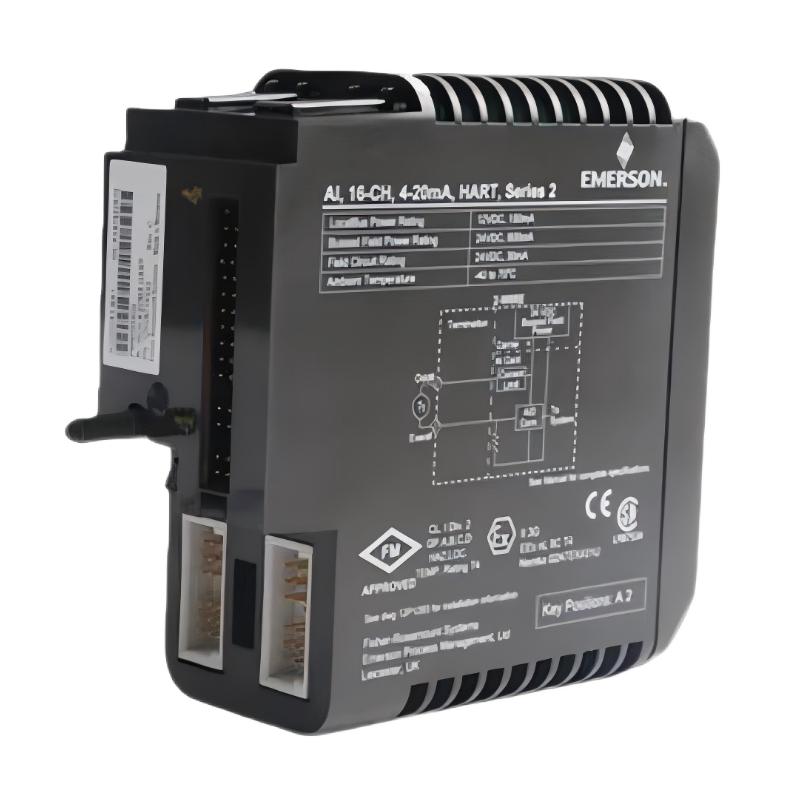

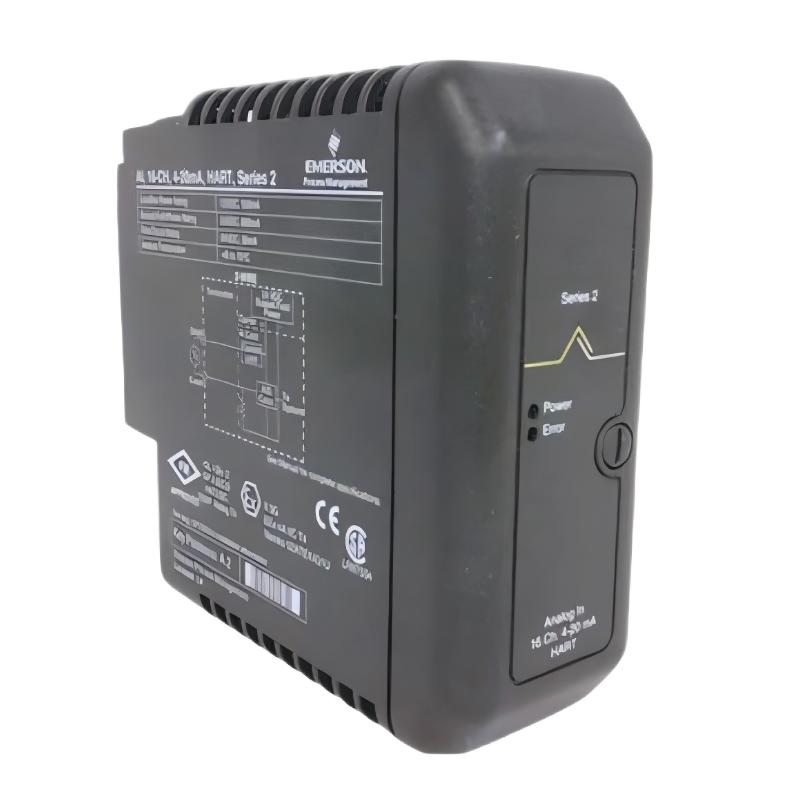

The Emerson VE4003S2B9 KJ3223X1-EA1 DeltaV Analog Input Card is a 16-channel industrial process input component designed for integration into Emerson DeltaV distributed control system environments. It provides a structured interface for acquiring analog signals from field instrumentation and transferring process information into the control architecture.

With 16 analog input channels, the VE4003S2B9 can support multiple process measurement points within a compact I/O arrangement. This type of high-density input configuration is useful in process plants where numerous transmitters and measurement devices must be connected to a centralized automation system while maintaining an organized cabinet layout.

The KJ3223X1-EA1 identification is associated with the VE4003S2B9 input-card assembly. The module is intended to form part of a larger DeltaV I/O architecture rather than operate as a standalone controller. Field signals are connected through the associated terminal interface, while the DeltaV system performs signal processing, scaling, alarming, control, trending, and operator visualization.

The specified physical dimensions are 107 × 41 × 105 mm, with a stated weight of 0.281 kg. The compact form factor makes the Emerson VE4003S2B9 suitable for modular industrial control cabinets where multiple I/O cards must be installed within a limited amount of panel space.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4003S2B9
Part Number	KJ3223X1-EA1
Product Type	DeltaV Analog Input Card
Number of Channels	16 Channels
I/O Type	Analog Input
Product Family	Emerson VE Series
Control Platform	DeltaV Distributed Control System
Primary Function	Analog process signal acquisition
Application	Industrial Process Automation
Installation	Modular I/O Cabinet / Control Panel
Dimensions	107 × 41 × 105 mm
Weight	0.281 kg
System Role	Field Instrumentation Interface
Typical Use	Process Measurement, Monitoring and Control

Specification Verification Note

The exact electrical characteristics of the Emerson VE4003S2B9 KJ3223X1-EA1 should be confirmed against the applicable hardware revision and the installed DeltaV system configuration before commissioning.

The 16-channel specification supplied for this product should be used as the stated channel count. Other parameters, including exact analog input ranges, signal conditioning, isolation, accuracy, impedance, transmitter requirements, terminal assignments, diagnostic functions, and supported field-device configurations, should be confirmed from the relevant engineering documentation before installation.

---

What Is the Emerson VE4003S2B9 KJ3223X1-EA1?

The Emerson VE4003S2B9 KJ3223X1-EA1 is a 16-channel DeltaV analog input card designed to acquire analog information from field instrumentation.

Industrial process equipment generates a large amount of measurement data. Instruments may continuously monitor pressure, temperature, flow, level, equipment condition, and other process variables. These measurements must be transferred into the control system before they can be used by control logic or displayed to operators.

The VE4003S2B9 provides the I/O interface required for this process.

A simplified architecture is:

Process Variable → Field Instrument → Field Wiring → KJ3223X1-EA1 → VE4003S2B9 → DeltaV Controller → Operator Interface

The 16-channel configuration allows multiple analog measurement points to be organized within one compact I/O location.

This can reduce cabinet complexity and provide a structured approach to process instrumentation integration.

---

16-Channel Analog Input Architecture

One of the primary characteristics of the VE4003S2B9 is its 16-channel analog input configuration.

A multi-channel input card allows multiple field measurement points to be grouped within the same I/O architecture.

For example, an industrial process may require monitoring of:

• Multiple pressure transmitters
• Several temperature measurement points
• Tank-level instruments
• Flow transmitters
• Utility-system measurements
• Equipment monitoring signals

Instead of treating each measurement as an independent hardware installation, the I/O system organizes multiple signals into a modular input structure.

This approach provides several engineering benefits:

• Higher I/O density
• More efficient cabinet utilization
• Simplified signal organization
• Easier channel identification
• Structured maintenance
• Reduced panel space requirements

The actual field-device compatibility should always be confirmed against the applicable DeltaV configuration.

---

Function and Working Principle

The VE4003S2B9 operates as one stage of the complete process measurement chain.

1. Process Measurement

A field instrument measures a physical variable.

For example:

• A pressure transmitter measures pressure.
• A flow transmitter measures flow.
• A level transmitter measures tank level.
• A temperature transmitter measures process temperature.

The instrument converts the physical variable into an electrical signal.

2. Field Signal Transmission

The electrical signal travels through instrumentation wiring from the field location to the control cabinet.

Signal integrity can be affected by:

• Cable quality
• Cable length
• Electrical interference
• Shielding
• Grounding
• Terminal connections

3. Terminal Interface

The field wiring is connected to the appropriate terminal interface associated with the input-card installation.

The terminal interface provides an organized connection point between field conductors and the I/O card.

4. Analog Input Acquisition

The VE4003S2B9 receives the configured analog input signals through its available channels.

With 16 channels, multiple process measurements can be acquired through a single compact I/O assembly.

5. Control-System Processing

The DeltaV control architecture receives the input information and associates it with configured process tags.

The values can then be used for:

• Control
• Monitoring
• Alarming
• Trending
• Data recording
• Interlocks
• Process calculations

6. Operator Visualization

Process values can be displayed to operators through the appropriate DeltaV operator interface.

This provides centralized visibility into plant conditions.

---

Role in Emerson DeltaV Systems

The VE4003S2B9 occupies the field I/O layer of a DeltaV process automation system.

A typical system contains several functional layers.

Field Instrumentation Layer

This includes:

• Sensors
• Transmitters
• Analyzers
• Process instruments
• Equipment monitoring devices

I/O Layer

The VE4003S2B9 receives analog information from field devices and provides the interface to the control system.

Controller Layer

DeltaV controllers execute configured control strategies, sequences, alarms, and interlocks.

Operator Layer

Operator stations display process values, alarms, trends, and equipment conditions.

Engineering Layer

Engineering systems are used to configure I/O channels, control modules, alarms, process graphics, and other automation functions.

The VE4003S2B9 is therefore an important link between physical process equipment and the software-based control environment.

---

Industrial Applications

Oil and Gas

Oil and gas plants require extensive instrumentation throughout production, processing, transportation, and storage systems.

The 16-channel VE4003S2B9 can be incorporated into I/O architectures associated with:

• Pressure monitoring
• Flow measurement
• Tank level
• Compressor systems
• Pump systems
• Gas processing
• Pipeline facilities
• Production skids

Chemical Processing

Chemical plants depend on continuous process measurement to maintain stable operation and product consistency.

Potential applications include:

• Reactor monitoring
• Tank measurement
• Chemical dosing
• Mixing systems
• Heat-transfer equipment
• Process skids
• Utility systems

Multiple analog channels are useful when several process variables must be monitored in the same plant area.

Power Generation

Power-generation facilities use analog instrumentation throughout the plant.

The VE4003S2B9 may be used within systems monitoring:

• Temperature
• Pressure
• Flow
• Cooling systems
• Pump equipment
• Auxiliary processes
• Balance-of-plant systems

Water and Wastewater

Water-treatment systems use numerous process measurements.

Applications can include:

• Flow monitoring
• Tank level
• Pressure monitoring
• Chemical treatment
• Pump stations
• Filtration systems
• Water distribution

Pharmaceutical Manufacturing

Pharmaceutical plants require reliable monitoring of process and utility systems.

Analog inputs may be associated with:

• Process skids
• Utility equipment
• Temperature monitoring
• Pressure monitoring
• Production systems
• Facility services

Food and Beverage

Food-processing facilities use instrumentation in:

• Mixing systems
• Heating processes
• Cooling systems
• Pumping equipment
• Filling systems
• Cleaning systems
• Process-water systems

A multi-channel input architecture can help consolidate measurements from different process areas.

---

System Integration

The Emerson VE4003S2B9 can be incorporated into a structured DeltaV I/O architecture.

A simplified system can be represented as:

Field Devices

↓

Field Wiring

↓

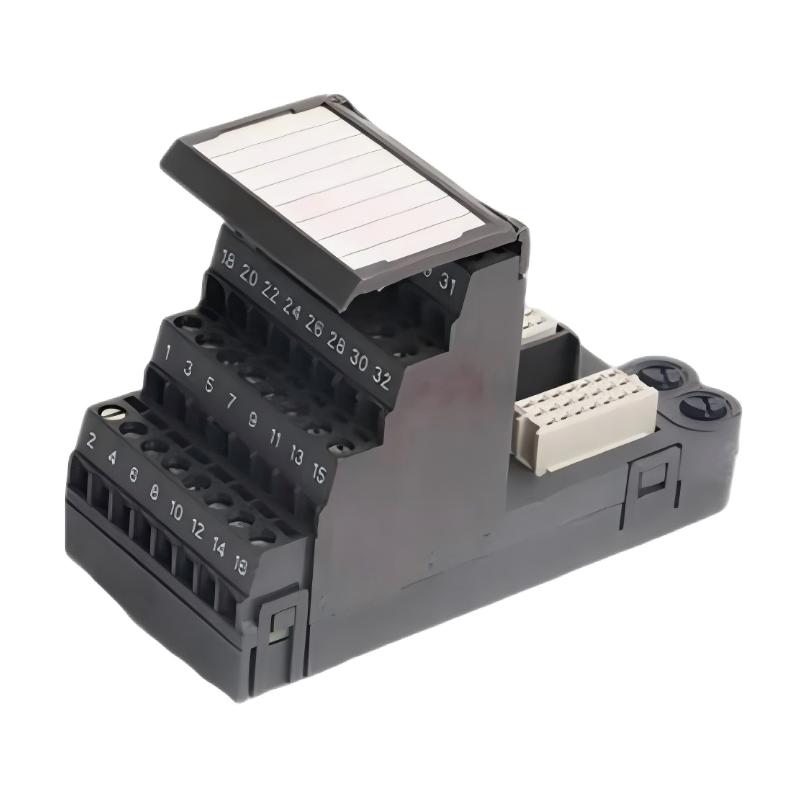

KJ3223X1-EA1 Terminal Interface

↓

VE4003S2B9 16-Channel Analog Input Card

↓

DeltaV I/O Infrastructure

↓

DeltaV Controller

↓

Operator Station / Engineering System

This architecture separates field instrumentation from the control-processing layer.

It also provides a logical framework for troubleshooting because technicians can isolate problems by checking each stage of the signal path.

---

Installation Guidelines

Verify Product Identification

Before installation, verify:

• VE4003S2B9
• KJ3223X1-EA1
• 16-channel configuration
• Hardware revision where applicable
• Existing DeltaV I/O architecture

The complete identification should be recorded before removing an existing module.

Inspect the Hardware

Check the card and terminal interface for:

• Physical damage
• Cracked components
• Bent connectors
• Contamination
• Corrosion
• Loose parts
• Damaged terminals

Prepare the Cabinet

The I/O cabinet should provide:

• Suitable ventilation
• Appropriate environmental conditions
• Adequate wiring space
• Proper grounding
• Protection from excessive dust and moisture

Verify Field Wiring

Check all field connections against approved engineering drawings.

Pay particular attention to:

• Channel numbers
• Terminal assignments
• Cable identification
• Signal polarity where applicable
• Shield connections
• Grounding

Verify System Configuration

Before commissioning, confirm that the DeltaV configuration corresponds to the installed hardware.

A physical hardware replacement without corresponding configuration verification can result in incorrect signal interpretation.

---

Analog Wiring Considerations

Analog process signals require careful wiring practices.

Electrical interference from motors, variable frequency drives, switching equipment, and high-current conductors can affect sensitive measurement signals.

Recommended engineering practices include:

• Separating instrumentation cables from power cables
• Using appropriate shielded cable
• Maintaining proper grounding
• Securing terminal connections
• Avoiding unnecessary cable loops
• Keeping field wiring clearly labeled

If a measurement becomes unstable, technicians should inspect the field wiring and installation environment before assuming that the VE4003S2B9 itself has failed.

---

Commissioning Procedure

A structured commissioning process helps verify correct operation.

Step 1: Physical Inspection

Confirm that the card and associated terminal interface are correctly installed.

Step 2: Hardware Identification

Verify the VE4003S2B9 and KJ3223X1-EA1 identification.

Step 3: Channel Verification

Confirm the assignment of the 16 analog input channels according to the engineering documentation.

Step 4: Wiring Verification

Check each connected field instrument against the approved wiring drawings.

Step 5: Signal Verification

Confirm that each field instrument produces the expected input signal.

Step 6: DeltaV Configuration Check

Verify channel configuration, tag association, engineering units, and scaling.

Step 7: Input Testing

Check the process value displayed by the control system against the expected field condition.

Step 8: Alarm Testing

Verify applicable alarm limits and alarm status.

Step 9: Control Strategy Testing

If an input is used by a control loop, sequence, permissive, or interlock, verify its behavior before returning the process to normal operation.

Step 10: Documentation

Record the completed test results, channel assignments, and hardware information.

---

Troubleshooting and Fault Diagnosis

Troubleshooting should follow the entire signal path.

No Signal on One Channel

Possible causes include:

• Field instrument failure
• Broken cable
• Loose terminal
• Incorrect channel assignment
• Incorrect configuration
• Connector problem
• I/O card fault

Start by checking the field instrument and wiring.

No Signal on Multiple Channels

If several channels are affected simultaneously, investigate common infrastructure.

Possible causes include:

• Common power problem
• Terminal interface problem
• I/O infrastructure failure
• Controller communication issue
• Configuration problem

Multiple-channel failures should not automatically be attributed to individual field instruments.

Incorrect Analog Value

Potential causes include:

• Incorrect scaling
• Incorrect engineering units
• Transmitter calibration problems
• Wiring errors
• Configuration mismatch
• Electrical interference

Compare the field instrument output with the value received by the control system.

Unstable Reading

An unstable input may be caused by:

• Electrical noise
• Poor shielding
• Grounding problems
• Loose connections
• Cable damage
• Instrument instability
• Environmental interference

Signal trending can help determine whether the problem is continuous, intermittent, or process-related.

---

Preventive Maintenance

Preventive maintenance should include both the input card and the connected field instrumentation.

Recommended activities include:

• Inspecting terminal connections
• Checking module seating
• Reviewing system diagnostics
• Inspecting field cables
• Checking cabinet conditions
• Reviewing abnormal input trends
• Monitoring recurring alarms
• Maintaining wiring documentation
• Recording hardware revisions

For critical process applications, trend monitoring can help identify gradual signal degradation before it develops into a complete input failure.

---

Replacement Guidelines

When replacing the Emerson VE4003S2B9 KJ3223X1-EA1, technicians should verify the complete product identification.

Replacement Identification

Model: VE4003S2B9

Part Number: KJ3223X1-EA1

Type: DeltaV Analog Input Card

Channels: 16

Dimensions: 107 × 41 × 105 mm

Weight: 0.281 kg

Before replacement, record:

• Existing card identification
• Hardware revision
• Cabinet location
• Channel assignments
• Terminal connections
• DeltaV configuration
• Existing alarms and diagnostics

After installation, all affected channels should be functionally tested.

---

Physical Dimensions and Weight

The specified physical characteristics are:

Parameter	Specification
Height	107 mm
Width	41 mm
Depth	105 mm
Overall Dimensions	107 × 41 × 105 mm
Weight	0.281 kg
Input Channels	16

The compact dimensions are advantageous in high-density process control cabinets where many I/O cards need to be accommodated.

---

Engineering Best Practices

Maintain Channel Documentation

For all 16 channels, maintain a clear relationship between:

Field Device → Terminal → Channel → DeltaV Tag → Engineering Unit → Operator Display

Verify Hardware Revisions

Hardware revisions should be recorded during maintenance and replacement activities.

Protect Analog Signal Integrity

Cable routing, shielding, grounding, and termination quality can have a direct impact on signal stability.

Use Structured Troubleshooting

A practical troubleshooting sequence is:

Field Instrument → Cable → Terminal → VE4003S2B9 → DeltaV Configuration → Controller → Operator Interface

This approach helps technicians isolate problems efficiently.

Maintain Spare Parts

Critical installations may benefit from maintaining appropriately identified spare input cards. Spare hardware should be protected from contamination, moisture, mechanical damage, and electrostatic discharge.

---

Recommended Related Emerson Components

Component Category	Typical Function
VE4003 Series	Analog input signal acquisition
VE4002 Series	Related process I/O functions
KJ3223X1 Series	Field input interface components
KJ4001X1 Series	Terminal and field-wiring interfaces
DeltaV Controllers	Process control execution
DeltaV Operator Stations	Process monitoring
DeltaV Engineering Systems	Configuration and commissioning
Emerson Process Instruments	Field measurement

Exact compatibility should always be verified against the installed DeltaV architecture and applicable system configuration.

---

Key Advantages

The Emerson VE4003S2B9 KJ3223X1-EA1 provides several practical benefits for industrial process automation:

• 16-channel analog input configuration
• Compact 107 × 41 × 105 mm dimensions
• Stated weight of 0.281 kg
• Designed for DeltaV process automation environments
• Supports centralized analog signal acquisition
• Efficient use of I/O cabinet space
• Organized field-instrument interface
• Suitable for high-density process instrumentation
• Supports structured maintenance and troubleshooting
• Suitable for demanding industrial process-control applications

---

Technical FAQs

What is the Emerson VE4003S2B9?

The Emerson VE4003S2B9 is an industrial DeltaV analog input card designed to acquire analog process signals from field instrumentation.

What is the KJ3223X1-EA1?

The KJ3223X1-EA1 is the associated component identification specified for the VE4003S2B9 assembly.

How many channels does the VE4003S2B9 provide?

The specified configuration provides 16 analog input channels.

What are the dimensions of the VE4003S2B9?

The specified dimensions are 107 × 41 × 105 mm.

What is the weight of the VE4003S2B9?

The specified weight is 0.281 kg.

Where is this analog input card used?

It is designed for industrial process automation applications using Emerson DeltaV control architectures, including oil and gas, chemical processing, power generation, water treatment, pharmaceutical production, and food and beverage manufacturing.

What should be verified before installation?

Engineers should verify the complete part number, hardware revision, channel configuration, terminal assignments, field wiring, supported signal type, and DeltaV system configuration.

Can another Emerson card with the same dimensions be used?

Not automatically. Physical dimensions alone do not establish electrical or functional compatibility. The exact part number and system configuration must be verified before substitution.

What can cause an analog input failure?

Possible causes include field-instrument faults, damaged cables, loose terminals, incorrect configuration, electrical interference, grounding problems, or failure within the I/O hardware.

---

Conclusion

The Emerson VE4003S2B9 KJ3223X1-EA1 DeltaV Analog Input Card is a compact 16-channel analog input component designed to connect field instrumentation with an Emerson DeltaV process control architecture. By acquiring analog process information and making it available to the control system, the card supports continuous process monitoring, control strategies, alarm management, trending, and operator visualization.

With specified dimensions of 107 × 41 × 105 mm and a weight of 0.281 kg, the VE4003S2B9 provides a space-efficient solution for modular I/O cabinets. Its 16-channel configuration makes it particularly useful where multiple analog measurement points must be organized within a compact industrial control system.

For installation, commissioning, and replacement, the complete VE4003S2B9 KJ3223X1-EA1 identification should be verified together with the applicable hardware revision, channel configuration, field wiring, terminal assignments, and DeltaV engineering configuration. Proper installation and systematic troubleshooting help maintain dependable process measurement and minimize unnecessary downtime in industrial automation applications.
