Product Overview

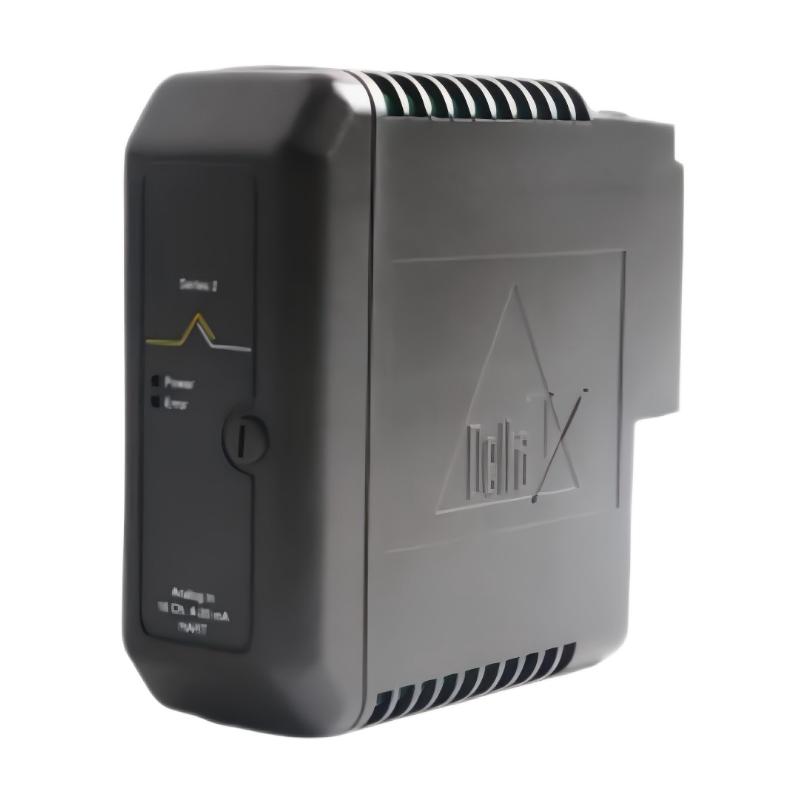

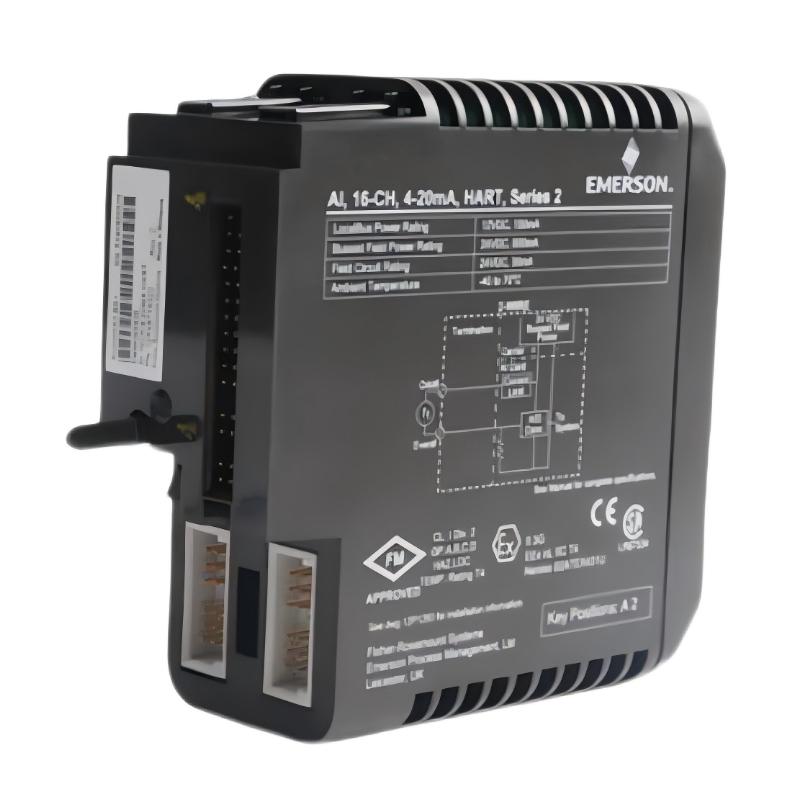

The Emerson VE4003S2B9 is an industrial input module assembly designed for integration into Emerson process automation and distributed control system architectures. The assembly is identified with KJ3223X1-BA1 12P2871X012 REV.A and KJ3223X1-EA1 12P2867X022 REV.B, providing the field interface required for transferring input signals from process instrumentation into the control system.

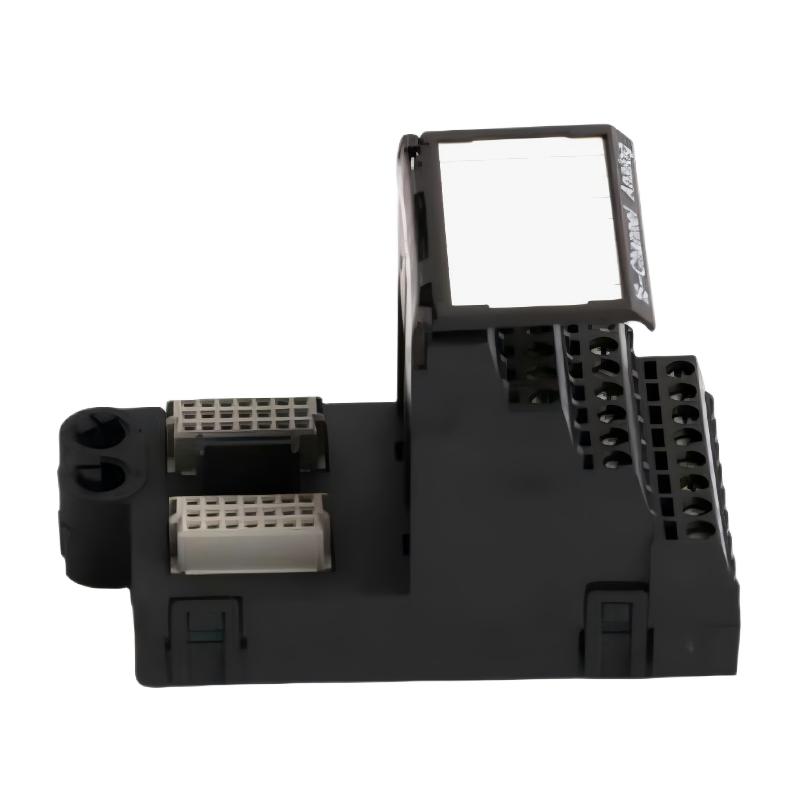

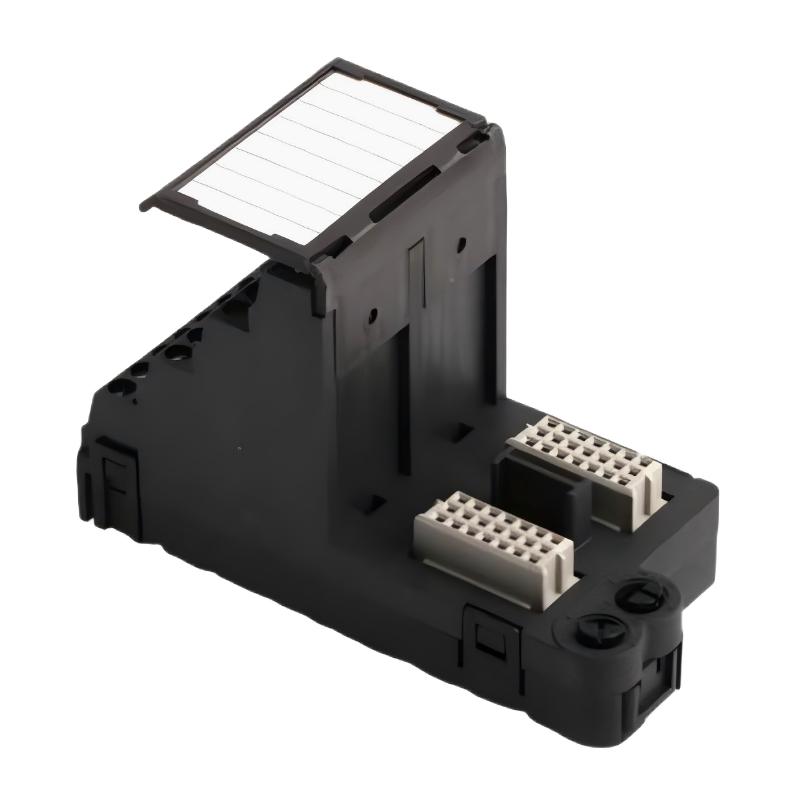

As part of the Emerson VE-series I/O family, the VE4003S2B9 is intended for applications where dependable field signal acquisition, organized termination, and stable communication between field devices and process controllers are required. The module and associated terminal-block components provide a structured interface between field wiring and the control system, helping engineers build maintainable process automation installations.

With a compact physical size of 107 × 41 × 105 mm and a stated weight of 0.281 kg, the VE4003S2B9 can be incorporated into space-conscious I/O cabinets and process control panels. Its modular construction also supports practical installation, replacement, inspection, and maintenance procedures in industrial environments.

Technical Specifications

Engineering Specification Note

The exact electrical characteristics of the Emerson VE4003S2B9 should be confirmed against the actual installed hardware, system configuration, engineering database, and applicable Emerson documentation before commissioning.

Depending on the specific system configuration, parameters such as input type, channel assignment, signal range, excitation requirements, electrical isolation, accuracy, terminal allocation, diagnostic functions, and supported field devices may vary. Engineers should therefore verify the complete hardware identification before replacing or configuring the module.

What Is the Emerson VE4003S2B9?

The VE4003S2B9 is an Emerson input-module assembly incorporating the KJ3223X1-BA1 and KJ3223X1-EA1 components. It is designed to provide an organized interface between field-level instrumentation and an Emerson process control system.

The complete assembly can be considered part of the I/O signal acquisition layer. Field devices generate electrical signals representing process conditions such as pressure, temperature, flow, level, equipment status, or other measured variables. The input interface receives these signals and makes the information available to the control system for monitoring, control logic, alarming, trending, and process optimization.

The two associated component identifiers are:

• KJ3223X1-BA1
• 12P2871X012
• REV.A
• KJ3223X1-EA1
• 12P2867X022
• REV.B

When ordering a replacement, engineers should verify all identification information rather than relying only on the shortened VE4003S2B9 model designation.

Function and Working Principle

The primary purpose of the VE4003S2B9 is to provide a reliable input path between field instrumentation and the process automation system.

A typical signal path can be represented as:

Field Instrument → Field Wiring → Terminal Block → VE4003S2B9 Input Interface → I/O System → Controller → HMI/SCADA

The field device produces an electrical signal corresponding to a physical process variable or equipment condition. The field wiring carries this signal to the terminal-block interface. The VE4003S2B9 then provides the appropriate interface into the I/O architecture.

Once acquired by the control system, the input information can be used for:

• Process monitoring
• Control-loop operation
• Alarm generation
• Equipment status monitoring
• Historical data collection
• Process trending
• Interlock logic
• Operator displays
• Maintenance diagnostics
• Production optimization

This architecture separates field-level instrumentation from higher-level control functions while providing an organized and maintainable connection between the two.

Role in Emerson Process Control Systems

In a distributed control system, I/O modules represent the critical connection between physical equipment and software-based control strategies. The Emerson VE4003S2B9 performs its role at this field-interface level.

A process control system may include sensors, transmitters, valves, motors, analyzers, controllers, communication networks, operator stations, and engineering work
