Product Overview

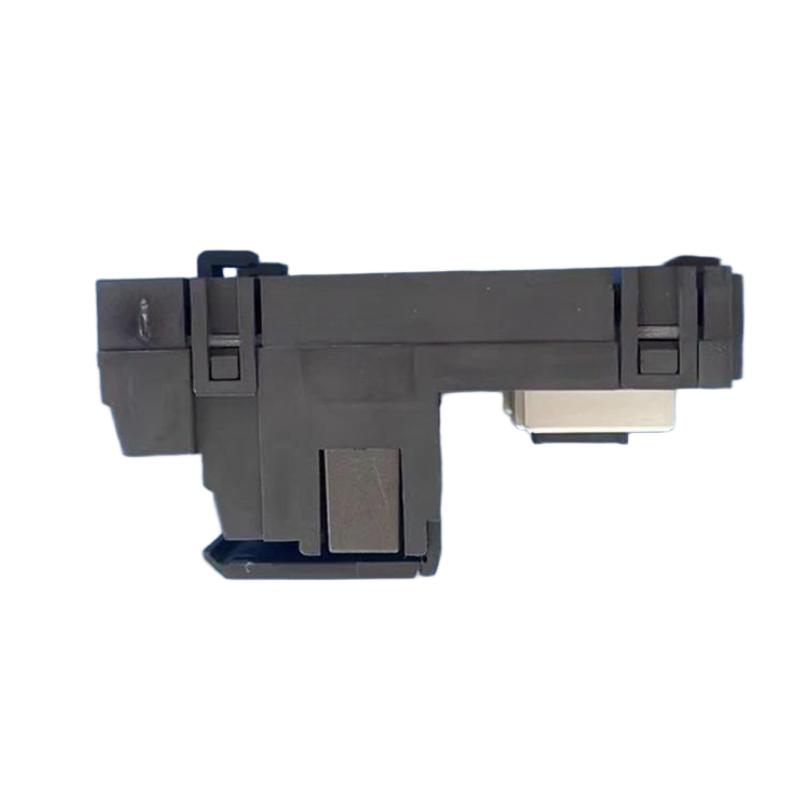

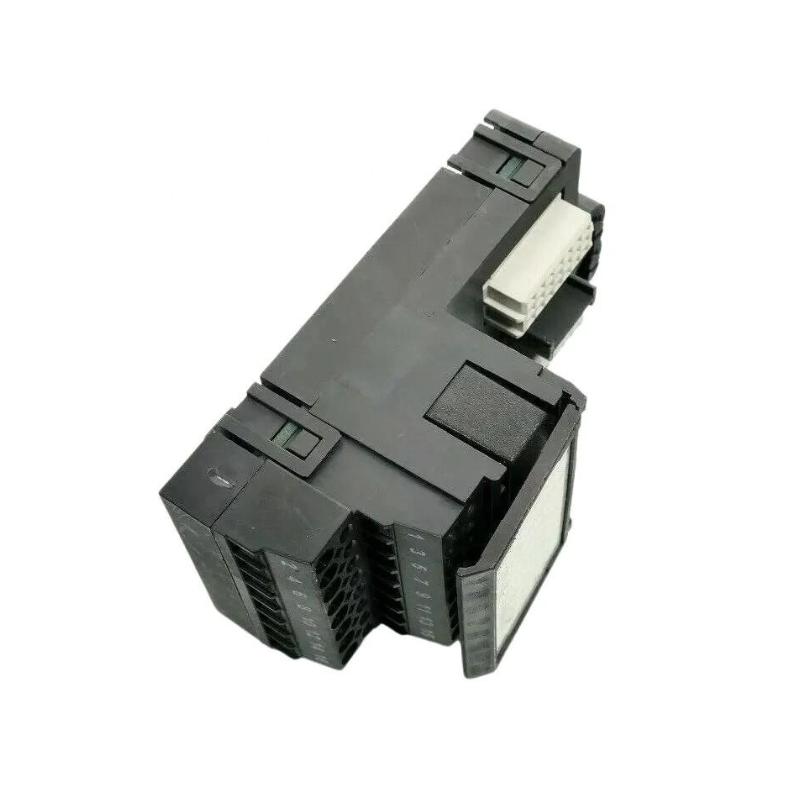

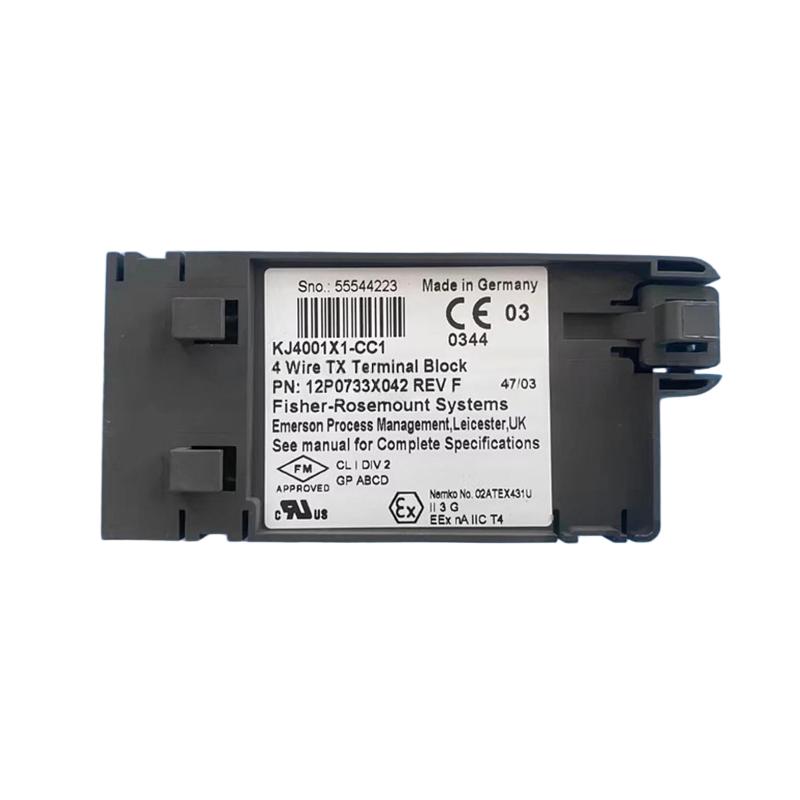

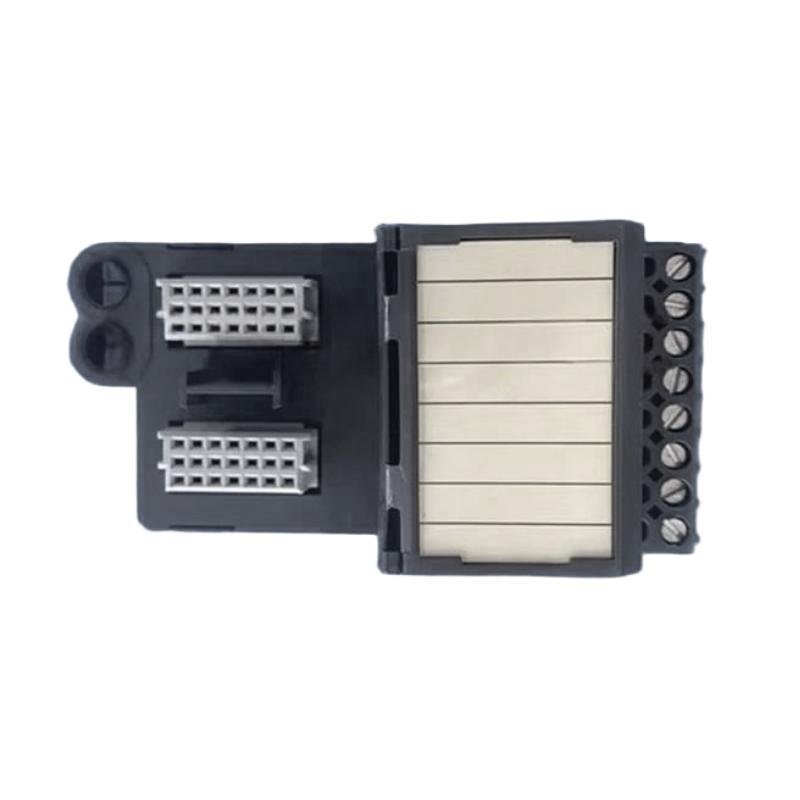

The Emerson VE4003S2B3 KJ4001X1-CC1 Terminal Block is an industrial interface component designed for use within Emerson process automation and distributed control system architectures. It provides a structured field termination point between field wiring and associated I/O equipment, helping engineers organize signal connections, simplify cabinet wiring, and support reliable communication between field devices and control-system hardware.
The VE4003S2B3 KJ4001X1-CC1 is particularly relevant to installations where analog field signals must be routed through a clearly organized termination arrangement. In a process automation cabinet, a properly selected terminal block is important because it provides a defined transition between external field wiring and the internal I/O infrastructure. This improves wiring management and makes commissioning, testing, troubleshooting, and maintenance more manageable.
With dimensions of 107 × 41 × 105 mm and a weight of 0.281 kg, the Emerson VE4003S2B3 KJ4001X1-CC1 provides a relatively compact solution for control cabinets and distributed I/O installations. Its physical format is suitable for systems where panel space, wiring accessibility, and orderly signal distribution are important engineering considerations.
The terminal block can be considered part of the overall Emerson I/O signal interface rather than an independent control processor. Its main value is in providing a reliable and organized termination arrangement that supports the connection of field instrumentation to the appropriate control-system channels.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | VE4003S2B3 |
| Associated Part Number | KJ4001X1-CC1 |
| Product Type | Terminal Block |
| System Type | Process Automation / Distributed Control System |
| Primary Function | Field signal termination and interface |
| Typical Signal Application | Analog I/O field signal interface |
| Installation | Control Cabinet / I/O System |
| Dimensions (H × W × D) | 107 × 41 × 105 mm |
| Weight | 0.281 kg |
| Mounting Environment | Industrial Control Cabinet |
| Typical Application | Emerson Process Automation Systems |
| System Role | Field Wiring and I/O Interface |
Engineering Specification Note
The VE4003S2B3 KJ4001X1-CC1 should be selected and installed according to the actual Emerson I/O architecture, associated I/O module, terminal assignment, field device type, and system revision. Exact channel allocation, signal conditioning, electrical ratings, isolation characteristics, fuse arrangements, and terminal assignments should be confirmed against the applicable system documentation and installed hardware.
What Is the Emerson VE4003S2B3 KJ4001X1-CC1?
The Emerson VE4003S2B3 KJ4001X1-CC1 is a terminal block used as part of an Emerson process automation signal interface. The VE-series designation identifies its relationship with Emerson’s process I/O architecture, while KJ4001X1-CC1 provides the associated hardware identification for the terminal interface.
A terminal block is a fundamental component in industrial automation cabinets. Although it does not normally execute control logic like a controller or process signals like an intelligent I/O card, it provides the physical electrical interface through which field wiring reaches the control system.
In a typical process control installation, instrumentation may be located several meters or even hundreds of meters away from the control cabinet. Devices such as transmitters, sensors, switches, valves, and other process instruments require properly organized wiring connections. The terminal block creates a practical interface between these field cables and the internal control system.
For engineers and maintenance technicians, this arrangement provides several advantages:
- Better field wiring organization
- Easier cable identification
- Simplified commissioning
- More efficient troubleshooting
- Improved cabinet maintenance
- Easier signal isolation and testing
- Reduced wiring complexity
- More structured I/O installation
The VE4003S2B3 KJ4001X1-CC1 should therefore be viewed as an important supporting component in a complete Emerson process automation installation.
Function and Working Principle
The basic function of the Emerson VE4003S2B3 KJ4001X1-CC1 is to provide a structured electrical termination interface for field signals.
A simplified signal path can be represented as:
Field Instrument → Field Cable → Terminal Block → I/O Interface → Controller → HMI / SCADA
The terminal block does not replace the I/O module or controller. Instead, it provides the physical connection point required to transfer field wiring into the appropriate control-system interface.
When installed correctly, field conductors are terminated at designated connection points. The corresponding internal connections then route the signals toward the appropriate I/O hardware. This architecture makes it easier to separate field wiring from internal cabinet wiring and provides a logical structure for maintenance personnel.
For analog process signals, the overall signal chain may involve instrumentation such as:
- Pressure transmitters
- Temperature transmitters
- Flow transmitters
- Level transmitters
- Analytical instruments
- Position feedback devices
- Process measurement equipment
The terminal interface allows these signals to be brought into the control cabinet in a controlled and organized manner.
Role in Emerson Process Automation Systems
The VE4003S2B3 KJ4001X1-CC1 plays a supporting role within a larger Emerson distributed control system.
A modern process automation installation normally contains several layers:
- Field instruments
- Field wiring
- Terminal and interface components
- I/O modules
- Controller hardware
- Operator interface
- Supervisory and engineering systems
The terminal block is located between the field wiring and I/O infrastructure. This position makes it especially important during installation and maintenance.
A properly organized terminal interface can significantly reduce the time required to trace an individual signal. When a process variable appears incorrectly on an HMI screen, maintenance personnel can work backward through the signal path from the controller to the I/O module and then to the terminal interface.
This structured approach is particularly valuable in large process plants where hundreds or thousands of field signals may be installed.
Typical Industrial Applications
The Emerson VE4003S2B3 KJ4001X1-CC1 can be incorporated into a wide variety of industrial process automation applications.
Oil and Gas
Oil and gas facilities rely heavily on distributed instrumentation. Pressure, temperature, flow, level, and other process measurements are continuously monitored.
Terminal interfaces provide organized connection points for these field instruments and help engineers maintain clear relationships between field cables and I/O channels.
Power Generation
Power plants contain extensive monitoring and control systems. Terminal interfaces may be used within control cabinets associated with turbines, generators, auxiliary systems, cooling equipment, and balance-of-plant processes.
Reliable signal termination is important because incorrect field wiring can result in inaccurate process measurements or unnecessary control-system alarms.
Chemical Processing
Chemical plants often contain complex process loops with numerous transmitters and measurement devices. Organized terminal blocks help separate and identify field wiring before signals enter the control system.
This is especially useful during plant commissioning and future maintenance activities.
Water and Wastewater Treatment
Water treatment facilities use instrumentation for monitoring:
- Flow
- Pressure
- Level
- Temperature
- Water quality
- Chemical dosing
- Pump operation
A structured terminal interface simplifies the connection of distributed instrumentation to the control system.
Pharmaceutical Manufacturing
Pharmaceutical production requires accurate process monitoring and carefully controlled automation systems. Organized cabinet wiring supports maintenance and system verification while helping engineers identify signal paths efficiently.
Food and Beverage Processing
Food and beverage plants use process instrumentation throughout production, cleaning, heating, cooling, and material-handling systems. Terminal blocks help organize these signals within automation cabinets.
General Manufacturing
The VE4003S2B3 KJ4001X1-CC1 may also be relevant to general industrial control applications where Emerson I/O equipment is used to monitor process variables and equipment status.
System Integration
The VE4003S2B3 KJ4001X1-CC1 should be installed as part of a complete signal interface architecture rather than treated as a standalone control device.
A typical installation may include:
Field Sensor → Field Cable → KJ4001X1-CC1 Terminal Block → Emerson I/O Hardware → Controller → HMI/SCADA
Depending on the system architecture, additional components may include:
- Emerson I/O modules
- Controller hardware
- I/O carriers
- Power supplies
- Signal conditioning equipment
- Field junction boxes
- Shielding and grounding components
- Industrial communication networks
- Operator interfaces
- Engineering workstations
Correct integration requires matching the terminal interface with the intended I/O hardware and field signal type.
Installation Guidelines
Correct installation of the Emerson VE4003S2B3 KJ4001X1-CC1 is important for signal integrity and long-term system reliability.
1. Verify the Hardware
Before installation, confirm:
- Model number
- Associated part number
- Hardware revision
- Intended I/O system
- Terminal configuration
- Cabinet location
The installed terminal block should match the engineering drawings and system configuration.
2. Prepare the Cabinet
The cabinet should provide sufficient space for:
- Terminal block installation
- Field cable routing
- Internal wiring
- Maintenance access
- Cable bend radius
- Identification labels
The physical dimensions of the unit are 107 × 41 × 105 mm, so cabinet layout engineers should consider these dimensions together with adjacent components and wiring requirements.
3. Organize Field Wiring
Field cables should be routed in a structured manner. Each conductor should be clearly identified according to the plant wiring documentation.
Avoid unnecessary cable crossings because they can make future troubleshooting considerably more difficult.
4. Check Grounding
Proper grounding and shielding practices should be applied according to the overall system design.
For sensitive analog instrumentation, poor grounding can introduce unwanted noise or unstable measurements.
5. Verify Connections
Before energizing the system, inspect each connection carefully. Loose terminals, incorrect conductor placement, and damaged wires can cause intermittent signal problems.
Field Wiring Considerations
Field wiring is one of the most important factors affecting the performance of a process automation system.
For the VE4003S2B3 KJ4001X1-CC1, technicians should pay particular attention to:
Wire Identification
Every field conductor should have a durable identification label corresponding to the plant wiring diagram.
Polarity
Where the connected signal is polarity-sensitive, positive and negative conductors must be terminated correctly.
Shielding
For instrumentation signals susceptible to electromagnetic interference, appropriate cable shielding should be maintained throughout the signal path.
Cable Routing
Signal cables should be routed separately from high-power conductors where required by the cabinet design and EMC practices.
Terminal Tightness
Terminal connections should be mechanically secure. Loose connections can produce intermittent signals, unstable measurements, or unexpected alarms.
Cable Stress
Field cables should not place excessive mechanical force on the terminal block. Appropriate cable support should be used in larger installations.
Commissioning Procedure
After mechanical installation and wiring, commissioning should proceed systematically.
Step 1: Visual Inspection
Inspect the terminal block for:
- Physical damage
- Loose mounting
- Damaged connectors
- Incorrect wiring
- Missing identification
- Foreign material
Step 2: Wiring Verification
Compare field wiring against the approved electrical drawings.
Check each conductor individually rather than relying only on visual inspection.
Step 3: Continuity Testing
Where appropriate, verify continuity between the field wiring and the corresponding system interface.
Step 4: Signal Verification
Apply or observe known field signals and confirm that the corresponding I/O channel receives the expected value.
Step 5: Controller Verification
Check the controller and I/O diagnostics for unexpected channel errors.
Step 6: HMI Verification
Confirm that process values displayed by the HMI or SCADA system correspond correctly with the actual field instruments.
Step 7: Final Documentation
Record the completed wiring, test results, channel assignments, and any approved configuration changes.
Troubleshooting and Fault Diagnosis
Although a terminal block is a passive interface component in many architectures, problems at the termination level can create symptoms that appear to originate from the I/O module or controller.
No Signal
If a process value is completely missing, check:
- Field instrument power
- Field cable continuity
- Terminal connections
- Correct terminal assignment
- I/O module status
- Controller configuration
Do not immediately replace the I/O module before checking the physical signal path.
Intermittent Signal
An unstable process value may result from:
- Loose wiring
- Poor terminal contact
- Cable damage
- Shielding problems
- Electromagnetic interference
- Faulty field instrumentation
- Improper grounding
Mechanical inspection of the terminal connections should be one of the first troubleshooting steps.
Incorrect Signal
If a signal is present but the displayed process value is incorrect, verify:
- Correct field instrument
- Correct terminal connection
- Correct I/O channel
- Signal type
- Engineering-unit configuration
- Controller scaling
- Wiring polarity where applicable
Multiple Channels Affected
When several channels fail simultaneously, investigate common components before replacing individual field devices.
Potential causes include:
- Common wiring issue
- Power supply problem
- Interface problem
- I/O carrier issue
- Communication fault
- Grounding problem
Preventive Maintenance
Preventive maintenance helps reduce unexpected process interruptions.
Recommended activities include:
- Inspect terminal connections periodically
- Check for signs of overheating
- Inspect wiring insulation
- Verify cable identification
- Check for corrosion in harsh environments
- Inspect cabinet cleanliness
- Confirm grounding and shielding practices
- Review recurring I/O alarms
- Compare field readings with control-system values
- Maintain updated wiring documentation
Maintenance frequency should be determined by the environmental conditions and criticality of the automation system.
Replacement Considerations
When replacing an Emerson VE4003S2B3 KJ4001X1-CC1 terminal block, technicians should confirm the exact identification before installation.
Important checks include:
- VE4003S2B3 model
- KJ4001X1-CC1 part number
- Physical configuration
- Terminal arrangement
- Associated I/O hardware
- System revision
- Wiring documentation
- Cabinet compatibility
A replacement should not be selected based solely on physical appearance. Two terminal interfaces may appear similar while having different electrical or mechanical functions.
Before removing the original unit, record the existing wiring and terminal identification. Photographing the installed wiring can also provide a useful secondary reference during replacement, provided plant procedures permit it.
Cabinet Installation and Mechanical Considerations
The Emerson VE4003S2B3 KJ4001X1-CC1 has user-provided dimensions of:
107 × 41 × 105 mm
Its weight is:
0.281 kg
These dimensions should be considered during cabinet layout planning.
Engineers should allow additional working space around the component rather than designing the cabinet using only the component’s external dimensions. Wiring access, cable routing, inspection, and future replacement all require practical clearance.
A well-designed cabinet should provide:
- Logical component grouping
- Accessible terminal wiring
- Clear labeling
- Separation of power and signal wiring
- Adequate ventilation
- Easy maintenance access
- Space for future service operations
Engineering Best Practices
Several engineering practices can improve the reliability of systems using the VE4003S2B3 KJ4001X1-CC1.
Maintain Accurate Drawings
The electrical drawings should reflect the actual installed wiring. Unauthorized or undocumented wiring changes can make troubleshooting difficult.
Use Consistent Labels
Cable, terminal, channel, and instrument identification should follow a consistent naming convention.
Separate Signal Types
Where required, different signal categories should be appropriately separated to minimize interference and simplify maintenance.
Protect the Cabinet Environment
Dust, moisture, chemical contamination, and excessive temperature can shorten the service life of electrical components.
Minimize Unnecessary Wiring Changes
Repeated modifications to field wiring can introduce errors. Planned changes should be documented and tested before returning the system to service.
Keep Spare Hardware Properly Stored
Replacement terminal blocks should be stored in a clean, dry environment and protected from mechanical damage.
Related Emerson Automation Components
The VE4003S2B3 KJ4001X1-CC1 may be considered alongside other Emerson process automation hardware, depending on the specific system architecture.
| Component | Typical Role |
|---|---|
| Emerson VE-Series I/O Modules | Field signal processing |
| Emerson KJ-Series Terminal Blocks | Field wiring termination |
| Emerson I/O Carriers | I/O hardware mounting and interconnection |
| Emerson Controllers | Process control execution |
| Emerson Power Supplies | System and field power distribution |
| Emerson Communication Modules | Network and system communication |
| Emerson Operator Interfaces | Process monitoring and operation |
| Emerson Engineering Systems | Configuration and maintenance |
The exact combination of components depends on the installed Emerson control platform and system generation.
Key Advantages
The Emerson VE4003S2B3 KJ4001X1-CC1 offers several practical advantages in industrial automation installations:
- Compact 107 × 41 × 105 mm form factor
- Low weight of 0.281 kg
- Organized field wiring interface
- Suitable for process automation cabinet applications
- Supports structured signal termination
- Simplifies field wiring management
- Helps improve maintenance accessibility
- Facilitates signal tracing during troubleshooting
- Supports orderly I/O system architecture
- Suitable for Emerson process automation environments
Technical FAQs
What is the Emerson VE4003S2B3 KJ4001X1-CC1?
The Emerson VE4003S2B3 KJ4001X1-CC1 is a terminal block used as a field wiring and I/O interface component within Emerson process automation systems.
What are the dimensions of the VE4003S2B3 KJ4001X1-CC1?
The supplied dimensions are 107 × 41 × 105 mm.
How much does the Emerson VE4003S2B3 KJ4001X1-CC1 weigh?
The supplied weight is 0.281 kg.
What is the main purpose of a terminal block in a DCS?
A terminal block provides an organized physical termination point between field wiring and the control-system I/O infrastructure. It helps simplify installation, signal identification, testing, and maintenance.
Is the VE4003S2B3 KJ4001X1-CC1 a controller?
No. It is a terminal/interface component rather than a process controller. The control logic is handled by the associated control-system hardware.
Can the terminal block be replaced independently?
Replacement depends on the actual Emerson system architecture and maintenance procedure. Before replacement, the exact model, associated I/O hardware, wiring arrangement, and system revision should be confirmed.
What should be checked when troubleshooting this terminal interface?
Technicians should check field wiring, terminal tightness, cable continuity, terminal assignment, grounding, shielding, associated I/O hardware, and controller diagnostics.
Why is proper terminal labeling important?
Clear labeling allows technicians to identify signal paths quickly and reduces the risk of wiring mistakes during commissioning and maintenance.
Conclusion
The Emerson VE4003S2B3 KJ4001X1-CC1 Terminal Block is an important field interface component for Emerson process automation installations. By providing an organized termination point between field wiring and I/O hardware, it contributes to cleaner cabinet architecture, easier commissioning, more efficient troubleshooting, and improved long-term maintainability.
With a compact size of 107 × 41 × 105 mm and a weight of 0.281 kg, the VE4003S2B3 KJ4001X1-CC1 is well suited to control cabinet applications where organized field termination and efficient use of installation space are important.
For replacement, expansion, or maintenance projects, engineers should always verify the complete part identification, associated I/O hardware, terminal configuration, wiring documentation, and system revision before installation. When correctly integrated into an Emerson process control architecture, the VE4003S2B3 KJ4001X1-CC1 provides a practical and reliable interface for structured industrial field wiring.
