Product Overview

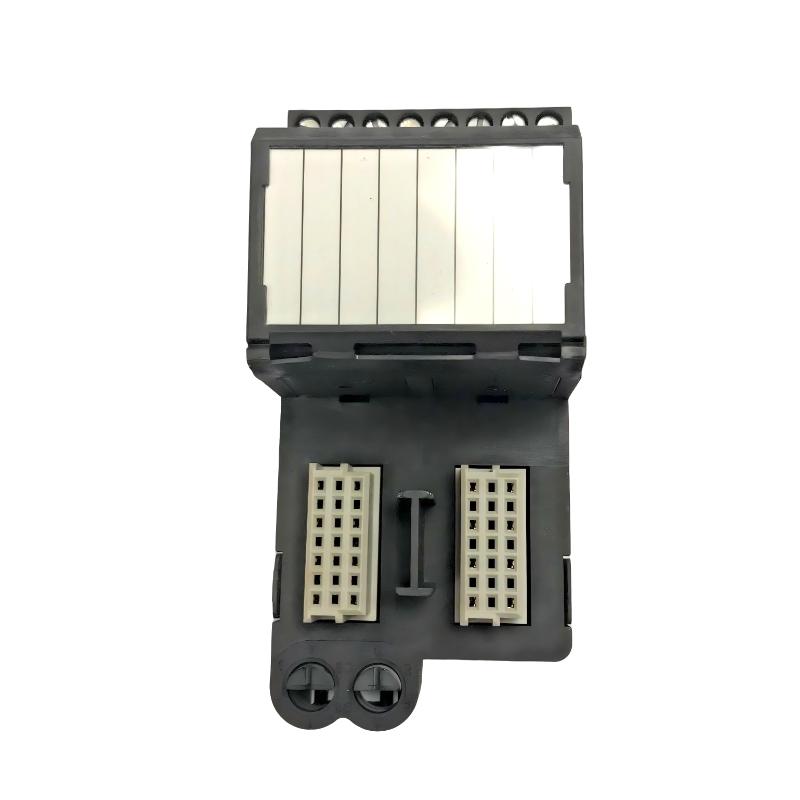

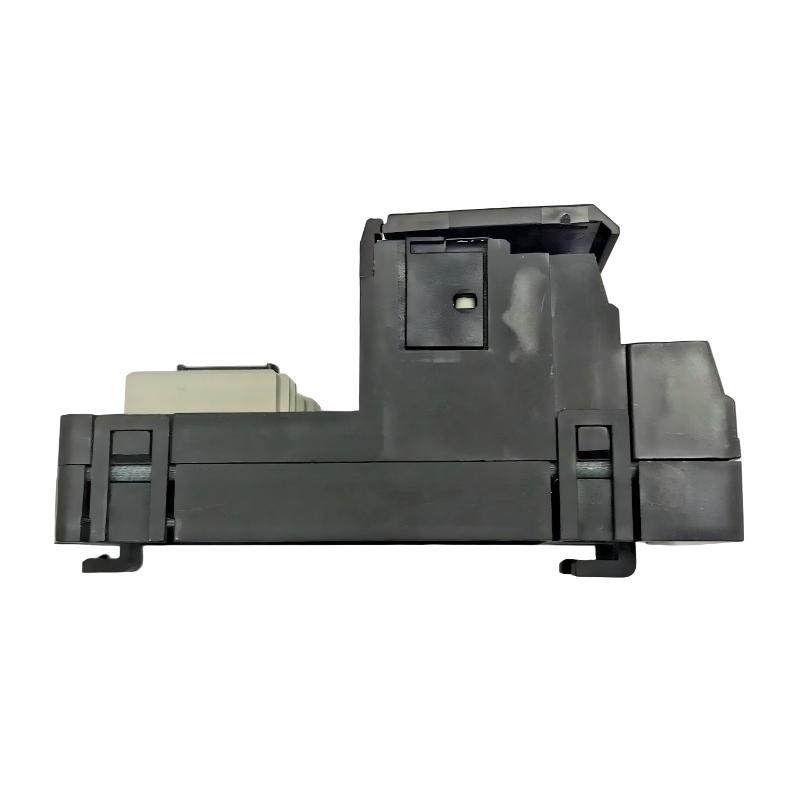

The Emerson VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 is a DeltaV M-Series Fused I/O Termination Block used to provide a protected field wiring interface for compatible DeltaV I/O systems. Compared with a standard termination arrangement, the fused version incorporates circuit protection into the field termination path, making it suitable for I/O applications where individual field circuits require additional protection.
In a DeltaV control cabinet, field devices are connected through termination hardware before reaching the corresponding I/O electronics. The fused termination arrangement provides an organized connection point while adding a fuse-protection function to the applicable field circuits. This can make troubleshooting and maintenance more structured because the field wiring and its protective elements are located within the same termination architecture.
The VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 is a termination assembly rather than a controller or standalone I/O processing module. Its practical role is to connect, organize, and protect compatible field I/O circuits within the DeltaV M-Series architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4003S2B2 / KJ3222X1-BA1 + KJ4001X1-CB1 |
| Product Type | DeltaV M-Series Fused I/O Termination Block |
| Product Family | DeltaV M-Series |
| Series | Emerson DeltaV |
| Assembly Type | Fused I/O Termination Assembly |
| Termination Type | Fused Standard I/O Field Termination |
| System Function | Field Wiring Interface and Circuit Protection |
| Application | Process Control I/O |
| Field Connection | Process Instrument / Field Wiring |
| Protection Function | Fused Field Circuit Protection |
| System Integration | DeltaV M-Series I/O System |
| Installation | Control Cabinet / I/O Subsystem |
| Wiring Role | Field Signal Termination |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.36 kg |
Product Features
- Fused I/O termination component for Emerson DeltaV M-Series systems.
- Combines field wiring termination with fuse-based circuit protection.
- Provides an organized interface between field wiring and compatible DeltaV I/O electronics.
- Helps isolate applicable field circuits from downstream wiring faults.
- Supports structured control cabinet wiring and channel identification.
- Places the termination and protective function within the same I/O interface arrangement.
- Useful for process instrumentation and industrial control applications.
- Suitable for system installation, cabinet expansion, replacement, and maintenance work.
Working Principle
The VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 operates at the field termination layer of a DeltaV M-Series I/O system. Its main difference from a basic termination block is the inclusion of a fused protection function within the field circuit interface.
1. Field wiring connection
Field instruments, switches, transmitters, or other process devices are connected to the control cabinet through field cables. The termination assembly provides the designated interface for these conductors.
2. Circuit termination
Each applicable field circuit is routed through the termination arrangement toward the corresponding DeltaV I/O channel. The termination structure keeps the field wiring organized and traceable.
3. Fuse protection
The fused termination arrangement places a protective fuse within the applicable circuit path. If a qualifying electrical fault causes excessive current in the protected circuit, the fuse can interrupt the circuit and limit the effect on that portion of the wiring.
4. I/O interface
After passing through the termination and protection arrangement, the field circuit connects to the compatible DeltaV I/O subsystem. The I/O module performs the actual input or output processing.
5. Maintenance and troubleshooting
The fused architecture provides an additional point for technicians to inspect when a field I/O channel is unavailable. When troubleshooting, the field device, wiring, fuse condition, termination connections, I/O module, and controller configuration should be considered together.
Role in a DeltaV M-Series Fused I/O Control Architecture
The VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 is positioned between the field wiring and the DeltaV M-Series I/O electronics. It combines two practical cabinet functions: field signal termination and protection of the applicable circuits.
| Architecture Layer | Component / Function | Role |
|---|---|---|
| Field Layer | Sensors, Transmitters, Actuators | Generates or receives process signals |
| Wiring Layer | Field Cables | Carries process signals between field and cabinet |
| Protection / Termination Layer | VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1 | Terminates field wiring and provides fused circuit protection |
| I/O Layer | Compatible DeltaV M-Series I/O Module | Processes input or output channels |
| Control Layer | DeltaV Controller | Executes configured control logic |
| Supervisory Layer | DeltaV Engineering / Operator System | Provides configuration, operation, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Protected termination of field I/O circuits |
| Oil and Gas | Connecting and protecting instrumentation circuits in DeltaV cabinets |
| Chemical Processing | Fused field wiring interface for process I/O |
| Power and Utilities | Structured I/O termination with circuit protection |
| Pharmaceutical Manufacturing | Organized and protected control cabinet wiring |
| Water and Wastewater | Connecting field devices through protected I/O termination |
| Industrial Retrofit | Replacing or upgrading existing DeltaV fused termination arrangements |
Installation and Maintenance
- Verify the complete assembly designation – Confirm the VE4003S2B2, KJ3222X1-BA1, and KJ4001X1-CB1 identifiers before installation.
- Confirm I/O compatibility – Verify that the fused termination assembly matches the intended DeltaV M-Series I/O configuration.
- Review the wiring documentation – Check the cabinet drawings and channel assignments before connecting field conductors.
- Identify each field circuit – Label incoming wiring so the correct process device is associated with the intended I/O channel.
- Inspect the fuse arrangement – Check the fuse and its associated connection points for visible damage or signs of overheating.
- Use the specified fuse arrangement – If a fuse requires replacement, use the correct replacement specified for the applicable circuit rather than bypassing the protective element.
- Inspect termination points – Check terminals and interfaces for looseness, contamination, corrosion, or damaged conductors.
- Secure field cables – Provide suitable cable support so mechanical forces are not transferred directly to the termination assembly.
- Verify continuity during commissioning – Check the field-to-I/O signal path and confirm that protected circuits are correctly connected.
- Investigate blown fuses before replacement – Determine the likely cause of the circuit fault before installing another fuse.
- Troubleshoot the complete I/O path – Check the field device, wiring, fuse, termination assembly, I/O module, and control configuration in sequence.
- Use the correct replacement assembly – When replacing the termination block, verify the complete DeltaV configuration and preserve the intended fused wiring arrangement.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV M-Series I/O Module | Processes field input and output signals |
| DeltaV Controller | Executes configured process control strategies |
| KJ3222X1-BA1 | Associated DeltaV termination component |
| KJ4001X1-CB1 | Associated DeltaV fused connection component |
| Field Instrumentation | Generates or receives process signals |
| Field Wiring | Carries signals between process equipment and control cabinet |
| DeltaV I/O Carrier / Mounting Components | Supports compatible I/O system installation |
Recommended Related Models
| Model | Product Type |
|---|---|
| Emerson VE4003 Series | DeltaV M-Series I/O Termination Components |
| Emerson KJ3222X1 Series | DeltaV M-Series I/O Termination Components |
| Emerson KJ4001X1 Series | DeltaV M-Series I/O Connection Components |
| Emerson VE4001 Series | DeltaV M-Series I/O Interface Components |
| Emerson DeltaV M-Series I/O Modules | Process Control I/O Modules |
Key Advantages
- DeltaV M-Series fused I/O termination
- Integrated field circuit protection
- Structured field wiring interface
- Supports organized cabinet layouts
- Simplifies fuse and I/O circuit inspection
- Suitable for protected process I/O applications
Technical FAQs
What is the purpose of the Emerson VE4003S2B2 KJ3222X1-BA1+KJ4001X1-CB1?
It is a DeltaV M-Series Fused I/O Termination Block that provides field wiring termination together with fuse-based protection for applicable I/O circuits.
How is a fused termination block different from a standard termination block?
A standard termination block primarily provides the physical field wiring interface. The fused version adds a protective fuse within the applicable circuit path, providing an additional layer of protection for the connected field circuit.
What should be done if a fuse on the termination assembly blows?
The underlying circuit should be investigated before replacing the fuse. Check the field device, wiring, termination connections, and associated I/O circuit for a possible fault. The protective fuse should not simply be bypassed to restore operation.
Does the fused termination block perform I/O signal processing?
No. It provides field termination and circuit protection. The compatible DeltaV I/O module performs the required signal processing, while the DeltaV controller executes the configured control strategy.
