- Emerson
- VE4003S2B1 KJ4001X1-CA1
- Standard I/O Termination Block
- USA
- 107 × 41 × 105 mm
- 0.18 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

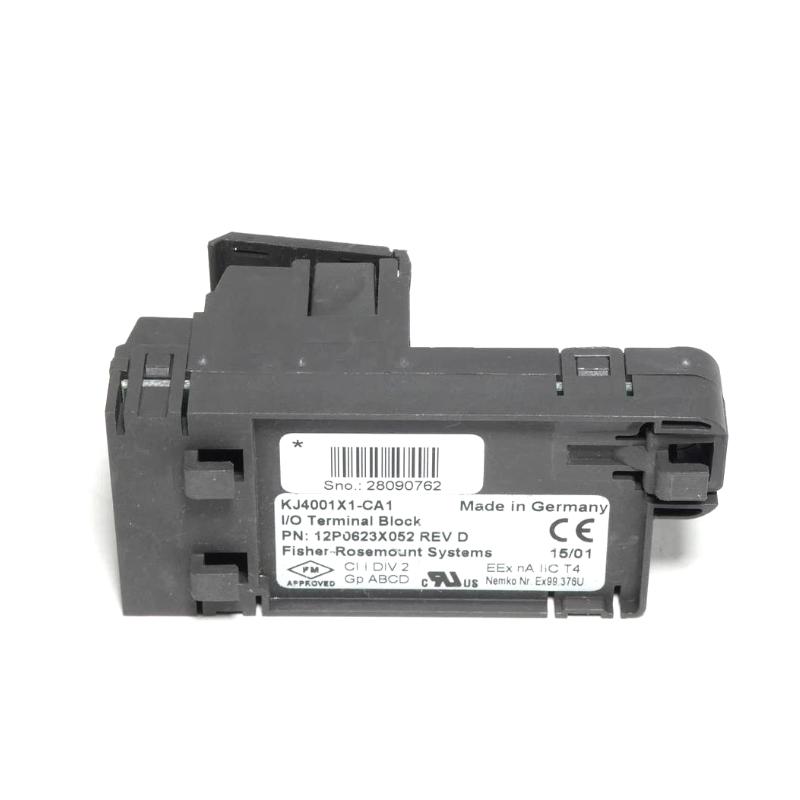

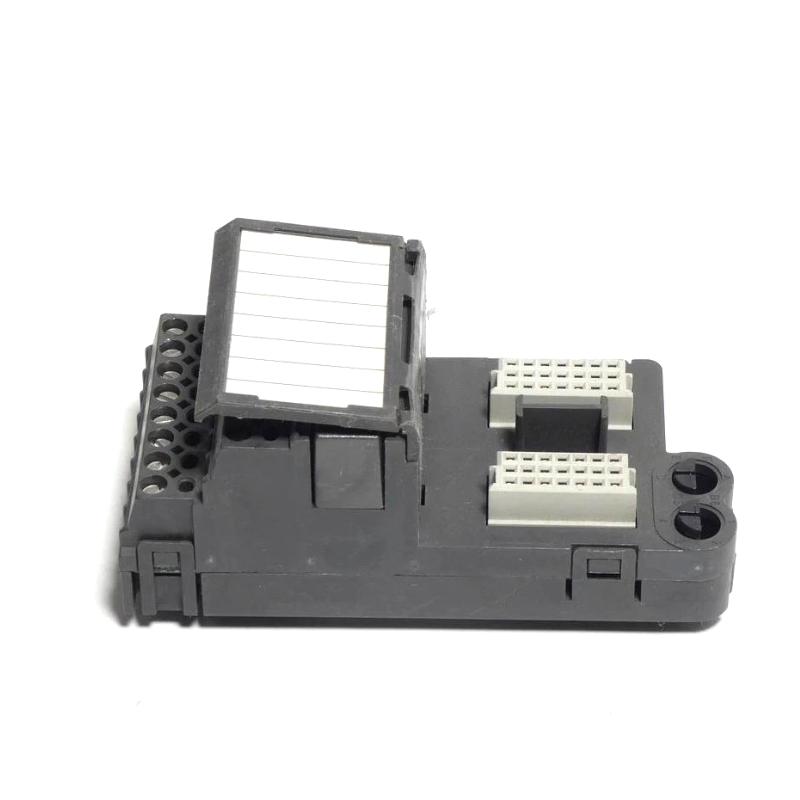

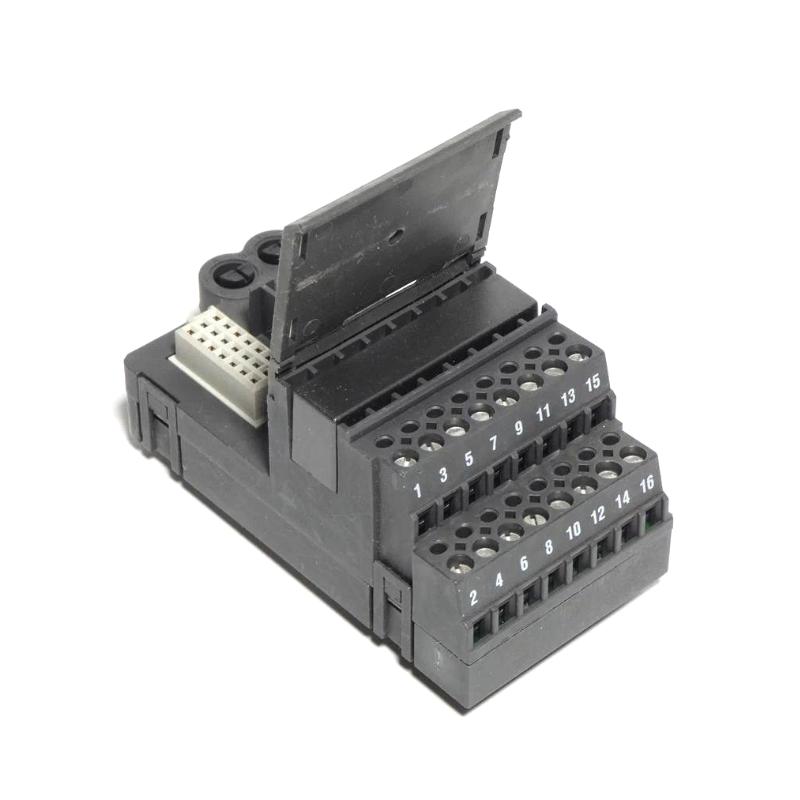

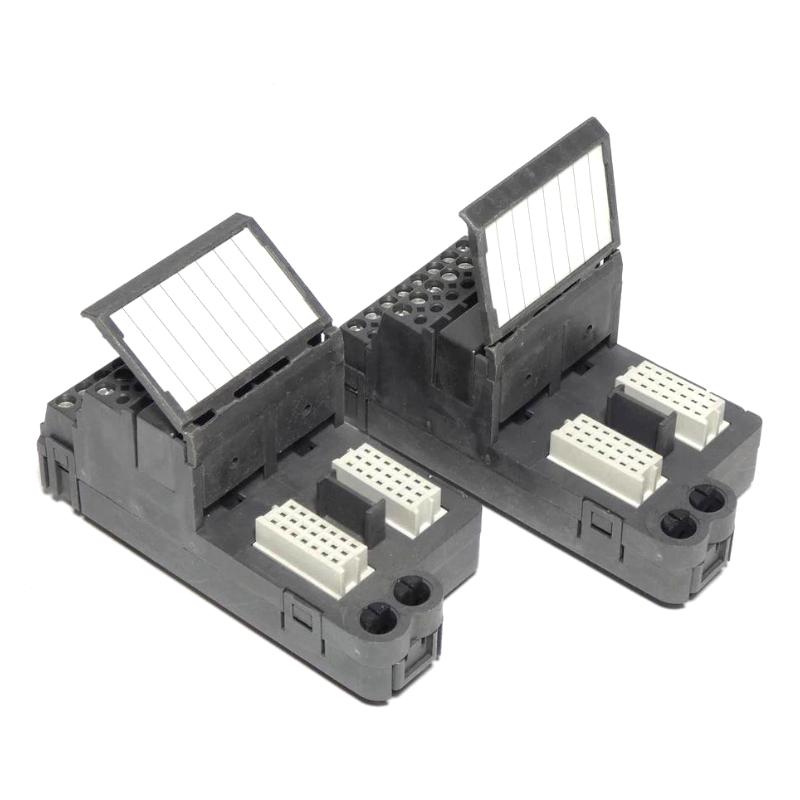

The Emerson VE4003S2B1 KJ4001X1-CA1 is a DeltaV M-Series Standard I/O Termination Block used to provide a structured field wiring interface for compatible DeltaV I/O systems. It forms the connection point between field-side conductors and the corresponding I/O electronics, helping organize process signals within the control cabinet.
In a DeltaV installation, field instruments may be distributed across a process area while the I/O modules are concentrated inside a control cabinet. The termination block provides a practical interface between these two sides of the system. It allows field wiring to be identified, terminated, and routed toward the appropriate I/O channels without placing the field conductors directly on the main controller hardware.
The VE4003S2B1 KJ4001X1-CA1 is therefore primarily a wiring and termination component rather than a controller or signal-processing device. It is useful during new system installation, cabinet expansion, commissioning, and replacement of existing DeltaV M-Series termination hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4003S2B1 / KJ4001X1-CA1 |
| Product Type | DeltaV M-Series Standard I/O Termination Block |
| Product Family | DeltaV M-Series |
| Series | Emerson DeltaV |
| Module Type | I/O Termination Block |
| Termination Type | Standard I/O Field Termination |
| System Function | Field Wiring Interface |
| Application | Process Control I/O |
| Field Connection | Process Instrument / Field Wiring |
| System Integration | DeltaV M-Series I/O System |
| Installation | Control Cabinet / I/O Subsystem |
| Wiring Role | Field Signal Termination |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.18 kg |
Product Features
- Standard I/O termination component for Emerson DeltaV M-Series systems.
- Provides a defined field-side interface for compatible I/O channels.
- Organizes incoming field wiring within the control cabinet.
- Supports structured routing between field devices and DeltaV I/O electronics.
- Keeps field termination separate from the controller and application logic.
- Suitable for process instrumentation and industrial control applications.
- Helps technicians trace individual field connections during commissioning and maintenance.
- Useful for new installations, system expansion, and replacement work.
Working Principle
The VE4003S2B1 KJ4001X1-CA1 functions at the field termination level of a DeltaV M-Series I/O architecture. Its role is to establish and organize the physical connection between field wiring and compatible I/O electronics.
1. Field signal entry
Signals from field instruments, switches, transmitters, or other process devices enter the control cabinet through field cables. These conductors are brought to the appropriate termination interface.
2. Field termination
The field conductors are terminated through the I/O termination arrangement. Proper channel identification at this stage allows each field circuit to be associated with its intended DeltaV I/O channel.
3. Signal routing
The termination block provides the physical connection path toward the compatible DeltaV I/O subsystem. It does not replace the I/O module’s signal-processing function.
4. I/O processing
Once the field signal reaches the corresponding I/O channel, the DeltaV I/O electronics perform the required input or output processing. The controller then uses the configured I/O data as part of the process control strategy.
5. Maintenance access
The termination point provides technicians with a practical location for inspecting wiring and tracing signal paths. During troubleshooting, the field device, cable, termination block, I/O module, and controller configuration can be checked in sequence.
Role in a DeltaV M-Series I/O Control Architecture
The VE4003S2B1 KJ4001X1-CA1 is positioned at the field termination layer of the DeltaV M-Series architecture. It connects field wiring with the I/O subsystem while leaving signal processing and control execution to the appropriate DeltaV electronics.
| Architecture Layer | Component / Function | Role |
|---|---|---|
| Field Layer | Sensors, Transmitters, Actuators | Generates or receives process signals |
| Wiring Layer | Field Cables | Carries process signals between field and cabinet |
| Termination Layer | VE4003S2B1 KJ4001X1-CA1 | Provides field I/O termination |
| I/O Layer | Compatible DeltaV M-Series I/O Module | Processes input or output channels |
| Control Layer | DeltaV Controller | Executes configured control logic |
| Supervisory Layer | DeltaV Engineering / Operator System | Supports configuration, operation, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Terminating field signals for DeltaV I/O channels |
| Oil and Gas | Organizing field instrumentation wiring in control cabinets |
| Chemical Processing | Connecting process instruments to DeltaV I/O systems |
| Power and Utilities | Supporting structured I/O field termination |
| Pharmaceutical Manufacturing | Maintaining organized instrumentation connections |
| Water and Wastewater | Connecting field devices to process control I/O |
| Industrial Retrofit | Replacing existing DeltaV-compatible termination components |
Installation and Maintenance
- Verify the complete designation – Confirm both VE4003S2B1 and KJ4001X1-CA1 identifiers before installation.
- Confirm I/O compatibility – Check that the termination block matches the intended DeltaV M-Series I/O configuration.
- Review cabinet drawings – Verify the wiring diagram and channel assignments before disconnecting or reconnecting field conductors.
- Label field wiring – Clearly identify each incoming cable and conductor to prevent channel cross-connection.
- Inspect connection points – Check terminals and interfaces for contamination, corrosion, looseness, or physical damage.
- Maintain the intended wiring arrangement – Follow the established DeltaV cabinet wiring scheme and applicable installation procedures.
- Check polarity where required – Verify signal polarity for field circuits that have defined positive and negative connections.
- Provide cable support – Secure incoming cables so mechanical forces are not transferred directly to the termination points.
- Verify continuity during commissioning – Check the field-to-I/O signal path before placing the corresponding loop into service.
- Inspect during shutdowns – Look for loose connections, overheating, corrosion, or damaged wiring during scheduled cabinet maintenance.
- Troubleshoot the complete channel – If an I/O signal is abnormal, inspect the field device, cable, termination block, I/O module, and configuration in sequence.
- Use the correct replacement – Replace the termination block with the specified DeltaV-compatible component and verify the original channel wiring before returning the system to operation.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV M-Series I/O Module | Processes field input and output signals |
| DeltaV Controller | Executes configured process control strategies |
| KJ4001X1-CA1 | Associated DeltaV connection component |
| VE4003S2B1 | DeltaV M-Series I/O termination assembly designation |
| Field Instrumentation | Generates or receives process signals |
| DeltaV I/O Carrier / Mounting Components | Supports compatible I/O system installation |
Recommended Related Models
| Model | Product Type |
|---|---|
| Emerson VE4003 Series | DeltaV M-Series I/O Termination Components |
| Emerson KJ4001X1 Series | DeltaV M-Series I/O Connection Components |
| Emerson KJ3222X1 Series | DeltaV M-Series I/O Termination Components |
| Emerson VE4001 Series | DeltaV M-Series I/O Interface Components |
| Emerson DeltaV M-Series I/O Modules | Process Control I/O Modules |
Key Advantages
- DeltaV M-Series I/O termination
- Structured field wiring interface
- Supports organized control cabinet layouts
- Simplifies field channel identification
- Suitable for process instrumentation connections
- Useful for installation and maintenance
Technical FAQs
What is the function of the Emerson VE4003S2B1 KJ4001X1-CA1?
It is a DeltaV M-Series Standard I/O Termination Block used to provide the physical field wiring interface for compatible DeltaV I/O channels.
Does the VE4003S2B1 KJ4001X1-CA1 process the I/O signal?
No. The termination block handles the physical field connection. The compatible DeltaV I/O module performs the required signal processing, while the controller executes the configured control strategy.
Where is this termination block used in a DeltaV cabinet?
It is used at the field termination layer of the DeltaV M-Series I/O subsystem. Field wiring is connected through the termination arrangement before reaching the associated I/O electronics.
What should be checked when replacing this termination block?
Verify the complete model designation, compatible I/O configuration, channel assignments, and cabinet wiring drawings. After installation, check the terminations and verify field-to-I/O signal continuity before returning the affected loop to service.
