- Emerson
- VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1
- Standard I/O Termination Block
- USA
- 107 × 41 × 105 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

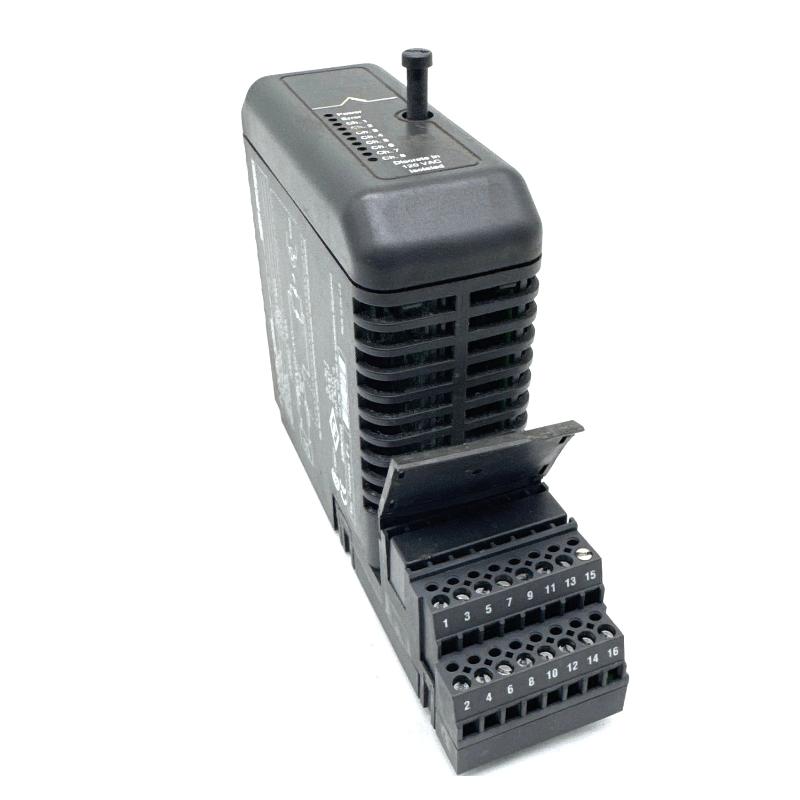

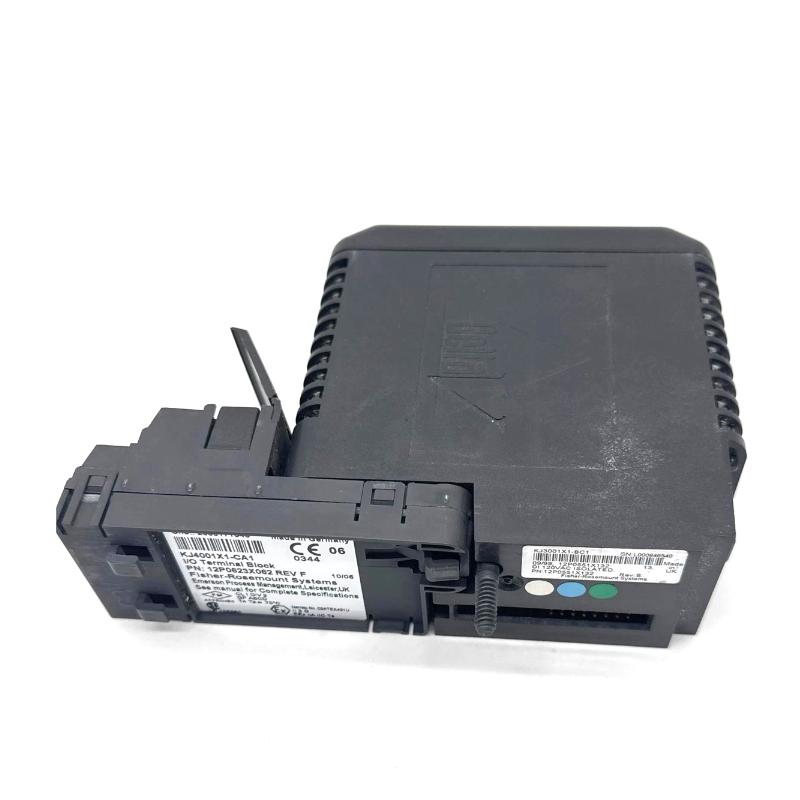

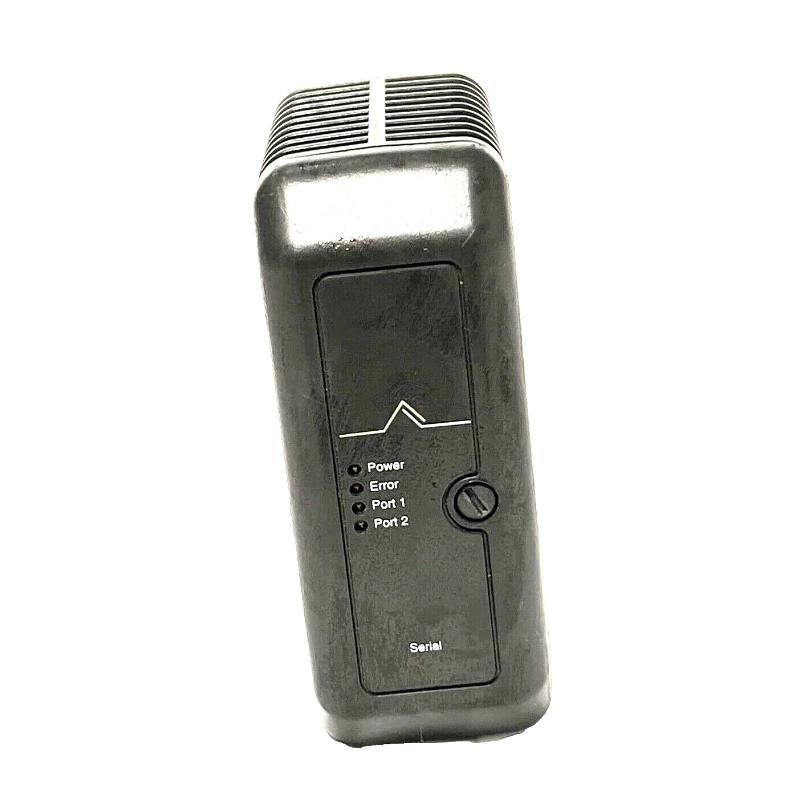

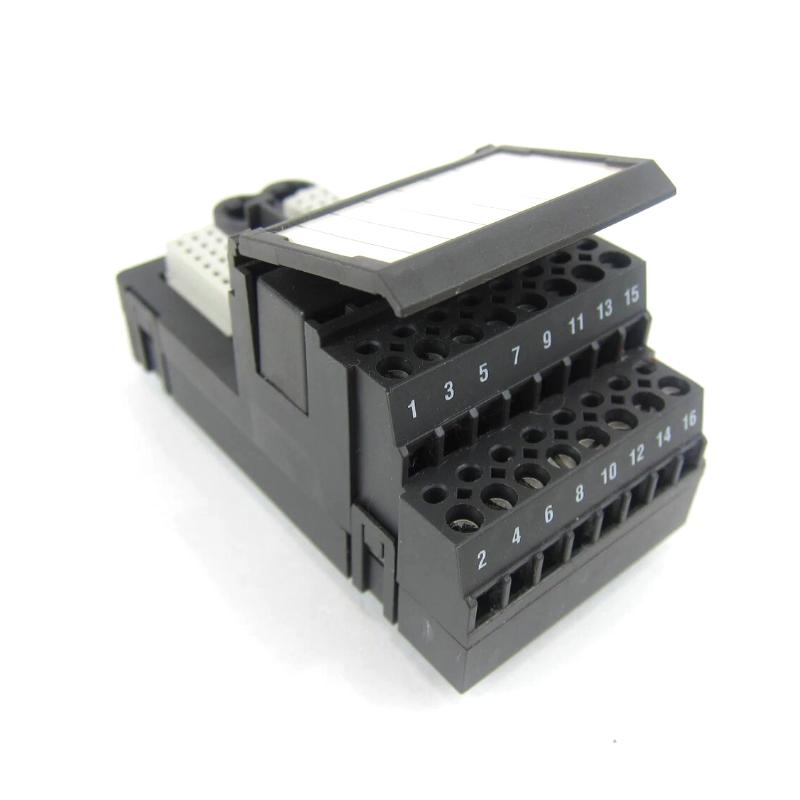

The Emerson VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 is a DeltaV M-Series Standard I/O Termination Block assembly used to organize and terminate field wiring for compatible DeltaV I/O channels. The assembly combines the termination interface with its associated connection component, providing a structured field-side interface between process wiring and the DeltaV I/O subsystem.
In a typical DeltaV control cabinet, field instruments are connected through termination hardware before reaching the I/O electronics. This arrangement makes channel wiring easier to identify and maintain while keeping field connections organized within the cabinet. The termination assembly is particularly useful where multiple process signals must be routed into an M-Series I/O architecture in a consistent manner.
The VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 should be treated as a complete termination arrangement rather than simply as an individual terminal point. For replacement or retrofit work, technicians should verify both component designations and the existing DeltaV I/O architecture before moving field conductors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE4003S2B1 / KJ3222X1-BA1 + KJ4001X1-CA1 |
| Product Type | DeltaV M-Series Standard I/O Termination Block |
| Product Family | DeltaV M-Series |
| Series | Emerson DeltaV |
| Assembly Type | Standard I/O Termination Assembly |
| Termination Type | Standard I/O Field Termination |
| System Function | Field Wiring Interface |
| Application | Process Control I/O |
| Field Connection | Process Instrument / Field Wiring |
| System Integration | DeltaV M-Series I/O System |
| Installation | Control Cabinet / I/O Subsystem |
| Wiring Role | Field Signal Termination |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.45 kg |
Product Features
- DeltaV M-Series Standard I/O termination assembly.
- Combines the specified termination and connection components in one field-side arrangement.
- Provides an organized interface between field wiring and compatible DeltaV I/O electronics.
- Supports structured control cabinet wiring for process instrumentation.
- Helps maintain clear separation between field connections and I/O processing hardware.
- Suitable for cabinet installation, system expansion, and replacement applications.
- Supports easier tracing of field wiring during commissioning and maintenance.
- Intended for use within the corresponding DeltaV M-Series I/O architecture.
Working Principle
The VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 functions at the field termination layer of a DeltaV M-Series I/O system. The assembly provides the physical connection arrangement required to bring field signals into the appropriate I/O subsystem.
1. Field device connection
Process instruments and other field devices are connected to the control cabinet through field cables. The termination assembly provides the designated interface for these incoming conductors.
2. Termination and routing
Individual conductors are terminated and organized through the assembly. The associated connection arrangement provides the path toward the compatible DeltaV I/O electronics.
3. I/O interface
The termination assembly does not execute the DeltaV control strategy or perform the main signal-processing function. Instead, it establishes the physical wiring interface through which the I/O module can receive input signals or deliver output signals.
4. Control system processing
After passing through the termination arrangement, the field signal reaches the corresponding DeltaV I/O channel. The DeltaV system then handles the configured control, monitoring, or output function associated with that channel.
5. Maintenance and troubleshooting
The termination assembly provides a practical point for checking field wiring during commissioning and maintenance. When a channel behaves unexpectedly, technicians can trace the signal path from the field device through the termination assembly and I/O module toward the controller.
Role in a DeltaV M-Series I/O Control Architecture
The VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 sits between field wiring and the DeltaV M-Series I/O electronics. Its main purpose is to provide a structured physical termination arrangement while the I/O module and controller perform signal processing and control functions.
| Architecture Layer | Component / Function | Role |
|---|---|---|
| Field Layer | Sensors, Transmitters, Actuators | Generates or receives process signals |
| Wiring Layer | Field Cables | Carries signals between field devices and cabinet |
| Termination Layer | VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 | Terminates and organizes field I/O connections |
| I/O Layer | Compatible DeltaV M-Series I/O Module | Processes input or output channels |
| Control Layer | DeltaV Controller | Executes configured process control logic |
| Supervisory Layer | DeltaV Engineering / Operator System | Provides configuration, operation, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Terminating field signals for DeltaV I/O channels |
| Oil and Gas | Organizing instrumentation connections inside DeltaV cabinets |
| Chemical Processing | Connecting process instruments to DeltaV I/O |
| Power and Utilities | Supporting structured field I/O wiring |
| Pharmaceutical Plants | Maintaining organized control cabinet signal connections |
| Water and Wastewater | Connecting field instrumentation with process control systems |
| DeltaV System Retrofit | Replacing or expanding existing M-Series termination arrangements |
Installation and Maintenance
- Verify the complete assembly designation – Confirm the VE4003S2B1, KJ3222X1-BA1, and KJ4001X1-CA1 identifiers before installation.
- Confirm I/O compatibility – Verify that the termination arrangement corresponds to the intended DeltaV M-Series I/O architecture.
- Review the cabinet drawings – Check the applicable wiring diagrams and channel assignments before disconnecting existing conductors.
- Identify field conductors – Label each field cable and conductor so the original channel assignment can be restored correctly.
- Inspect connection points – Check terminals and connection interfaces for contamination, looseness, corrosion, or physical damage.
- Maintain correct wiring arrangement – Follow the established DeltaV cabinet wiring scheme and applicable installation procedures.
- Check signal polarity where applicable – Verify positive and negative connections for signal circuits that require defined polarity.
- Provide proper cable support – Secure incoming field cables so mechanical force is not transferred directly to the termination assembly.
- Verify channel continuity – During commissioning, check the field-to-I/O signal path before enabling the corresponding process loop.
- Inspect during scheduled maintenance – Look for loose connections, overheating, corrosion, or damaged wiring during cabinet inspections.
- Troubleshoot the complete signal path – For an abnormal channel, inspect the field device, wiring, termination assembly, I/O module, and configuration rather than isolating the fault to one component immediately.
- Use the complete specified assembly for replacement – When replacing the component, verify the termination and connection arrangement together to preserve the intended DeltaV cabinet configuration.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV M-Series I/O Module | Processes field input and output signals |
| DeltaV Controller | Executes configured process control strategies |
| KJ3222X1-BA1 | Associated DeltaV termination component |
| KJ4001X1-CA1 | Associated DeltaV connection component |
| Field Instrumentation | Provides process measurement or receives control outputs |
| DeltaV I/O Carrier / Mounting Components | Supports compatible I/O system installation |
Recommended Related Models
| Model | Product Type |
|---|---|
| Emerson VE4003 Series | DeltaV M-Series I/O Termination Components |
| Emerson KJ3222X1 Series | DeltaV M-Series I/O Termination Components |
| Emerson KJ4001X1 Series | DeltaV M-Series I/O Connection Components |
| Emerson VE4001 Series | DeltaV M-Series I/O Interface Components |
| Emerson DeltaV M-Series I/O Modules | Process Control I/O Modules |
Key Advantages
- DeltaV M-Series termination assembly
- Organized field wiring interface
- Combines specified termination and connection components
- Supports structured cabinet wiring
- Simplifies field I/O identification and maintenance
- Suitable for DeltaV system installation and replacement
Technical FAQs
What is the function of the VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1?
It is a DeltaV M-Series Standard I/O termination arrangement used to provide the physical field wiring interface for compatible DeltaV I/O channels. The assembly connects field-side wiring into the I/O architecture.
What is the relationship between the KJ3222X1-BA1 and KJ4001X1-CA1?
They are the associated component designations included in the specified termination arrangement. When replacing the complete assembly, both designations should be checked against the existing DeltaV cabinet configuration.
Does this termination assembly perform the control logic?
No. The termination assembly provides the field wiring interface. Signal processing is handled by the compatible DeltaV I/O electronics, while control logic is executed by the DeltaV controller.
What should be checked when replacing this DeltaV termination assembly?
Verify the complete assembly designation, compatible I/O configuration, cabinet wiring drawings, and field channel assignments. After installation, confirm the physical connections and verify the field-to-I/O signal path during commissioning.
