Product Overview

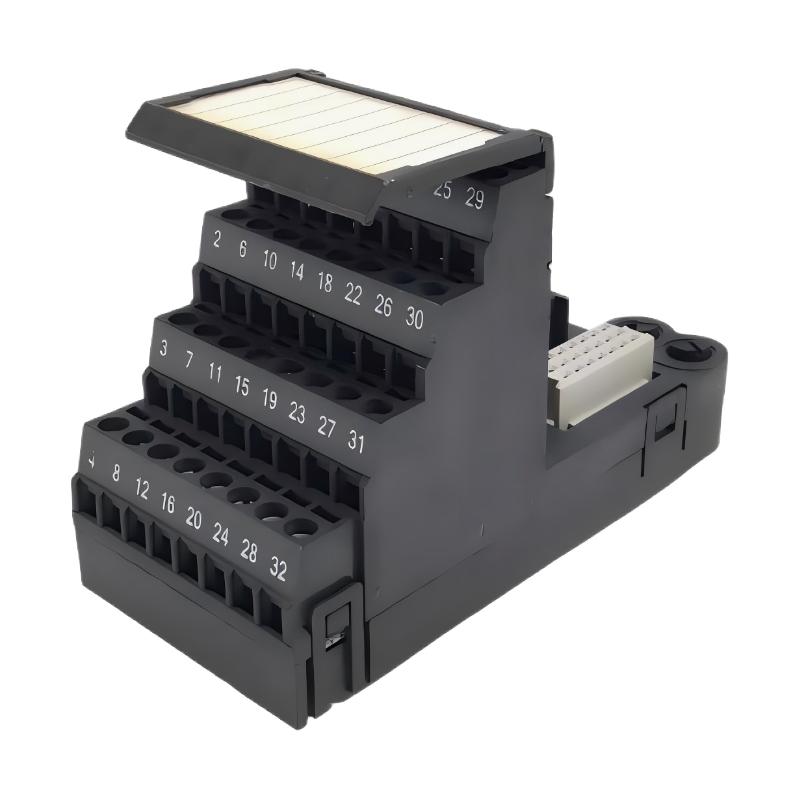

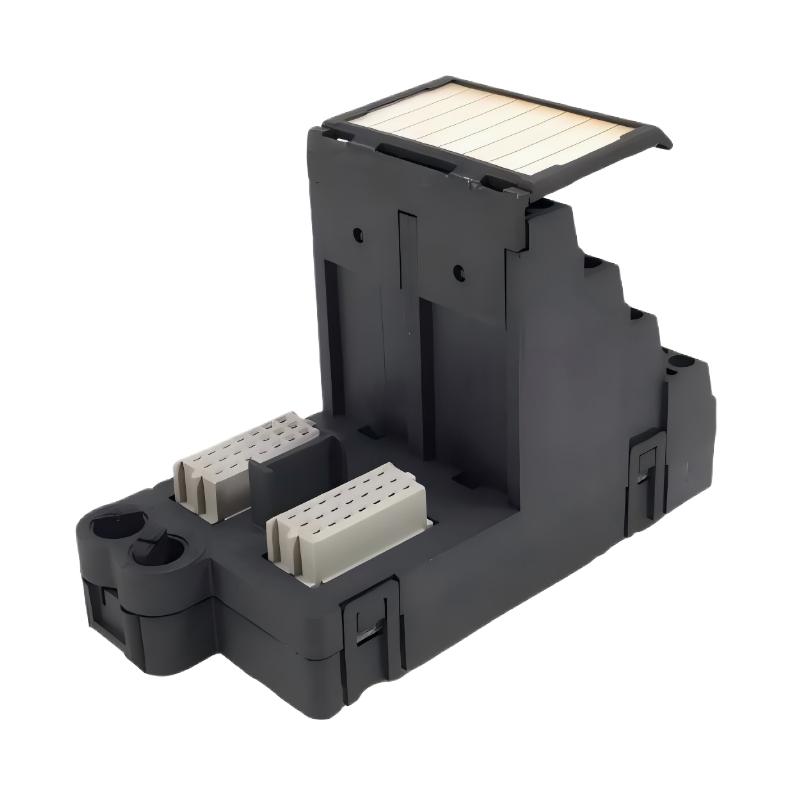

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module with Terminal Blocks is an industrial discrete output assembly designed to provide a reliable interface between an Emerson process automation system and field-level equipment. The assembly combines the VE4002S1T2B5 output module with the KJ4001X1-CJ1 terminal-block component, providing an organized path for transferring discrete control commands from the control system to external devices.

In modern process automation, a large number of field devices operate according to binary commands. Valves may be commanded open or closed, solenoids may be energized or de-energized, alarms may be activated, and equipment may receive start, stop, enable, or inhibit commands. A discrete output module is responsible for delivering these control states through the appropriate I/O architecture.

The supplied physical dimensions of the Emerson VE4002S1T2B5 KJ4001X1-CJ1 assembly are 107 × 41 × 105 mm, with a supplied weight of 0.18 kg. Its compact construction is suitable for modular process-control cabinets where multiple I/O modules and terminal assemblies must be installed within a structured and serviceable cabinet layout.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Main Model	VE4002S1T2B5
Associated Terminal Block	KJ4001X1-CJ1
Product Type	Output Module with Terminal Blocks
I/O Type	Discrete / Digital Output
Primary Function	Field-device control interface
Signal Category	Discrete control signal
Application	Industrial Process Automation
Installation	Modular process-control I/O architecture
Dimensions	107 × 41 × 105 mm
Weight	0.18 kg
Typical Applications	Valves, solenoids, relays, alarms, interlocks, actuators, equipment-control interfaces

Important engineering note: Exact channel count, output voltage, current rating, load characteristics, isolation, terminal assignments, and other electrical specifications can depend on the specific hardware revision and system configuration. These parameters should be verified before installation or commissioning.

---

What Is the Emerson VE4002S1T2B5?

The VE4002S1T2B5 is a discrete output module intended to operate within an industrial process-control I/O architecture.

Its main purpose is to transfer binary control commands from the automation system toward field equipment. Rather than generating a continuously variable analog signal, the module participates in control functions where the field device is required to operate in defined states.

For example, a process controller may determine that a valve should be opened. The controller generates the corresponding output command, and the I/O subsystem passes that command to the discrete output module. The output interface then provides the required signal path toward the connected field circuit.

The KJ4001X1-CJ1 terminal-block component forms part of the field termination arrangement associated with the specified assembly.

This combination is particularly relevant to maintenance engineers because the complete assembly identification is more useful for replacement planning than a generic description such as “digital output card.”

---

Model Identification

The complete designation supplied for this product is:

VE4002S1T2B5 KJ4001X1-CJ1

The individual identifiers can be used to distinguish the functional output module from its associated termination hardware.

VE4002S1T2B5

This identifies the Emerson discrete output module used in the process-control I/O architecture.

KJ4001X1-CJ1

This identifies the associated terminal-block component specified with the output assembly.

When ordering replacement hardware, engineers should record the complete designation and verify it against the installed system. Similar-looking I/O hardware may have different electrical characteristics, terminal arrangements, or system compatibility.

---

Function and Working Principle

The VE4002S1T2B5 works as part of the output section of an industrial control system.

The process begins with the controller. Control logic evaluates information from field instruments, operator commands, programmed sequences, process conditions, permissives, and interlocks.

When a control action is required, the controller generates a discrete output command.

The I/O architecture transfers that command to the output card. The VE4002S1T2B5 processes the output state and provides the corresponding field-side interface.

The terminal-block hardware provides the physical connection to the field wiring.

A simplified control path can be represented as:

Controller → I/O Architecture → VE4002S1T2B5 → KJ4001X1-CJ1 → Field Wiring → Field Device

The actual physical architecture can vary depending on the Emerson control system and installation.

The important principle is that the output card provides the hardware interface between software-based process logic and real-world binary equipment.

---

Role in Industrial Process Automation

Discrete outputs are fundamental to industrial automation because many physical processes are controlled by simple state changes.

Consider a typical process unit:

• A pump must start.
• A valve must open.
• A solenoid must energize.
• A warning light must turn on.
• A relay must change state.
• A shutdown circuit must receive a command.

Each of these actions can involve discrete control.

The VE4002S1T2B5 can therefore form an important part of the I/O layer responsible for converting controller decisions into physical process actions.

This also allows the control system to separate high-level process logic from field-level wiring. The controller manages the logic, while the I/O hardware manages the interface between that logic and the field.

---

Typical Industrial Applications

On/Off Valve Control

Discrete output modules are widely used in process industries where valves operate between defined states.

Typical applications include:

• Process isolation valves
• Utility valves
• Solenoid-operated valves
• Pneumatic valve interfaces
• Cooling-system valves
• Fluid-handling equipment
• Gas-system valves

The output circuit must always be matched to the requirements of the specific field device.

Solenoid Control

Solenoids are commonly used in pneumatic and hydraulic systems.

A discrete output can provide the command required to energize or de-energize an appropriate solenoid interface.

This allows the controller to coordinate valves and actuators with process sequences.

Alarm Systems

Digital outputs can also participate in alarm and notification systems.

Potential applications include:

• Audible alarms
• Warning lights
• Equipment fault indicators
• Process status indicators
• Shutdown notifications
• External annunciation systems

The controller can activate an output when a programmed alarm condition is detected.

Interlock Systems

Industrial processes frequently depend on interlocking logic.

For example, a pump may only be permitted to start when:

• A required valve is in the correct position.
• No shutdown condition is active.
• The process level is within the required range.
• The equipment is available.
• Necessary permissives are present.

The discrete output card can participate in the resulting equipment-control command.

Relay and Interface Circuits

The output module can also form part of a system where external relays or interface components are used to control field equipment.

This provides flexibility when the field load requires a different electrical interface than the output circuit itself.

---

System Architecture and Integration

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 assembly is normally integrated into a broader industrial automation system.

A typical process-control architecture may contain:

• Emerson process controllers
• I/O interface assemblies
• Discrete input modules
• Discrete output modules
• Analog input modules
• Analog output modules
• Terminal blocks
• Communication interfaces
• Engineering workstations
• Operator stations
• Process instruments
• Control valves
• Solenoid devices
• Relay interfaces
• Motor-control equipment

The output module forms one layer of this architecture.

The controller determines what should happen. The I/O system transfers the command. The output module and termination hardware provide the field interface. The connected device then performs the requested physical action.

This modular architecture makes large process-control systems easier to organize and maintain.

---

Installation Guidelines

Before installing the VE4002S1T2B5 KJ4001X1-CJ1, verify the complete part identification against the system documentation.

Important installation checks include:

• Correct model number
• Correct hardware revision
• Correct terminal-block type
• I/O location
• Channel assignment
• Controller configuration
• Field-device compatibility
• Wiring arrangement
• Cabinet environmental conditions

The supplied dimensions are 107 × 41 × 105 mm.

Cabinet planning should provide adequate space for the module and its associated wiring. Engineers should consider connector access, cable routing, ventilation, inspection space, and future removal.

The module should be installed in the appropriate Emerson I/O architecture according to the system’s mechanical and electrical requirements.

---

Field Wiring and Terminal Block Considerations

The KJ4001X1-CJ1 terminal-block component provides the termination interface specified with this output assembly.

Before connecting field circuits, technicians should compare the actual installation against the approved electrical drawings.

Recommended practices include:

• Verify every conductor identification.
• Confirm output-channel assignments.
• Check terminal tightness.
• Inspect connectors for damage.
• Verify field power.
• Perform continuity checks when appropriate.
• Maintain appropriate grounding.
• Follow the plant’s shielding strategy.
• Separate control wiring from high-power wiring where appropriate.
• Confirm the connected load before activating the output.

A loose terminal or incorrect field connection can produce an apparent output-card fault even when the electronic module is functioning correctly.

---

Commissioning Procedure

A structured commissioning process is recommended after installation or replacement.

Hardware Inspection

Inspect the VE4002S1T2B5 and KJ4001X1-CJ1 assembly for:

• Mechanical damage
• Damaged connectors
• Corrosion
• Contamination
• Abnormal discoloration
• Improper installation

I/O Configuration

Confirm that the control-system configuration corresponds to the installed hardware.

Verify the:

• I/O position
• Channel mapping
• Equipment tag
• Output logic
• Interlocks
• Permissives
• Alarm functions

Wiring Verification

Check field wiring against the approved control drawings before activating the output circuits.

Controlled Output Test

Where permitted by plant procedures, test individual output points under controlled conditions.

Confirm that the controller status and physical field response correspond to each other.

Process-Level Verification

After point testing, verify the module under normal process sequences.

Make sure that equipment permissives, interlocks, alarms, and shutdown logic function as expected.

---

Troubleshooting the VE4002S1T2B5

A systematic diagnostic procedure is more effective than immediately replacing the module.

No Output at the Field Device

Follow the signal path:

Controller command → I/O configuration → Output module → Terminal block → Field wiring → External power → Field device

Check each stage systematically.

If the controller does not generate the expected command, the problem may be in the control logic rather than the output card.

---

Single Output Point Fails

If only one output is affected, investigate:

• Channel configuration
• Terminal connection
• Field conductor
• External protection
• Field power
• Relay/interface
• Actuator
• Output channel

A single failed point does not automatically indicate a complete module failure.

---

Several Output Points Fail

When multiple outputs stop working simultaneously, investigate common causes first.

Possible areas include:

• I/O subsystem power
• Common field supply
• Communication
• Carrier/backplane connection
• Configuration
• Terminal hardware
• Cabinet environmental conditions

Multiple failures at the same time may indicate a shared system problem.

---

Output Status Is ON but Equipment Does Not Operate

If the control system indicates that an output is active while the field device remains inactive, inspect the downstream circuit.

Check:

• Terminal connections
• Field wiring
• External supply
• Fuses
• Relay interfaces
• Solenoids
• Actuators
• Equipment permissives

This prevents unnecessary replacement of functioning I/O hardware.

---

Preventive Maintenance

Preventive maintenance helps maintain stable operation of industrial I/O systems.

Visual Inspection

Inspect the module and termination hardware for:

• Physical damage
• Heat discoloration
• Corrosion
• Dust
• Contamination
• Connector damage

Cabinet Environment

Maintain suitable cabinet temperature, ventilation, cleanliness, and humidity.

Excessive heat and contamination can reduce the long-term reliability of electronic components.

Wiring Maintenance

Inspect field wiring and terminal connections according to the plant maintenance schedule.

Loose wiring can cause intermittent faults that are particularly difficult to diagnose.

Configuration Backup

Maintain an up-to-date backup of controller and I/O configuration data.

This can significantly reduce recovery time after hardware replacement.

---

Replacement Strategy

When replacing the Emerson VE4002S1T2B5 assembly, use the complete identification:

VE4002S1T2B5 KJ4001X1-CJ1

The following points should be verified:

• Main model number
• Hardware revision
• Terminal-block identification
• I/O position
• Channel configuration
• Field wiring
• Controller configuration
• System compatibility

A replacement should not be selected solely because it has a similar appearance or general output function.

For critical process-control applications, the replacement should be installed under the plant’s approved maintenance and change-control procedures.

---

Dimensions and Weight

The supplied physical specifications for the Emerson VE4002S1T2B5 KJ4001X1-CJ1 assembly are:

Physical Parameter	Specification
Height	107 mm
Width	41 mm
Depth	105 mm
Overall Dimensions	107 × 41 × 105 mm
Weight	0.18 kg

The 107 × 41 × 105 mm form factor allows the assembly to fit into compact modular I/O installations.

The supplied 0.18 kg weight is also useful information for spare-parts storage, transportation, cabinet handling, and replacement planning.

---

Engineering Best Practices

Several practices can improve the reliability and maintainability of the output system.

Keep I/O Documentation Accurate

Electrical drawings, I/O lists, and equipment tags should reflect the actual installation.

Record the Complete Assembly

Use the complete VE4002S1T2B5 KJ4001X1-CJ1 identification when managing spare parts.

Perform Controlled Testing

Discrete output tests can activate physical equipment, so testing should be performed under appropriate operating and safety conditions.

Maintain Suitable Spares

Critical process systems should consider maintaining correctly identified replacement hardware.

Protect the Cabinet Environment

Good temperature management, ventilation, cleanliness, and moisture control contribute to longer electronic equipment life.

Troubleshoot Methodically

Always check the entire path from controller logic through the I/O hardware and terminal block to the field device.

---

Related Emerson I/O Components

The VE4002S1T2B5 can form part of a larger Emerson process-control I/O environment containing different signal and interface components.

Related categories can include:

• Discrete input cards
• Discrete output cards
• Analog input modules
• Analog output modules
• Event-sequence input modules
• Terminal blocks
• I/O carriers
• Controller modules
• Communication interfaces
• Field interface components

The correct combination depends on the process requirements, controller architecture, field-device characteristics, and installed system configuration.

---

Key Advantages

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module with Terminal Blocks provides several practical advantages:

• Discrete output control functionality
• Associated terminal-block interface
• Compact 107 × 41 × 105 mm dimensions
• Lightweight 0.18 kg construction
• Suitable for modular process-control architectures
• Useful for binary field-device commands
• Applicable to valve and solenoid interfaces
• Suitable for alarm and indication circuits
• Supports equipment interlock architectures
• Useful for relay-control interfaces
• Practical for maintenance and replacement
• Suitable for compact industrial control cabinets

---

Technical FAQs

What is the Emerson VE4002S1T2B5?

The Emerson VE4002S1T2B5 is a discrete output module designed to provide binary control signals within an industrial process automation system.

What is KJ4001X1-CJ1?

KJ4001X1-CJ1 is the terminal-block component specified as part of this VE4002S1T2B5 output-module assembly.

What is the main purpose of the module?

Its primary purpose is to transfer discrete control commands from the automation system toward field-level equipment.

What are typical applications?

Typical applications include valve control, solenoid operation, alarms, relay interfaces, interlocks, equipment permissives, and actuator-control circuits.

What are the physical dimensions?

The supplied dimensions are 107 × 41 × 105 mm.

What is the weight?

The supplied weight is 0.18 kg.

Can the output card directly power a large motor?

It should not automatically be treated as a direct high-power motor switching device. Motor applications normally require suitable external power-control equipment based on the load requirements.

What should be checked before replacement?

Verify the complete VE4002S1T2B5 KJ4001X1-CJ1 identification, hardware revision, I/O position, terminal arrangement, configuration, and field wiring.

What should be checked if the field device does not respond?

Check the controller command, I/O configuration, output status, terminal block, field wiring, external power, and the field device itself.

---

Conclusion

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module with Terminal Blocks is a compact discrete output assembly designed to provide an organized interface between an industrial process-control system and field-level equipment. It supports the type of binary control functions commonly required for valves, solenoids, alarms, relay interfaces, interlocks, actuators, and equipment-control circuits.

With supplied dimensions of 107 × 41 × 105 mm and a weight of 0.18 kg, the assembly is well suited to modular industrial control cabinets where compact I/O hardware and organized field termination are required.

For installation and replacement, the complete combination of VE4002S1T2B5 and KJ4001X1-CJ1 should be identified and verified against the installed system. Proper field wiring, configuration, commissioning, and maintenance are essential for reliable operation.

For troubleshooting, engineers should follow the complete signal path from the controller through the output module and terminal block to the field device. This approach makes it possible to distinguish hardware faults from configuration, wiring, power, or field-equipment problems.

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 is therefore a practical choice for discrete output applications within modular industrial process-control environments, particularly where reliable field interfacing, compact installation, and straightforward maintenance are important.
