Product Overview

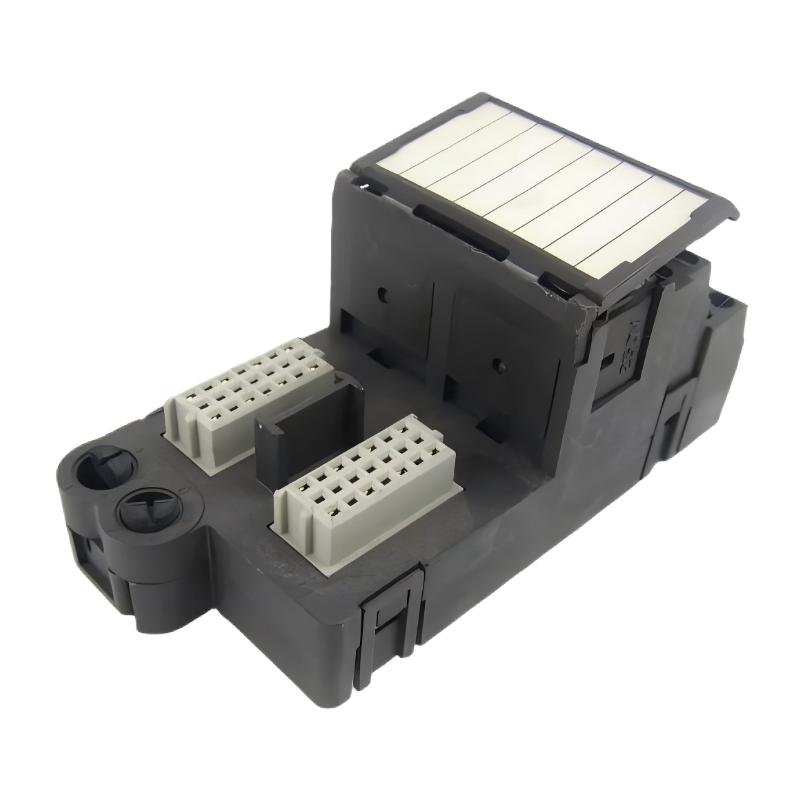

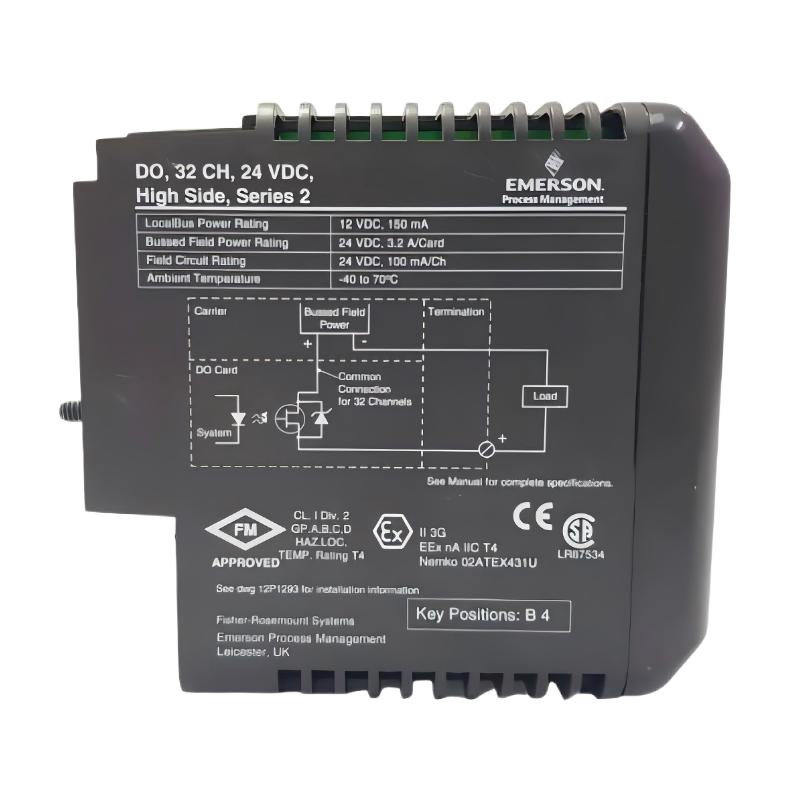

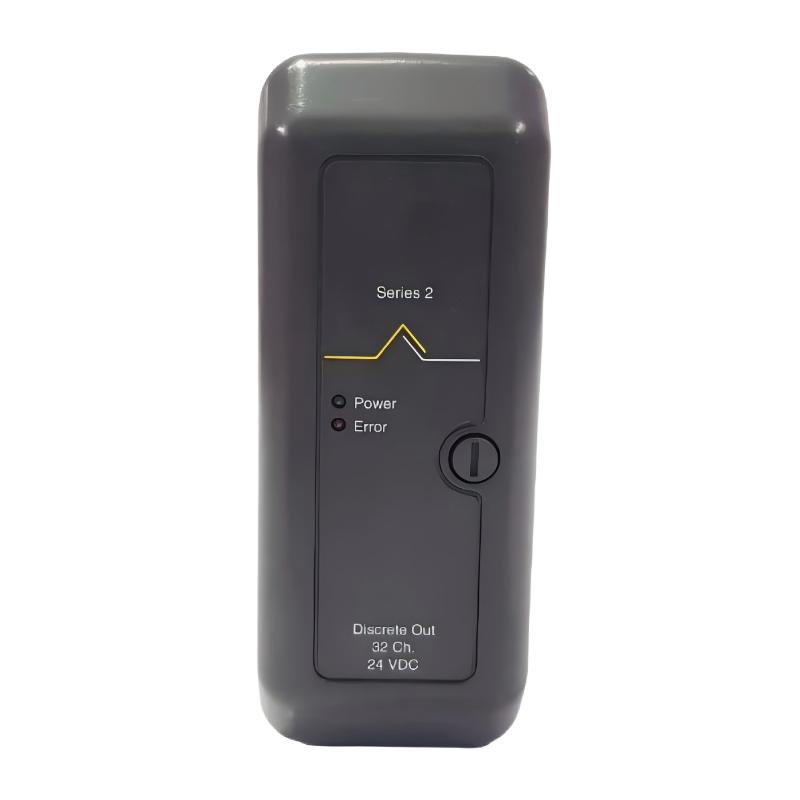

The Emerson VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1 Output Module with Terminal Blocks is an industrial discrete output assembly designed for process automation and control applications. It provides an interface between the control system’s output architecture and field equipment that requires binary control commands. The assembly combines the VE4002S1T2B5 output module with KJ4001X1-CB1 and KJ3204X1-BA1 associated termination/interface hardware, allowing field wiring to be organized within a modular I/O installation.
Discrete output modules are widely used in industrial plants because many control functions require only defined ON/OFF or active/inactive states. Typical applications include solenoid valves, relay interfaces, alarms, equipment permissives, interlocks, actuator commands, and external control circuits. The output module receives a command generated by the process controller and provides the corresponding discrete interface toward the field circuit.
The supplied physical dimensions of this Emerson assembly are 107 × 41 × 105 mm, while the supplied weight is 0.181 kg. Its compact physical profile is suitable for dense control cabinets where multiple I/O modules, termination assemblies, and communication components must coexist while retaining sufficient access for maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Main Model | VE4002S1T2B5 |
| Associated Component | KJ4001X1-CB1 |
| Associated Module | KJ3204X1-BA1 |
| Product Type | Output Module with Terminal Blocks |
| I/O Type | Discrete / Digital Output |
| Main Function | Field output signal interface |
| Application | Industrial Process Control |
| Signal Category | Binary control |
| Installation | Modular process-control I/O system |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.181 kg |
| Typical Applications | Valves, solenoids, relays, alarms, interlocks, actuator interfaces |
Specification note: Exact channel count, output voltage, current capability, load limitations, isolation characteristics, terminal assignments, and revision-specific electrical parameters should be verified against the applicable Emerson system documentation and hardware configuration before installation.
Understanding the Complete Part Number
The complete identification VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1 is important when identifying the assembly for installation or replacement.
The main elements are:
- VE4002S1T2B5 – discrete output module identification
- KJ4001X1-CB1 – associated terminal-block/interface component
- KJ3204X1-BA1 – associated module/interface hardware
In an industrial control system, these components should be considered together because the output electronics, termination hardware, connectors, and field wiring form one functional signal path.
For maintenance teams, recording the complete designation can reduce the risk of ordering a visually similar but electrically or mechanically unsuitable replacement.
How the Output Module Works
The VE4002S1T2B5 operates as part of the output layer of an industrial automation system.
The process begins with the controller. Control logic evaluates information from process instruments, operator commands, equipment status, timers, sequences, and interlocks.
When the logic determines that an external device needs to change state, the controller generates the appropriate output command.
The I/O architecture transfers this command to the output module. The VE4002S1T2B5 provides the discrete output interface, while the associated termination components provide the connection toward the field wiring.
The general signal path can be represented as:
Controller → Process I/O Architecture → VE4002S1T2B5 → KJ3204X1-BA1 → KJ4001X1-CB1 → Field Wiring → Field Device
The exact physical arrangement depends on the Emerson system in which the assembly is installed.
Discrete Output Function in Process Automation
Discrete output control is fundamental to many industrial processes.
Unlike analog outputs, which are used for continuously variable commands, discrete outputs represent defined states.
Examples include:
- Start / Stop
- Open / Close
- Enable / Disable
- Energized / De-energized
- Active / Inactive
- Permit / Inhibit
This makes discrete output hardware suitable for equipment that operates according to binary commands.
The VE4002S1T2B5 can therefore form part of control strategies for valves, alarm devices, relay interfaces, actuators, and equipment-control circuits.
The module does not independently determine process operation. Instead, it executes output commands generated by the larger control system.
Industrial Applications
Process Valve Control
Industrial plants contain numerous on/off valves and solenoid-operated control devices.
Discrete outputs may be incorporated into valve-control circuits for:
- Process isolation
- Utility services
- Pneumatic equipment
- Fluid handling
- Cooling systems
- Gas systems
- Chemical processing
The actual output circuit must be matched to the electrical requirements of the connected device.
Solenoid Applications
Solenoids are frequently used to control pneumatic and hydraulic equipment.
A discrete output can provide the command required to energize or de-energize an appropriate interface circuit.
This allows the automation controller to coordinate valves and actuators according to process logic.
Alarm and Warning Systems
The module can also participate in digital alarm-control architectures.
Potential applications include:
- Audible alarms
- Warning lamps
- Equipment fault indicators
- Process condition annunciation
- Shutdown notifications
- External alarm interfaces
The controller can activate the corresponding output when a programmed alarm condition occurs.
Equipment Interlocks
Industrial equipment often requires permissive logic before operation.
For example, a pump may only be allowed to start if a valve is in the correct position and no trip condition is active.
Discrete outputs can form part of these interlock and permissive architectures, allowing the controller to coordinate equipment operation.
External Relay Interfaces
Where an external relay or interface circuit is required, the output module can provide the control command while the external hardware handles the appropriate load interface.
This approach is especially useful when the field equipment has electrical requirements that differ from the direct output interface.
System Integration
The Emerson VE4002S1T2B5 assembly should be considered one element within a larger industrial automation architecture.
A process-control system may include:
- Controllers
- I/O interface assemblies
- Discrete input cards
- Discrete output cards
- Analog input modules
- Analog output modules
- Terminal blocks
- Communication modules
- Operator interfaces
- Engineering stations
- Field transmitters
- Control valves
- Solenoid devices
- Relay interfaces
- Motor-control equipment
The controller provides the process logic, while the I/O layer provides the interface between digital control decisions and physical equipment.
This separation helps make the system scalable and simplifies maintenance because individual I/O functions can be identified according to their specific role.
Installation Requirements
Before installing the VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1, verify the complete assembly designation against the existing system.
Installation checks should include:
- Correct model
- Hardware revision
- I/O location
- Associated terminal components
- Controller configuration
- Channel assignment
- Field wiring
- Electrical compatibility
- Cabinet environment
The supplied dimensions are 107 × 41 × 105 mm.
Cabinet planning should provide enough space for the module, termination hardware, wiring, connector access, ventilation, and future removal.
The assembly should be installed only in the appropriate Emerson control-system architecture.
Personnel handling the module should also follow suitable electrostatic-discharge precautions when required.
Terminal and Field Wiring

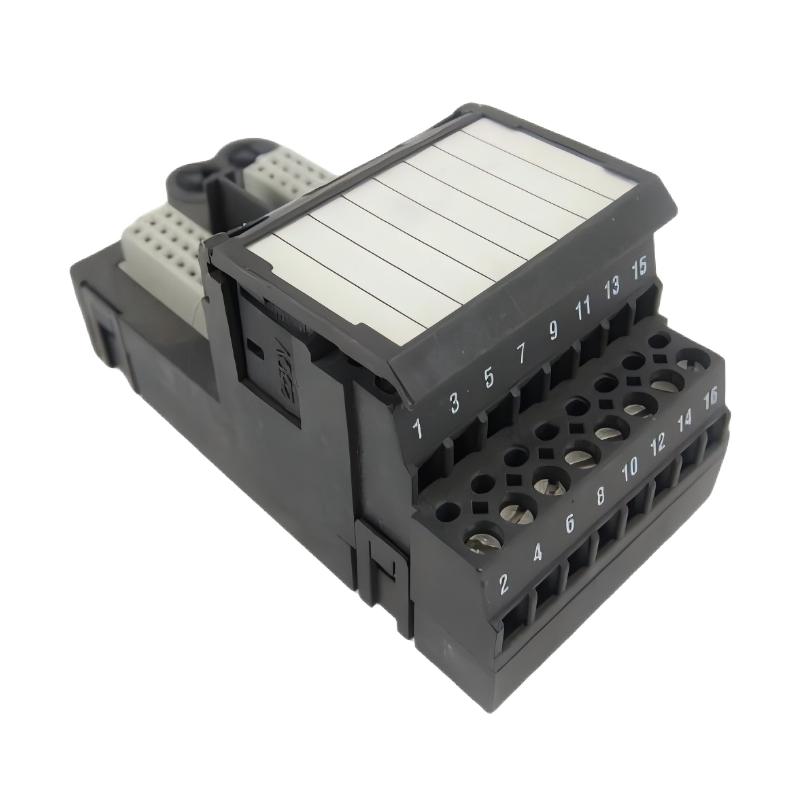

The KJ4001X1-CB1 and KJ3204X1-BA1 components form part of the specified termination/interface arrangement.
Field wiring should be installed according to approved electrical drawings.
Before energizing the circuit:
- Verify each wire identification.
- Confirm channel assignments.
- Check terminal connections.
- Inspect connectors.
- Verify external field power.
- Perform continuity checks where appropriate.
- Check the connected load.
- Confirm grounding and shielding arrangements.
- Verify that output activation will not create an unsafe process condition.
A field wiring problem can produce symptoms that look like a defective output module, so wiring verification should be part of the initial diagnostic procedure.
Commissioning and Functional Testing
A controlled commissioning procedure helps ensure that the VE4002S1T2B5 is correctly integrated.
Hardware Inspection
Check the module and associated termination hardware for visible physical damage.
Inspect connectors, housings, mounting points, and wiring interfaces.
Configuration Check
Verify that the installed output module corresponds to the configured I/O architecture.
Check:
- I/O position
- Channel assignment
- Equipment tag
- Output logic
- Interlock conditions
- Alarm behavior
- Controller configuration
Output Test
When permitted by plant procedures, perform controlled point-to-point output tests.
Activate individual outputs and observe the corresponding field response.
Process Verification
After individual point testing, verify operation under normal process sequences.
Confirm that interlocks and permissives behave correctly before returning the equipment to automatic operation.
Troubleshooting Guide
Troubleshooting should be performed from the controller toward the field device.
No Output at the Field Device
Check the following sequence:
Controller command → I/O status → Output card → Terminal interface → Field wiring → External power → Field device
This method prevents technicians from replacing the module before determining where the signal path is actually interrupted.
One Output Point Fails
If one output is not operating, inspect:
- Channel configuration
- Terminal connection
- Field conductor
- External fuse
- Field power
- Relay/interface
- Connected device
- Output channel
A single-point failure can originate anywhere in the field circuit.
Several Outputs Fail
If several outputs fail simultaneously, investigate common system elements first.
Potential areas include:
- I/O power
- Common field supply
- Communication
- Carrier/backplane connection
- Configuration
- Terminal hardware
- Environmental conditions
A common failure affecting multiple channels is often more indicative of a system-level issue than several independent output-channel failures.
Controller Shows Output ON but Device Remains OFF
When the software indicates an active output but the field device does not respond, move the diagnostic process downstream.
Check:
- Terminal block
- Field wiring
- External supply
- Protective device
- Relay interface
- Solenoid
- Actuator
- Equipment permissive
This approach helps isolate whether the fault is located inside the I/O assembly or in the external field circuit.
Preventive Maintenance
Regular inspection is important for process-control I/O equipment.
Module Inspection
Look for:
- Physical damage
- Excessive heat
- Discoloration
- Corrosion
- Contamination
- Connector damage
Terminal Inspection
Check terminal connections according to the plant maintenance schedule.
Loose connections can result in intermittent operation and difficult-to-reproduce faults.
Cabinet Environment
Keep the control cabinet clean and properly ventilated.
Avoid excessive moisture, dust, conductive contamination, and abnormal temperatures.
Configuration Management
Maintain an accurate backup of the control-system configuration.
When a module is replaced, configuration information can be used to restore the correct I/O behavior efficiently.
Replacement and Spare-Part Selection
Correct identification is particularly important when replacing industrial I/O assemblies.
The replacement should be checked against the complete designation:
Emerson VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1
Technicians should verify:
- Main model
- Hardware revision
- Associated components
- Terminal arrangement
- I/O position
- Channel configuration
- Field wiring
- System compatibility
A replacement card that has a similar appearance may not necessarily be a suitable substitute.
For critical process applications, spare hardware should be stored under appropriate environmental conditions and clearly labeled to prevent incorrect installation.
Physical Dimensions and Weight
The supplied physical specifications for the Emerson VE4002S1T2B5 assembly are:
| Physical Parameter | Specification |
|---|---|
| Height | 107 mm |
| Width | 41 mm |
| Depth | 105 mm |
| Overall Dimensions | 107 × 41 × 105 mm |
| Weight | 0.181 kg |
The 107 × 41 × 105 mm dimensions make the assembly suitable for compact modular I/O installations.
At 0.181 kg, the module is also relatively lightweight for handling, spare-parts storage, transportation, and replacement activities.
Engineering Recommendations
Reliable discrete output operation depends on both the module and the surrounding system.
Maintain Correct Documentation
Keep electrical drawings and I/O lists synchronized with the actual installation.
Identify Complete Assemblies
Record the complete model and associated component numbers rather than using only a generic description.
Test Outputs Safely
Output testing should always consider the possibility of unintended equipment movement or process changes.
Maintain Spare Modules
For critical process applications, maintaining an appropriately identified spare can reduce downtime.
Troubleshoot the Complete Signal Path
Do not assume that a field-device failure automatically indicates an output-card failure.
Monitor Cabinet Conditions
Good temperature control, ventilation, cleanliness, and moisture management improve the reliability of electronic I/O hardware.
Related Emerson Automation Hardware
The VE4002S1T2B5 may operate within an Emerson process-control system alongside other I/O and interface components.
Relevant hardware categories include:
- Discrete input cards
- Discrete output cards
- Analog input modules
- Analog output modules
- Event-sequence input modules
- Terminal blocks
- I/O carriers
- Controller modules
- Communication interfaces
- Field interface assemblies
- Process instrumentation
The final system configuration depends on the required signal types, field devices, controller architecture, and application requirements.
Key Advantages
The Emerson VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1 assembly provides several practical benefits:
- Dedicated discrete output functionality
- Associated terminal and interface hardware
- Compact 107 × 41 × 105 mm dimensions
- Lightweight 0.181 kg design
- Suitable for industrial process-control architectures
- Supports binary field-device commands
- Useful for valve and solenoid control
- Suitable for alarm and indication functions
- Supports equipment permissive and interlock architectures
- Useful with external relay interfaces
- Practical for control-system maintenance
- Suitable for modular I/O cabinet installations
Technical FAQs
What is the Emerson VE4002S1T2B5?
The VE4002S1T2B5 is a discrete output module used in industrial process-control and automation applications.
What is included in the specified assembly?
The specified assembly consists of the VE4002S1T2B5, KJ4001X1-CB1, and KJ3204X1-BA1 components.
What is the primary function of this module?
Its primary function is to provide discrete output control between the process automation system and field-level devices.
What are typical applications?
Typical applications include valve control, solenoid control, alarms, relay interfaces, equipment interlocks, permissives, and binary actuator commands.
What are the dimensions?
The supplied dimensions are 107 × 41 × 105 mm.
What is the weight?
The supplied weight is 0.181 kg.
Can it directly switch high-power equipment?
The module should not automatically be treated as a direct high-power switching device. The complete electrical interface must be evaluated according to the field load and control-system design.
What should be checked before replacement?
Verify the complete model designation, hardware revision, associated terminal components, I/O location, configuration, and field wiring.
How should an output fault be diagnosed?
Start at the controller command and follow the signal path through the I/O module, termination hardware, field wiring, external power, and field device.
Conclusion
The Emerson VE4002S1T2B5 KJ4001X1-CB1+KJ3204X1-BA1 Output Module with Terminal Blocks is a compact discrete output assembly designed for integration into industrial process-control systems. It provides the interface required to transfer binary control commands from the automation system toward field equipment such as valves, solenoids, relays, alarms, actuators, and equipment-control circuits.
With supplied dimensions of 107 × 41 × 105 mm and a weight of 0.181 kg, the assembly is well suited to modular control cabinets where efficient use of installation space is important.
For installation and maintenance, the complete combination of VE4002S1T2B5, KJ4001X1-CB1, and KJ3204X1-BA1 should be identified and verified. Proper configuration, field wiring, controlled commissioning, and systematic troubleshooting are essential for dependable operation.
When correctly integrated into an Emerson process automation architecture, the VE4002S1T2B5 assembly provides a practical and maintainable interface for discrete field control, helping industrial systems coordinate equipment operation while maintaining a structured I/O architecture.
