Product Overview

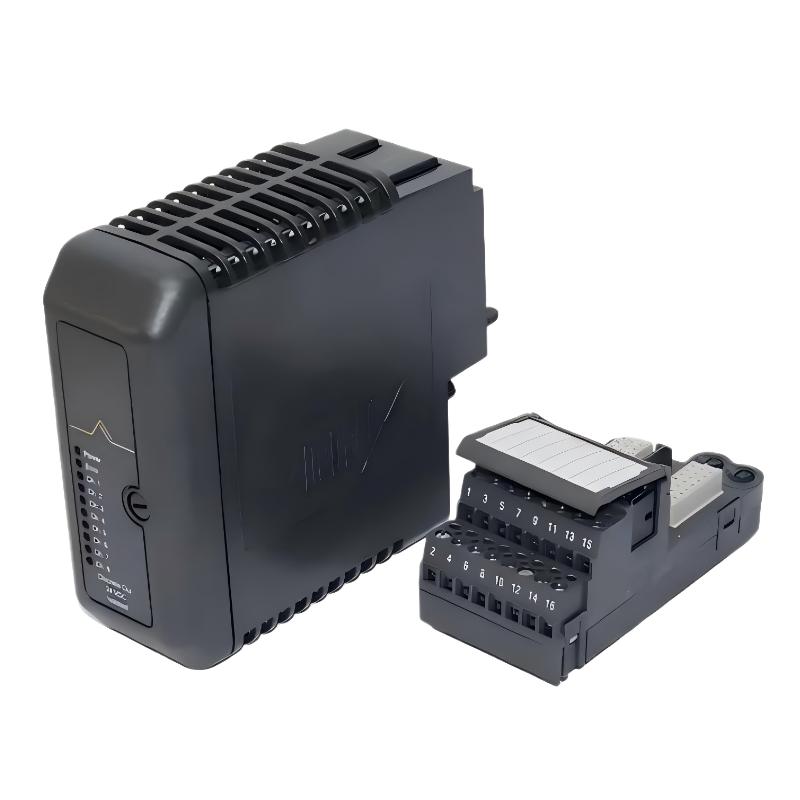

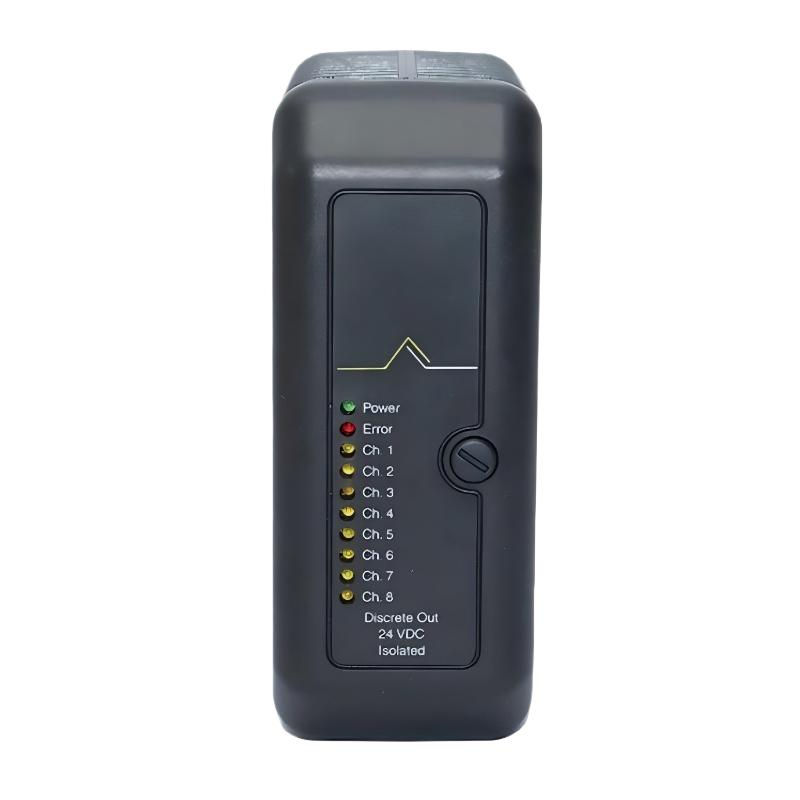

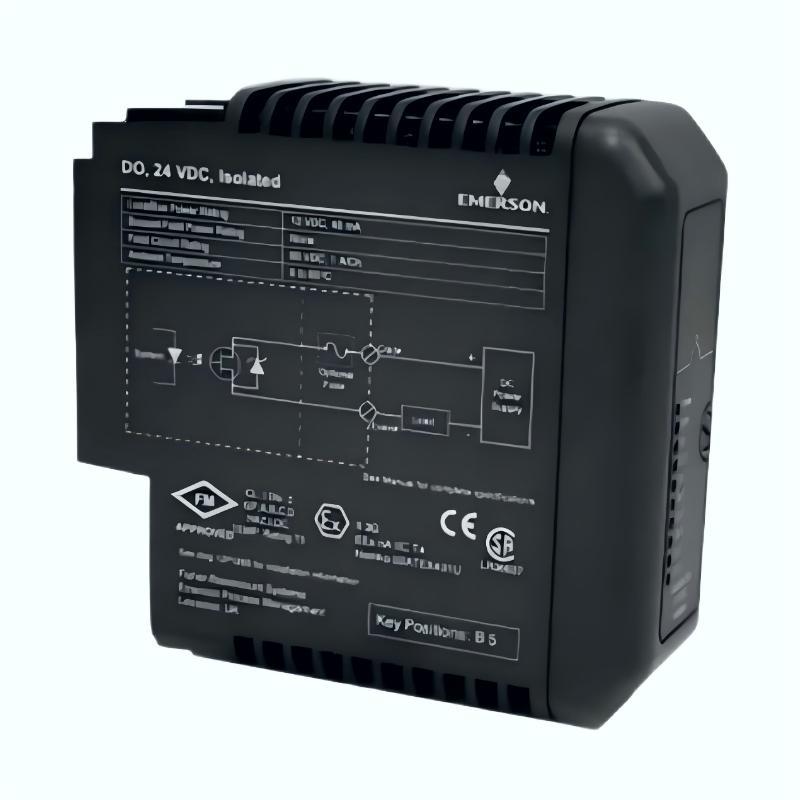

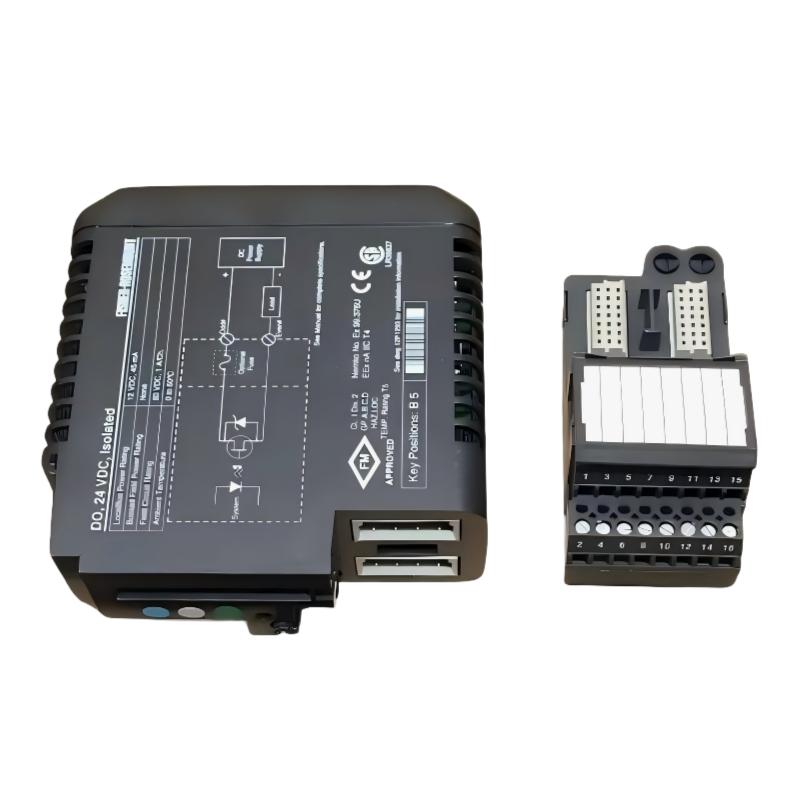

The Emerson VE4002S1T1B3 Discrete Output Card is an industrial automation I/O component designed to provide reliable digital output signals between a process control system and field-level equipment. As a discrete output device, it converts commands generated by the control strategy into electrical switching signals that can be used to operate suitable field interfaces, relays, solenoids, indicators, valve-control circuits, and other discrete devices.
The VE4002S1T1B3 is intended for process-oriented automation environments where dependable output control, organized system architecture, and straightforward maintenance are important. In a distributed control system, output cards form the connection between software-based control decisions and physical actions in the plant. A correctly configured output channel can therefore initiate equipment operation, change process states, control auxiliary devices, or support automated sequences.
With a compact physical size of 107 × 41 × 105 mm and a supplied weight of 0.23 kg, the Emerson VE4002S1T1B3 can be incorporated into space-conscious industrial control cabinets. Its small form factor is also useful for maintenance and spare-parts management, particularly in installations where multiple I/O modules are arranged in a relatively dense configuration.
The VE4002S1T1B3 should be evaluated according to the complete system configuration in which it is installed. Exact channel characteristics, output voltage and current limits, terminal assignments, electrical isolation, load compatibility, and system revision should be confirmed against the applicable engineering documentation before commissioning or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4002S1T1B3 |
| Product Type | Discrete Output Card |
| I/O Type | Digital / Discrete Output |
| Primary Function | Controller-to-field output signal interface |
| System Application | Process Control and Industrial Automation |
| Installation | Industrial I/O / Control Cabinet |
| Dimensions (H × W × D) | 107 × 41 × 105 mm |
| Weight | 0.23 kg |
| Output Application | Discrete field-device control |
| Typical Interface Devices | Relays, solenoids, contactor interfaces, indicators and actuator circuits |
| Maintenance Role | Output monitoring, replacement and field-circuit troubleshooting |
| Operating Environment | Industrial Automation Environment |
Engineering note: The exact electrical specifications of an individual VE4002S1T1B3 installation should be confirmed from the applicable system configuration and hardware documentation. In particular, engineers should verify output channel ratings, channel count, voltage range, current capacity, isolation, protection, terminal assignments, and permitted load types before connecting field equipment.
What Is the Emerson VE4002S1T1B3?
The VE4002S1T1B3 is a discrete output card used in industrial process-control applications. Its primary purpose is to transmit binary control states from the automation system toward field equipment.
A discrete signal normally has two fundamental states, such as:
- ON / OFF
- Energized / De-energized
- Open / Closed
- Enabled / Disabled
- Start / Stop
The control system determines the required state according to its programmed logic. The output card then provides the corresponding electrical output to the connected field circuit.
This makes the VE4002S1T1B3 fundamentally different from an analog output module. An analog output is normally used when continuously variable values are required, while a discrete output is intended for defined switching states.
For example, a process controller may need to command a valve to open. Instead of sending a continuously variable value, the control system can generate a discrete command representing the required operating state. The output interface then passes that command toward the valve-control circuit.
How the Discrete Output Function Works
The general operating path of a discrete output system can be represented as:
Control Program → Controller → I/O System → VE4002S1T1B3 → Field Circuit → Actuator
The controller continuously executes its control logic. When a programmed condition is satisfied, it determines the appropriate output state.
The output card receives this command through the system’s I/O architecture and changes the relevant output state. The external field circuit then responds to that state.
A typical sequence may look like this:
- A process condition is detected.
- The controller evaluates the programmed logic.
- A permissive or interlock condition is satisfied.
- The controller commands a discrete output.
- The VE4002S1T1B3 changes the corresponding output state.
- The field interface receives the command.
- A relay, solenoid, contactor interface, or other device responds.
- The physical process changes state.
- Feedback or status inputs confirm the resulting condition.
This closed-loop relationship is particularly important in process automation because issuing an output command does not necessarily mean that the field equipment has physically responded.
Role in a Process Control System
The VE4002S1T1B3 occupies the output side of an industrial I/O architecture.
A simplified control architecture can be viewed as:
Operator / SCADA
↓
Process Control Logic
↓
Controller
↓
I/O Communication
↓
VE4002S1T1B3 Discrete Output Card
↓
Field Wiring
↓
Relay / Interface / Actuator
↓
Process Equipment
The output card therefore provides the electrical bridge between the controller and field-level equipment.
This role is important in applications involving:
- Pump commands
- Valve commands
- Solenoid operation
- Equipment enable signals
- Relay operation
- Alarm devices
- Contactor interfaces
- Auxiliary equipment
- Process sequence commands
The card itself does not make the high-level process decision. That decision comes from the control program. Instead, the VE4002S1T1B3 executes the physical I/O portion of that decision.
Typical Industrial Applications
Valve Control
Discrete output cards are frequently used to command electrically operated valves.
For example, a process sequence may require:
- Opening an inlet valve
- Closing a drain valve
- Enabling a purge valve
- Activating a solenoid valve
- Switching a valve-control relay
The actual electrical interface must match the characteristics of the valve circuit.
Pump Systems
Industrial pumps often use discrete control signals for start/stop commands and auxiliary functions.
The VE4002S1T1B3 may provide a command to an appropriate motor starter, contactor, relay, or other interface.
The output should not automatically be treated as a high-power motor-switching device. The motor power circuit generally requires dedicated power-control equipment.
Compressor Packages
Compressor systems can include numerous binary commands and auxiliary controls. Discrete outputs can participate in:
- Start permissives
- Auxiliary equipment enable
- Cooling-system commands
- Lubrication-system controls
- Alarm annunciation
- Package sequencing
Industrial HVAC
Heating, ventilation, and cooling systems use many discrete control points, including:
- Fan enable
- Damper control
- Pump start
- Valve commands
- Auxiliary alarm outputs
- Equipment selection
The VE4002S1T1B3 can form part of the I/O architecture supporting these functions when the connected circuits are electrically compatible.
Water and Wastewater Treatment
Water treatment plants rely extensively on discrete field commands. Typical applications include:
- Pump control
- Valve operation
- Chemical dosing equipment
- Blower auxiliary control
- Filter sequencing
- Alarm indication
- Equipment permissives
Manufacturing and Process Equipment
Discrete outputs can also control auxiliary equipment and machine sequences in manufacturing environments.
Examples include:
- Conveyor control signals
- Pneumatic solenoids
- Material handling equipment
- Machine enable circuits
- Warning indicators
- Interposing relays
- Production sequence controls
Output Card and Field Device Relationship
One of the most important concepts when working with the VE4002S1T1B3 is understanding the difference between an I/O command and the final field action.
Suppose a controller issues a command to start a pump.
The output card may provide the command to an interposing relay. The relay then activates a contactor, and the contactor switches the motor’s power circuit.
Therefore, the complete chain may be:
VE4002S1T1B3 → Interposing Relay → Contactor → Motor
If the motor does not start, the output card is only one possible source of the problem.
The fault could instead be caused by:
- Controller logic
- Output configuration
- Field wiring
- Relay failure
- Contactor failure
- Motor protection
- Motor starter fault
- Electrical supply
- Process interlock
This is why system-level troubleshooting is more effective than immediately replacing an I/O card.
Installation Guidelines
Correct installation helps ensure stable operation and simplifies future maintenance.
Verify Part Number
Before installation, confirm the module designation:
Emerson VE4002S1T1B3
Do not assume that another VE4002-series card is automatically interchangeable simply because the physical housing appears similar. I/O functions and electrical characteristics can differ between variants.
Inspect the Hardware
Before mounting the card, inspect it for:
- Cracked or damaged housing
- Bent connectors
- Contamination
- Corrosion
- Signs of overheating
- Mechanical deformation
- Damaged electrical contacts
Any suspicious hardware should be evaluated before being introduced into an operating control system.
Confirm System Compatibility
Verify:
- I/O system architecture
- Card type
- Hardware revision
- Controller configuration
- Mounting arrangement
- Field wiring
- Output electrical requirements
This step is particularly important for replacement installations.
Install Correctly
The module should be installed using the approved mounting and connection procedure for the associated Emerson I/O system.
Avoid excessive mechanical force when engaging connectors. Ensure that the card is fully seated and secured before applying power.
Field Wiring Considerations
Field wiring is an important part of output reliability.
Before connecting a load, engineers should confirm:
- Correct terminal identification
- Correct polarity where applicable
- Field supply voltage
- Load current
- Load type
- Cable condition
- Terminal tightness
- Required suppression
- Grounding arrangements
- Isolation requirements
Inductive loads such as relays and solenoids may generate switching transients. The correct suppression arrangement should be selected according to the actual circuit design and output technology.
A poor field connection can produce symptoms that appear to be an electronic I/O fault.
Commissioning Procedure
A controlled commissioning sequence is recommended for any discrete output installation.
1. Verify Hardware
Confirm the installed card is the correct VE4002S1T1B3 and that the physical installation is secure.
2. Verify Configuration
Confirm that the control system recognizes and is configured for the intended output hardware.
3. Check Field Wiring
Compare the actual wiring with approved drawings.
4. Check the Load
Confirm that the field device is suitable for the output circuit.
5. Test Individual Outputs
Where permitted, test each required output under an approved maintenance or commissioning procedure.
6. Confirm Field Response
Do not stop at the software indication. Verify that the commanded field device actually changes state.
7. Confirm Feedback
Where feedback is available, verify that the corresponding input or status indication changes correctly.
8. Restore Automatic Operation
After successful testing, return the system to its normal operating mode according to site procedures.
Troubleshooting the Emerson VE4002S1T1B3
When an output does not operate correctly, troubleshooting should follow the complete signal path.
A practical diagnostic sequence is:
Controller Command → I/O Status → Output Card → Wiring → Interface Device → Field Equipment
This approach avoids unnecessary module replacement.
No Output From the Card
Possible causes include:
- Incorrect control logic
- Output not commanded
- Controller configuration error
- I/O communication problem
- Card fault
- Incorrect system configuration
- Power problem
The first diagnostic question should be whether the controller is actually commanding the output.
Output Command Exists but Field Device Does Not Operate
If the control system indicates that the output is active but the field device remains inactive, investigate:
- Terminal connections
- Field power
- Cable continuity
- Interposing relay
- Contactor
- Solenoid coil
- Actuator
- Local control switches
- Process permissives
This situation does not automatically indicate an output-card failure.
Output Is Intermittent
Intermittent behavior may be associated with:
- Loose terminals
- Connector problems
- Electrical noise
- Power instability
- Thermal stress
- Mechanical vibration
- Aging interface relays
- Damaged field cables
Monitor the fault over time and inspect the physical installation rather than immediately replacing the card.
Unexpected Output Activation
Unexpected activation requires particular attention because it may affect process equipment.
Check:
- Control logic
- Manual overrides
- Forced outputs
- Sequence conditions
- Interlocks
- Wiring errors
- Configuration
- External short circuits
Any investigation involving potentially hazardous equipment should follow the plant’s approved safety and isolation procedures.
Maintenance and Preventive Inspection
A discrete output card benefits from a structured maintenance program.
Visual Inspection
Inspect the card and surrounding cabinet for:
- Dust
- Moisture
- Corrosion
- Discoloration
- Overheating
- Mechanical damage
Terminal Inspection
Check field terminals for signs of:
- Loose connections
- Oxidation
- Thermal discoloration
- Mechanical stress
- Damaged conductors
Cabinet Environment
Maintaining appropriate cabinet temperature, cleanliness, and ventilation can help protect electronic I/O equipment.
Diagnostic Review
Recurring output alarms should be investigated rather than repeatedly reset.
A repeated output failure may indicate a problem in the connected field circuit rather than the I/O module itself.
Replacement Strategy
When replacing a VE4002S1T1B3, exact identification is essential.
The replacement process should include:
- Record the existing module identification.
- Verify the exact model number.
- Confirm the system hardware configuration.
- Document terminal connections.
- Review the field-device circuits.
- Isolate the relevant equipment according to site procedures.
- Remove the existing module carefully.
- Install the replacement.
- Verify seating and connections.
- Confirm configuration.
- Perform controlled output testing.
- Verify field response.
- Return the system to normal operation.
For critical process applications, maintaining a tested spare can significantly reduce recovery time after an unexpected I/O failure.
Spare-Part Management
The compact size of the VE4002S1T1B3 makes it practical to maintain as a dedicated spare for installations that depend on this specific output-card type.
A good spare-parts program should record:
- Model number
- Hardware revision
- Quantity in stock
- Storage location
- Associated system
- Date received
- Condition
- Previous installation history
Spare hardware should be stored in an appropriate clean and controlled environment to minimize exposure to moisture, contamination, static discharge, and mechanical damage.
Physical Dimensions and Weight
The supplied physical specifications for the Emerson VE4002S1T1B3 are:
Dimensions: 107 × 41 × 105 mm
Weight: 0.23 kg
These measurements are relevant for:
- Control cabinet planning
- Replacement preparation
- Shipping and handling
- Spare-parts storage
- Mechanical clearance
- Maintenance access
Although the module itself is compact, installation planning should also consider connector access, field wiring, cable bend radius, adjacent I/O equipment, ventilation, and technician access.
Engineering Best Practices
Several practices can improve the long-term reliability of a VE4002S1T1B3 installation.
Maintain Accurate Documentation
Keep I/O lists, wiring drawings, terminal assignments, and controller configuration records synchronized.
Identify Field Circuits Clearly
Every field circuit should have clear identification so technicians can quickly trace an output from the controller to the final device.
Separate Control and Power Functions
Use appropriate interposing relays, contactors, motor starters, or other interfaces where required rather than placing excessive electrical loads directly on an I/O circuit.
Investigate Repeated Failures
If several output cards fail in the same location, investigate environmental and field-circuit causes before assuming a batch of defective modules.
Test After Replacement
A replacement should not be considered complete simply because the controller recognizes the new card. The associated field equipment should also be functionally tested.
Key Advantages
The Emerson VE4002S1T1B3 Discrete Output Card provides several practical benefits for process automation systems:
- Compact industrial I/O design
- Reliable discrete command interface
- Suitable for process-control applications
- Supports controller-to-field signal transmission
- Useful for valve, relay, solenoid and auxiliary equipment control
- Compact 107 × 41 × 105 mm dimensions
- Low supplied weight of 0.23 kg
- Supports structured troubleshooting
- Practical for replacement and spare-parts management
- Suitable for integration into industrial control architectures
Technical FAQs
What is the Emerson VE4002S1T1B3?
The VE4002S1T1B3 is an Emerson Discrete Output Card used to transmit digital control commands from an industrial automation system toward suitable field circuits.
What is a discrete output?
A discrete output represents a defined switching state, commonly ON/OFF or energized/de-energized. It is used for control commands where a continuously variable analog value is not required.
What equipment can a discrete output control?
Depending on the specific electrical characteristics of the output circuit, applications can include relays, solenoids, indicators, valve interfaces, contactor-control circuits, and other discrete field devices.
Can the VE4002S1T1B3 directly drive a motor?
The output card should not automatically be considered a motor power-switching device. Industrial motors generally require appropriate contactors, starters, drives, or other power-control equipment. The discrete output can provide a control signal to the appropriate interface when electrically compatible.
What are the dimensions of the VE4002S1T1B3?
The specified dimensions are 107 × 41 × 105 mm.
What is the weight of the VE4002S1T1B3?
The supplied weight is 0.23 kg.
What should be checked before replacement?
Verify the exact model number, system configuration, hardware revision, output function, field wiring, terminal assignments, and electrical requirements of the connected equipment.
How should an output fault be diagnosed?
Begin with the controller command, then check I/O status, the output card, terminal connections, field wiring, interface devices, and finally the field equipment. This prevents unnecessary replacement of functioning hardware.
Why can an output card appear to work while the field device does not?
The controller and output card may be functioning correctly while a relay, contactor, cable, field power supply, solenoid, actuator, or other external component has failed. Troubleshooting must therefore cover the entire signal path.
Conclusion
The Emerson VE4002S1T1B3 Discrete Output Card is a compact industrial automation component designed to provide the digital output interface between process-control logic and field equipment. In a properly engineered system, it enables controller commands to be transferred to relays, solenoids, valve interfaces, indicators, auxiliary equipment, and other discrete circuits.
With supplied dimensions of 107 × 41 × 105 mm and a weight of 0.23 kg, the VE4002S1T1B3 offers a space-efficient form factor for industrial control cabinets and distributed I/O installations. Its role is especially important in applications where dependable binary control signals are required for process sequencing, equipment enable functions, actuator commands, and auxiliary control.
For installation, replacement, or troubleshooting, the most important consideration is complete system compatibility. The exact output characteristics, channel configuration, terminal assignments, hardware revision, field-device requirements, and associated I/O architecture should be verified before commissioning.
When integrated correctly and maintained systematically, the Emerson VE4002S1T1B3 can provide a practical and maintainable discrete-output interface for demanding industrial process automation environments.
