Product Overview

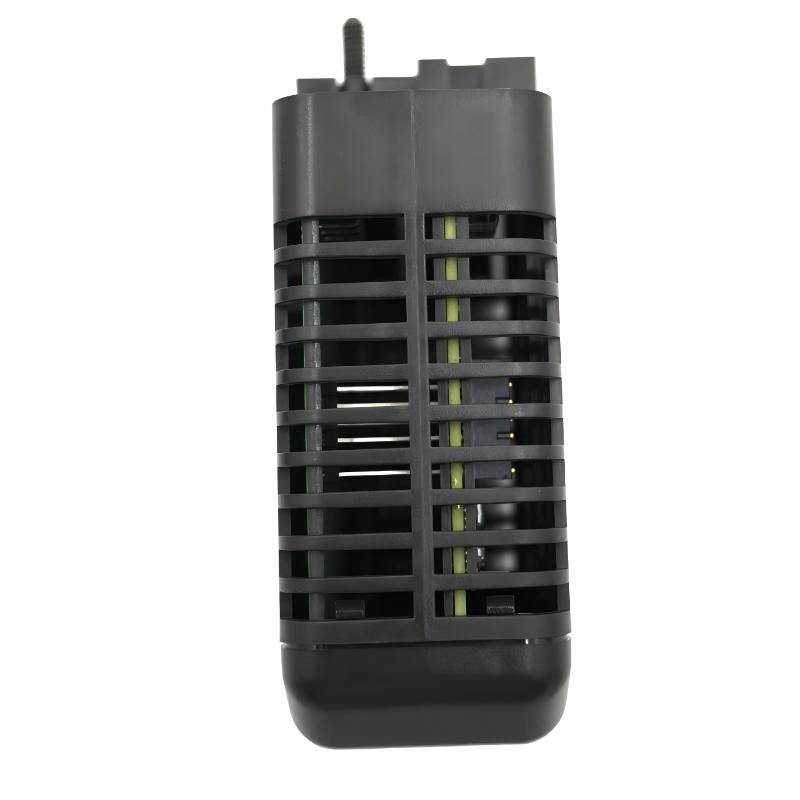

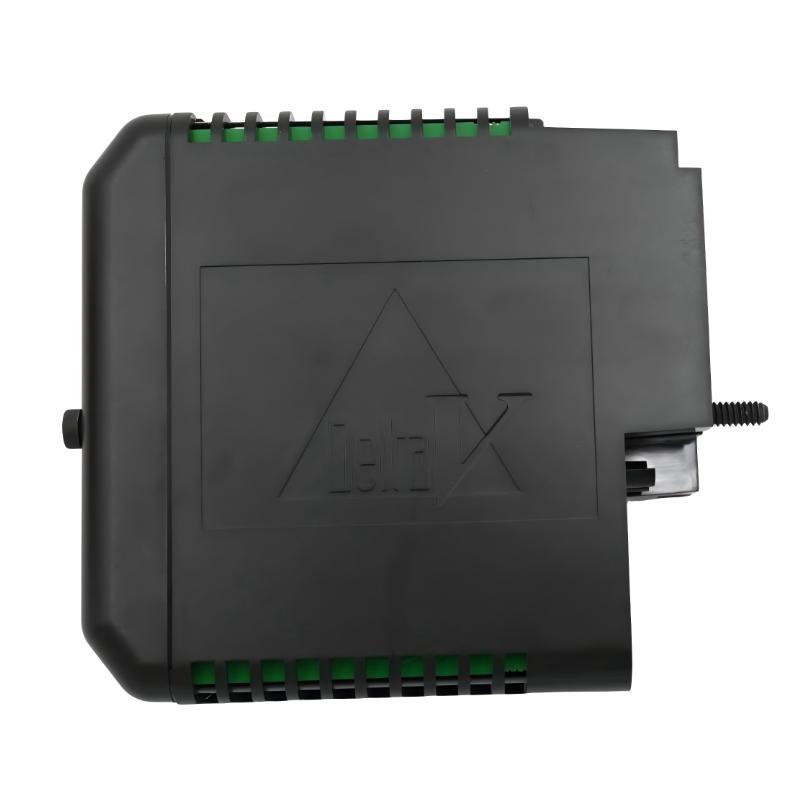

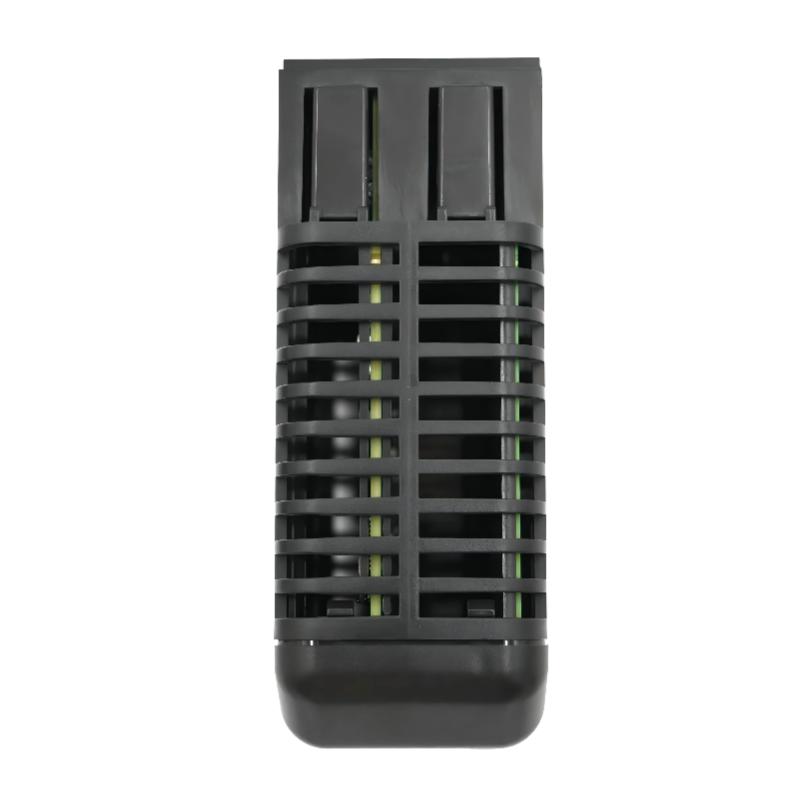

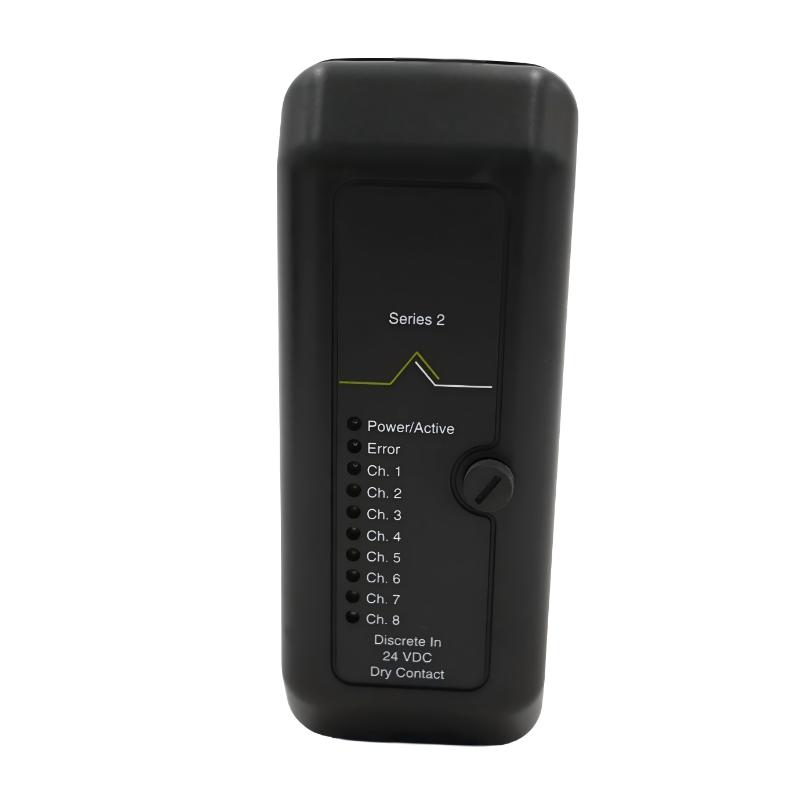

The Emerson VE4001S3 DeltaV M-series Discrete Input Card is a digital signal acquisition module used in the Emerson DeltaV distributed control system (DCS) for collecting discrete field signals and providing equipment status information to control applications.

As part of the DeltaV M-series I/O family, the VE4001S3 serves as the connection point between field devices and DeltaV controllers. It is commonly installed in process automation systems where digital signals from switches, auxiliary contacts, alarms, and equipment feedback circuits need to be monitored by the control system.

Unlike analog input modules that process continuously changing process values, discrete input cards are used to identify defined operating states. These states may include equipment running or stopped, valve open or closed, alarm active or inactive, and other binary conditions required by automation logic.

In DeltaV-based industrial installations, the VE4001S3 supports equipment monitoring, sequence control, alarm processing, and operational feedback collection, helping operators maintain clear visibility of field equipment conditions.

Technical Specifications

Product Features

The Emerson VE4001S3 provides a modular solution for integrating digital field signals into DeltaV control architectures.

Key characteristics include:

• Emerson DeltaV M-series discrete input card
• Designed for binary field signal monitoring
• Collects equipment status and alarm feedback signals
• Interfaces field devices with DeltaV controllers
• Supports process monitoring and sequence applications
• Suitable for interlock and permissive logic
• Compact modular structure for distributed control systems
• Supports maintenance and replacement of existing DeltaV installations
• Suitable for continuous industrial automation environments

The module is primarily used when the control system requires reliable recognition of equipment states rather than measurement of continuously variable process parameters.

Working Principle

The VE4001S3 receives digital signals from external field devices and transfers the detected conditions into the DeltaV control system.

The signal flow can be represented as:

Field Device → VE4001S3 Discrete Input Card → DeltaV Controller → Control Strategy / Operator Interface

The operating process includes:

1. Field Signal Acquisition

   Equipment contacts, switches, and alarm devices transmit binary electrical signals to the input channels.

2. Input Condition Processing

   The module identifies the incoming electrical states and converts them into information recognized by the DeltaV system.

3. Signal Communication

   The processed input data is transferred through the DeltaV I/O architecture to the controller.

4. Control Logic Execution

   The controller uses the received information for monitoring, alarms, equipment sequences, and automated decisions.

The module acts as a bridge between physical equipment conditions and software-based process control functions.

Role in a DeltaV Control Architecture

Within a DeltaV distributed control system, the VE4001S3 operates at the field input layer.

A typical system structure is:

Field Switches / Equipment Feedback → VE4001S3 → DeltaV Controller → HMI / Engineering Station

The module supports:

• Digital status collection from field devices
• Equipment operation monitoring
• Alarm and event processing
• Sequence control applications
• Process condition visibility

By providing accurate field feedback, the module allows the DeltaV system to make control decisions based on actual equipment conditions.

Industrial Applications

The VE4001S3 is suitable for process industries requiring dependable digital signal integration with DeltaV control systems.

Installation and Maintenance

Correct installation and configuration are essential for maintaining reliable input signal processing.

Recommended maintenance practices include:

• Verify module model before installation or replacement
• Confirm field wiring and terminal assignments
• Check input device operation before replacing the card
• Inspect connectors and mounting points
• Ensure proper module installation in the DeltaV I/O structure
• Verify module status through DeltaV diagnostics
• Check signal response during equipment operation
• Record existing configuration before maintenance activities

When an input channel does not respond correctly, engineers should inspect the complete signal path, including the field device, wiring, terminals, module, and controller configuration.

Related Components

The VE4001S3 works together with other DeltaV system hardware.

Recommended Related Models

Key Advantages

• Designed for Emerson DeltaV M-series systems.
• Provides stable digital field signal acquisition.
• Supports equipment status monitoring.
• Integrates field devices with DCS control strategies.
• Suitable for alarms, interlocks, and sequence control.
• Compact modular design.
• Supports long-term maintenance of DeltaV installations.

Technical FAQs

What types of equipment signals can be connected to the VE4001S3?

The module is used for binary signals from devices such as limit switches, relay contacts, equipment feedback circuits, and alarm outputs that represent defined operating states.

How does the VE4001S3 support automated sequence control?

The module provides equipment status information to the DeltaV controller, allowing control strategies to determine whether specific operating conditions have been met before executing the next sequence step.

What should be checked if the VE4001S3 does not detect a field signal?

Engineers should inspect the field device, wiring continuity, terminal connections, module installation, I/O configuration, and DeltaV diagnostic information to identify the source of the problem.

Why are discrete input cards widely used in process control systems?

Discrete input cards provide essential equipment status feedback, enabling the DCS to perform monitoring, alarm generation, permissive checks, and automated control operations.
