Product Overview
The Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 Input Module with Terminal Blocks is an industrial process automation I/O assembly designed to provide a structured interface between field devices and an Emerson control system. The assembly combines the KJ3203X1-BA1 input module with the KJ4001X1-CK1 terminal block, allowing field signals to be properly terminated and acquired by the process control architecture.
In a modern industrial automation system, input modules provide the essential connection between physical equipment and digital control logic. Field devices such as switches, motor auxiliary contacts, valve position indicators, alarms, interlocks, and equipment-status contacts generate electrical signals that must be reliably detected by the control system. The input module receives these signals and makes their status available to controllers and associated process applications.
The VE4001S2T2B5 configuration is particularly useful in installations where organized field termination and dependable I/O acquisition are required. The terminal-block arrangement provides a practical connection point for field wiring while helping maintenance personnel identify circuits, perform inspections, and troubleshoot signal problems.
The assembly has specified dimensions of 107 × 41 × 105 mm and a weight of 0.25 kg, making it suitable for compact control cabinets and distributed process-control installations where efficient use of panel space is important.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4001S2T2B5 |
| Input Module | KJ3203X1-BA1 |
| Terminal Block | KJ4001X1-CK1 |
| Product Type | Input Module with Terminal Blocks |
| Input Function | Discrete Field Signal Acquisition |
| Application | Industrial Process Control |
| Installation | Control Cabinet / I/O System |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.25 kg |
| Signal Interface | Field Input Interface |
| Typical Signals | Discrete Equipment and Process Status |
| Primary Function | Field Signal Acquisition and Termination |
| System Role | Interface Between Field Devices and Control System |
What Is the Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1?
The Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 is an industrial input-module configuration intended for field signal acquisition within an Emerson process automation environment.
The assembly combines two functional elements:
- KJ3203X1-BA1 — the input module that receives and processes field input conditions.
- KJ4001X1-CK1 — the terminal block providing the field wiring interface.
This combination creates a complete connection path between external field devices and the control system.
The general signal flow can be represented as:
Field Device → Field Wiring → KJ4001X1-CK1 Terminal Block → KJ3203X1-BA1 Input Module → I/O System → Controller → Control Application
Each stage has a distinct role. The field device represents the physical condition, the wiring transfers the electrical signal, the terminal block provides organized termination, and the input module acquires the signal for processing by the control system.
This architecture is widely used in process industries because it allows equipment status to be integrated into automated sequences, alarms, interlocks, and operator displays.

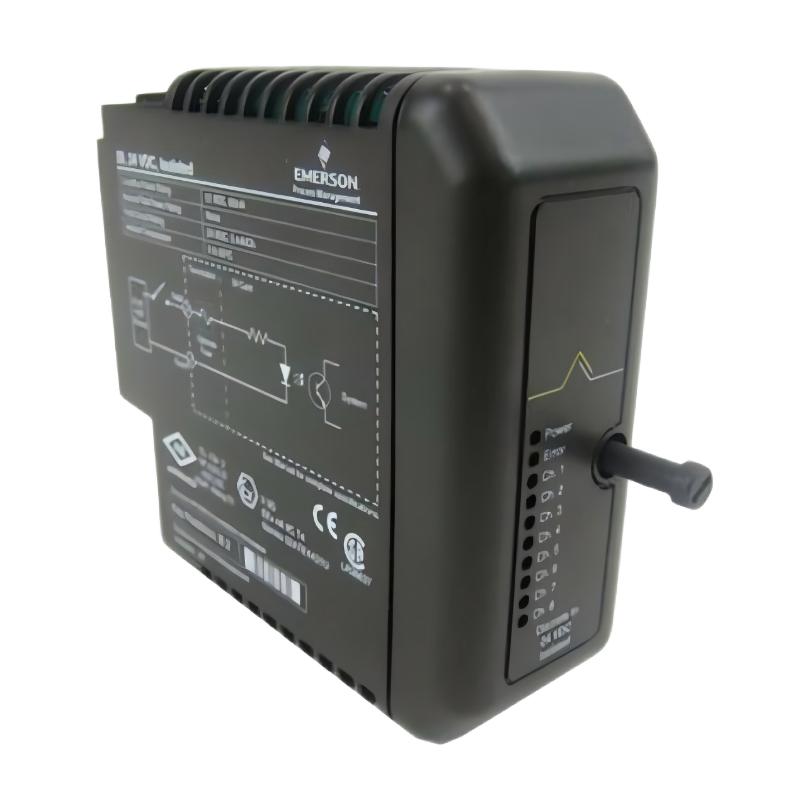

Function of the KJ3203X1-BA1 Input Module
The KJ3203X1-BA1 is the input-side component of the assembly.
Its primary role is to acquire electrical information from connected field circuits. A discrete input generally represents a defined state rather than a continuously variable measurement.
Examples include:
- Motor running
- Motor stopped
- Valve open
- Valve closed
- Equipment ready
- Equipment fault
- Alarm active
- Alarm cleared
- Interlock active
- Interlock cleared
These states are fundamental to process-control logic.
For example, when a pump receives a start command, the control system may expect a running-status feedback signal. The input module acquires that feedback, allowing the controller to determine whether the pump actually reached the expected operating condition.
If the feedback is not received, the control system can be programmed to generate an alarm, stop the sequence, or initiate another predefined response.
Role of the KJ4001X1-CK1 Terminal Block

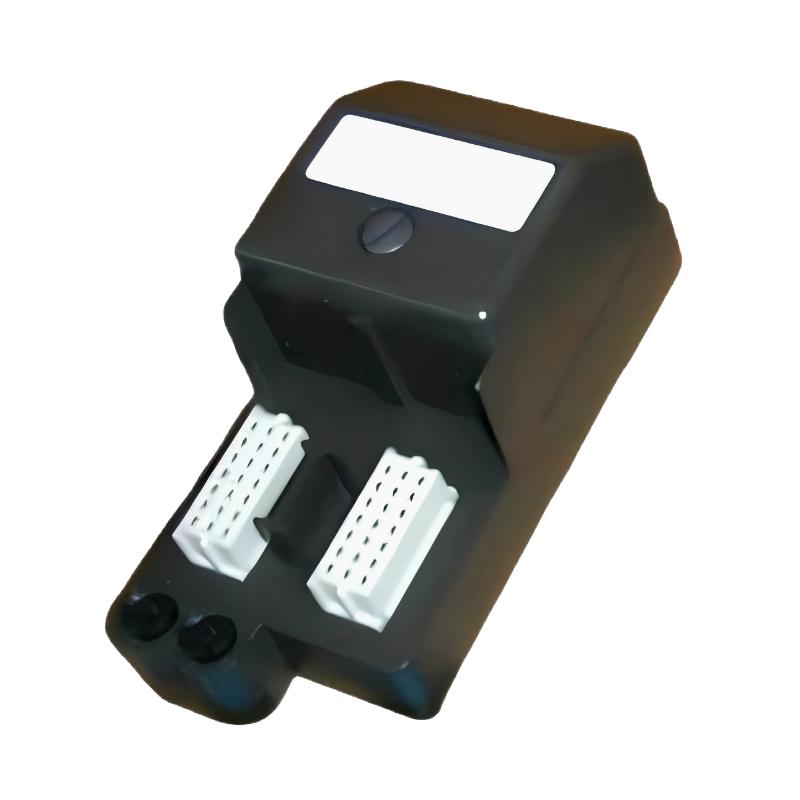

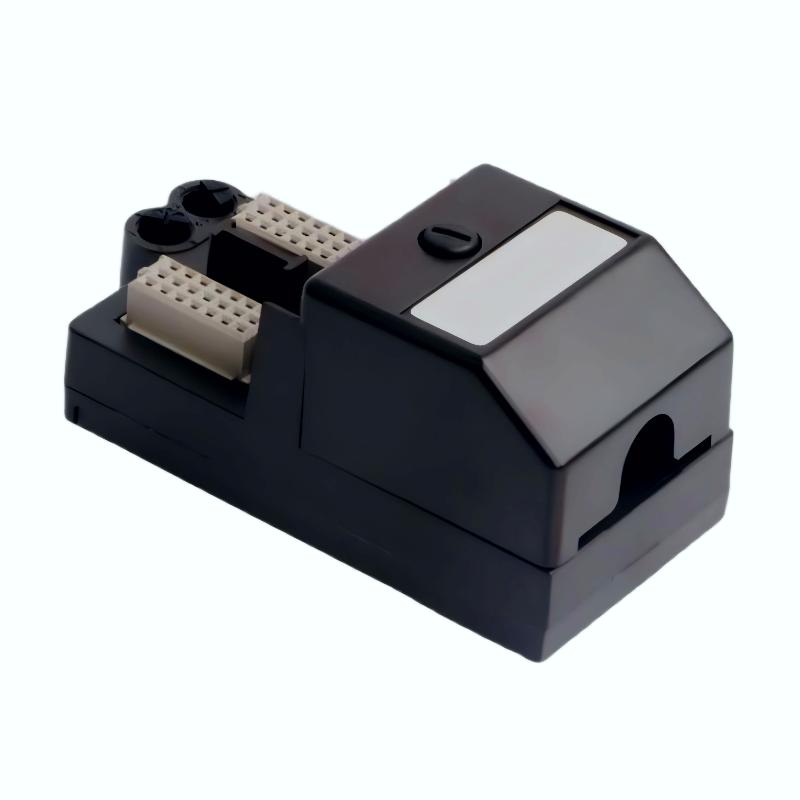

The KJ4001X1-CK1 provides the physical termination interface associated with the input assembly.
Industrial process plants often contain large quantities of field wiring. Without a structured termination system, maintenance and troubleshooting can become unnecessarily difficult.
A properly organized terminal interface helps provide:
- Clear field connections
- Structured cable termination
- Easier circuit identification
- Improved maintenance access
- Simplified signal testing
- Faster troubleshooting
- More efficient module replacement
The terminal block should be considered an important part of the overall signal path.
If a field signal does not reach the input module, the cause may be a field device, cable, terminal connection, or wiring error rather than an electronic input-card failure.
How the Input System Works
The VE4001S2T2B5 participates in the acquisition of field conditions and their conversion into control-system information.
A simplified operating sequence is:
1. Field Condition Changes
A physical process condition changes. For example, a valve moves from closed to open.
2. Field Device Changes State
A corresponding switch or status contact changes its electrical state.
3. Signal Travels Through Field Wiring
The electrical condition travels through the field cable toward the control cabinet.
4. Signal Reaches the Terminal Block
The field conductor is terminated through the KJ4001X1-CK1 interface.
5. Input Module Detects the Condition
The KJ3203X1-BA1 input module acquires the signal.
6. Control System Processes the Input
The input status becomes available to the control system.
7. Application Logic Responds
The control program may update equipment status, continue a sequence, generate an alarm, or activate an interlock.
This field-to-controller chain is fundamental to automated process supervision.
Typical Field Devices
The Emerson VE4001S2T2B5 can be integrated into systems containing many different types of discrete field devices.
Common examples include:
Limit Switches
Limit switches can provide position feedback from valves, actuators, mechanical equipment, or moving assemblies.
Auxiliary Contacts
Motor starters and electrical equipment can provide auxiliary contacts indicating operating status.
Pressure Switches
Pressure switches can provide discrete indications when a pressure condition reaches a configured threshold.
Level Switches
High-level or low-level switches can provide discrete tank or vessel status.
Flow Switches
Flow switches can indicate whether a process line has sufficient flow.
Alarm Contacts
External protection or monitoring equipment can provide alarm contacts to the control system.
Equipment Fault Relays
Motors, drives, pumps, compressors, and other equipment may provide fault-status signals.
Industrial Applications
The Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 configuration can be used across a broad range of process automation applications.
Oil and Gas
Oil and gas facilities rely on large numbers of discrete input signals to monitor equipment and process conditions.
Typical applications include:
- Pump status
- Compressor status
- Valve position
- Emergency shutdown indications
- Equipment fault contacts
- Process alarms
- Interlock status
Reliable field input acquisition allows the control system to respond to equipment conditions in a predictable manner.
Chemical Processing
Chemical plants require extensive equipment-status monitoring.
Discrete inputs may be used for:
- Valve confirmation
- Pump feedback
- Motor status
- Tank-level switches
- Equipment alarms
- Process permissives
- Interlocks
The input system provides the control logic with real-time information about field conditions.
Power Generation
Power-generation facilities use many status contacts and discrete signals.
Typical applications include:
- Breaker status
- Valve position
- Motor feedback
- Auxiliary equipment status
- Protection alarms
- Equipment permissives
Water and Wastewater
Water-treatment systems frequently monitor:
- Pump running status
- Valve position
- Tank level
- Flow switches
- Equipment fault contacts
- High-level alarms
- Low-level alarms
The input module enables these conditions to be incorporated into automatic process sequences.
Manufacturing
Industrial manufacturing equipment also depends on discrete feedback.
Applications include:
- Conveyor status
- Machine-ready signals
- Motor feedback
- Safety-related status signals
- Production equipment alarms
- Limit-switch feedback
Installation Guidelines
Correct installation is essential for reliable operation.
Mechanical Installation
The specified physical dimensions of the VE4001S2T2B5 assembly are:
107 × 41 × 105 mm
The control cabinet should provide adequate space for the assembly and associated field wiring.
Installation planning should account for:
- Module access
- Terminal access
- Cable routing
- Maintenance clearance
- Ventilation
- Replacement requirements
Avoid placing excessive mechanical force on the module or terminal connections.
Wiring
Field wiring should follow approved engineering drawings.
Before connecting a field circuit, verify:
- Device identification
- Wire number
- Terminal assignment
- Channel assignment
- Signal type
- Grounding arrangement
- Cable routing
Incorrect wiring may produce a permanently active input, permanently inactive input, or intermittent signal.
Grounding and Noise Control
Industrial control cabinets can contain equipment capable of generating electrical noise, including motors, contactors, drives, relays, and power converters.
Field signal wiring should therefore be routed and grounded according to the system design.
Commissioning Procedure
A structured commissioning process is recommended before placing the system into normal operation.
Step 1: Confirm Product Identification
Verify the complete configuration:
VE4001S2T2B5
KJ3203X1-BA1 + KJ4001X1-CK1
This is particularly important when replacing an existing assembly.
Step 2: Inspect the Hardware
Check the module, terminal block, connectors, and surrounding wiring.
Look for:
- Mechanical damage
- Loose connections
- Damaged conductors
- Incorrect wiring
- Connector problems
Step 3: Verify Field Wiring
Compare actual wiring with the approved I/O and electrical drawings.
Step 4: Test Field Devices
Operate individual switches, contacts, valves, motors, or other connected equipment where practical.
Step 5: Verify Input Status
Confirm that the expected input changes state in the control system.
Step 6: Verify Application Logic
Ensure that the control application interprets the input correctly.
Step 7: Test Alarms and Interlocks
Where the input is associated with an alarm, permissive, or interlock, verify the intended response before normal operation.
Troubleshooting Guide
Troubleshooting should begin with the complete signal path rather than assuming that the input module itself has failed.
Input Does Not Change
If the field device changes state but the control system does not, inspect:
- Field device
- Field wiring
- Terminal connection
- Channel assignment
- Input module
- I/O configuration
- Controller status
Testing should proceed systematically from the field toward the control system.
Input Remains Active
If an input remains ON when it should be OFF, possible causes include:
- Stuck field contact
- Shorted wiring
- Incorrect terminal connection
- External voltage
- Incorrect field wiring
- Configuration error
Verify the physical field circuit before replacing the module.
Input Remains Inactive
Possible causes include:
- Failed field device
- Broken cable
- Loose terminal
- Incorrect channel
- Wiring error
- Input-channel problem
- Configuration issue
A continuity or electrical test of the field circuit can help isolate the problem.
Intermittent Input
Intermittent faults are frequently associated with physical connections.
Investigate:
- Loose terminals
- Vibration
- Cable damage
- Corrosion
- Poor field contacts
- Environmental contamination
- Unstable equipment status
The terminal block should be inspected carefully because a loose connection may appear normal during a visual inspection.
Multiple Channels Fail
When several channels fail simultaneously, investigate common causes first.
Potential areas include:
- I/O power
- Module seating
- Terminal interface
- Common wiring
- System communication
- Controller configuration
Replacing individual channels without identifying the common cause may not solve the problem.
Preventive Maintenance
Preventive maintenance is important for maintaining stable industrial I/O performance.
Recommended activities include:
- Inspect terminal connections regularly.
- Check field wiring for mechanical damage.
- Inspect connectors.
- Verify grounding arrangements.
- Look for signs of overheating.
- Maintain a clean control cabinet.
- Monitor recurring input alarms.
- Test critical field devices.
- Keep I/O documentation current.
- Maintain correctly identified spare equipment.
Maintenance should pay particular attention to field termination points because they are exposed to vibration, thermal cycling, contamination, and mechanical stress.
Replacement Considerations
When replacing the Emerson VE4001S2T2B5 assembly, technicians should verify the complete identification rather than relying only on the general product category.
The configuration supplied for this product is:
VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1
The terminal block designation is important because different terminal configurations may be intended for different field-wiring arrangements.
Before replacement, record:
- Existing model
- Input-module part number
- Terminal-block part number
- Cabinet position
- Channel assignment
- Field wire numbers
- Associated control-system tags
- Equipment served by each input
This information can significantly reduce the time required to return the system to service.
Spare-Part Management
Industrial process plants often maintain spare I/O hardware for critical systems.
The appropriate quantity depends on:
- Number of installed modules
- Process criticality
- Historical failure rates
- Equipment availability requirements
- Replacement lead time
- Plant maintenance strategy
For important process-control applications, a correctly identified spare input assembly can reduce downtime during unexpected failures.
The specified 0.25 kg weight also makes the VE4001S2T2B5 relatively convenient to store, transport, and handle during maintenance activities.
Storage and Handling
Before installation, electronic I/O equipment should be protected against mechanical and environmental damage.
Recommended handling practices include:
- Keep the assembly in protective packaging.
- Protect connectors from impact.
- Avoid excessive moisture and contamination.
- Prevent unnecessary exposure to dust.
- Avoid dropping the component.
- Use appropriate ESD precautions when handling electronic modules.
- Keep product identification labels readable.
Proper storage helps ensure that spare equipment remains ready for use when required.
System Integration Considerations
The VE4001S2T2B5 should not be evaluated as an isolated component. Its performance depends on the complete automation signal chain.
A typical process-control architecture may include:
Field Equipment
↓
Field Wiring
↓
KJ4001X1-CK1 Terminal Interface
↓
KJ3203X1-BA1 Input Module
↓
I/O System
↓
Controller
↓
Control Logic
↓
Operator Interface / Alarm System
The input card is therefore part of a larger information-acquisition system.
If an operator sees an incorrect equipment status, the cause may exist anywhere along this chain.
For example, an incorrect motor-status indication could result from:
- A failed auxiliary contact.
- Damaged field wiring.
- A loose terminal.
- Incorrect input-channel assignment.
- Input hardware failure.
- Incorrect controller configuration.
- Incorrect application logic.
A system-level diagnostic approach is therefore more effective than immediately replacing the input module.
Engineering Best Practices
Several practices can improve the long-term reliability of systems using the VE4001S2T2B5.
Maintain Accurate I/O Documentation
The I/O list, wiring drawings, terminal schedules, and control-system configuration should remain consistent with the physical installation.
Use Clear Cable Identification
Field cables and terminal connections should be clearly labeled.
Maintain Good Cabinet Organization
Organized wiring improves both electrical reliability and maintenance efficiency.
Separate Signal and Power Wiring
Where required by the system design, maintain appropriate separation between low-level field signals and high-energy circuits.
Monitor Recurring Faults
Repeated input faults may indicate an underlying field-device, wiring, environmental, or installation problem.
Maintain Spare Equipment
Critical I/O components should be included in the plant’s spare-parts strategy.
Key Advantages
The Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 Input Module with Terminal Blocks provides several advantages for industrial process-control applications:
- Dedicated field input acquisition
- Integrated terminal-block interface
- Organized field wiring
- Compact 107 × 41 × 105 mm dimensions
- Specified 0.25 kg weight
- Suitable for industrial control cabinets
- Supports discrete equipment-status monitoring
- Useful for alarms and interlocks
- Facilitates field-signal troubleshooting
- Simplifies maintenance access
- Supports structured I/O installation
- Suitable for process automation environments
Technical FAQs
What is the Emerson VE4001S2T2B5?
The Emerson VE4001S2T2B5 is an industrial input-module configuration designed to acquire field signals and transfer equipment-status information into an Emerson process-control system.
What is the KJ3203X1-BA1?
The KJ3203X1-BA1 is the input-module component associated with this VE4001S2T2B5 configuration.
What is the KJ4001X1-CK1?
The KJ4001X1-CK1 is the terminal-block component used to provide the field wiring interface for the specified input configuration.
What are the dimensions of the VE4001S2T2B5?
The specified dimensions are 107 × 41 × 105 mm.
How much does the VE4001S2T2B5 weigh?
The specified weight is 0.25 kg.
What is a discrete input signal?
A discrete signal represents a defined condition such as ON/OFF, open/closed, running/stopped, ready/fault, or normal/alarm.
What applications use the VE4001S2T2B5?
Typical applications include process equipment monitoring, motor feedback, valve-position indication, alarms, permissives, interlocks, and industrial sequence control.
What should be checked if an input does not respond?
Check the field device, field wiring, KJ4001X1-CK1 terminal connections, input channel, I/O configuration, controller, and application logic.
Can a terminal connection cause an intermittent input?
Yes. Loose, damaged, or contaminated connections can produce intermittent field signals.
What should be verified before replacing the assembly?
Verify the complete VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 configuration, cabinet location, channel assignment, field wiring, and system compatibility.
Conclusion
The Emerson VE4001S2T2B5 KJ3203X1-BA1+KJ4001X1-CK1 Input Module with Terminal Blocks provides a structured interface for acquiring discrete field signals within industrial process automation systems. By connecting field devices with the control architecture, the assembly allows equipment status, alarms, interlocks, permissives, and other discrete conditions to become usable information for automated control.
The combination of the KJ3203X1-BA1 input module and KJ4001X1-CK1 terminal block provides both electronic signal acquisition and organized field termination. This makes the assembly relevant not only to system design but also to commissioning, maintenance, troubleshooting, and spare-parts management.
With specified dimensions of 107 × 41 × 105 mm and a weight of 0.25 kg, the VE4001S2T2B5 is well suited to compact control-cabinet installations. Reliable performance depends on correct wiring, proper terminal connections, suitable grounding practices, accurate system configuration, and systematic preventive maintenance.
For troubleshooting, engineers should evaluate the complete path from the field device through the terminal block and input module to the controller and application logic. This approach helps distinguish field-device and wiring problems from genuine I/O hardware faults and supports faster restoration of industrial process-control systems.
