Product Overview

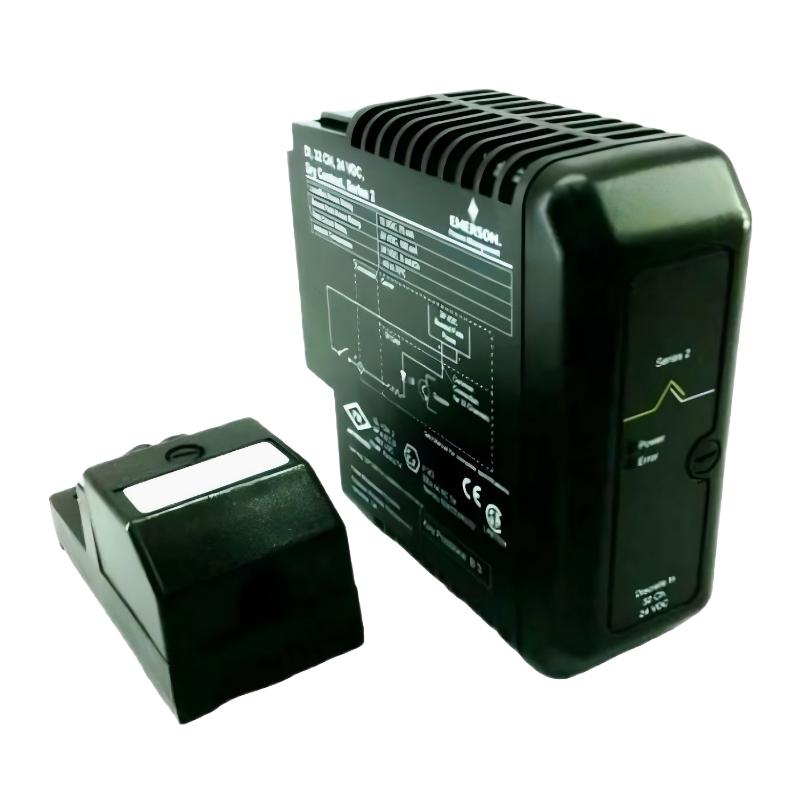

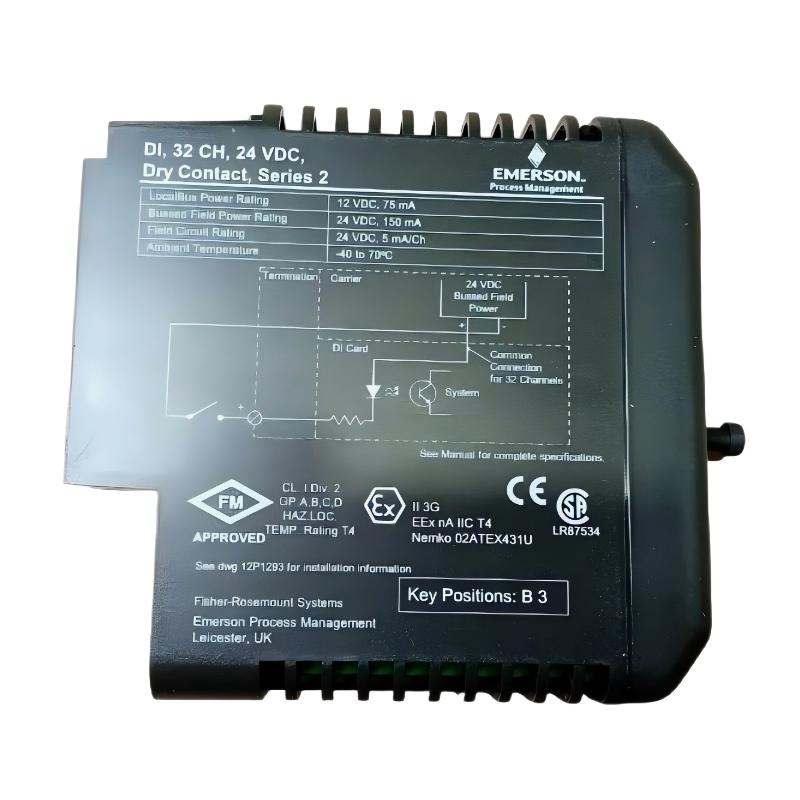

The Emerson VE4001S2T2B5 Discrete Input Card with 40-Pin Grounding Terminal Block is an industrial automation I/O component designed for acquiring discrete field signals and transferring equipment status information into an Emerson process control system. It provides an interface between field-level devices and the control architecture, allowing controllers to monitor the operating condition of process equipment, alarms, switches, interlocks, and other discrete signals.

The VE4001S2T2B5 configuration combines a discrete input card with a 40-pin grounding terminal block, creating a structured interface for field wiring and signal acquisition. The terminal arrangement helps organize field connections while providing a defined grounding interface for the associated I/O wiring. This type of configuration is particularly valuable in process-control installations where numerous discrete signals must be terminated, identified, maintained, and tested.

In an industrial control system, discrete inputs provide essential information about the state of physical equipment. A pump-running contact, valve-position switch, motor fault relay, circuit-breaker auxiliary contact, or process alarm can all provide information that must be recognized by the controller. The input card converts these field conditions into usable control-system information.

With specified dimensions of 107 × 41 × 105 mm and a weight of 0.45 kg, the Emerson VE4001S2T2B5 offers a compact installation footprint for industrial control cabinets and distributed I/O applications.

---

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	VE4001S2T2B5
Product Type	Discrete Input Card
Terminal Interface	40-Pin Grounding Terminal Block
Input Function	Discrete Field Signal Acquisition
System Application	Industrial Process Control
Installation	Control Cabinet / I/O System
Dimensions	107 × 41 × 105 mm
Weight	0.45 kg
Signal Type	Discrete / Digital Field Signals
Primary Role	Field Status Acquisition
Typical Applications	Process Automation, Equipment Monitoring, Interlocks and Alarms

---

What Is the Emerson VE4001S2T2B5?

The Emerson VE4001S2T2B5 is a discrete input card intended for use in industrial process automation systems. Its purpose is to acquire discrete electrical states from field devices and make those states available to the control system.

Unlike analog input devices, which typically represent continuously changing process variables such as pressure, temperature, level, or flow, a discrete input represents a defined state.

Examples include:

• ON / OFF
• Open / Closed
• Running / Stopped
• Healthy / Fault
• Ready / Not Ready
• Permitted / Not Permitted
• Normal / Alarm

These simple states are fundamental to industrial control.

A process sequence may depend on a valve being confirmed open before a pump starts. A motor may need to provide a running signal before the next production stage is enabled. An emergency contact may need to be monitored continuously so that the controller can react when the contact changes state.

The VE4001S2T2B5 provides the input interface needed to acquire such information.

---

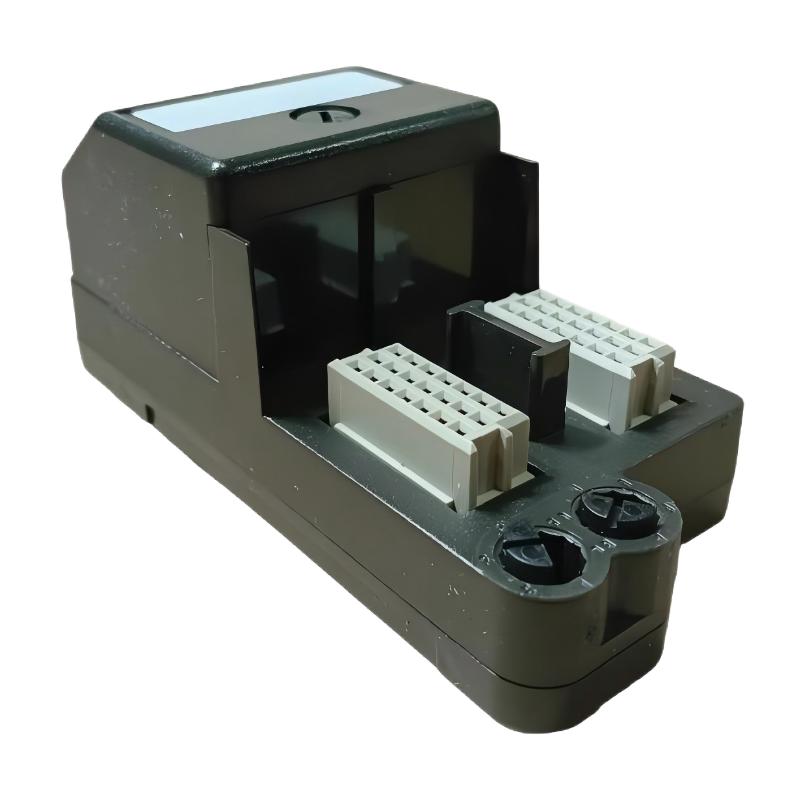

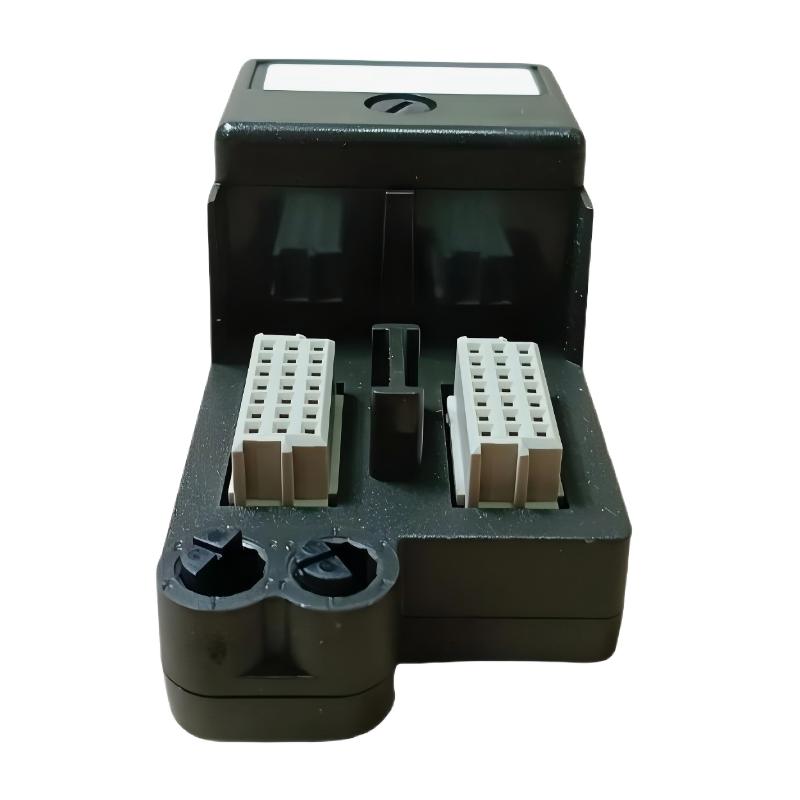

40-Pin Grounding Terminal Block

One of the defining characteristics of the VE4001S2T2B5 is its 40-pin grounding terminal block configuration.

A terminal block provides the physical connection between field wiring and the I/O system. In a large industrial installation, this interface helps organize numerous individual conductors and provides a clear structure for field signal termination.

The grounding arrangement is also important from an installation and maintenance perspective. Proper grounding helps engineers maintain an organized electrical architecture and supports appropriate grounding practices for industrial control wiring.

The terminal interface can simplify:

• Field cable termination
• Signal identification
• Wiring inspection
• Grounding management
• Maintenance testing
• Fault tracing
• I/O replacement

Technicians should always follow the approved electrical drawings and system installation requirements when connecting the grounding terminal block.

---

Function of a Discrete Input Card

The fundamental function of the VE4001S2T2B5 is to detect the electrical state of connected discrete field circuits.

A typical signal path is:

Field Device → Field Cable → 40-Pin Terminal Block → Discrete Input Card → I/O Architecture → Controller → Control Logic

Each part of this path performs a different function.

The field device represents the physical process condition.

The field cable transfers the electrical signal.

The terminal block provides the physical termination and organized interface.

The discrete input card detects the input condition.

The I/O architecture transfers the status toward the controller.

The control logic then determines how the system should respond.

This architecture allows physical equipment to become part of automated decision-making.

---

Examples of Discrete Input Signals

The VE4001S2T2B5 can be used in systems where discrete field conditions must be monitored.

Common examples include:

Motor Running Feedback

A motor starter can provide an auxiliary contact indicating whether the motor is running.

The controller can use this information to verify that a start command produced the expected result.

Valve Position

Limit switches can provide open or closed confirmation.

A process sequence may require confirmation of valve position before continuing.

Equipment Fault

A machine or motor protection device may provide a fault contact.

When the fault signal changes state, the controller can generate an alarm or initiate a predefined response.

Emergency Stop

Emergency circuits may provide status information to the control system so that operators can see whether an emergency condition has occurred.

Circuit Breaker Status

Auxiliary contacts can report whether a breaker is open or closed.

Process Alarm

Level switches, pressure switches, and other discrete devices can provide alarm conditions to the control system.

---

Role in an Industrial Control Architecture

The VE4001S2T2B5 is positioned between the physical field and the software-based control system.

A simplified architecture can be represented as:

Field Layer

Sensors, switches, relays, motors, valves, and other equipment

↓

Termination Layer

40-pin grounding terminal interface

↓

I/O Layer

VE4001S2T2B5 discrete input card

↓

Control Layer

Controller and process-control logic

↓

Supervisory Layer

Operator interface, alarms, diagnostics, and process visualization

The input card therefore provides a critical data-acquisition function.

Without reliable field feedback, the controller may not know the actual state of the process equipment.

---

Industrial Applications

The Emerson VE4001S2T2B5 is suited to industrial applications where discrete equipment status must be continuously monitored.

Oil and Gas

Oil and gas facilities use many discrete signals for:

• Pump status
• Compressor status
• Valve position
• Emergency shutdown status
• Equipment fault conditions
• Pressure switch alarms
• Process permissives

Accurate status acquisition is essential for safe and efficient operation.

Chemical Processing

Chemical processing plants depend on discrete input signals for:

• Valve position confirmation
• Pump feedback
• Motor status
• Tank-level switches
• Equipment alarms
• Process interlocks
• Sequence control

The input card enables the control system to recognize these physical conditions.

Power Generation

Power plants have extensive requirements for equipment-status monitoring.

Applications may include:

• Breaker position
• Motor feedback
• Valve position
• Auxiliary equipment status
• Alarm contacts
• Protection indications

Water and Wastewater

Treatment facilities use discrete signals for:

• Pump running status
• Valve position
• High-level switches
• Low-level switches
• Equipment fault contacts
• Flow switch status

Reliable input acquisition allows automated sequences to operate according to actual field conditions.

General Manufacturing

Discrete inputs are also used in:

• Conveyor systems
• Packaging equipment
• Material handling
• Assembly machinery
• Production lines
• Utility systems

The input card can provide status feedback required by machine-control sequences.

---

Installation Guidelines

Correct installation is important for reliable operation of the VE4001S2T2B5.

Mechanical Installation

The specified dimensions are:

107 × 41 × 105 mm

The cabinet should provide enough space for installation, field wiring, inspection, and future replacement.

The module should be mounted securely in the designated I/O position.

Avoid excessive mechanical stress on the module, connectors, or terminal block.

Field Wiring

Field conductors should be identified according to the project wiring documentation.

Before making connections, verify:

• Field device tag
• Terminal number
• Channel assignment
• Wire identification
• Signal type
• Grounding arrangement
• Cable routing

Incorrect wiring can produce false input conditions or prevent the controller from receiving the expected signal.

Grounding

Because the configuration includes a 40-pin grounding terminal block, grounding should be installed according to the approved control-system design.

Grounding conductors should be correctly identified and securely terminated.

Avoid creating unintended grounding paths or incorrect connections between signal circuits and power circuits.

---

Commissioning Procedure

A structured commissioning procedure reduces the possibility of hidden I/O problems.

Step 1: Verify the Part Number

Confirm:

Emerson VE4001S2T2B5

Verify that the installed card corresponds to the intended application and control-system configuration.

Step 2: Inspect the Module

Check the card and terminal interface for physical damage.

Inspect connectors and wiring before energization.

Step 3: Verify Wiring

Compare actual wiring against the approved drawings.

Check every important field connection and terminal assignment.

Step 4: Test Field Devices

Operate the connected field device where possible.

For example, open and close a limit switch or operate a motor-status contact.

Step 5: Confirm Input Response

Verify that the corresponding input changes state correctly within the control system.

Step 6: Test Control Logic

Confirm that the application correctly interprets the input state.

Step 7: Verify Alarms and Interlocks

Where inputs are associated with alarms, permissives, or interlocks, perform appropriate functional testing before placing the process into normal service.

---

Troubleshooting the VE4001S2T2B5

When a discrete input does not behave as expected, technicians should diagnose the complete signal path.

Input Does Not Change State

Possible causes include:

• Failed field device
• Broken cable
• Loose terminal
• Incorrect wiring
• Incorrect channel assignment
• Input card problem
• Configuration error

Start at the field device and work toward the I/O system.

Input Remains Permanently Active

Possible causes include:

• Stuck field contact
• Shorted field wiring
• Incorrect terminal connection
• External voltage
• Incorrect wiring
• Channel configuration problem

Measure and inspect the field circuit before replacing the card.

Input Remains Permanently Inactive

Check:

• Field device operation
• Field cable continuity
• Terminal connection
• Grounding arrangement
• Input channel
• I/O configuration

A failed field switch can produce symptoms that are identical to an I/O-card problem.

Intermittent Input

Intermittent problems can be difficult to identify because the signal may return to normal during inspection.

Possible causes include:

• Loose terminal connections
• Vibration
• Damaged conductors
• Corrosion
• Poor field contacts
• Environmental contamination
• Unstable equipment feedback

Terminal connections should be inspected carefully.

Multiple Inputs Fail Simultaneously

If multiple input channels fail at the same time, investigate shared system conditions before assuming multiple independent card failures.

Check:

• Module seating
• I/O power
• Terminal interface
• Common wiring
• System communication
• Controller configuration
• Shared field circuits

---

Preventive Maintenance

Regular preventive maintenance can help reduce unexpected input failures.

Recommended activities include:

• Inspect terminal connections.
• Check grounding connections.
• Inspect field cables.
• Look for corrosion or contamination.
• Verify module seating.
• Check cabinet environmental conditions.
• Review recurring input alarms.
• Test critical field devices.
• Keep wiring documentation current.
• Maintain appropriate spare components.

Particular attention should be given to connections in environments with vibration, temperature cycling, humidity, dust, or corrosive contaminants.

---

Replacement Considerations

Before replacing a VE4001S2T2B5, technicians should verify the complete product identification.

The replacement should match:

VE4001S2T2B5 Discrete Input Card with 40-Pin Grounding Terminal Block

Physical appearance alone should not be used as the basis for selecting an industrial I/O replacement.

Before removal, document:

• Module part number
• Terminal configuration
• Cabinet location
• Channel assignments
• Field wiring
• Grounding connections
• Controller configuration
• Associated equipment

This information helps minimize commissioning time after replacement.

---

Spare-Part Strategy

Critical process systems should have a defined spare-parts strategy for important I/O components.

The required quantity of spare modules depends on:

• Number of installed cards
• Process criticality
• Historical failure rates
• Replacement lead time
• Plant maintenance strategy
• Availability requirements

Keeping a correctly identified spare card can significantly reduce downtime after an unexpected failure.

The specified 0.45 kg weight of the VE4001S2T2B5 also makes the unit relatively convenient for spare inventory, transportation, and maintenance handling.

---

Storage and Handling

The VE4001S2T2B5 is an electronic industrial control component and should be handled carefully before installation.

Recommended practices include:

• Store the card in suitable protective packaging.
• Keep it away from excessive moisture and contamination.
• Protect connectors and terminals from impact.
• Avoid dropping the component.
• Use appropriate electrostatic-discharge precautions.
• Maintain clear product identification.
• Avoid unnecessary handling of exposed electronic circuitry.

Good storage practices help ensure that a replacement component remains ready for installation when required.

---

Diagnostic Methodology

A useful approach to troubleshooting the VE4001S2T2B5 is to divide the signal path into several layers.

Layer 1 — Field Device

Does the switch, relay, sensor, or equipment contact actually change state?

Layer 2 — Field Wiring

Is the signal reaching the control cabinet correctly?

Layer 3 — Terminal Block

Is the conductor securely terminated at the 40-pin grounding terminal interface?

Layer 4 — Input Card

Does the input channel correctly detect the field condition?

Layer 5 — Control System

Does the controller receive the expected input status?

Layer 6 — Application Logic

Does the control program interpret the signal correctly?

This layered diagnostic approach helps prevent unnecessary replacement of functioning hardware.

---

Importance of Discrete I/O Reliability

A discrete input may appear simple because it represents only two basic states. However, these states can have significant consequences in a process-control system.

For example:

Pump Running = Confirmed

may allow a process sequence to continue.

Conversely:

Pump Fault = Active

may cause the controller to generate an alarm and stop a process sequence.

Similarly:

Valve Open = Confirmed

may be required before material is transferred through a process line.

Therefore, reliable discrete input acquisition directly contributes to:

• Process continuity
• Equipment monitoring
• Interlock operation
• Alarm management
• Automated sequencing
• Operator awareness
• Maintenance diagnostics

---

Engineering Best Practices

For reliable integration of the VE4001S2T2B5, engineers should consider the complete lifecycle of the I/O system.

Maintain Accurate Documentation

I/O lists, terminal schedules, wiring drawings, and control-system tags should remain synchronized with the physical installation.

Use Clear Identification

Field cables and terminal points should have clear identification to simplify troubleshooting.

Protect Signal Wiring

Route field signal cables appropriately and avoid unnecessary exposure to electrical interference.

Inspect Grounding

The 40-pin grounding terminal arrangement should be installed according to the approved electrical design.

Plan for Maintenance

Cabinet layouts should provide technicians with reasonable access to terminals, connectors, and modules.

Maintain Spares

Critical I/O cards should be included in the plant’s spare-parts planning process.

---

Key Advantages

The Emerson VE4001S2T2B5 Discrete Input Card with 40-Pin Grounding Terminal Block offers several practical benefits for industrial automation systems:

• Dedicated discrete field signal acquisition
• 40-pin grounding terminal interface
• Structured field wiring arrangement
• Compact 107 × 41 × 105 mm dimensions
• Specified 0.45 kg weight
• Suitable for industrial control cabinets
• Supports equipment-status monitoring
• Useful for alarms and interlocks
• Facilitates systematic field troubleshooting
• Supports organized maintenance practices
• Suitable for process automation applications
• Provides an important interface between field equipment and control logic

---

Technical FAQs

What is the Emerson VE4001S2T2B5?

The Emerson VE4001S2T2B5 is a discrete input card designed to acquire digital or discrete field conditions within an industrial process-control system.

What type of terminal block does it use?

The configuration is specified with a 40-pin grounding terminal block.

What are the dimensions of the VE4001S2T2B5?

The specified dimensions are 107 × 41 × 105 mm.

What is the weight of the VE4001S2T2B5?

The specified weight is 0.45 kg.

What is a discrete input?

A discrete input represents a defined electrical state, such as ON/OFF, open/closed, running/stopped, ready/fault, or normal/alarm.

Where can the VE4001S2T2B5 be used?

It is suitable for process-control and industrial automation applications requiring acquisition of discrete equipment and field-device status signals.

What should be checked if an input is incorrect?

Check the field device, field wiring, terminal block, grounding connections, input channel, I/O configuration, controller status, and application logic.

Can a loose terminal cause an input fault?

Yes. A loose or damaged field connection can cause intermittent, missing, or incorrect input signals.

Why is the grounding terminal important?

It provides a structured grounding interface associated with the field wiring arrangement. Grounding must be implemented according to the approved system design.

What should be verified before replacing the card?

Verify the complete model number, terminal configuration, channel assignment, field wiring, cabinet position, and control-system compatibility.

---

Conclusion

The Emerson VE4001S2T2B5 Discrete Input Card with 40-Pin Grounding Terminal Block provides a compact and structured interface for acquiring discrete field signals in industrial process automation systems. By connecting field devices to the control architecture, the card allows controllers to monitor equipment status, alarms, interlocks, permissives, and other important binary process conditions.

The 40-pin grounding terminal block provides an organized field termination arrangement, while the discrete input card performs the signal-acquisition role within the I/O architecture. Together, they support practical installation, commissioning, maintenance, and troubleshooting.

With specified dimensions of 107 × 41 × 105 mm and a weight of 0.45 kg, the VE4001S2T2B5 is suitable for compact industrial control cabinets and process-control installations. For reliable operation, engineers should pay close attention to field wiring, terminal connections, grounding, commissioning, and preventive maintenance.

When troubleshooting, the most effective strategy is to evaluate the complete path from the field device through the terminal interface and input card to the controller and application logic. This approach helps distinguish genuine I/O hardware faults from field wiring, device, configuration, or control-logic problems and supports faster, more reliable industrial maintenance.
