Product Overview

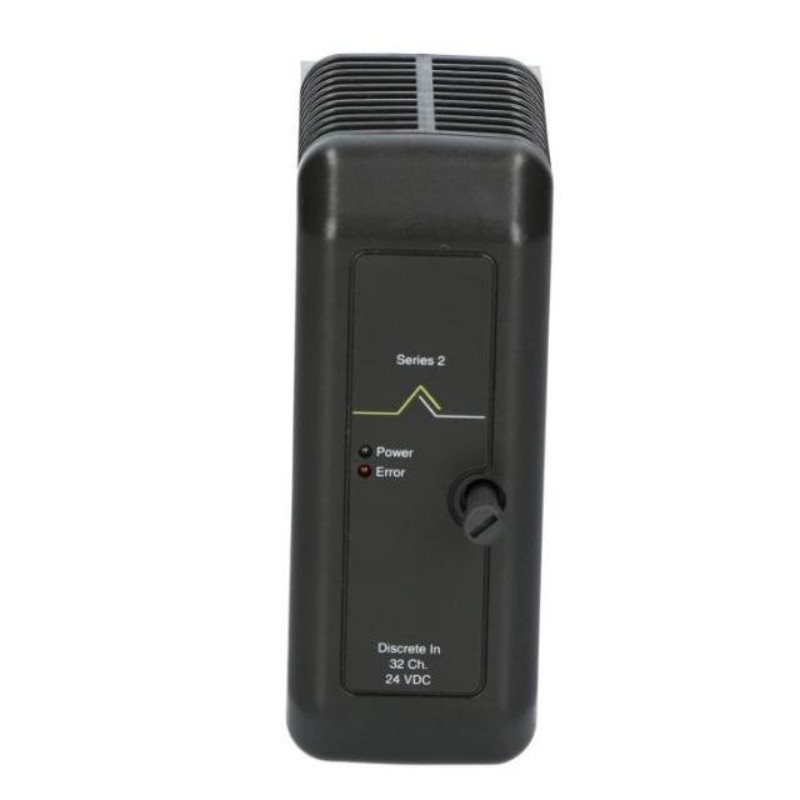

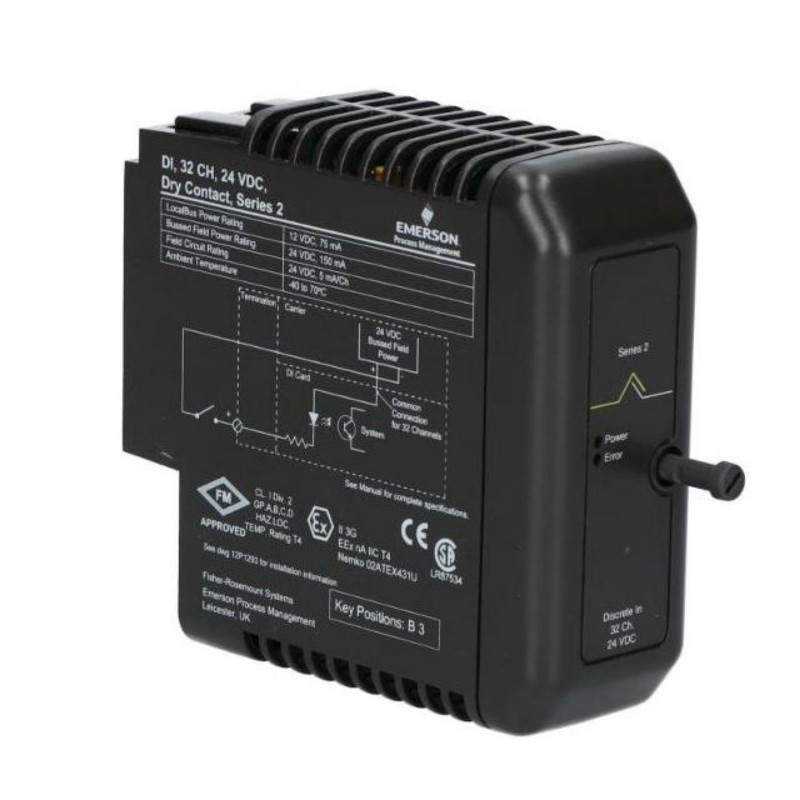

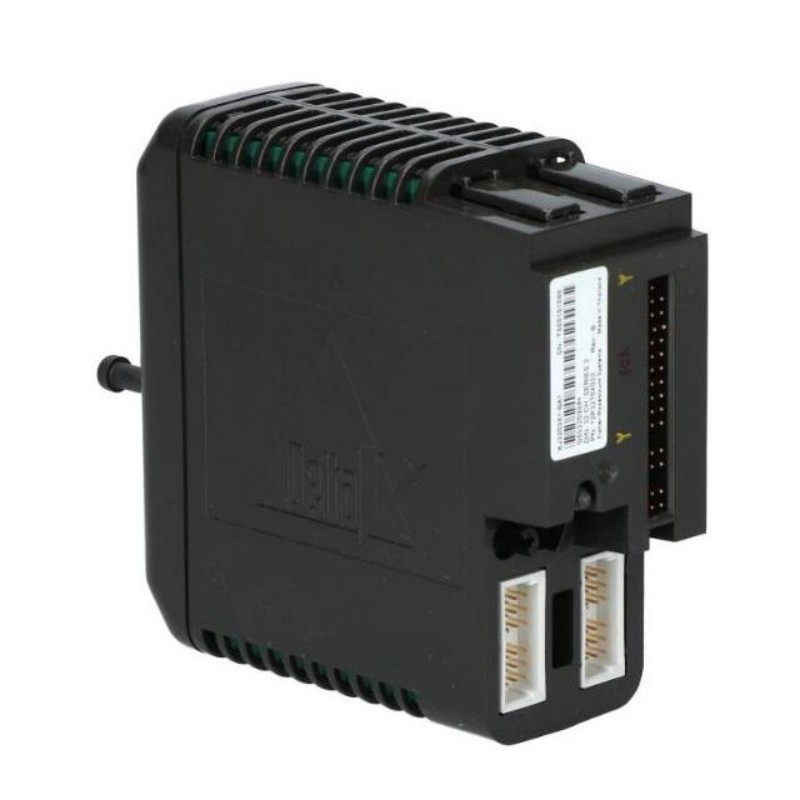

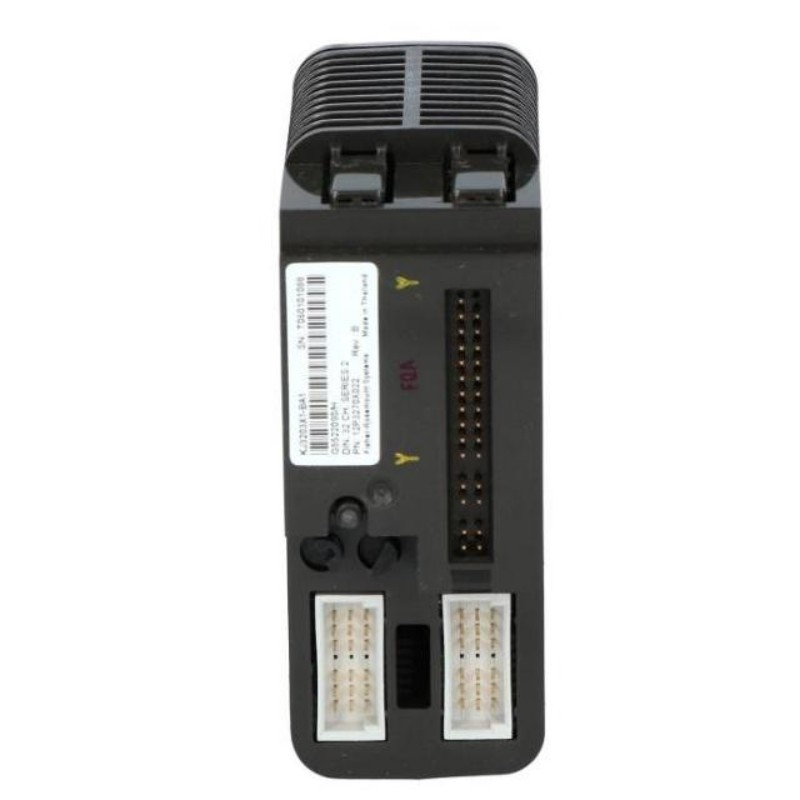

The Emerson VE4001S2T1 is a DeltaV M-series Traditional I/O Discrete Input Card used to bring discrete field signals into a DeltaV control system. It serves as an interface between field devices such as switches, contacts, status relays, and other binary sensing devices and the DeltaV controller.

In a typical process automation cabinet, the card receives ON/OFF status information from field instruments and equipment. These signals can represent conditions such as valve position, motor running status, equipment permissives, level switch states, or process alarms. The DeltaV system then uses the collected status information within control logic, sequencing, alarming, and operator displays.

As part of the M-series Traditional I/O architecture, the VE4001S2T1 is used where conventional discrete field wiring is required. It fits applications in which existing field devices need to be integrated into a DeltaV-based distributed control system without replacing every field instrument with a more advanced intelligent device.

The card is particularly relevant to process plants with a large number of binary field signals, where organized termination, controller communication, and centralized signal diagnostics are required.

Technical Specifications

Product Features

• DeltaV M-series Traditional I/O — Integrates conventional discrete field signals into a DeltaV process control architecture.
• Discrete status acquisition — Handles binary field information used for equipment status, permissives, interlocks, and sequence logic.
• Process-oriented signal interface — Suitable for connecting conventional field devices to the control system.
• Centralized signal processing — Makes field status available to DeltaV control strategies and operator applications.
• Traditional I/O architecture — Fits installations where field wiring is organized through conventional I/O and termination arrangements.
• Plant-wide control integration — Can operate as part of a larger DeltaV system containing controllers, I/O interfaces, engineering stations, and operator workstations.
• Maintenance-oriented design — Supports an organized I/O structure that makes field signal identification and troubleshooting more manageable.

Working Principle

The VE4001S2T1 receives discrete electrical status signals from connected field devices and passes the corresponding input information into the DeltaV control system.

A typical signal path can be represented as:

Field Contact / Switch → I/O Termination → VE4001S2T1 Discrete Input Card → DeltaV Controller → Control Logic / Alarm / HMI

For example, a motor auxiliary contact can change state when the motor starts or stops. The resulting discrete signal is brought into the I/O system, where the VE4001S2T1 makes the status available to the DeltaV control application. The controller can then use that information to confirm equipment operation, initiate a sequence, generate an alarm, or determine whether another control action is permitted.

The same principle applies to valve limit switches, equipment permissive contacts, alarm contacts, and other binary field signals. The usefulness of the card is therefore closely tied to how the individual input points are mapped into the plant’s control strategy.

Role in a DeltaV M-series Control Architecture

The VE4001S2T1 functions at the field-interface level of a DeltaV M-series control architecture.

Field Device → Traditional I/O Termination → VE4001S2T1 → DeltaV Controller → Control Strategy → Operator Interface

This arrangement separates the physical field interface from the control logic, allowing the DeltaV application to use discrete equipment information throughout the process control system.

Industrial Applications

Installation and Maintenance

1. Confirm the I/O card identity — Verify the VE4001S2T1 model against the DeltaV system configuration and the intended I/O assignment before installation.
2. Check the I/O architecture — Confirm that the card is being installed in the correct M-series I/O arrangement and that associated termination equipment is properly matched.
3. Inspect field wiring — Check conductors, terminals, shields, and identification before connecting field signals to the I/O system.
4. Verify signal mapping — Compare the physical field point with the corresponding DeltaV database or control configuration to avoid incorrect status assignments.
5. Check termination connections — Make sure field and I/O termination connections are secure and correctly identified.
6. Avoid wiring mistakes — Verify polarity and signal routing against the approved plant wiring documentation before energizing the circuit.
7. Check controller communication — Confirm that the I/O subsystem is communicating correctly with the associated DeltaV controller.
8. Test individual input points — Activate representative field contacts or approved test signals and verify that the corresponding DeltaV input state changes correctly.
9. Verify control logic — Confirm that input transitions produce the intended permissive, interlock, alarm, or sequence response.
10. Review diagnostic information — Use available DeltaV diagnostics to investigate abnormal I/O states, communication problems, or configuration inconsistencies.
11. Inspect during scheduled maintenance — Check terminals, connectors, cabinet conditions, and associated wiring for signs of looseness, contamination, or physical damage.
12. Keep configuration records updated — Maintain current I/O assignments, loop documentation, and application backups so replacement or troubleshooting work can be completed efficiently.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a conventional discrete field-signal interface for DeltaV systems
• Supports equipment status, permissive, alarm, and interlock applications
• Fits DeltaV M-series Traditional I/O architectures
• Connects field-level binary information with centralized control logic
• Suitable for process plants using conventional field wiring
• Supports structured signal mapping and plant I/O documentation
• Useful for maintaining established DeltaV control-system architectures

Technical FAQs

What type of signals does the VE4001S2T1 handle?

The VE4001S2T1 is a discrete input card intended for binary field information such as equipment status contacts, switches, valve position indications, permissive signals, and similar ON/OFF process information.

Where does the VE4001S2T1 fit in a DeltaV system?

It sits at the I/O interface level between conventional field wiring and the DeltaV control architecture. Field signals enter through the associated termination and I/O arrangement, and the resulting input states are made available to the DeltaV control application.

How can an incorrect discrete input state be troubleshot?

Start by checking the field device and wiring, followed by the termination connection and I/O configuration. Then verify the corresponding DeltaV input status and confirm that the configured point matches the physical field device.

Can the VE4001S2T1 be replaced without checking the DeltaV configuration?

The replacement should not be treated as a simple hardware swap. The I/O assignment, associated termination arrangement, controller configuration, field wiring, and application logic should all be verified before returning the system to service.
