Product Overview

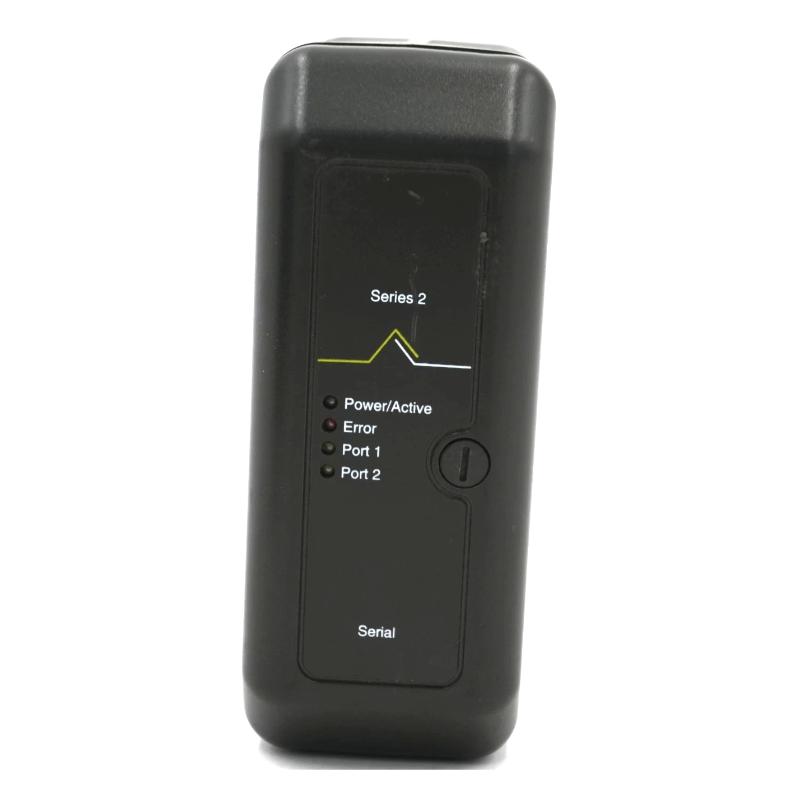

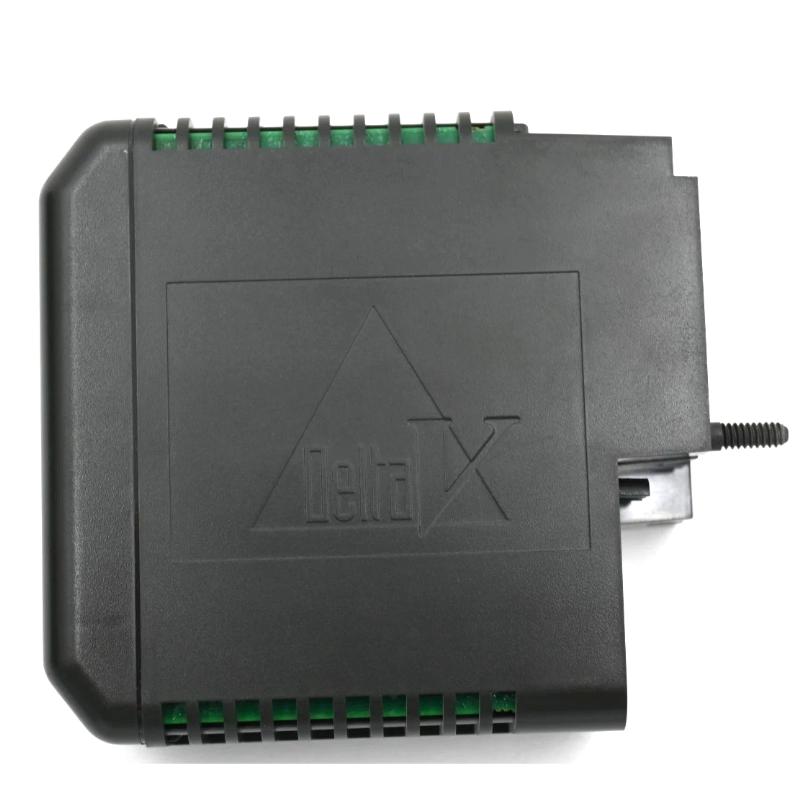

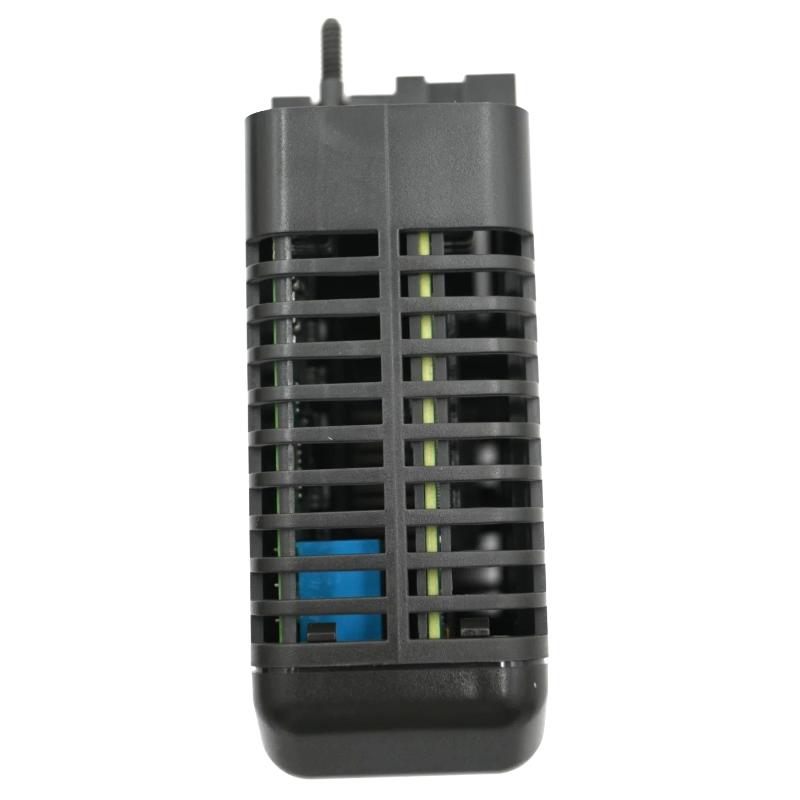

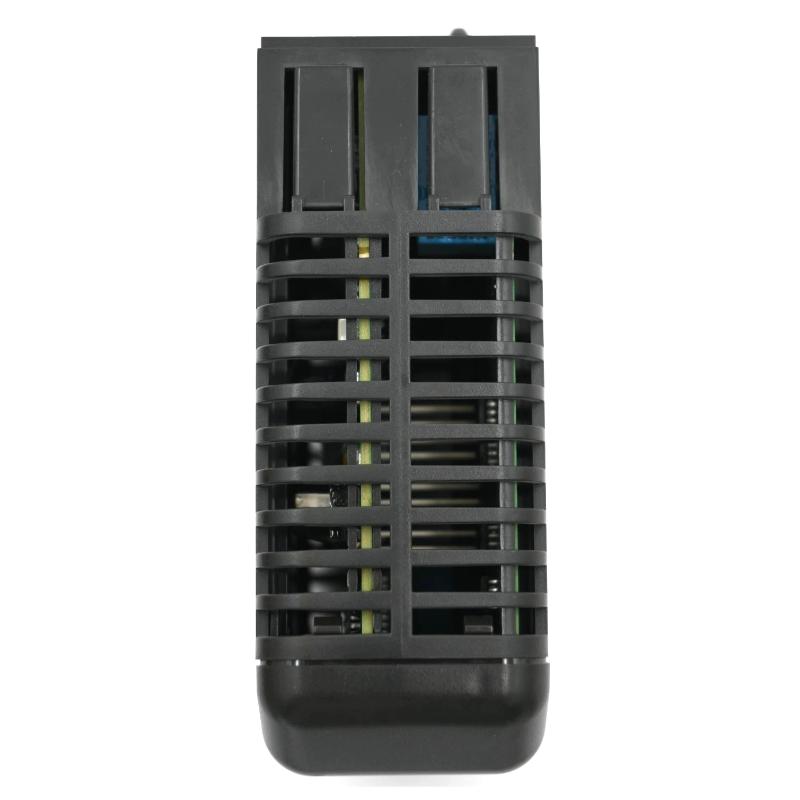

The Emerson VE4001S2B3 KJ3241X1-BA1 is a DeltaV M-series Redundant Serial Interface Card used to connect serial devices with the DeltaV control architecture while supporting a redundant interface arrangement.
In a process plant, serial communication is often used for intelligent field equipment, analyzers, packaged machinery, meters, drives, and other devices that exchange operational data rather than simple discrete or analog signals. The serial interface provides the communication path through which device data can be brought into the DeltaV environment.
The redundant configuration is particularly relevant where communication availability is important. Instead of treating the card as a simple point-to-point converter, the interface forms part of the communication layer between external serial equipment and the DeltaV system. Troubleshooting therefore involves the interface card, serial wiring, device configuration, communication parameters, and the receiving DeltaV application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Emerson VE4001S2B3 KJ3241X1-BA1 |
| Product Type | DeltaV M-series Redundant Serial Interface Card |
| Series | DeltaV M-series |
| Interface Type | Serial Interface |
| Configuration | Redundant |
| Function | Serial communication interface for DeltaV system integration |
| Application | Integration of serial field and process devices |
| System Integration | DeltaV M-series control architecture |
| Dimensions | 200 ×120 × 60 mm |
| Weight | 0.2 kg |
Product Features
- Redundant serial interface for DeltaV M-series communication architectures.
- Serial device integration for equipment that communicates through serial data links.
- M-series architecture compatibility for process automation installations.
- Redundant communication arrangement supports continuity of the associated interface path.
- Suitable for intelligent equipment such as analyzers, meters, drives, and packaged systems.
- Communication-layer diagnostics help maintenance personnel isolate interface, wiring, configuration, and device-side problems.
Working Principle
The VE4001S2B3 KJ3241X1-BA1 operates as an interface between serial communication devices and the DeltaV M-series environment. Data transmitted by an external serial device travels through the configured serial connection to the interface, where it can be exchanged with the DeltaV control architecture.
A typical example is a packaged machine that exposes operating status, measurements, alarms, or diagnostic information through a serial link. Instead of wiring every individual value as a separate hardwired signal, the serial interface allows the associated data to be exchanged through the communication channel.
The redundant arrangement adds an additional layer to the communication path. During commissioning or fault diagnosis, engineers should verify the physical serial connections, interface status, communication settings, connected-device configuration, and DeltaV point mapping together. A communication failure can originate from any of these points.
Role in a DeltaV M-series Control Architecture
| System Element | Function |
|---|---|
| VE4001S2B3 KJ3241X1-BA1 | Provides the redundant serial communication interface |
| Serial Field Devices | Exchange measurements, status, commands, or diagnostics |
| Serial Cabling | Carries communication data between the external device and interface |
| DeltaV M-series I/O Architecture | Integrates the serial interface into the control-system structure |
| DeltaV Controller | Uses received data within control strategies where applicable |
| Control Network | Connects the DeltaV control nodes and system infrastructure |
| Engineering Workstation | Supports configuration and communication diagnostics |
| Operator Workstation | Presents available equipment data, status, and alarms |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaged Equipment | Exchange operating data and status with vendor-supplied machinery |
| Motor and Drive Systems | Integration of serially communicating drive or motor-control equipment |
| Process Analyzers | Transfer analyzer measurements, status, and diagnostic information |
| Utility Equipment | Communication with intelligent auxiliary plant equipment |
| Energy Monitoring | Acquisition of data from meters and monitoring devices |
| Oil and Gas | Integration of serial equipment into process control systems |
| Chemical Processing | Connecting intelligent process and package units |
| Power and Utilities | Serial communication with equipment and monitoring systems |
Installation and Maintenance
- Verify the complete model number before installation and confirm that the VE4001S2B3 KJ3241X1-BA1 matches the intended DeltaV M-series configuration.
- Confirm the serial-device requirements including the communication interface, wiring arrangement, and approved device documentation before making connections.
- Inspect the interface card for physical damage, contamination, or damaged connectors before installation.
- Check serial cabling for loose connections, incorrect termination, damaged conductors, or unsuitable cable arrangements.
- Verify communication parameters such as the settings required by the connected serial equipment and the DeltaV configuration.
- Confirm redundant connections are installed according to the approved system architecture rather than treating the two paths as ordinary independent serial links.
- Install and seat the card correctly in the designated M-series location before restoring system power or communication.
- Check device addressing and mapping so that received serial data is associated with the intended DeltaV points.
- Test communication with the connected device and verify that expected status, measurements, or diagnostic data are received correctly.
- Check redundancy behavior during commissioning where permitted by the plant’s maintenance procedures, confirming that the intended communication arrangement responds correctly to a path fault.
- Review DeltaV diagnostics if communication is intermittent or unavailable after physical wiring and device settings have been verified.
- Document communication settings and test results after installation or replacement to simplify future troubleshooting and maintenance.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV M-series Controllers | Execute control strategies using available process and equipment data |
| Serial Field Devices | Supply measurements, status, commands, and diagnostic information |
| Packaged Equipment Controllers | Exchange equipment data with the DeltaV system |
| Process Analyzers | Provide serially transmitted process measurements and status |
| Intelligent Meters | Supply operational and measurement data |
| Serial Communication Cabling | Provides the physical data path |
| DeltaV Engineering Workstations | Support configuration and communication diagnostics |
| DeltaV Operator Workstations | Display integrated equipment information and alarms |
| DeltaV Control Network | Connects the interface and other DeltaV system nodes |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE4001S2B3 | DeltaV M-series Redundant Serial Interface Card | Redundant serial device integration |
| Emerson KJ3241X1-BA1 | DeltaV M-series Redundant Serial Interface Card | Serial communication within DeltaV M-series systems |
| Emerson VE4001S2 | DeltaV M-series Discrete Input Card | Binary field signal acquisition |
| Emerson VE4001S2B1 | DeltaV M-series Discrete Input Card | Discrete field status monitoring |
| Emerson VE4003S4 | DeltaV M-series I/O Card | Process field I/O applications |
| Emerson VE4003S6 | DeltaV M-series I/O Card | M-series process I/O architecture |
Key Advantages
- Redundant serial communication interface
- DeltaV M-series integration
- Supports intelligent serial devices
- Suitable for packaged equipment and analyzers
- Facilitates centralized equipment data exchange
Technical FAQs
What is the main function of the VE4001S2B3 KJ3241X1-BA1?
It provides a redundant serial communication interface for integrating serially communicating equipment with a DeltaV M-series control system.
What types of equipment can be connected through a serial interface?
Typical applications include intelligent analyzers, meters, packaged machinery, drives, utility equipment, and other devices that exchange operational or diagnostic information through a supported serial communication link.
Why is redundancy relevant to this serial interface?
Redundancy provides an additional communication path within the intended system architecture. Its practical behavior depends on the complete DeltaV configuration and the connected equipment, so the approved system design should be followed when commissioning or testing redundancy.
What should be checked when serial communication fails?
Check the interface card status, physical serial connections, communication parameters, device addressing, redundant-path configuration, and DeltaV point mapping. A problem in any one of these areas can prevent the expected device data from reaching the control application.
