Product Overview

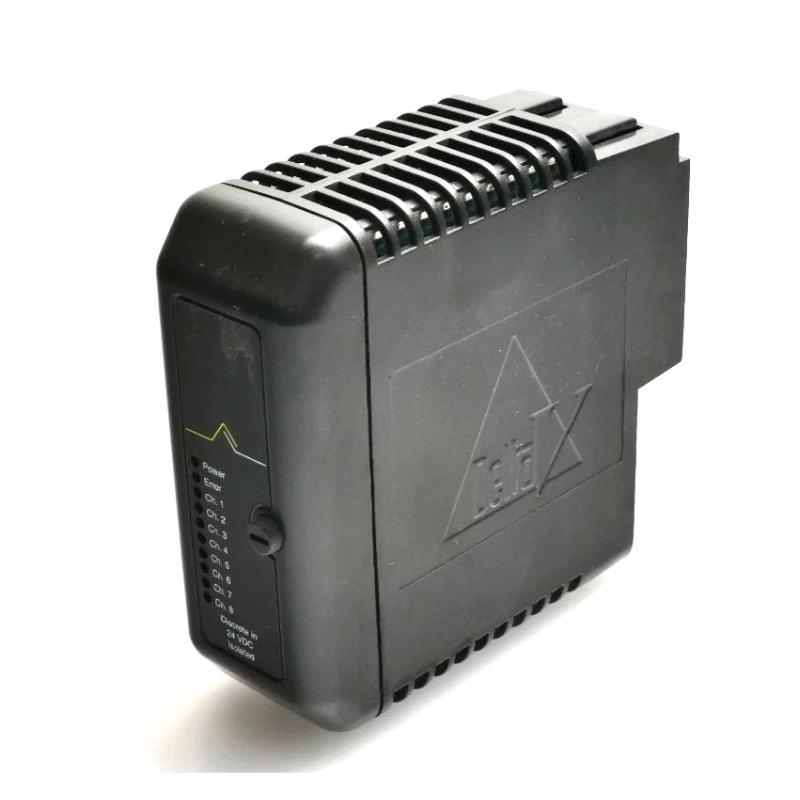

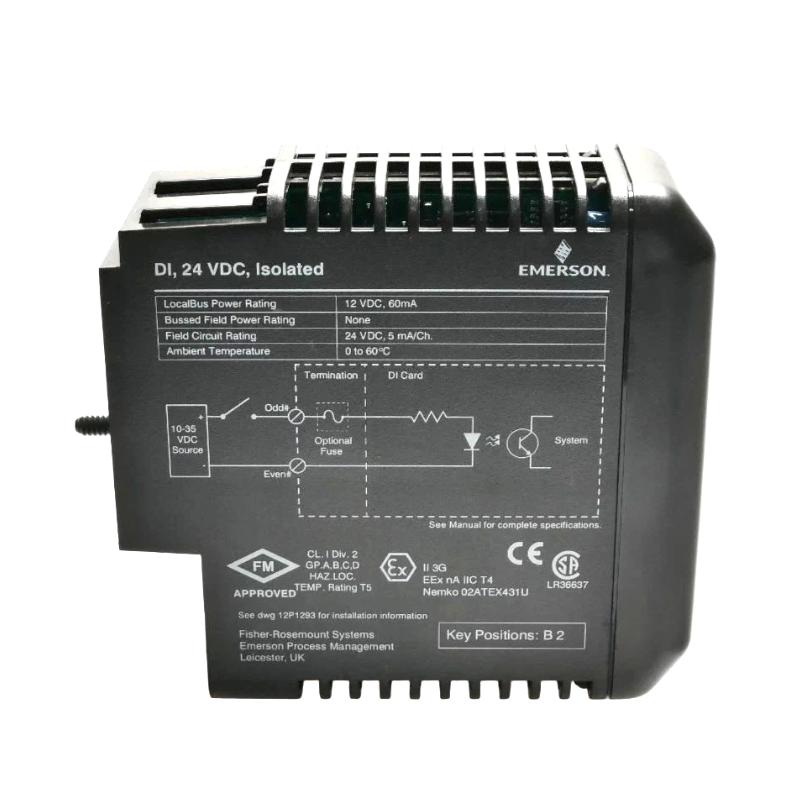

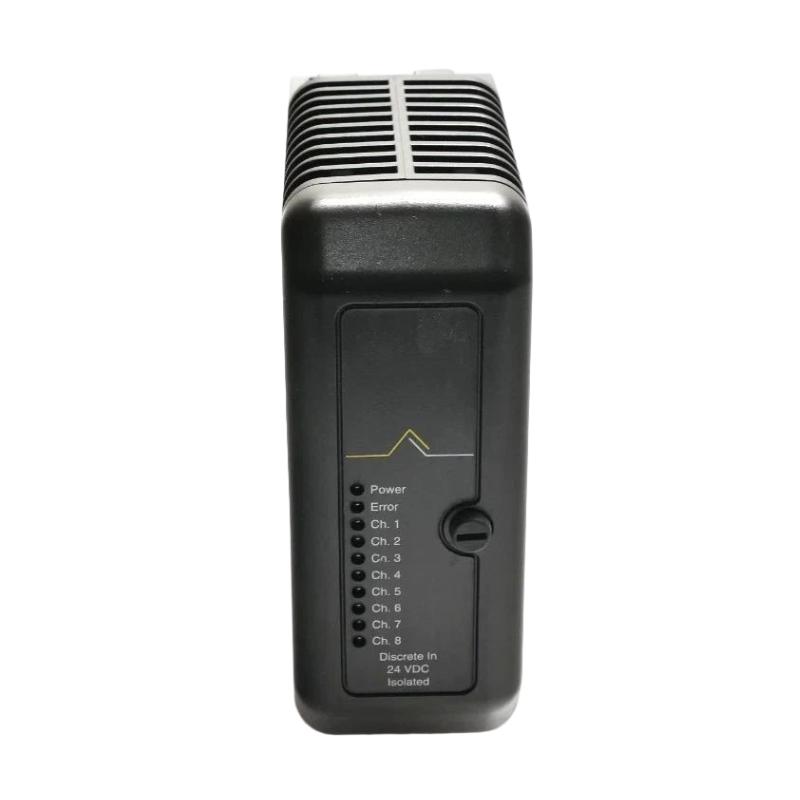

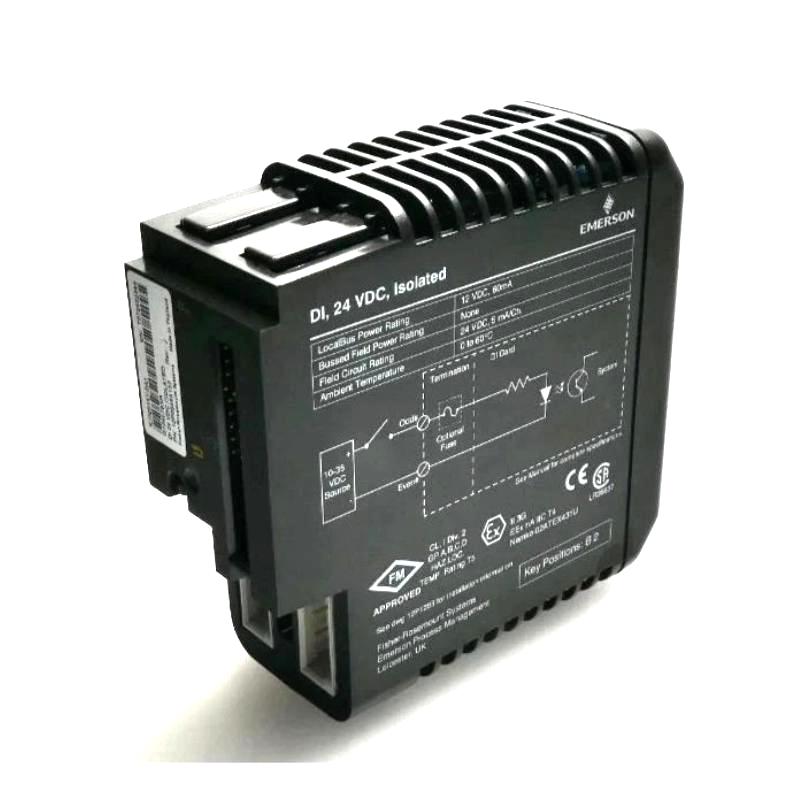

The Emerson VE4001S2B3 DeltaV M-series Discrete Input Card is an industrial automation I/O module used within the Emerson DeltaV distributed control system (DCS) for acquiring discrete signals from field devices and transferring status information to the controller.

As part of the DeltaV M-series I/O family, the VE4001S2B3 is installed in the control system I/O architecture to interface with binary field signals such as switches, contact outputs, alarms, and equipment status feedback. It provides the connection between field-level devices and the DeltaV control environment, allowing operators and control strategies to monitor the operating state of industrial equipment.

Unlike analog input modules that process continuous signals such as 4–20 mA or voltage values, a discrete input card focuses on two-state signals, typically representing conditions such as ON/OFF, OPEN/CLOSED, RUN/STOP, or NORMAL/ALARM.

For process plants using DeltaV systems, the VE4001S2B3 is commonly involved in equipment monitoring, interlock functions, sequence control, and status acquisition tasks where reliable digital signal collection is required.

Technical Specifications

Product Features

The Emerson VE4001S2B3 provides reliable digital signal collection for DeltaV-based process automation systems.

Key characteristics include:

• Emerson DeltaV M-series discrete input module
• Designed for binary field signal monitoring
• Interfaces field devices with DeltaV controllers
• Suitable for equipment status acquisition
• Supports process alarms and interlock applications
• Installed within DeltaV modular I/O architecture
• Provides organized signal integration between field and control layers
• Suitable for continuous process automation environments
• Commonly used in replacement and expansion projects

The module is typically applied where control systems need to identify the operating state of external devices rather than measure continuously changing process values.

Working Principle

The VE4001S2B3 operates by receiving discrete electrical signals from field devices and transferring the interpreted status information into the DeltaV control system.

The signal path can be represented as:

Field Device → VE4001S2B3 Discrete Input Card → DeltaV Controller → Operator Station / Control Strategy

The operating process includes:

1. Field Signal Collection

   External devices such as limit switches, push buttons, auxiliary contacts, and alarm outputs send digital signals to the input card.

2. Signal Conditioning

   The module processes incoming electrical states and ensures the signals are suitable for the control system.

3. Status Transmission

   The input status is transferred through the DeltaV I/O architecture to the controller.

4. Control System Processing

   The DeltaV system uses the received information for monitoring, alarms, logic execution, and sequence control.

Because the module handles discrete conditions, the focus is on accurate state recognition rather than numerical measurement.

Role in a DeltaV Control Architecture

Within a DeltaV distributed control system, the VE4001S2B3 serves as the field signal acquisition interface.

A typical architecture is:

Field Switches / Equipment Contacts → VE4001S2B3 → DeltaV Controller → Engineering Workstation / Operator Station

The card performs several important functions:

• Collects equipment status signals
• Transfers field conditions into control logic
• Supports alarm generation
• Provides input information for sequence operations
• Enables operators to monitor field equipment conditions

For process automation systems, discrete input modules are essential for understanding whether equipment is operating correctly and whether specific conditions have been reached.

Industrial Applications

The VE4001S2B3 is suitable for industries that require reliable digital signal integration within DeltaV process control systems.

Installation and Maintenance

Proper installation and configuration are important for ensuring accurate digital signal acquisition.

Recommended practices include:

• Confirm the correct DeltaV I/O card model before installation
• Verify field wiring and terminal connections
• Check signal type compatibility with connected devices
• Inspect connectors for contamination or loose connections
• Confirm module seating within the I/O carrier
• Verify controller recognition after installation
• Review diagnostic information during commissioning
• Check field devices when unexpected input states occur

During troubleshooting, engineers should examine the complete signal path, including field devices, wiring, terminals, the input card, and controller configuration.

Related Components

The VE4001S2B3 works together with multiple DeltaV system components.

These components together form a complete field-to-control signal chain.

Recommended Related Models

Key Advantages

• Designed for Emerson DeltaV M-series systems.
• Provides reliable digital signal acquisition.
• Supports equipment status monitoring.
• Integrates field devices with DCS control strategies.
• Suitable for alarm and interlock applications.
• Compact industrial I/O solution.
• Simplifies maintenance of DeltaV automation systems.

Technical FAQs

What types of field devices can be connected to the Emerson VE4001S2B3?

The module is typically used with digital devices such as limit switches, equipment auxiliary contacts, alarm relays, and other two-state field signals that provide ON/OFF status information.

How is a discrete input card different from an analog input card in a DeltaV system?

A discrete input card detects fixed states such as RUN/STOP or OPEN/CLOSED, while an analog input card processes continuously changing values such as pressure, temperature, or flow signals.

What should be checked when a VE4001S2B3 input channel does not display the expected status?

Engineers should verify the field device operation, wiring continuity, terminal connections, module installation, channel configuration, and DeltaV system diagnostics.

Why are DeltaV M-series discrete input cards important in process automation?

They provide the connection between field equipment conditions and control strategies, allowing the DCS to perform monitoring, alarms, permissive checks, and automated sequences.
