Product Overview

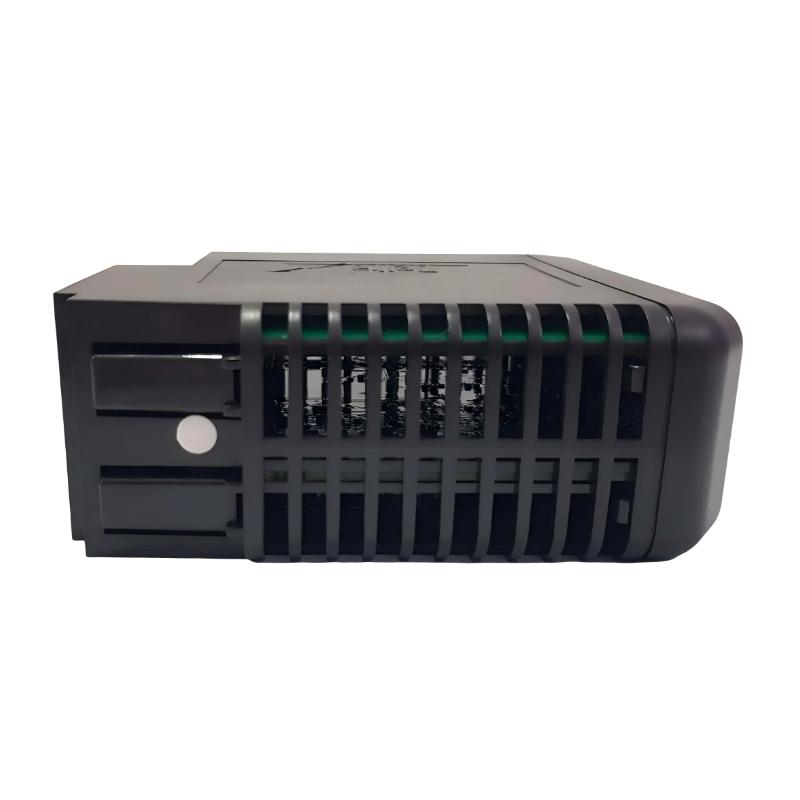

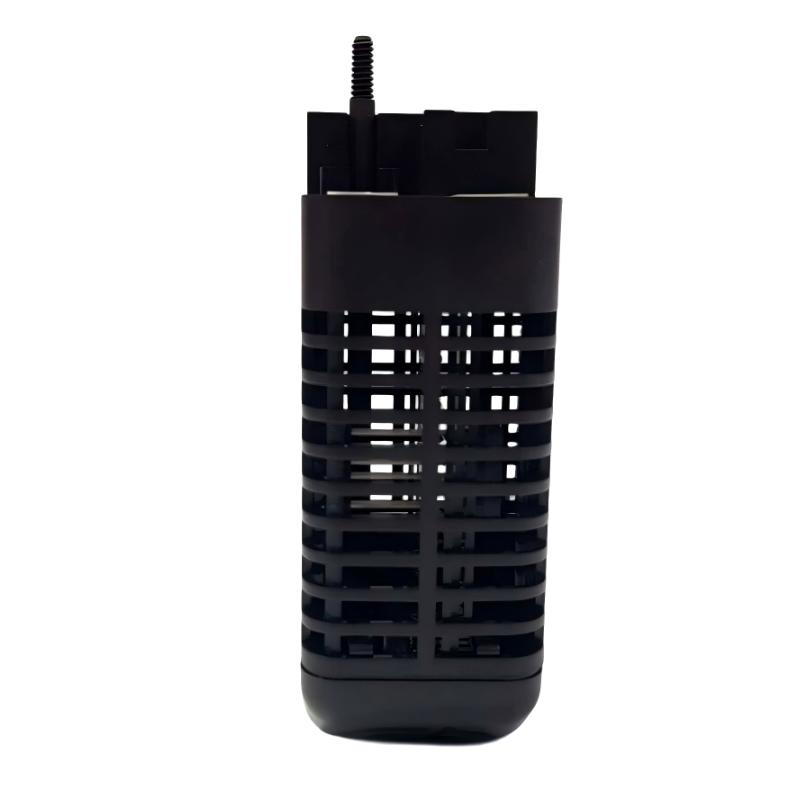

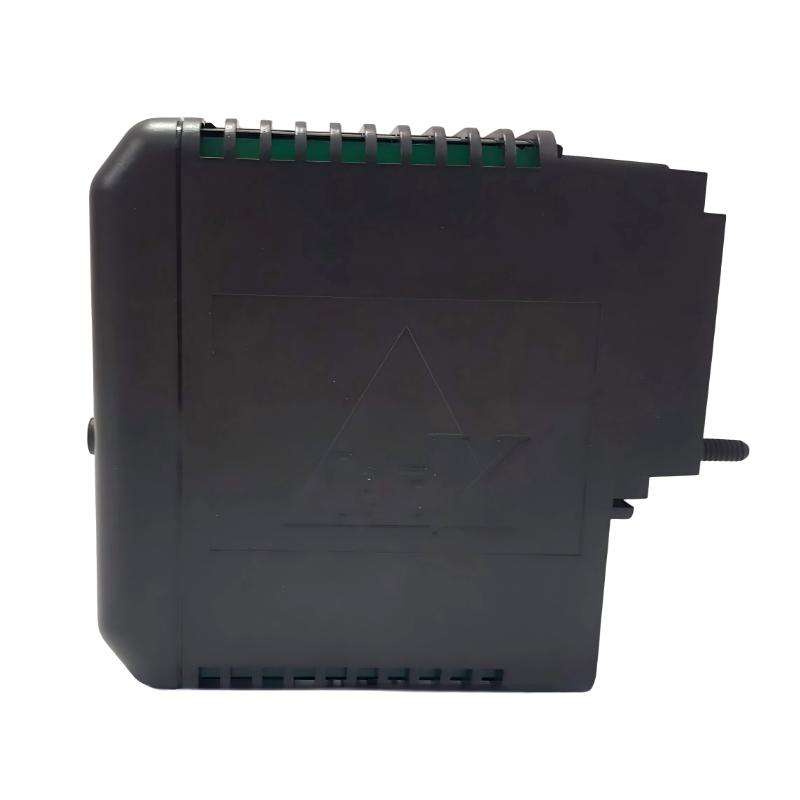

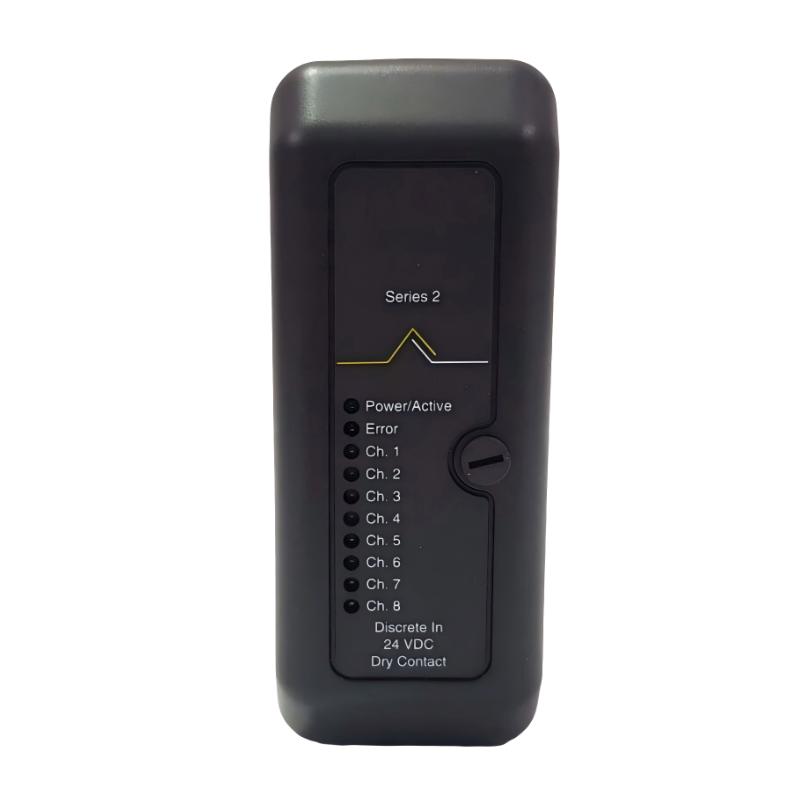

The Emerson VE4001S2 is a DeltaV M-Series Discrete Input Card used to bring on/off field signals into a DeltaV control system. It is suited to applications where the controller needs to recognize discrete conditions such as equipment running status, valve position, switch states, interlocks, or process alarms.
In a typical DeltaV installation, the card sits between field termination wiring and the controller’s I/O architecture. A field contact changes state, the input circuitry detects that transition, and the corresponding discrete status becomes available to the DeltaV control strategy for logic, sequencing, alarming, or operator display.
The card is particularly useful in process plants with a large number of binary field signals. During commissioning or troubleshooting, engineers normally work from the field device through the termination and input channel to the controller, making it possible to isolate whether a missing status originates from the field contact, wiring, termination, I/O channel, or control configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Emerson VE4001S2 |
| Product Type | DeltaV M-Series Discrete Input Card |
| Series | DeltaV M-Series |
| Signal Type | Discrete Input |
| Function | Acquisition of binary field status signals |
| Application | Process monitoring, interlocks, equipment status, and control logic |
| System Integration | DeltaV M-Series I/O architecture |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.25 kg |
Product Features
- Discrete signal acquisition for binary field conditions.
- DeltaV M-Series integration for process control and monitoring applications.
- Suitable for equipment status signals such as run, stop, open, closed, and fault indications.
- Supports control logic by making field states available to the DeltaV controller.
- Useful for interlock and sequence applications where changes in field state must be detected by the control strategy.
- Card-level replacement allows maintenance teams to address an I/O hardware issue without replacing the entire control system.
Working Principle
The VE4001S2 receives a discrete electrical state from a field device or contact circuit. The input channel interprets the incoming signal as a defined digital state and passes the channel status into the DeltaV I/O architecture.
For example, a motor auxiliary contact can indicate whether a motor contactor has operated. A valve limit switch can report an open or closed position. Once the input state reaches the control system, DeltaV logic can use it for permissives, interlocks, sequencing, alarms, or operator indication.
From a troubleshooting perspective, the input card is one point in a complete signal path. If a field indication does not change in the control system, checking the field contact, terminal wiring, channel condition, card seating, and configured I/O point in sequence is more useful than immediately replacing the card.
Role in a DeltaV M-Series Control Architecture
| System Element | Function |
|---|---|
| VE4001S2 Discrete Input Card | Acquires binary field signals and makes their states available to the DeltaV system |
| Field Contacts and Switches | Generate discrete equipment or process status signals |
| Terminal/Termination Assembly | Provides the field-side connection and signal routing |
| DeltaV Controller | Executes control logic using the acquired input states |
| DeltaV I/O Architecture | Handles signal acquisition and communication between field I/O and the controller |
| Control Network | Carries control-system data between controllers and other DeltaV nodes |
| Engineering Workstation | Provides I/O configuration, diagnostics, and system engineering |
| Operator Workstation | Displays equipment states, alarms, and process information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Motor Control | Motor running, stopped, trip, or auxiliary contact feedback |
| Valve Monitoring | Open/closed limit switch feedback |
| Pump Systems | Pump running, fault, or permissive status |
| Process Interlocks | Binary conditions used to permit or inhibit equipment operation |
| Alarm Monitoring | Detection of discrete process or equipment alarm contacts |
| Chemical Processing | Monitoring switches, equipment states, and sequence conditions |
| Oil and Gas | Acquisition of field equipment status in process control systems |
| Utilities | Discrete status monitoring for pumps, fans, breakers, and auxiliary equipment |
Installation and Maintenance
- Verify the card model before installation and confirm that the VE4001S2 matches the required DeltaV M-Series I/O configuration.
- Review the I/O configuration before replacement so the physical channel arrangement corresponds to the configured control-system points.
- Isolate the relevant field circuit according to the plant’s maintenance and electrical safety procedures before disconnecting wiring.
- Inspect the card and connectors for physical damage, contamination, bent contacts, or signs of overheating.
- Check field wiring because loose terminals, broken conductors, or incorrect contact wiring can produce symptoms that resemble an I/O card failure.
- Confirm signal polarity and circuit arrangement against the approved plant wiring documentation before reconnecting the field circuit.
- Install the card correctly and ensure that it is fully seated in the intended DeltaV M-Series position.
- Check channel assignment after replacement to ensure the field signal is associated with the correct control-system point.
- Test representative inputs by changing the associated field condition and confirming that the corresponding DeltaV status changes as expected.
- Check alarms and interlocks after commissioning because a discrete input may be used by multiple control strategies or permissive conditions.
- Review controller and I/O diagnostics if a channel remains incorrect after wiring and field-device checks have been completed.
- Record the replacement and test results as part of the plant maintenance history, particularly for inputs associated with critical equipment or interlocks.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV M-Series Controllers | Process input processing and execution of control logic |
| DeltaV M-Series I/O Hardware | Provides the system-level interface between field signals and controllers |
| Field Termination Components | Connect and route discrete field circuits to the I/O system |
| Motor Auxiliary Contacts | Provide motor operating and equipment-status feedback |
| Valve Limit Switches | Report valve open or closed conditions |
| Pump and Fan Status Contacts | Provide equipment running or fault indications |
| DeltaV Control Network | Transfers control and status information within the DeltaV architecture |
| DeltaV Engineering Workstations | Support I/O configuration and diagnostics |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE4001S2 | DeltaV M-Series Discrete Input Card | Binary field signal acquisition |
| Emerson VE4003S4 | DeltaV M-Series I/O Card | DeltaV process I/O applications |
| Emerson VE4003S4B1 | DeltaV M-Series I/O Card | M-Series field signal interfacing |
| Emerson VE4003S5 | DeltaV M-Series I/O Card | Process control I/O applications |
| Emerson VE4003S6 | DeltaV M-Series I/O Card | M-Series process I/O architecture |
| Emerson VE4003S6B1 | DeltaV M-Series I/O Card | DeltaV M-Series field I/O applications |
Key Advantages
- Discrete field-status acquisition
- Direct integration with DeltaV M-Series architecture
- Suitable for equipment feedback and interlocks
- Supports sequence and alarm logic
- Practical card-level maintenance and replacement
Technical FAQs
What types of signals are typically connected to the VE4001S2?
The VE4001S2 is used for discrete field conditions, including equipment running status, switch positions, valve limit indications, fault contacts, and other binary process states.
How should a missing discrete input be diagnosed?
Start at the field device and work toward the control system: verify the contact or switch state, inspect the field wiring and termination, check the input channel, and then confirm the configured DeltaV point and controller diagnostics.
Can a VE4001S2 input be used in an interlock?
Yes. A discrete input can supply the binary condition required by DeltaV control logic for permissives, interlocks, sequencing, or alarm functions. The specific safety or control function depends on the plant’s configured strategy.
What should be verified after replacing the VE4001S2?
Confirm that the card is correctly seated, field wiring is restored to the intended channels, the configured I/O points correspond to the physical channels, and representative field-state changes are correctly reflected in DeltaV before returning the associated equipment to normal operation.
