Product Overview

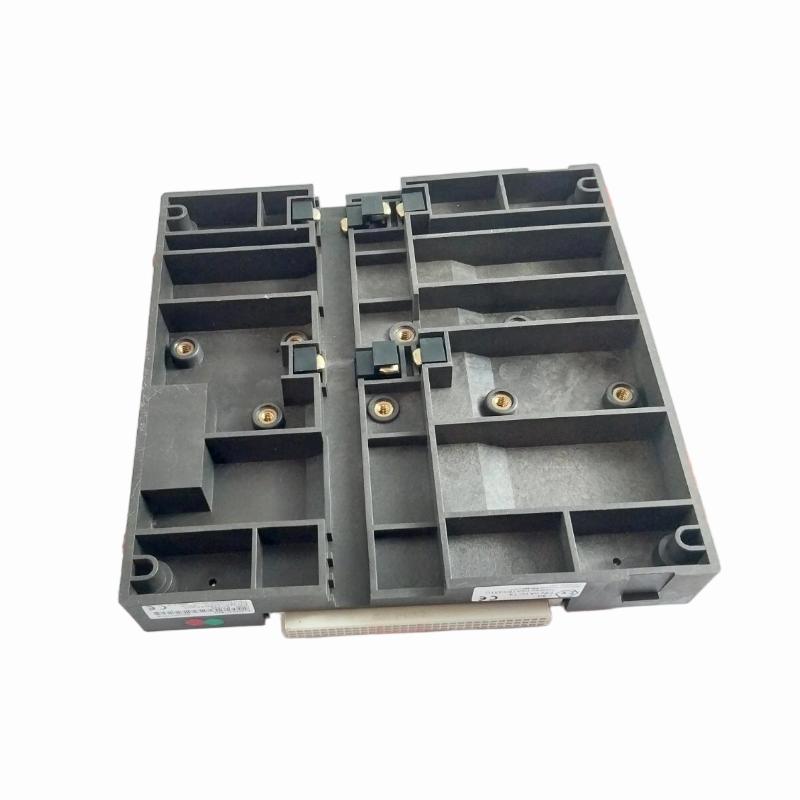

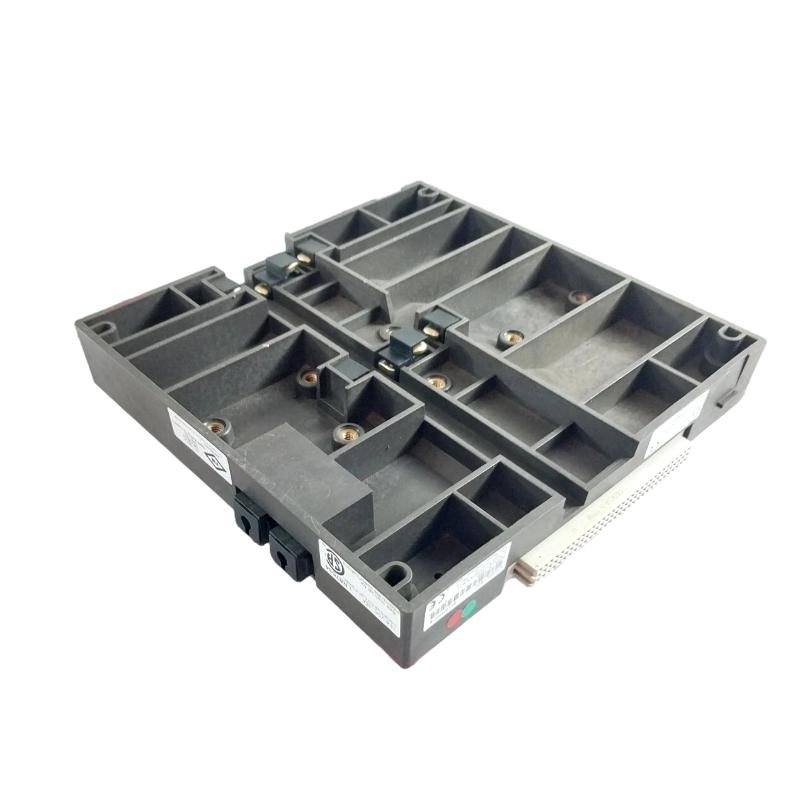

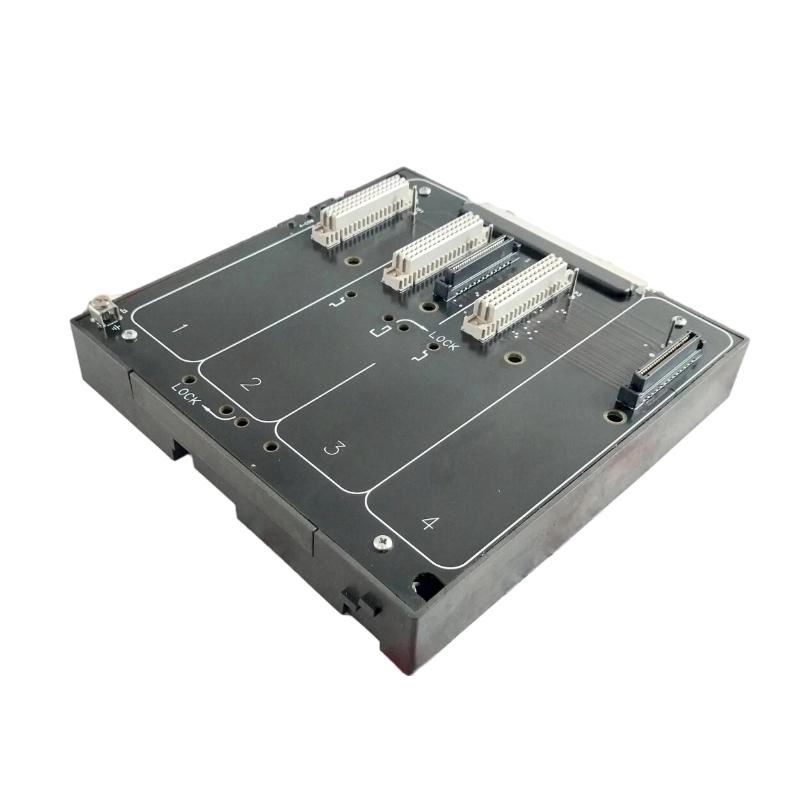

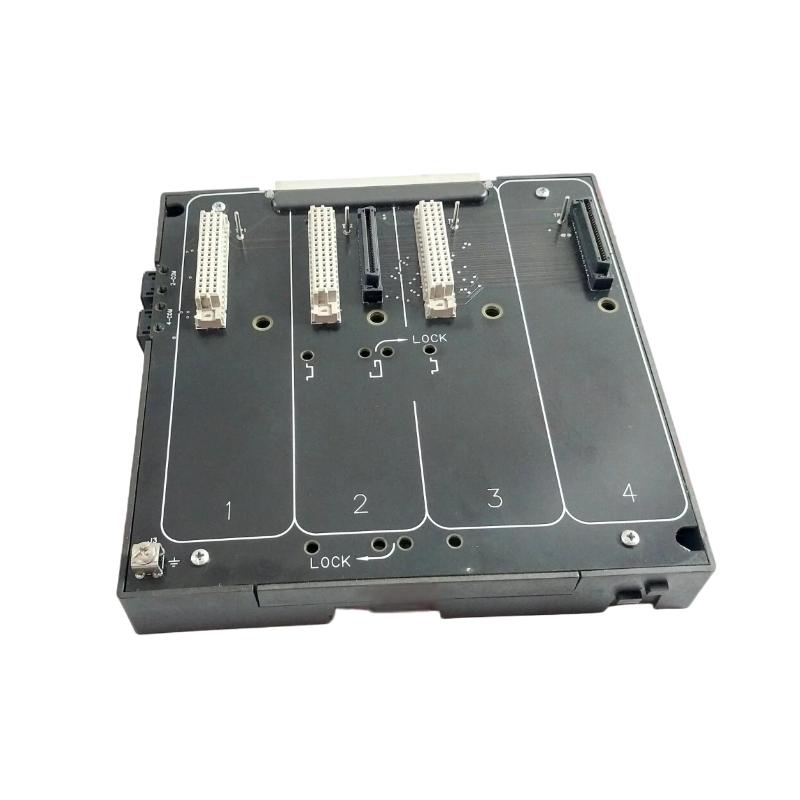

The Emerson VE3055M2 is a DeltaV M-series 4-Wide Power/Controller Carrier used to assemble the controller and power section of a DeltaV M-series control cabinet. Rather than functioning as a controller itself, the carrier forms the physical and electrical mounting platform for the associated DeltaV hardware.
The 4-wide arrangement is suited to cabinet layouts where several M-series components are grouped into a defined mounting position. In a typical process control cabinet, the VE3055M2 sits between the cabinet mounting structure and the controller/power components, keeping the assembly mechanically organized while maintaining the required interconnections.
For maintenance teams, the carrier is also a practical replacement item when the existing mounting or interconnection hardware has been damaged. Controller replacement should not automatically be treated as a carrier replacement; the two serve different functions within the M-series assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Emerson VE3055M2 |
| Product Type | DeltaV M-series 4-Wide Power/Controller Carrier |
| Series | DeltaV M-series |
| Configuration | 4-Wide |
| Function | Mechanical mounting and interconnection for power/controller components |
| Mounting | Cabinet-mounted |
| Application | DeltaV process control system assemblies |
| Dimensions | 250 × 180 × 120 mm |
| Weight | 0.59 kg |
Product Features
- 4-Wide configuration for grouped DeltaV M-series power and controller assemblies.
- Carrier-level mounting platform keeps the associated control hardware correctly positioned.
- Electrical and mechanical interconnection support integrates the mounted components into the M-series assembly.
- Cabinet-oriented construction fits centralized DeltaV control cabinet installations.
- Separate from controller functionality; the carrier does not execute control logic or replace the controller module.
- Suitable for system maintenance where the existing carrier requires replacement without changing the complete control architecture.
Working Principle
The VE3055M2 operates at the carrier level of a DeltaV M-series installation. The controller and power components are positioned on the carrier, while the carrier establishes their required physical arrangement and associated interconnection points.
During normal operation, control processing remains within the DeltaV controller and power is supplied through the appropriate power hardware. The VE3055M2 itself does not run application logic. Its function is to keep the assembled hardware in the correct configuration so that controller, power, and adjacent system components can operate as an integrated M-series assembly.
When troubleshooting a cabinet, this distinction is useful. A controller communication or execution fault should be investigated at the controller, network, power, and configuration levels before assuming that the carrier is responsible. A damaged mounting interface, poor seating, or carrier-related interconnection issue can instead affect the physical integrity of the complete assembly.
Role in a DeltaV M-series Control Architecture
| System Element | Function |
|---|---|
| VE3055M2 Carrier | Provides the 4-wide mounting and interconnection structure for the power/controller assembly |
| DeltaV Controller | Executes control strategies, logic, and system functions |
| DeltaV Power Components | Supply the required power to the control hardware |
| DeltaV I/O | Exchanges process signals with field instruments and actuators |
| DeltaV Control Network | Connects controllers and associated system nodes |
| Engineering Workstation | Used for system configuration, engineering, and diagnostics |
| Operator Workstation | Provides process monitoring and operator interaction |
| Field Devices | Supply measurements and receive control outputs |
Industrial Applications
| Application | Typical Use |
|---|---|
| Oil and Gas | DeltaV control cabinets for production and processing equipment |
| Chemical Processing | Controller and power assemblies for continuous process control |
| Power and Utilities | Centralized control hardware for utility and plant systems |
| Water and Wastewater | Process automation cabinets using DeltaV control architecture |
| Pharmaceutical Manufacturing | Controlled process automation and batch production systems |
| Food and Beverage Processing | Process control cabinets for production and utility systems |
| General Process Automation | M-series controller/power cabinet assemblies in distributed control installations |
Installation and Maintenance
- Verify the carrier model before installation and confirm that the VE3055M2 matches the intended DeltaV M-series cabinet configuration.
- Check cabinet clearance around the carrier so that the complete 4-wide assembly can be installed without interference from adjacent equipment.
- Inspect the mounting surface for deformation, contamination, or damaged fixing points before securing the carrier.
- Confirm component orientation before installing the controller and power hardware onto the carrier.
- Inspect mechanical interfaces for bent contacts, damaged guides, loose hardware, or foreign material.
- Seat mounted components carefully and verify that each module is properly positioned before applying power.
- Check power connections after installation, particularly when the carrier is being replaced as part of cabinet maintenance.
- Verify adjacent hardware because a carrier replacement can disturb nearby controller, power, I/O, or communication connections.
- Inspect network connections if the cabinet experiences controller communication problems after maintenance.
- Record the original configuration before removing an existing carrier so that the replacement assembly can be restored consistently.
- Check for intermittent faults after replacement by monitoring controller status, communication status, and system diagnostics during operation.
- Keep the carrier and surrounding interfaces clean during scheduled maintenance to reduce the possibility of poor mechanical seating or connection problems.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV M-series Controllers | Provide process control execution within the carrier assembly |
| DeltaV M-series Power Components | Supply power to the controller and associated hardware |
| DeltaV M-series I/O Components | Interface process signals with the control system |
| DeltaV Control Network Components | Support communication between controllers and system nodes |
| DeltaV Engineering Workstations | Provide configuration and system engineering functions |
| DeltaV Operator Workstations | Provide process monitoring and operator control |
| Cabinet Mounting Hardware | Secures the carrier and associated DeltaV equipment within the control cabinet |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE3055M1 | DeltaV M-series 4-Wide Power/Controller Carrier | 4-wide M-series controller and power assemblies |
| Emerson VE3051C1 | DeltaV M-series 2-Wide Power/Controller Carrier | Compact controller/power cabinet configurations |
| Emerson VE3051C0 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller and power mounting |
| Emerson VE3006 | DeltaV M-series MD Plus Controller | Control execution within M-series architectures |
| Emerson VE3007 | DeltaV M-series MX Controller | M-series process control applications |
| Emerson VE3008 | DeltaV M-series MQ Controller | M-series control applications requiring the corresponding controller configuration |
Key Advantages
- 4-wide M-series cabinet configuration
- Dedicated controller/power mounting structure
- Supports organized cabinet assembly
- Maintains the intended hardware arrangement
- Suitable for carrier-level replacement and maintenance
Technical FAQs
What is the main function of the Emerson VE3055M2?
The VE3055M2 is a 4-wide DeltaV M-series Power/Controller Carrier. It provides the physical mounting and associated interconnection structure for the controller and power section rather than executing DeltaV control logic itself.
Can the VE3055M2 be used as a standalone DeltaV controller?
No. The VE3055M2 is a carrier, not a controller. A compatible DeltaV controller and the required power and system components must be installed as part of the complete M-series architecture.
What should be checked when replacing a VE3055M2?
Confirm the carrier configuration, cabinet mounting arrangement, controller and power-component compatibility, mechanical seating, and all disturbed electrical or communication connections. The original assembly arrangement should be documented before removal.
What symptoms may indicate a carrier or interconnection problem?
Possible indications include physical looseness, poor component seating, intermittent connections, or system faults that appear after cabinet maintenance. Controller and network diagnostics should be checked together with the carrier’s mechanical and electrical interfaces rather than treating every control fault as a carrier failure.
