Product Overview

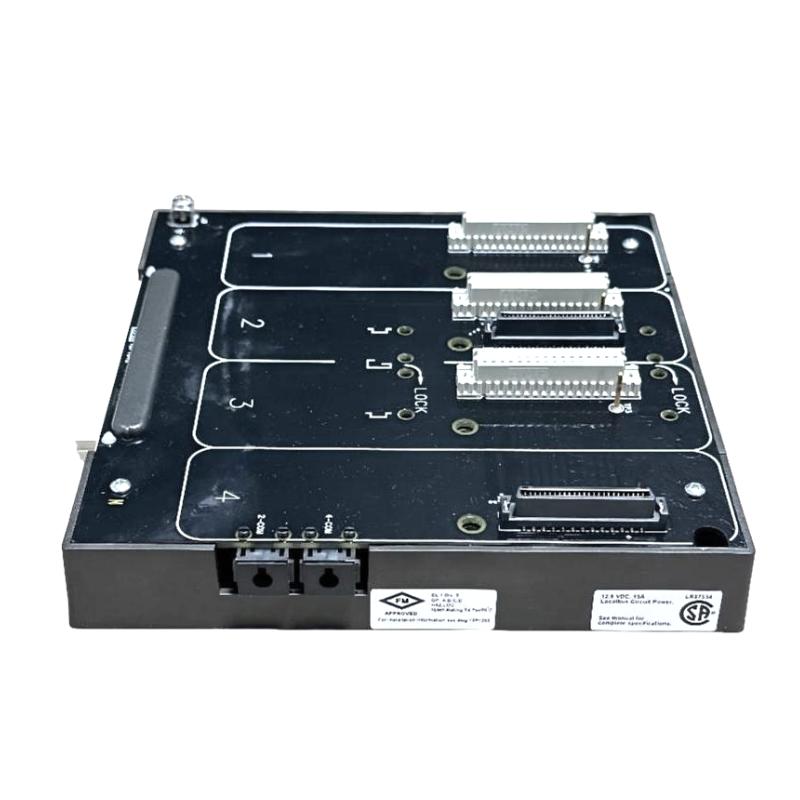

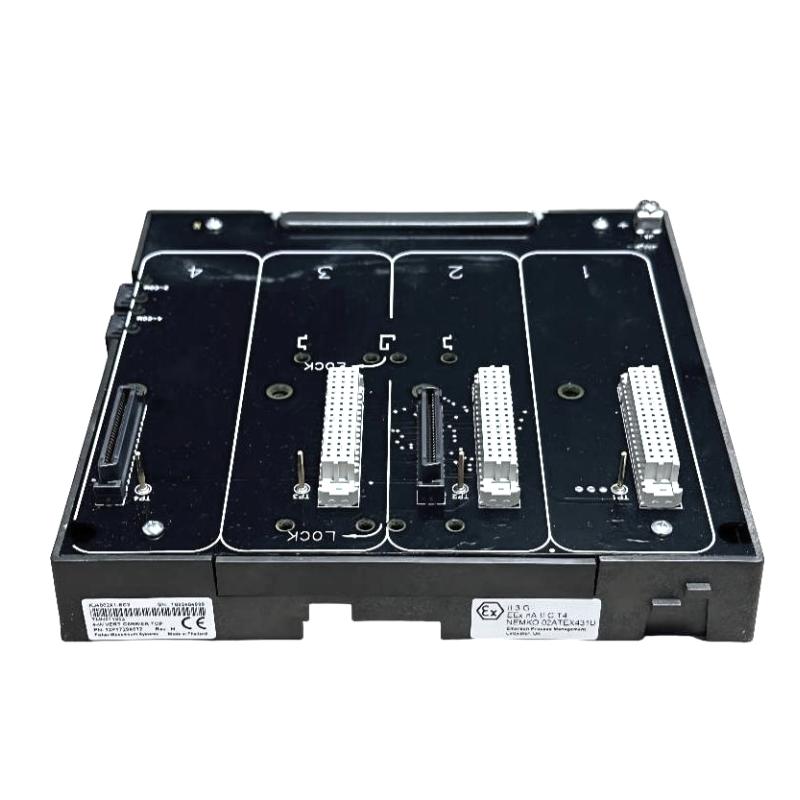

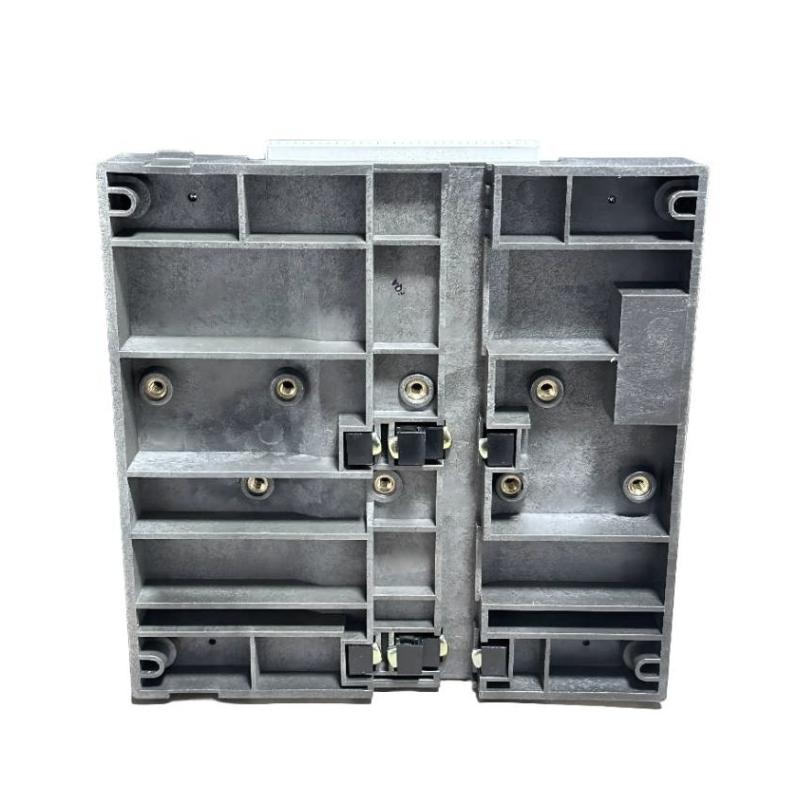

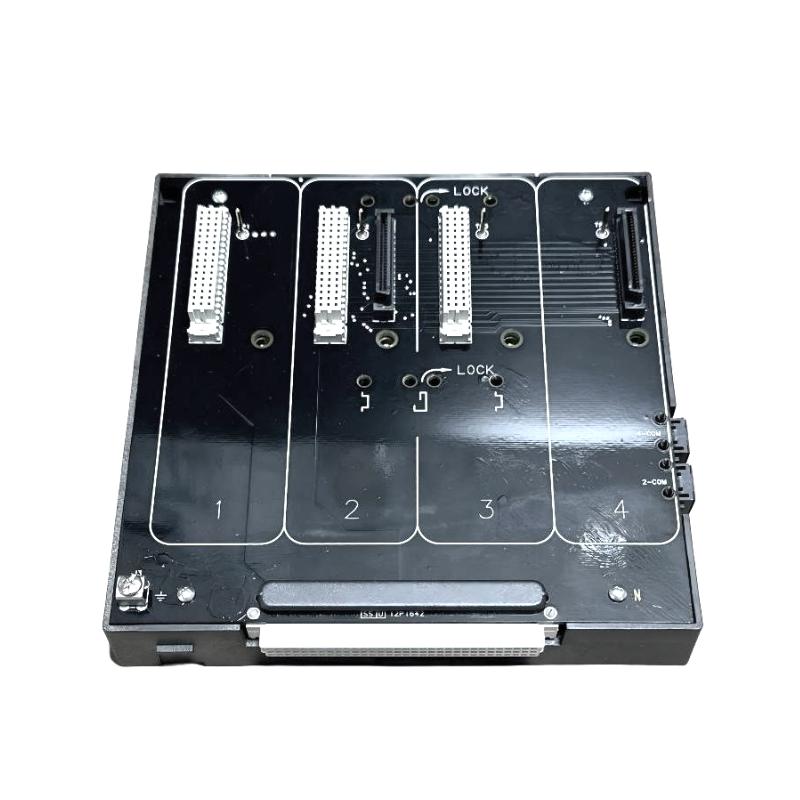

The Emerson VE3055M1 DeltaV M-series 4-Wide Power/Controller Carrier is a hardware carrier used to arrange compatible DeltaV M-series controller and power components within a control cabinet. Its 4-wide configuration provides a larger mounting arrangement than the 2-wide carrier format, allowing the associated M-series hardware to be organized within a defined carrier assembly.
The carrier provides the mechanical support and electrical interconnection required by the installed modules. It does not independently execute DeltaV control logic or function as a standalone power supply. Those functions remain with the compatible controller and power components installed in the carrier assembly.
For cabinet replacement or system expansion, the VE3055M1 should be considered together with the installed controller, power hardware, adjacent carriers, and the overall DeltaV M-series layout.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE3055M1 |
| Product Family | DeltaV M-series |
| Product Type | 4-Wide Power/Controller Carrier |
| Carrier Format | 4-Wide |
| Application | DeltaV M-series controller and power hardware installation |
| Installation Role | Mechanical mounting and electrical interconnection |
| Dimensions | 250 × 180 × 120 mm |
| Weight | 0.59 kg |
Product Features
- 4-wide carrier format for DeltaV M-series hardware
- Provides mounting support for compatible controller and power components
- Maintains electrical interconnection between installed M-series modules
- Supports organized control cabinet layouts
- Suitable for controller and power assembly installation
- Useful for maintenance, replacement, and hardware configuration work
Working Principle
The VE3055M1 acts as the carrier structure for an M-series hardware assembly. Compatible controller and power modules are installed within the carrier arrangement, while the carrier maintains their physical positioning and electrical connections.
The controller performs the actual control processing and application logic. Associated power components provide the operating power required by the hardware. The carrier forms the physical and electrical framework that connects these components as part of the DeltaV control system.
When troubleshooting a controller assembly, the carrier should be treated as one part of the overall connection path. A controller startup or communication problem can also originate from power hardware, module seating, connectors, network infrastructure, or controller configuration.
Role in a DeltaV M-series Control Architecture
| System Element | Function |
|---|---|
| Field Devices | Provide process measurements and receive control outputs |
| DeltaV I/O System | Interfaces field signals with the control system |
| M-series Controller | Executes control logic and process control functions |
| VE3055M1 Carrier | Provides mechanical mounting and electrical interconnection for compatible controller and power modules |
| Power Components | Supply operating power to the installed control hardware |
| DeltaV Network | Connects controllers, I/O, operator stations, and other system components |
| Operator Station | Provides process visualization, alarms, diagnostics, and operator commands |
The VE3055M1 belongs to the hardware assembly layer of the DeltaV M-series architecture. Its 4-wide arrangement provides the physical structure for the associated controller and power hardware.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Installation of DeltaV M-series controller and power assemblies |
| Oil and Gas | Control cabinet hardware for continuous process applications |
| Chemical Processing | Organized M-series controller installations |
| Power and Utilities | Distributed control hardware arrangements |
| Pharmaceutical Manufacturing | DeltaV control cabinet integration |
| General Process Automation | Carrier replacement, cabinet maintenance, and hardware expansion |
Installation and Maintenance
- Verify the carrier model — Confirm that VE3055M1 matches the required 4-wide M-series carrier configuration.
- Check module compatibility — Verify the controller, power components, and other hardware intended for installation within the carrier arrangement.
- Inspect the carrier — Examine the carrier structure, mounting points, connectors, and contact surfaces for damage or contamination.
- Isolate system power — Follow the approved plant shutdown and electrical isolation procedure before installation or replacement.
- Confirm cabinet positioning — Verify the carrier location and ensure adequate clearance around adjacent DeltaV hardware.
- Secure the carrier — Install and tighten the mounting hardware correctly to prevent mechanical movement during operation.
- Check module seating — Confirm that the controller and power components are correctly positioned and fully engaged with their connections.
- Inspect electrical contacts — Look for bent contacts, oxidation, contamination, or other conditions that could affect electrical continuity.
- Check adjacent hardware — Inspect neighboring carriers, modules, connectors, and power components when troubleshooting system faults.
- Verify power distribution — Confirm that the associated power components provide the required operating power to the installed hardware.
- Review DeltaV diagnostics — After installation, verify controller status, hardware recognition, and communication diagnostics.
- Document the maintenance work — Record the carrier model, installation position, associated modules, and maintenance findings.
Related Components
| Component | Function |
|---|---|
| DeltaV M-series Controller | Executes control logic and process control functions |
| DeltaV M-series Power Components | Supply operating power to the control assembly |
| DeltaV I/O Modules | Interface process signals with the DeltaV system |
| M-series Carrier Components | Provide mounting and electrical interconnection for compatible hardware |
| DeltaV Controller Network | Provides communication between controllers and system-level components |
| DeltaV Engineering Station | Supports system configuration, engineering, and diagnostics |
| DeltaV Operator Station | Provides process monitoring, alarms, and operator interaction |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE3051C1 | DeltaV M-series 2-Wide Power/Controller Carrier | Compact M-series controller and power hardware installation |
| Emerson VE3051C2 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller assembly applications |
| Emerson VE3051C3 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller and power hardware mounting |
| Emerson VE3051C4 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series control cabinet assemblies |
| Emerson VE3051C5 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series carrier replacement and maintenance |
| Emerson VE3006 | DeltaV M-series MD Plus Controller | Controller processing and distributed control |
| Emerson VE3007 | DeltaV M-series MX Controller | M-series process control applications |
Key Advantages
- 4-wide format for larger M-series hardware arrangements
- Provides structured mounting for controller and power components
- Maintains the required electrical interconnection
- Supports organized DeltaV control cabinet layouts
- Suitable for maintenance and carrier replacement work
Technical FAQs
What is the function of the Emerson VE3055M1?
The VE3055M1 is a DeltaV M-series 4-wide Power/Controller Carrier. It provides the mechanical mounting and electrical interconnection structure for compatible controller and power hardware.
How does a 4-wide carrier differ from a 2-wide carrier?
The primary distinction is the carrier configuration and available mounting arrangement. A 4-wide carrier is intended for an M-series hardware assembly requiring the corresponding wider carrier format. The correct carrier should be selected according to the installed hardware configuration.
Can the VE3055M1 execute DeltaV control logic?
No. The VE3055M1 is a carrier component. Control processing is performed by the compatible controller installed within the M-series assembly.
What should be checked when replacing a VE3055M1?
Verify the carrier model, controller and power hardware, mounting arrangement, electrical connections, adjacent modules, and DeltaV system configuration. The replacement should match the complete M-series hardware architecture rather than being selected only by physical size.
