Product Overview

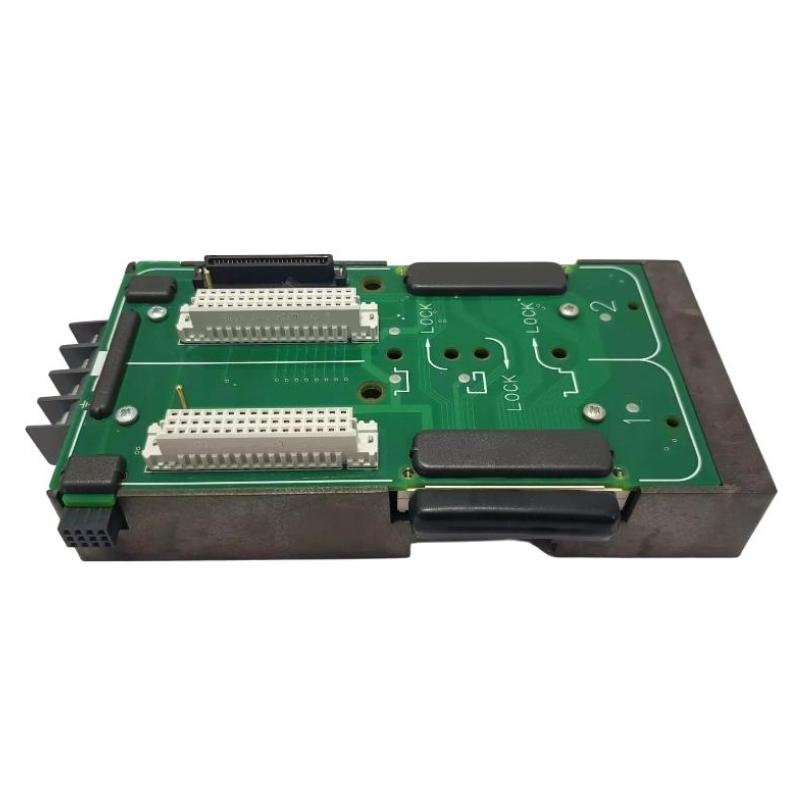

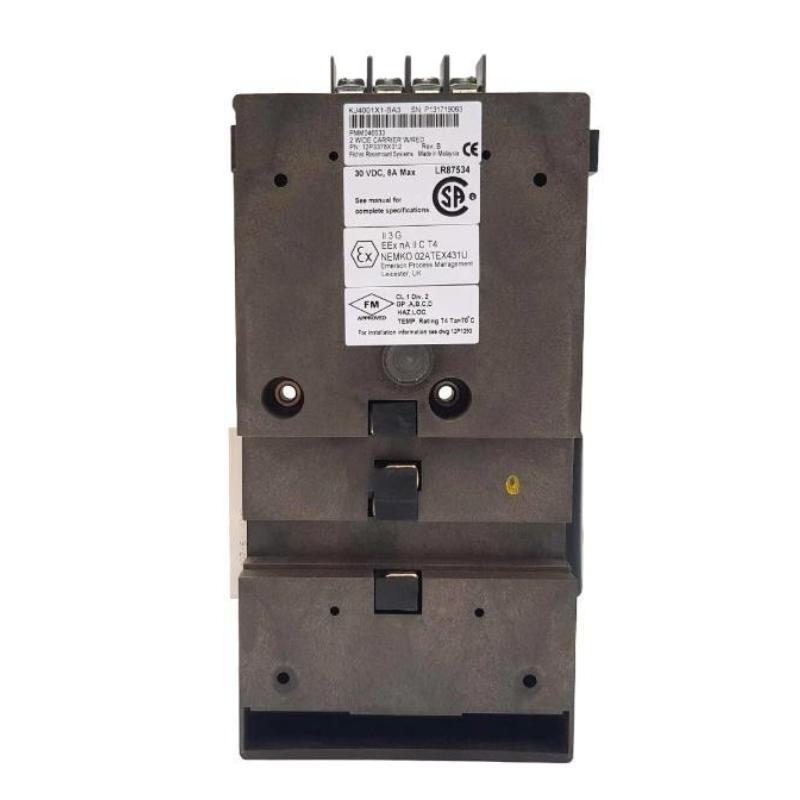

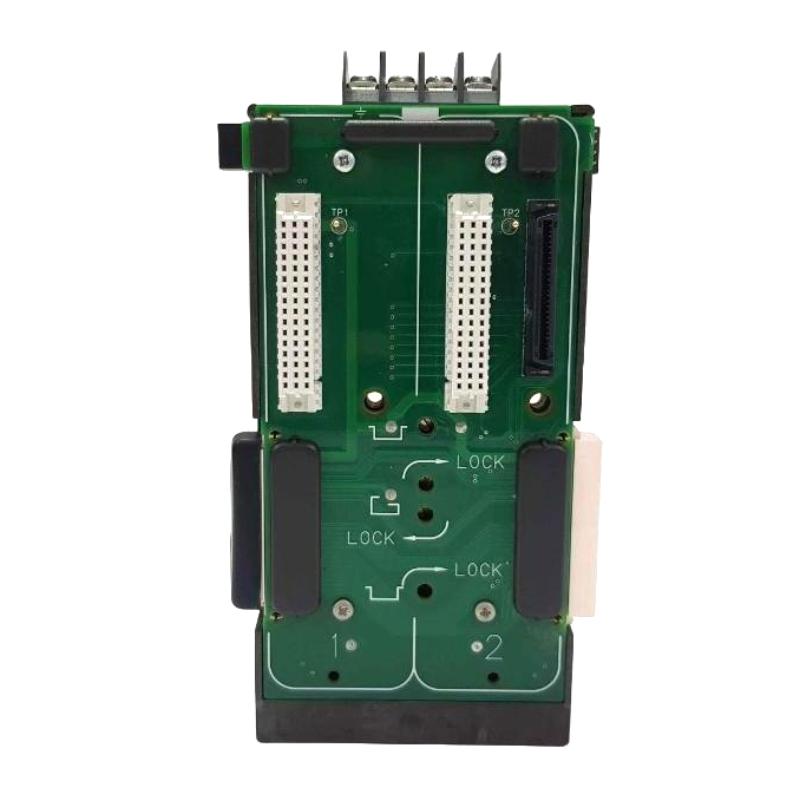

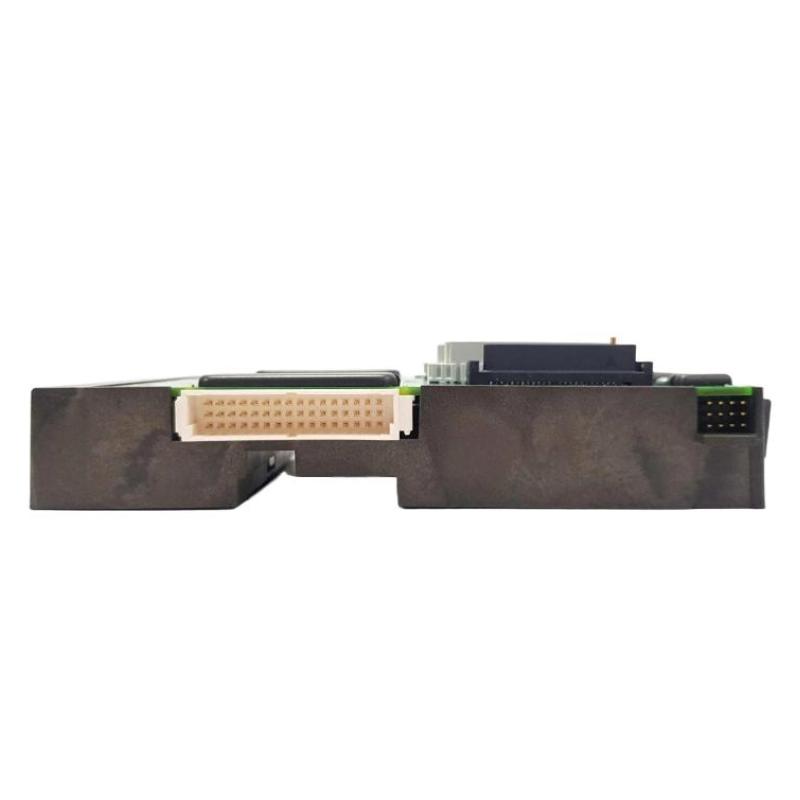

The Emerson VE3051C5 DeltaV M-series 2-Wide Power/Controller Carrier is a hardware carrier used in DeltaV M-series controller assemblies. It provides the mechanical mounting structure and electrical interconnection required for compatible controller and power components.
The 2-wide carrier format supports organized installation of M-series hardware within a DeltaV control cabinet. The VE3051C5 itself does not perform controller processing or independently supply system power. Its purpose is to provide the physical and electrical framework for the modules installed as part of the M-series assembly.
When replacing an existing carrier, the complete hardware configuration should be considered. The installed controller, power components, adjacent carriers, connectors, and cabinet arrangement all affect compatibility and installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE3051C5 |
| Product Family | DeltaV M-series |
| Product Type | 2-Wide Power/Controller Carrier |
| Carrier Format | 2-Wide |
| Application | DeltaV M-series controller and power hardware installation |
| Installation Role | Mechanical mounting and electrical interconnection |
| Dimensions | 178.6 × 28.1 × 227.8 mm |
| Weight | 1.3 kg |
Product Features
- 2-wide carrier format for DeltaV M-series hardware
- Provides mechanical support for compatible controller and power components
- Maintains the electrical interconnection between installed modules
- Supports structured M-series cabinet layouts
- Suitable for replacement and maintenance applications
- Integrates into existing DeltaV M-series control architectures
Working Principle
The VE3051C5 functions as the carrier layer within an M-series hardware assembly. Compatible controller and power modules are installed on the carrier, which maintains their physical position and provides the required electrical connection between the modules and the surrounding system.
The installed controller performs control processing, while associated power hardware provides the required operating power. The carrier does not independently execute application logic; instead, it supports the hardware arrangement that allows these components to operate as an integrated DeltaV assembly.
If a controller mounted on the carrier develops a communication or startup problem, troubleshooting should cover the entire connection path. Power availability, module seating, connector condition, carrier contacts, controller status, and network connections should be checked before determining that the carrier is the source of the fault.
Role in a DeltaV M-series Control Architecture
| System Element | Function |
|---|---|
| Field Devices | Provide process measurements and receive control outputs |
| DeltaV I/O System | Interfaces field signals with the control system |
| M-series Controller | Executes control logic and process control functions |
| VE3051C5 Carrier | Provides mechanical mounting and electrical interconnection for compatible controller and power modules |
| Power Components | Supply operating power to the installed control hardware |
| DeltaV Network | Connects controllers, I/O, operator stations, and other system components |
| Operator Station | Provides process visualization, alarms, diagnostics, and operator commands |
The VE3051C5 belongs to the physical hardware layer of the DeltaV M-series architecture. It supports the controller and power assembly without taking over their individual functions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Installation of DeltaV M-series controller assemblies in process control cabinets |
| Oil and Gas | Controller and power hardware integration for continuous process applications |
| Chemical Processing | Structured M-series hardware installation |
| Power and Utilities | Distributed control cabinet hardware arrangements |
| Pharmaceutical Manufacturing | DeltaV control hardware integration |
| General Process Automation | Replacement and maintenance of M-series carrier assemblies |
Installation and Maintenance
- Verify the carrier model — Confirm that VE3051C5 is the correct carrier for the existing DeltaV M-series hardware arrangement.
- Check module compatibility — Verify the controller, power components, and associated modules before installation.
- Inspect the carrier — Examine the housing, mounting points, connectors, and contact surfaces for physical damage or contamination.
- Isolate system power — Follow the approved shutdown and electrical isolation procedure before removing or installing the carrier.
- Confirm cabinet position — Verify that the carrier is installed in the correct location and that adjacent equipment has adequate clearance.
- Secure the carrier — Ensure that all mounting hardware is correctly installed and tightened to prevent movement.
- Check module seating — Confirm that controller and power modules are correctly aligned and fully seated.
- Inspect electrical contacts — Check for bent contacts, oxidation, contamination, or other conditions that could affect continuity.
- Check adjacent hardware — Inspect neighboring carriers, modules, connectors, and power components when investigating system faults.
- Verify power distribution — Confirm that the associated power hardware is supplying the required operating power.
- Review DeltaV diagnostics — After installation, verify controller status, hardware recognition, and communication diagnostics.
- Document the maintenance work — Record the replacement carrier, associated modules, installation location, and observed fault conditions.
Related Components
| Component | Function |
|---|---|
| DeltaV M-series Controller | Executes control logic and process control functions |
| DeltaV M-series Power Components | Supply operating power to the controller assembly |
| DeltaV I/O Modules | Interface process signals with the control system |
| M-series Carrier Components | Provide mounting and electrical interconnection for compatible hardware |
| DeltaV Controller Network | Provides communication between controllers and system-level components |
| DeltaV Engineering Station | Supports system configuration, engineering, and diagnostics |
| DeltaV Operator Station | Provides process monitoring, alarms, and operator interaction |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE3051C1 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller and power hardware installation |
| Emerson VE3051C2 | DeltaV M-series 2-Wide Power/Controller Carrier | Compatible M-series carrier applications |
| Emerson VE3051C3 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller assembly installation |
| Emerson VE3051C4 | DeltaV M-series 2-Wide Power/Controller Carrier | M-series controller and power hardware mounting |
| Emerson VE3006 | DeltaV M-series MD Plus Controller | Controller processing and distributed control |
| Emerson VE3007 | DeltaV M-series MX Controller | M-series process control applications |
Key Advantages
- 2-wide format for DeltaV M-series assemblies
- Provides structured mounting for controller and power hardware
- Maintains electrical interconnection between installed modules
- Suitable for carrier replacement and cabinet maintenance
- Supports established DeltaV M-series control architectures
Technical FAQs
What is the primary function of the Emerson VE3051C5?
The VE3051C5 is a DeltaV M-series 2-wide Power/Controller Carrier. It provides the mechanical mounting and electrical interconnection structure for compatible controller and power hardware.
Is the VE3051C5 itself a controller or power supply?
No. The VE3051C5 is a carrier component. The controller and power functions are provided by the compatible modules installed within the M-series assembly.
What should be checked if a controller installed on the VE3051C5 does not communicate?
Check the controller status, power supply, module seating, carrier contacts, connectors, adjacent hardware, and DeltaV network connections. These checks help distinguish a carrier connection problem from a controller, power, or communication fault.
What should be verified before replacing a VE3051C5?
Confirm the carrier model and the complete M-series hardware arrangement, including the controller, power components, mounting position, connectors, and adjacent modules. The replacement should match the existing system configuration.
