Product Overview

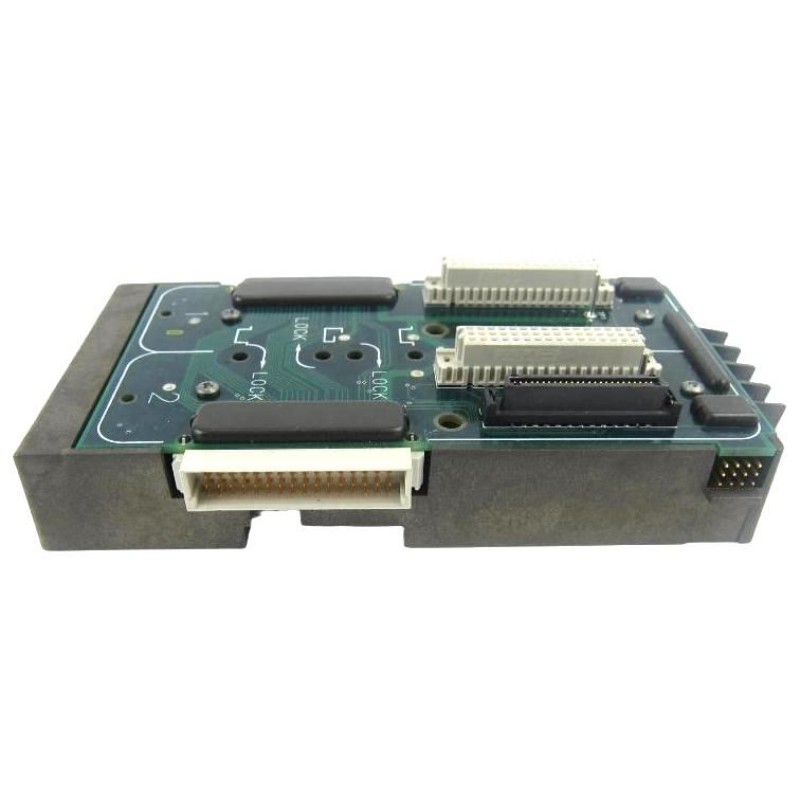

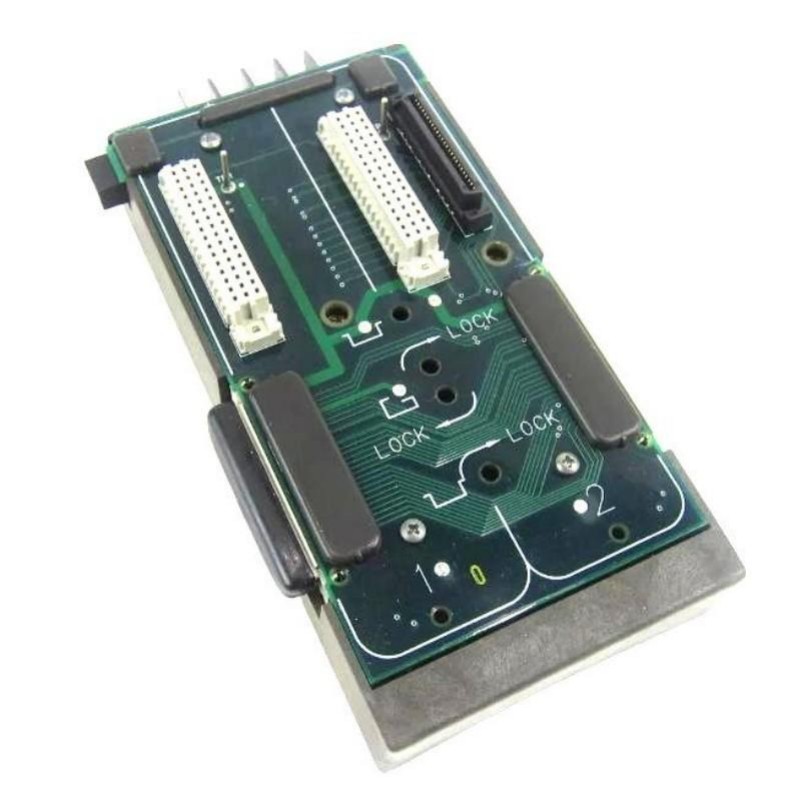

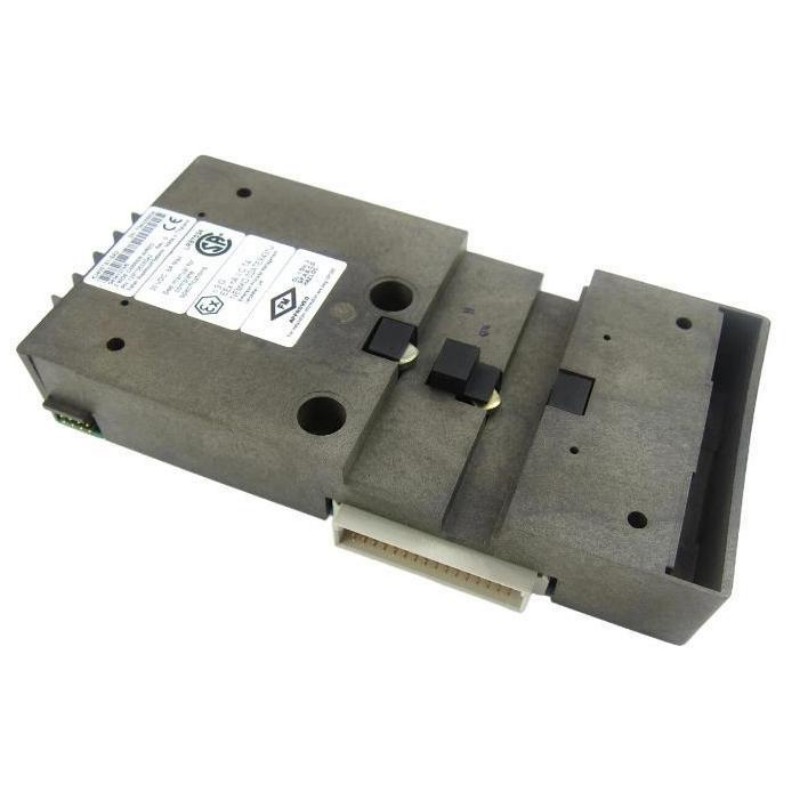

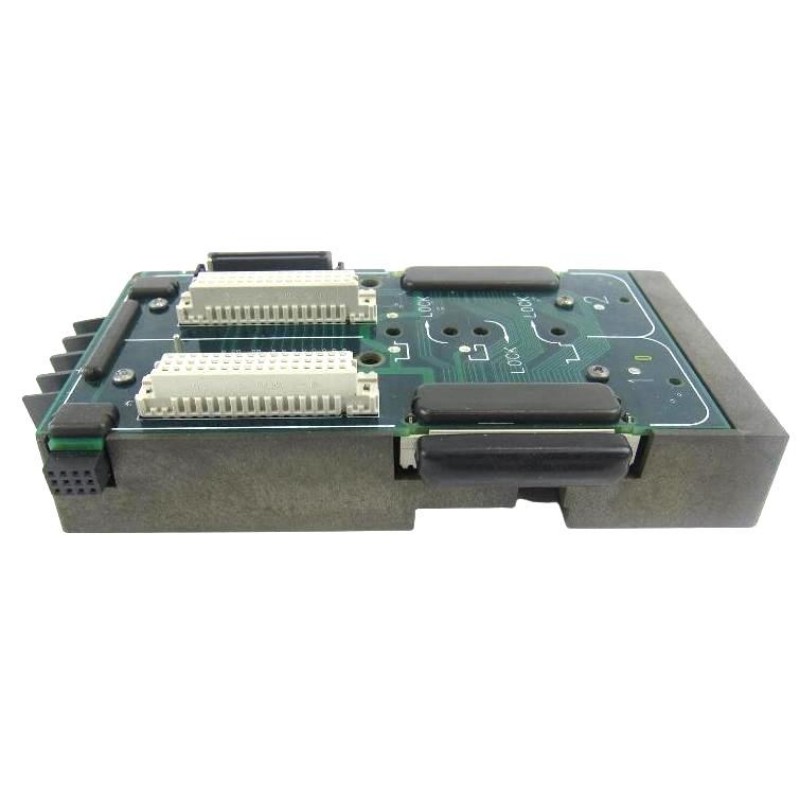

The Emerson VE3051C4 DeltaV M-series 2-Wide Power/Controller Carrier is a carrier component used to build DeltaV M-series controller and power assemblies. It provides the mechanical structure and electrical interconnection required for compatible M-series hardware.

Its 2-wide arrangement allows the associated controller and power components to be organized within the DeltaV control cabinet architecture. The carrier itself does not execute control logic. Instead, it establishes the physical connection framework through which the installed modules interface with the rest of the control system.

In an existing DeltaV installation, the VE3051C4 should be treated as part of the complete hardware assembly. Controller compatibility, power arrangement, neighboring modules, mounting configuration, and connector condition should all be considered when selecting a replacement.

Technical Specifications

Product Features

• 2-wide carrier format for DeltaV M-series hardware
• Provides mechanical support for compatible power and controller components
• Establishes the required electrical interconnection within the assembly
• Suitable for structured control cabinet installations
• Supports replacement and maintenance of existing DeltaV hardware
• Integrates with the broader M-series control architecture

Working Principle

The VE3051C4 operates as a hardware carrier rather than an independent controller or power supply. Compatible M-series modules are mounted to the carrier, while the carrier maintains their physical position and electrical connection.

The controller installed within the assembly handles application processing and control logic. Associated power hardware supplies the required operating power. The carrier provides the connection framework that allows these components to function together as part of the DeltaV control architecture.

During troubleshooting, a failure involving a controller mounted on the carrier should be investigated across several points. Power availability, module seating, connector condition, carrier contacts, controller status, and network communication should be checked separately before replacing the carrier.

Role in a DeltaV M-series Control Architecture

The VE3051C4 occupies the hardware assembly layer between the installed M-series modules and the surrounding DeltaV infrastructure. Its role is primarily physical and electrical rather than computational.

Industrial Applications

Installation and Maintenance

1. Verify the carrier model — Confirm that VE3051C4 matches the carrier required by the existing DeltaV M-series configuration.
2. Check module compatibility — Verify the controller, power components, and other modules intended for installation on the carrier.
3. Inspect the carrier — Examine the carrier body, mounting points, connectors, and contact surfaces for physical damage.
4. Isolate system power — Follow the approved plant shutdown and electrical isolation procedure before removing or installing the carrier.
5. Confirm mounting arrangement — Check that the carrier fits the designated cabinet location and that surrounding equipment has sufficient clearance.
6. Secure the carrier — Tighten the mounting hardware according to the applicable installation procedure to prevent movement or mechanical stress.
7. Check module seating — Make sure all installed modules are properly aligned and fully engaged with the carrier connections.
8. Inspect electrical contacts — Check connector surfaces for contamination, oxidation, bent contacts, or other visible damage.
9. Check adjacent hardware — Investigate neighboring carriers, modules, connectors, and power components when diagnosing intermittent system faults.
10. Verify power distribution — Confirm that the associated power hardware supplies the expected operating power to the installed modules.
11. Review DeltaV diagnostics — After installation, verify controller status, hardware recognition, and communication diagnostics before returning the system to service.
12. Document the maintenance work — Record the replacement model, installation location, associated modules, and observed fault conditions for future maintenance.

Related Components

Recommended Related Models

Key Advantages

• 2-wide format for DeltaV M-series assemblies
• Provides structured mounting for controller and power hardware
• Maintains the required electrical interconnection between installed modules
• Suitable for cabinet maintenance and carrier replacement
• Supports established DeltaV M-series control architectures

Technical FAQs

What is the function of the Emerson VE3051C4?

The VE3051C4 is a DeltaV M-series 2-wide Power/Controller Carrier. It provides the mechanical mounting and electrical interconnection structure for compatible controller and power hardware.

Does the VE3051C4 execute DeltaV control logic?

No. The carrier does not independently process control logic. Control functions are performed by the compatible controller installed within the M-series assembly.

What symptoms can indicate a carrier-related problem?

Possible symptoms can include intermittent module communication, abnormal controller status, or loss of electrical connection between installed hardware. These symptoms can also originate from power, controller, connector, or network faults, so the complete connection path should be checked.

What should be checked before replacing a VE3051C4?

Confirm the existing carrier model, controller and power hardware, physical mounting arrangement, connector condition, and surrounding M-series components. The replacement should match the complete system configuration.
