Product Overview

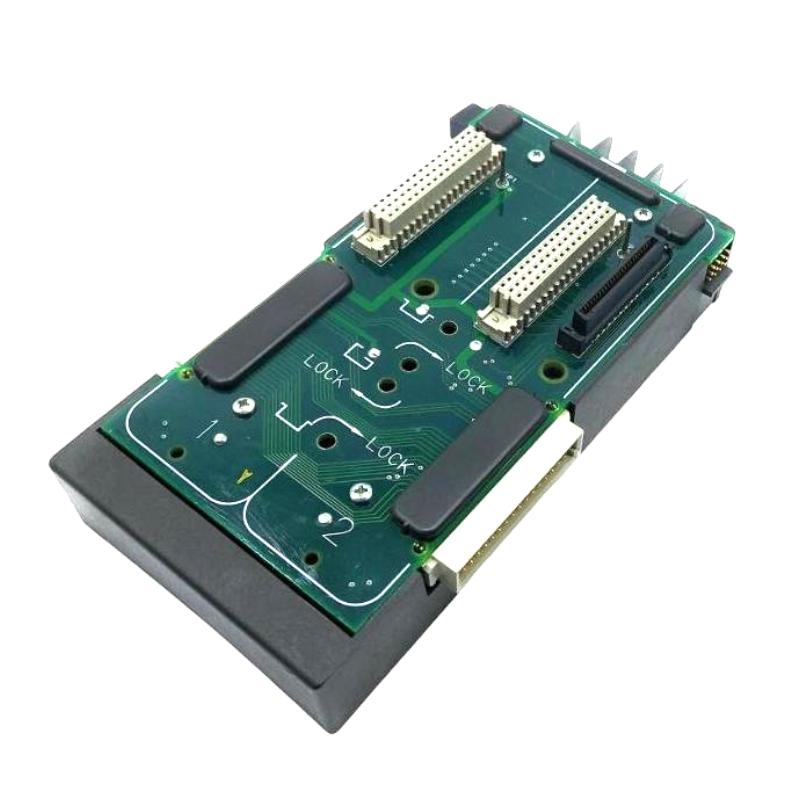

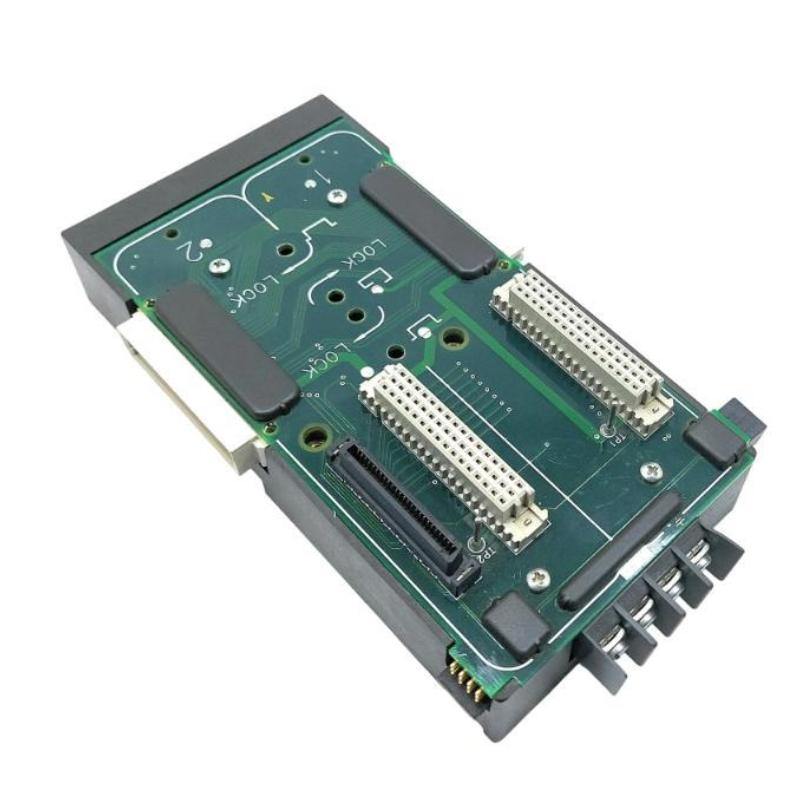

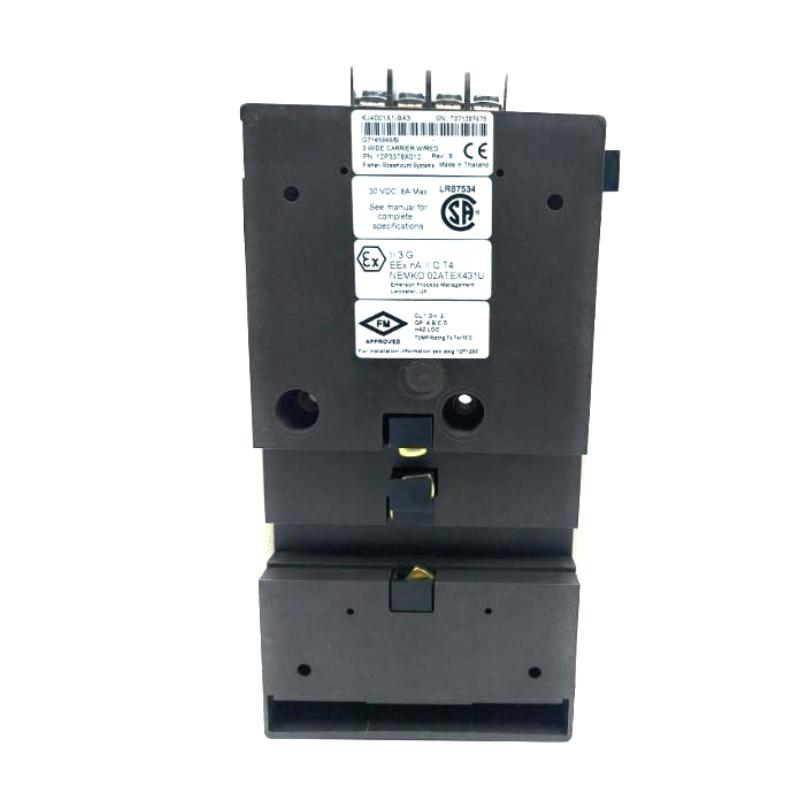

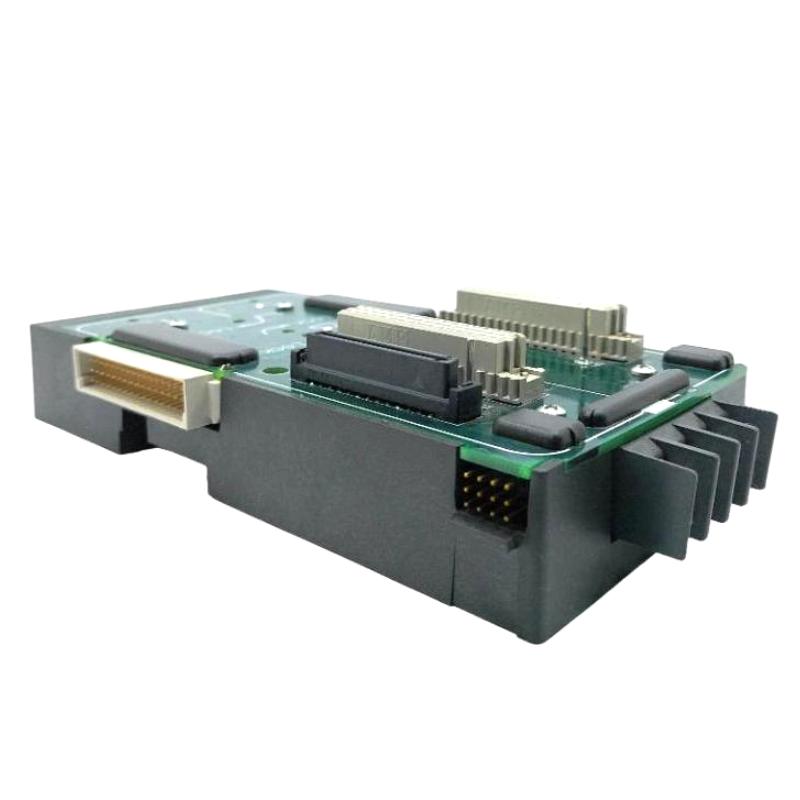

The Emerson VE3051C3 DeltaV M-series 2-Wide Power/Controller Carrier is a hardware carrier used in DeltaV M-series control assemblies. It provides the physical mounting position and electrical interconnection structure required for compatible controller and power components within the M-series architecture.

The 2-wide format supports compact cabinet layouts where controller hardware and associated power components need to be arranged in a defined carrier assembly. The carrier itself does not perform control calculations or act as an independent power supply. Its function is closely tied to the modules installed on it and the surrounding DeltaV hardware.

For replacement work, the VE3051C3 should therefore be evaluated as part of the complete M-series assembly. Controller type, power arrangement, neighboring hardware, connectors, and cabinet configuration all need to match the existing installation.

Technical Specifications

Product Features

• 2-wide carrier format for DeltaV M-series assemblies
• Provides mounting support for compatible controller and power hardware
• Maintains the electrical interconnection between installed modules and the system
• Supports compact control cabinet arrangements
• Suitable for maintenance and replacement applications
• Integrates with established DeltaV M-series hardware configurations

Working Principle

The VE3051C3 functions as the physical carrier within an M-series control assembly. Compatible modules are installed onto the carrier, and the carrier maintains their mechanical position and electrical connection with the associated system hardware.

Control processing remains the responsibility of the installed controller. Likewise, the required operating power comes from the associated power hardware. The carrier forms the connection framework that allows these components to operate as part of the larger DeltaV assembly.

This distinction is useful during troubleshooting. If a controller does not start or communicate correctly, technicians should check the controller, power source, connectors, carrier contacts, and network path separately. Replacing the carrier without checking these areas can leave the original fault unresolved.

Role in a DeltaV M-series Control Architecture

The VE3051C3 belongs to the hardware assembly layer of the DeltaV architecture. It supports the controller and power hardware but does not independently execute application logic.

Industrial Applications

Installation and Maintenance

1. Verify the carrier model — Confirm that VE3051C3 is the required replacement for the existing M-series carrier configuration.
2. Check installed modules — Verify compatibility between the carrier, controller, power hardware, and adjacent M-series components.
3. Inspect the carrier — Examine the housing, mounting points, connectors, and contact surfaces for damage or contamination.
4. Isolate power before installation — Follow the plant’s approved shutdown and electrical isolation procedures before removing the existing carrier.
5. Confirm mounting position — Install the carrier in the designated cabinet location and maintain the required clearance around adjacent equipment.
6. Secure the carrier correctly — Make sure the mounting hardware is properly seated and tightened to prevent mechanical movement.
7. Check module alignment — Confirm that installed controller and power modules are correctly positioned and fully seated.
8. Inspect electrical contacts — Check for bent pins, oxidation, contamination, or other conditions that could affect electrical continuity.
9. Check neighboring components — Inspect adjacent carriers, modules, connectors, and power components when investigating intermittent faults.
10. Verify power delivery — Confirm that the associated power hardware is supplying the required operating power to the assembly.
11. Check DeltaV diagnostics — After installation, verify controller status, hardware recognition, and system diagnostics before returning the equipment to normal operation.
12. Document the replacement — Record the carrier model, installation location, associated modules, and maintenance findings for future service work.

Related Components

Recommended Related Models

Key Advantages

• 2-wide format for compact DeltaV M-series assemblies
• Provides structured mounting for controller and power hardware
• Maintains required module interconnections
• Suitable for carrier replacement and cabinet maintenance
• Supports established DeltaV M-series control architectures

Technical FAQs

What does the VE3051C3 do in a DeltaV M-series system?

The VE3051C3 provides the physical carrier structure for compatible DeltaV M-series controller and power hardware. It handles mounting and electrical interconnection rather than executing control logic.

Is the VE3051C3 itself a DeltaV controller?

No. The VE3051C3 is a carrier component. Control processing is performed by the compatible controller module installed as part of the M-series assembly.

Can a carrier fault cause controller communication problems?

Yes. A damaged connector, poor module seating, or compromised carrier connection can affect the electrical path between installed hardware. However, controller, power, network, and configuration faults should also be checked before identifying the carrier as the cause.

What should be verified before replacing a VE3051C3?

Verify the existing carrier model, controller and power modules, mounting arrangement, connector condition, and surrounding M-series hardware. Matching the complete assembly configuration is more important than relying only on the carrier’s physical dimensions.
