Product Overview

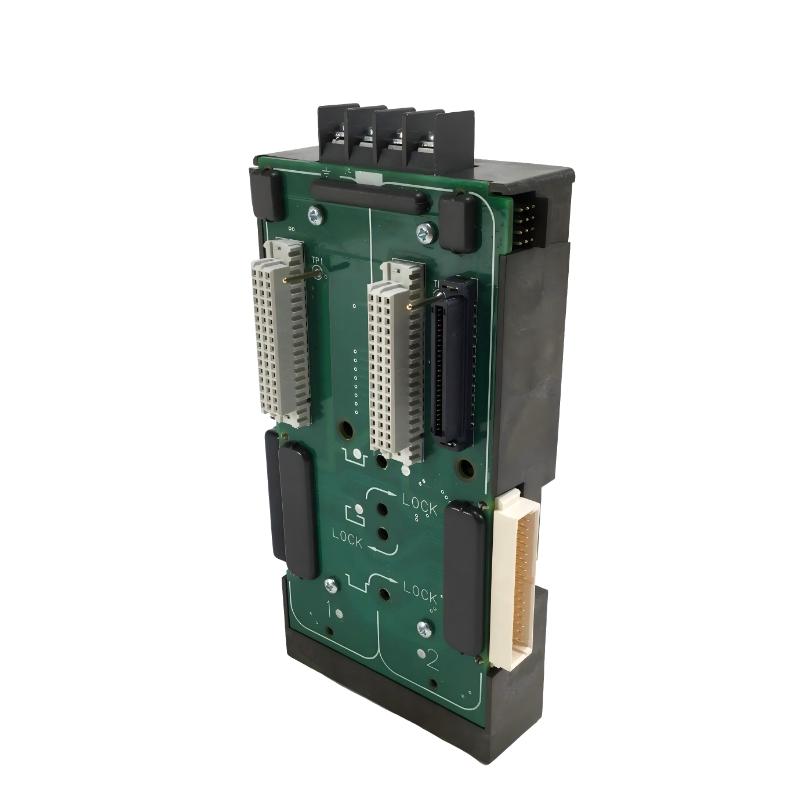

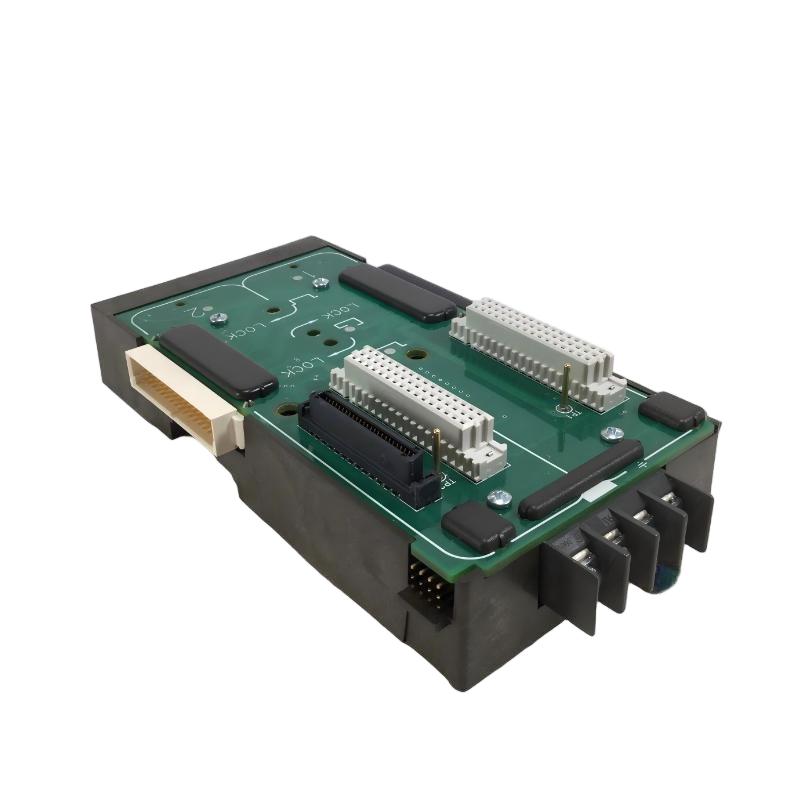

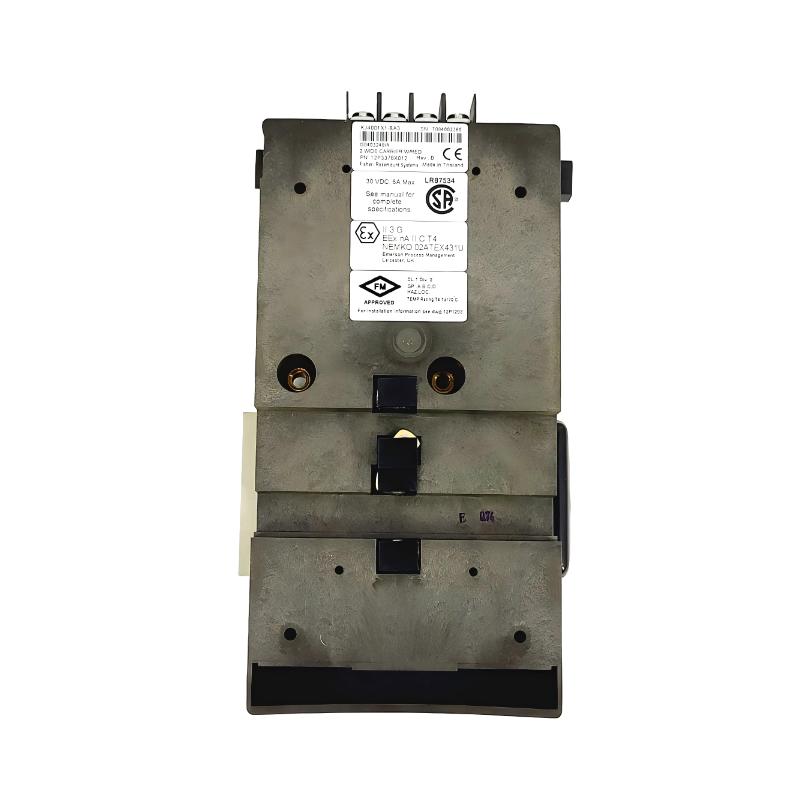

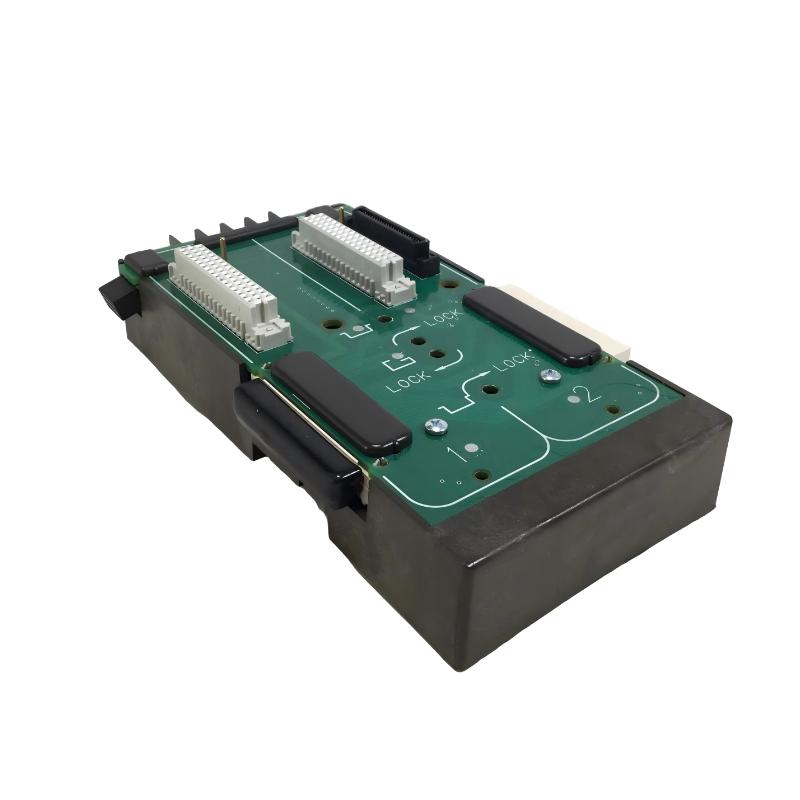

The Emerson VE3051C1 is a DeltaV M-series 2-Wide Power/Controller Carrier used as a mounting and connection platform for compatible DeltaV M-series controller and power components.
Unlike an I/O module, the carrier does not perform process signal acquisition or control calculations itself. Its primary role is to provide the physical and electrical infrastructure needed to install supported M-series components and integrate them into the DeltaV system architecture.
The VE3051C1 is relevant in DeltaV control cabinets where controller and power hardware must be arranged on an M-series carrier system. During installation or replacement, the carrier configuration should be matched with the supported controller, power components, connectors, and existing DeltaV architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3051C1 |
| Product Family | DeltaV M-series |
| Product Type | 2-Wide Power/Controller Carrier |
| Carrier Type | Power/Controller Carrier |
| System | DeltaV M-series |
| Application | Controller and Power Component Mounting |
| Module Type | M-series Carrier |
| Dimensions | 160 × 30 × 120 mm |
| Weight | 0.38 kg |
Product Features
- 2-Wide carrier for compatible DeltaV M-series power and controller components.
- Provides the mounting platform for supported M-series hardware.
- Supports electrical interconnection between installed components and the DeltaV system.
- Intended for controller-level cabinet installations.
- Separates the carrier infrastructure from the functional control modules installed on it.
- Suitable for new DeltaV installations as well as maintenance and hardware replacement.
- Integrates into the modular M-series control-system architecture.
Working Principle
The VE3051C1 functions as the physical and electrical carrier between compatible DeltaV M-series components and the system infrastructure.
A simplified architecture is:
DeltaV Power / Controller Components → VE3051C1 Carrier → DeltaV System Infrastructure → DeltaV I/O / Control Network
The carrier provides the required mounting and connection paths for supported power and controller hardware. Once the appropriate components are installed, system power and communication connections are routed through the carrier arrangement to support controller operation.
The carrier itself does not execute control logic. Control execution remains the responsibility of the controller installed within the supported M-series configuration.
Role in a DeltaV M-series Control Architecture
The VE3051C1 occupies the hardware infrastructure layer of the DeltaV M-series architecture.
| System Element | Function |
|---|---|
| VE3051C1 Carrier | Provides mounting and electrical connection for supported power/controller components |
| M-series Controller | Executes configured DeltaV control strategies |
| Power Components | Supply required operating power to system hardware |
| DeltaV I/O | Interfaces with process field signals |
| DeltaV Control Network | Transfers control and system data |
| Engineering Station | Provides configuration and system engineering |
| Operator Station | Provides process visualization and operator interaction |
The carrier establishes the hardware platform on which the controller and associated power components can be installed and connected.
Industrial Applications
| Application | Carrier Role |
|---|---|
| Process Control Cabinets | Mounting and connection of DeltaV controller hardware |
| Chemical Plants | Supports M-series control-system hardware |
| Oil and Gas Facilities | Provides controller and power component installation infrastructure |
| Power Generation | Supports DeltaV control cabinet arrangements |
| Pharmaceutical Plants | Provides modular controller hardware integration |
| Food and Beverage Plants | Supports process-control cabinet assemblies |
| System Expansion | Adds compatible M-series controller infrastructure to an existing system |
Installation and Maintenance
- Confirm that the VE3051C1 is the correct carrier type for the intended M-series controller and power components.
- Check the existing cabinet arrangement before removing or installing the carrier.
- Verify that the selected controller and power hardware are compatible with the carrier.
- Follow the plant’s approved power isolation procedure before installation.
- Install the carrier securely using the designated cabinet mounting method.
- Check all mechanical interfaces before installing the controller or power components.
- Ensure electrical connectors are clean, undamaged, and fully seated.
- Route power and communication wiring according to the cabinet installation requirements.
- Verify that the installed controller and power components are correctly positioned.
- Check system power and communication status after installation.
- Inspect the carrier and associated connections during scheduled cabinet maintenance.
- After replacement, verify controller operation, network communication, and affected DeltaV functions before returning the system to service.
Related Components
| Component | Function |
|---|---|
| DeltaV M-series Controller | Executes configured process-control strategies |
| DeltaV M-series Power Components | Provide operating power for compatible system hardware |
| DeltaV M-series I/O Modules | Provide field signal acquisition and output interfaces |
| DeltaV Control Network Components | Provide communication between DeltaV system nodes |
| DeltaV Engineering Station | Used for system configuration and engineering |
| DeltaV Operator Station | Provides operator monitoring and control |
| M-series Carrier Accessories | Support physical installation and system interconnection |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Emerson VE3006 KJ2003X1-BB1 | DeltaV M-series MD Plus Controller | Controller hardware installed within the M-series architecture |
| Emerson VE3007 KJ2005X1-BA1 | DeltaV M-series MX Controller | Related M-series controller component |
| Emerson VE3055M1 | DeltaV M-series 4-Wide Top Vertical-mount Power/Controller Carrier | Alternative M-series carrier configuration |
| DeltaV M-series I/O Modules | Distributed I/O | Interfaces controller functions with field signals |
| DeltaV M-series Power Components | Power Hardware | Provides system operating power |
| DeltaV Control Network Components | Network Hardware | Supports communication between DeltaV components |
Key Advantages
- Provides a 2-Wide mounting platform for compatible M-series power and controller hardware.
- Supports modular DeltaV cabinet architecture.
- Provides the physical and electrical connection framework for supported components.
- Simplifies controller-level hardware arrangement within DeltaV systems.
- Suitable for installation, expansion, and replacement work.
- Keeps carrier infrastructure separate from controller control functions.
Technical FAQs
What is the function of the VE3051C1?
The VE3051C1 is a DeltaV M-series 2-Wide Power/Controller Carrier. It provides the mounting and electrical connection infrastructure for compatible M-series power and controller components.
Does the VE3051C1 execute DeltaV control logic?
No. The carrier itself does not execute control strategies. Control logic is executed by the compatible DeltaV controller installed within the carrier arrangement.
What should be checked when selecting a replacement VE3051C1?
The carrier type, supported M-series controller and power components, existing cabinet configuration, and required electrical connections should all be verified before replacement.
How can a VE3051C1 carrier problem be distinguished from a controller problem?
Check the installed controller status, system power, connectors, and DeltaV communication diagnostics. If the controller and associated hardware operate normally when installed on a correctly connected carrier, the carrier’s mechanical or electrical interfaces should be inspected separately.
