Product Overview

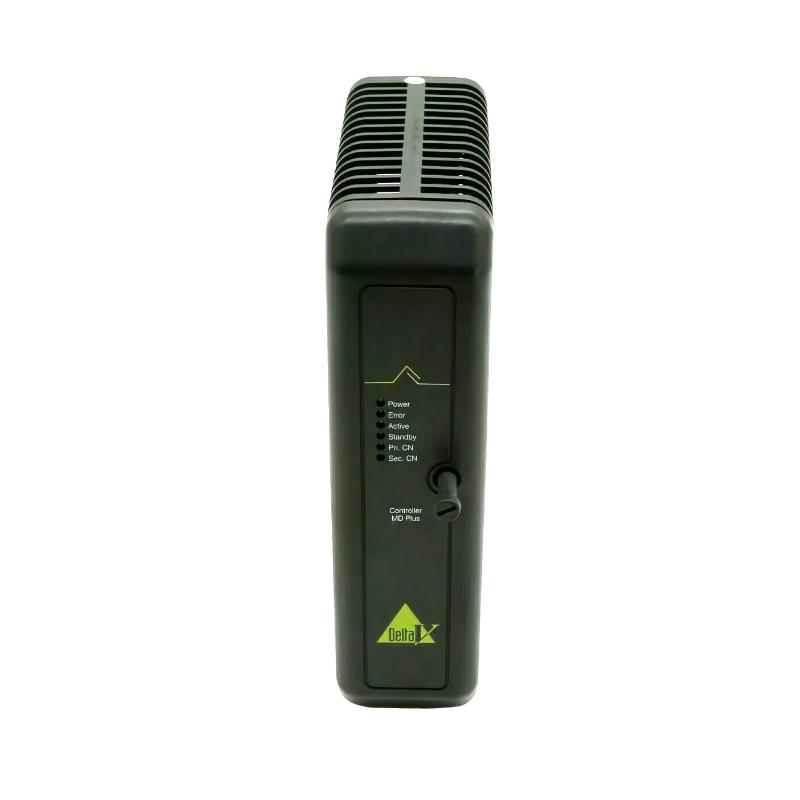

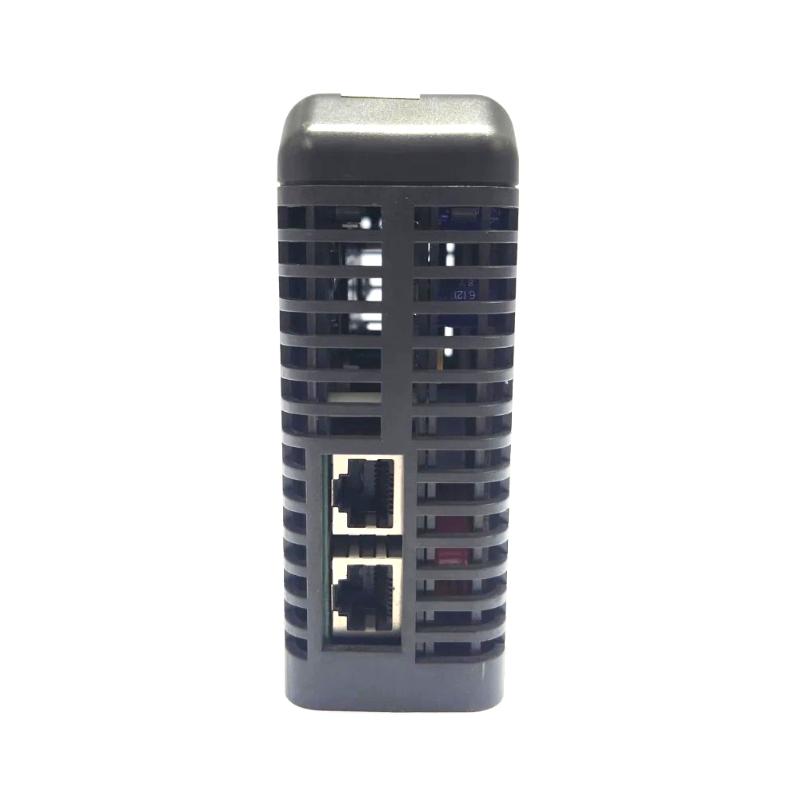

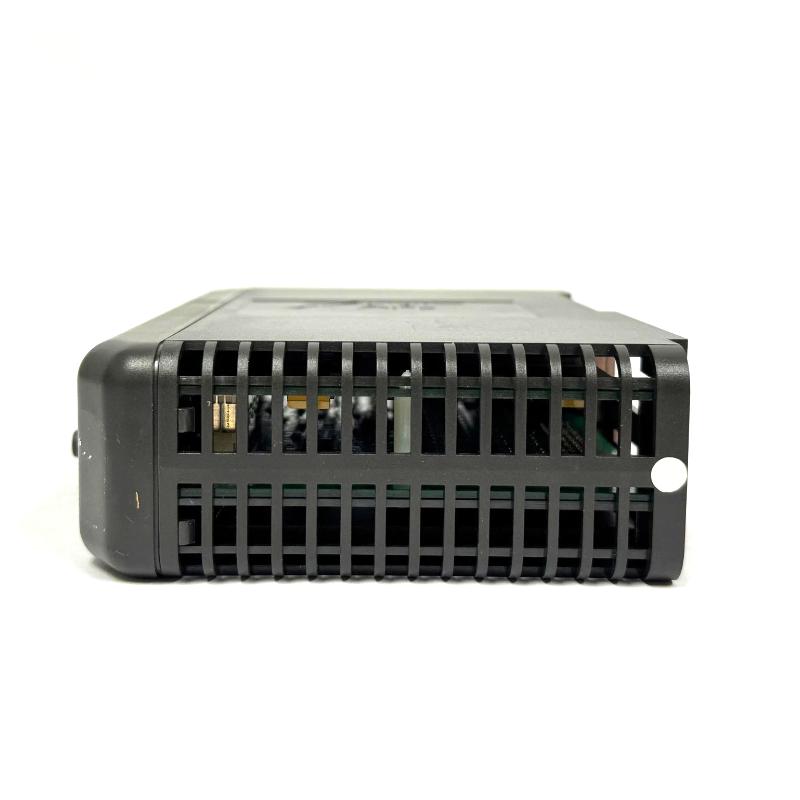

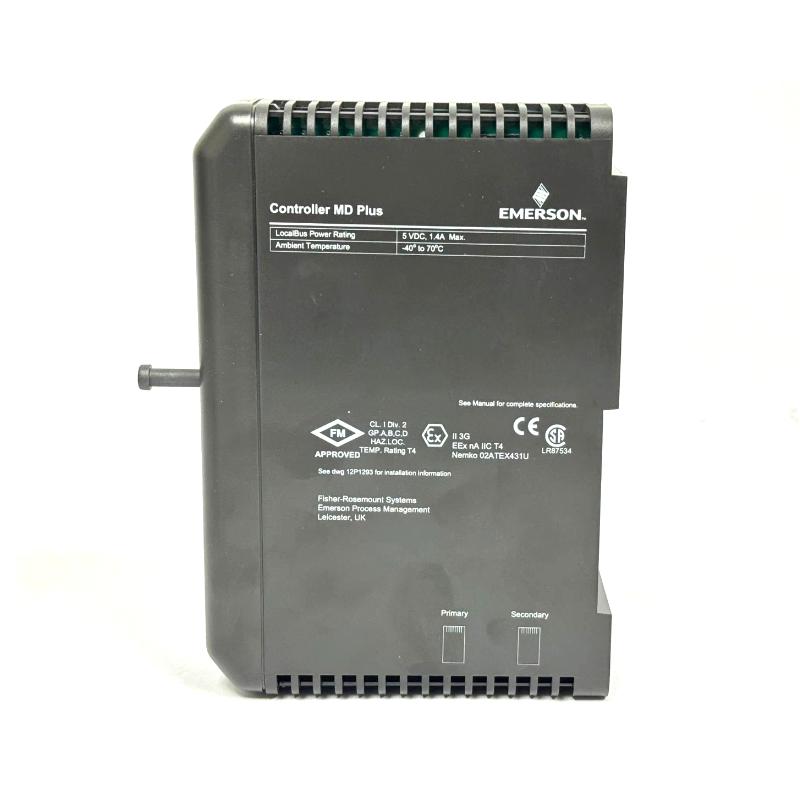

The Emerson VE3006 KJ2003X1-BB1 is a DeltaV M-series MD Plus Controller used for process control within Emerson DeltaV automation systems. It executes configured control strategies and manages communication between the control application and distributed I/O, operator interfaces, and other DeltaV system components.

In a typical DeltaV installation, the controller receives process data from field I/O, executes configured control modules and control logic, and sends commands back toward the field. It can therefore serve as the central execution point for regulatory control, sequencing, interlocks, and process monitoring functions assigned to its control strategy.

The controller is particularly relevant in continuous and batch process environments where control execution must remain closely integrated with the DeltaV I/O and system architecture. During replacement or expansion work, the controller model, DeltaV system version, controller configuration, and associated hardware should be checked together.

Technical Specifications

Product Features

• MD Plus Controller for Emerson DeltaV M-series systems.
• Executes configured DeltaV control strategies.
• Handles process control functions between the control application and distributed I/O.
• Supports integration with the DeltaV control architecture.
• Suitable for continuous and batch process applications.
• Works with DeltaV engineering, operator, and I/O system components.
• Appropriate for controller replacement and existing DeltaV system maintenance when system compatibility is verified.

Working Principle

The VE3006 KJ2003X1-BB1 operates as the control execution layer between the DeltaV control strategy and the distributed process signals.

A simplified control path is:

Field Devices → DeltaV I/O → DeltaV Control Network → VE3006 Controller → Control Strategy → Output Data → DeltaV I/O → Final Control Elements

Process measurements acquired by DeltaV I/O are made available to the controller. The controller executes the configured control modules, calculations, sequencing, alarms, and other assigned logic. Based on the resulting control decisions, output commands are returned through the DeltaV architecture to the appropriate field outputs.

For a closed-loop process, this cycle is repeated continuously. The controller therefore links real-time process measurements with the configured control strategy and final control actions.

Role in a DeltaV M-series Control Architecture

The VE3006 KJ2003X1-BB1 sits at the controller level of the DeltaV architecture and connects control execution with distributed process I/O and system services.

The controller’s position allows control execution to remain closely coordinated with DeltaV I/O and operator-level functions.

Industrial Applications

Installation and Maintenance

1. Verify the VE3006 KJ2003X1-BB1 model and existing DeltaV controller configuration before replacement.
2. Confirm that the controller is compatible with the installed DeltaV system architecture and software environment.
3. Back up the existing controller configuration before carrying out replacement work.
4. Follow the plant’s approved shutdown and isolation procedure before removing the controller.
5. Check controller mounting and electrical connections for proper seating.
6. Inspect associated DeltaV network connections for loose or damaged interfaces.
7. Confirm that the controller receives the required system power after installation.
8. Verify controller diagnostics and communication status after startup.
9. Check that configured control modules are loaded and executing correctly.
10. Confirm communication with the associated DeltaV I/O and operator stations.
11. Test representative control loops, sequences, alarms, and interlocks before returning the process to normal operation.
12. Record controller configuration, firmware or system information, and maintenance actions for future troubleshooting.

Related Components

Recommended Related Models

Key Advantages

• Provides controller-level execution for DeltaV M-series systems.
• Executes configured process control strategies.
• Integrates controller logic with distributed DeltaV I/O.
• Supports continuous and batch process applications.
• Centralizes control execution for assigned process functions.
• Suitable for maintenance and replacement of compatible DeltaV controller installations.

Technical FAQs

What is the function of the VE3006 KJ2003X1-BB1 controller?

It is an Emerson DeltaV M-series MD Plus Controller used to execute configured control strategies and coordinate process control functions with the DeltaV I/O and control network.

What should be checked before replacing a VE3006 KJ2003X1-BB1?

The controller model, DeltaV system version, existing configuration, network arrangement, associated I/O, and controller hardware compatibility should be checked before replacement. A configuration backup should also be available before removing the existing controller.

How does the VE3006 communicate with DeltaV I/O?

The controller exchanges process and control data through the DeltaV control architecture. Field signals are acquired by DeltaV I/O, transferred to the controller for strategy execution, and the resulting output commands are sent back toward the appropriate field outputs.

What are typical symptoms of a controller communication problem?

Typical troubleshooting indicators include loss of communication with associated I/O or system nodes, controller diagnostic alarms, unavailable process data, or control modules not executing as expected. Network connections, controller status, configuration, and associated DeltaV components should be checked systematically.
