Product Overview

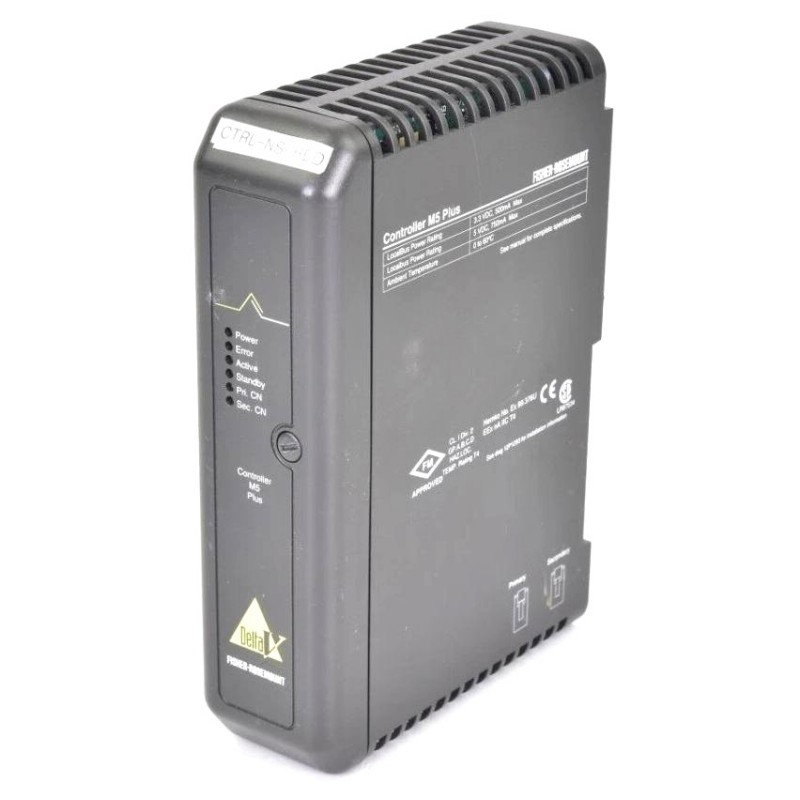

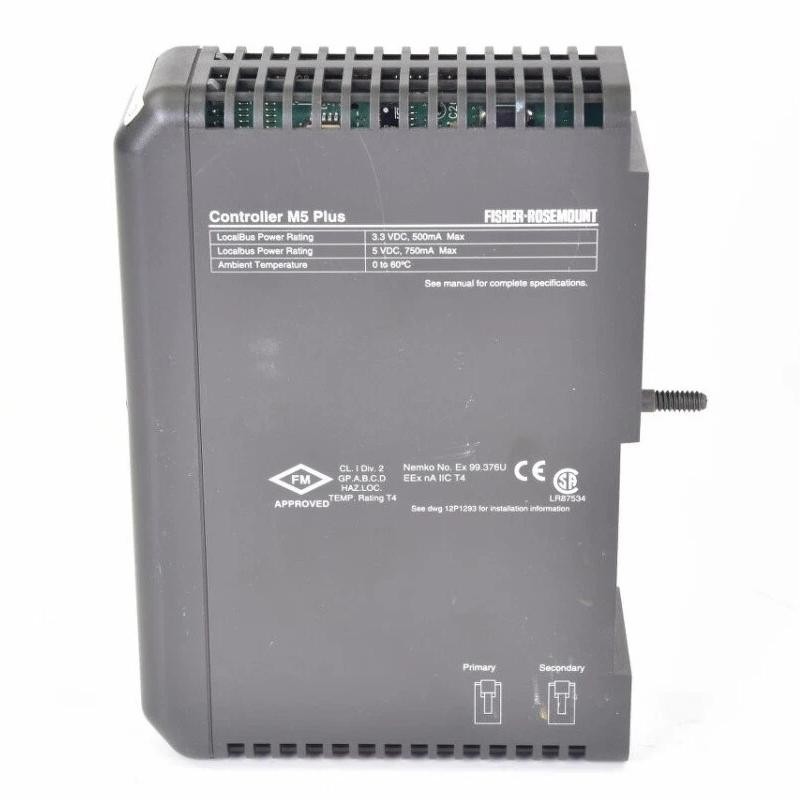

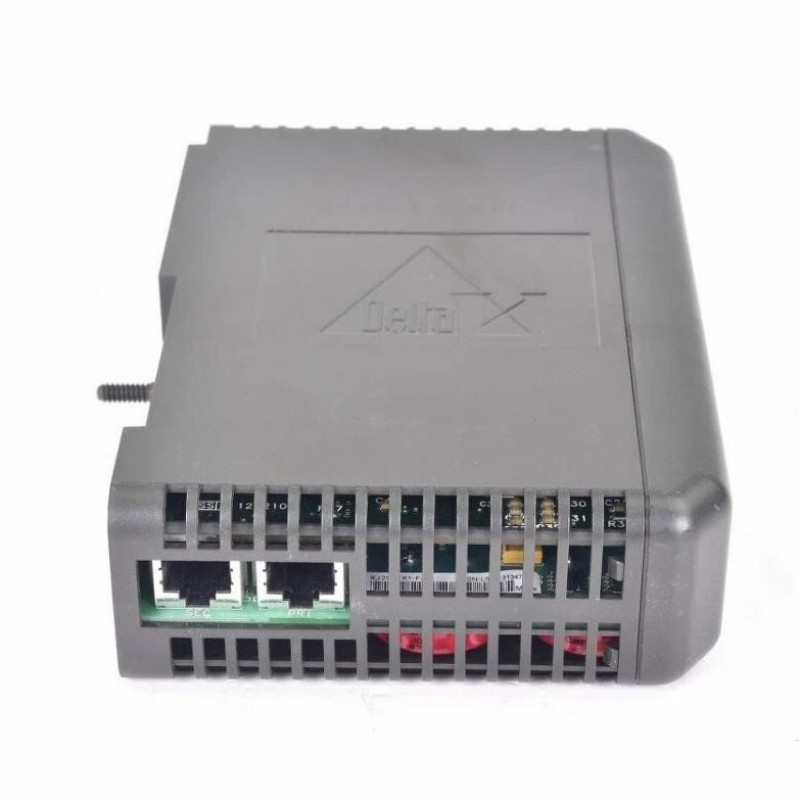

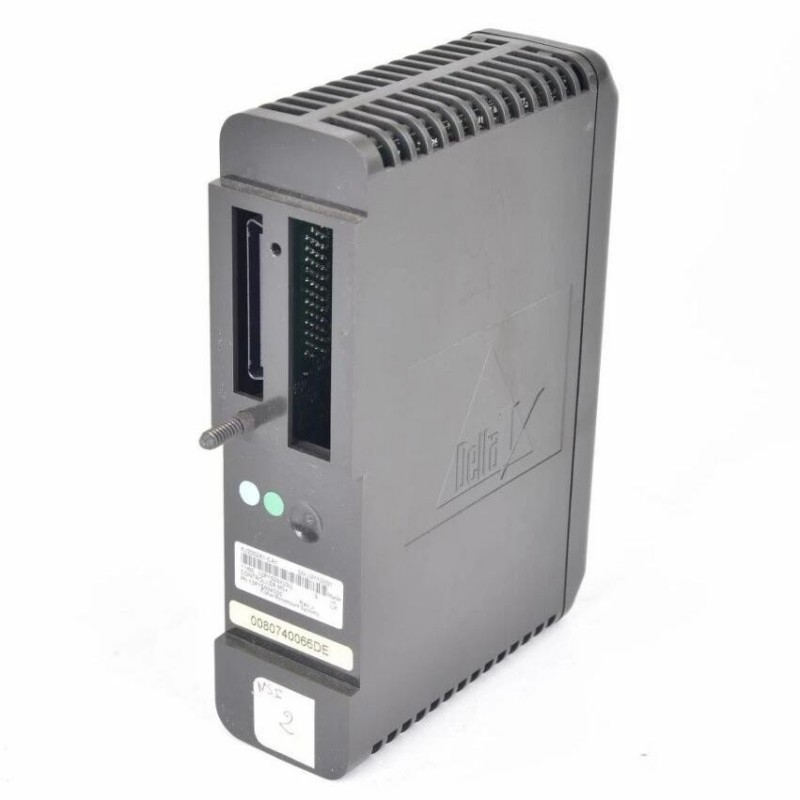

The Emerson VE3004 DeltaV M-series M5+ Controller is a process controller used within the DeltaV distributed control system for executing configured control strategies and coordinating process I/O. It handles control logic, process calculations, sequencing, and communication with the surrounding DeltaV infrastructure.
In a process plant, the controller can coordinate multiple control loops and equipment functions from a single control environment. Typical tasks include pressure, temperature, flow, and level regulation, as well as motor control, valve positioning, permissives, alarms, and process sequences.
The VE3004 works as part of the DeltaV M-series architecture. Its practical role depends on the associated I/O, control network, engineering configuration, and operator interface rather than operating as an independent controller.
For replacement work, engineers should compare the existing controller configuration and DeltaV system environment before commissioning the VE3004. Particular attention should be given to controller assignment, I/O relationships, control strategies, and communication status.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3004 |
| Product Family | DeltaV M-series |
| Product Type | M5+ Controller |
| Primary Function | Process control execution |
| System Role | DeltaV process controller |
| Application | Distributed process control |
| Control Functions | Continuous control, logic, sequencing, interlocking |
| System Integration | DeltaV control architecture |
| Installation | DeltaV M-series control system |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.18 kg |
Product Features
- DeltaV M-series M5+ Controller for distributed process-control applications
- Executes configured control strategies and process logic
- Supports continuous control, sequencing, and equipment interlocking
- Integrates with DeltaV I/O and control-system communication
- Suitable for coordinating multiple process-control loops
- Supports centralized management of distributed field signals
- Works with DeltaV engineering and operator environments
- Can be applied to process units, equipment skids, and plant utility systems
- Suitable for maintenance replacement within compatible DeltaV architectures
Working Principle
The VE3004 receives process information through the DeltaV I/O architecture and uses the configured control strategy to determine the required control response.
A typical signal path is:
Field Instruments → DeltaV I/O → VE3004 Controller → Control Strategy → Output I/O → Final Control Elements
Input values from transmitters and discrete field devices are made available to the controller. The VE3004 processes these values according to configured control blocks, setpoints, limits, logic conditions, and interlocks.
For a temperature loop, for example, the controller can compare the measured process temperature with the configured setpoint and calculate an output command for a control valve or other regulating device. The resulting process response is measured again through the I/O system, allowing the control strategy to continuously adjust the output.
The same controller architecture can combine analog control with discrete logic. This allows process regulation, equipment permissives, sequencing, and interlocking to be handled within the same DeltaV control environment.
Role in a DeltaV M-series Distributed Control Architecture
The VE3004 operates at the controller layer of the DeltaV architecture, linking field I/O with the configured control strategy and higher-level operator functions.
Engineering Station / Operator Station → DeltaV Control Network → VE3004 Controller → DeltaV I/O → Field Equipment
| System Element | Function |
|---|---|
| Engineering Station | Develops and maintains control strategies and system configuration |
| Operator Station | Displays process conditions, alarms, trends, and control information |
| VE3004 Controller | Executes configured process-control strategies and logic |
| DeltaV I/O | Interfaces controller functions with field signals |
| Analog Input Modules | Acquire measurements from process transmitters |
| Analog Output Modules | Deliver analog control commands to field devices |
| Discrete I/O Modules | Handle equipment status, commands, and interlocks |
| Field Transmitters | Measure pressure, temperature, flow, level, and other variables |
| Control Valves | Regulate process flow according to controller output |
| Motor Control Equipment | Controls pumps, fans, compressors, and other rotating equipment |
| DeltaV Control Network | Provides communication between controllers and system components |
Industrial Applications
| Application | Typical Use |
|---|---|
| Chemical Processing | Reactor temperature, pressure, flow, and sequencing control |
| Oil and Gas | Process-unit control, equipment interlocks, and flow regulation |
| Refining | Unit operation, valve control, process sequencing, and monitoring |
| Power Generation | Auxiliary systems, cooling, fuel handling, and process control |
| Water Treatment | Pump sequencing, tank-level control, flow regulation, and dosing |
| Pharmaceutical Manufacturing | Batch sequences, temperature control, and process equipment coordination |
| Food and Beverage | Mixing, heating, cooling, batching, and production control |
| Pulp and Paper | Pressure, flow, level, and equipment control |
| Industrial Utilities | Steam, compressed air, cooling water, and utility-system control |
| Manufacturing | Process equipment coordination, material handling, and machine interlocks |
Installation and Maintenance
- Verify the controller model and confirm that the replacement unit is an Emerson VE3004 DeltaV M-series M5+ Controller.
- Check system compatibility before installation, including the DeltaV system version and existing controller architecture.
- Back up the existing configuration and record controller assignments, control strategies, and associated I/O relationships before removing hardware.
- Inspect the installation position and make sure the controller can be correctly seated within the DeltaV M-series hardware arrangement.
- Check the system power path and confirm that the controller and associated DeltaV hardware receive the required operating power.
- Inspect communication connections for loose or damaged connections that could prevent the controller from communicating with the DeltaV system.
- Verify I/O assignments after replacement to ensure that process variables and output commands correspond to the intended field devices.
- Confirm the controller configuration against the engineering database before placing the controller into normal control service.
- Check controller diagnostics during startup for communication, configuration, or hardware-related indications.
- Test control loops carefully after commissioning, particularly loops controlling critical pressure, temperature, flow, or level variables.
- Verify interlocks and sequences before returning associated process equipment to automatic operation.
- Maintain current configuration backups and document controller replacement activities to simplify future troubleshooting and recovery.
Related Components
| Component | Function |
|---|---|
| DeltaV M-series I/O | Provides interfaces for analog and discrete field signals |
| DeltaV I/O Carrier | Supports installation and connection of compatible I/O modules |
| DeltaV Control Network | Connects controllers with engineering and operator-level functions |
| DeltaV Engineering Station | Used to configure control strategies and system parameters |
| DeltaV Operator Station | Provides process visualization, alarms, trends, and operator commands |
| Analog Input Modules | Acquire continuous process measurements |
| Analog Output Modules | Send regulating signals to compatible field equipment |
| Discrete Input Modules | Receive equipment status and switching signals |
| Discrete Output Modules | Send start, stop, trip, and other discrete commands |
| Process Transmitters | Provide pressure, temperature, flow, and level measurements |
| Control Valves | Regulate process flow based on control output |
| Motor Starters and Drives | Control pumps, fans, compressors, and other motor-driven equipment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE3003 | DeltaV M-series MQ Controller | General DeltaV process control |
| Emerson VE3004 | DeltaV M-series M5+ Controller | Distributed process-control execution |
| Emerson DeltaV M-series Controllers | Process Controllers | Continuous and sequential process control |
| Emerson DeltaV M-series I/O | I/O Modules | Field signal acquisition and output |
| Emerson DeltaV Engineering Tools | Engineering Software | Control strategy development and configuration |
| Emerson DeltaV Operator Station | Operator Interface | Process monitoring and operator control |
| Emerson DeltaV SIS | Safety Instrumented System | Safety shutdown and protective functions |
Key Advantages
- Native DeltaV M-series control architecture
- Supports process control and logic execution in one controller environment
- Suitable for continuous loops and sequential equipment control
- Integrates with distributed DeltaV I/O
- Supports coordinated control of process equipment and field devices
- Practical for process-unit and utility-system applications
- Suitable for compatible controller replacement and maintenance work
Technical FAQs
What distinguishes the Emerson VE3004 from a standard DeltaV process controller?
The VE3004 is identified as an M5+ Controller within the DeltaV M-series family. Its suitability should be evaluated against the existing controller configuration, system version, and application requirements rather than treating the model as a generic standalone PLC.
Can the VE3004 control both analog loops and discrete equipment logic?
Yes. Within an appropriately configured DeltaV system, the controller can execute control strategies involving analog process variables as well as discrete logic for equipment commands, permissives, sequencing, and interlocks.
What should be verified before replacing an existing DeltaV controller with a VE3004?
The controller model, DeltaV system configuration, controller assignment, I/O mapping, control strategy, communication path, and engineering database should all be checked before commissioning the replacement.
Why might field I/O appear normal while the control strategy does not operate correctly after replacement?
The I/O hardware can communicate normally while the controller configuration, strategy assignment, I/O references, or downloaded control application is incorrect. Controller diagnostics and the DeltaV engineering configuration should therefore be checked together rather than troubleshooting field wiring alone.
