Product Overview

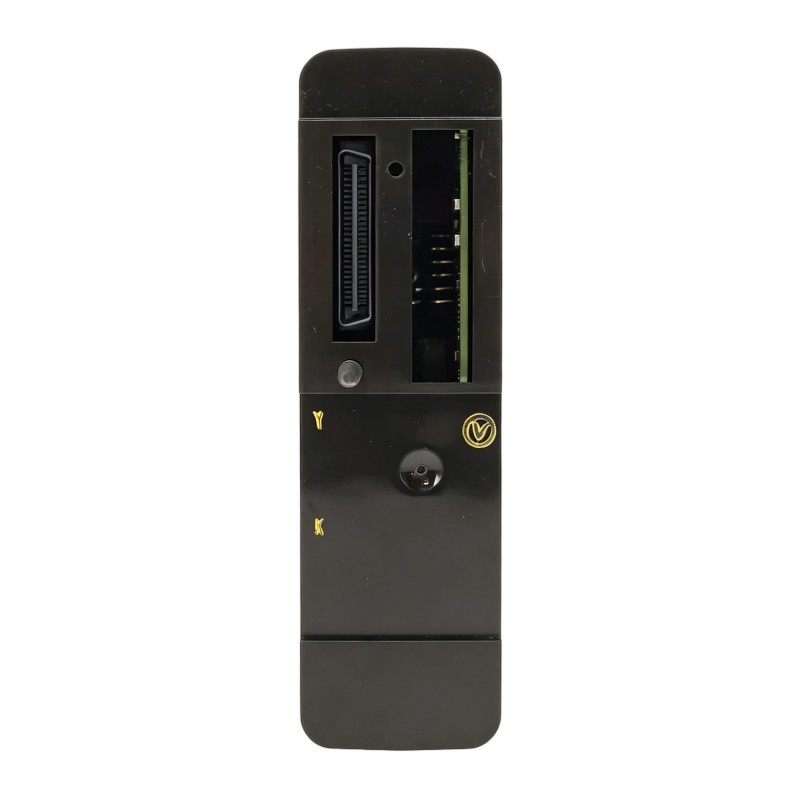

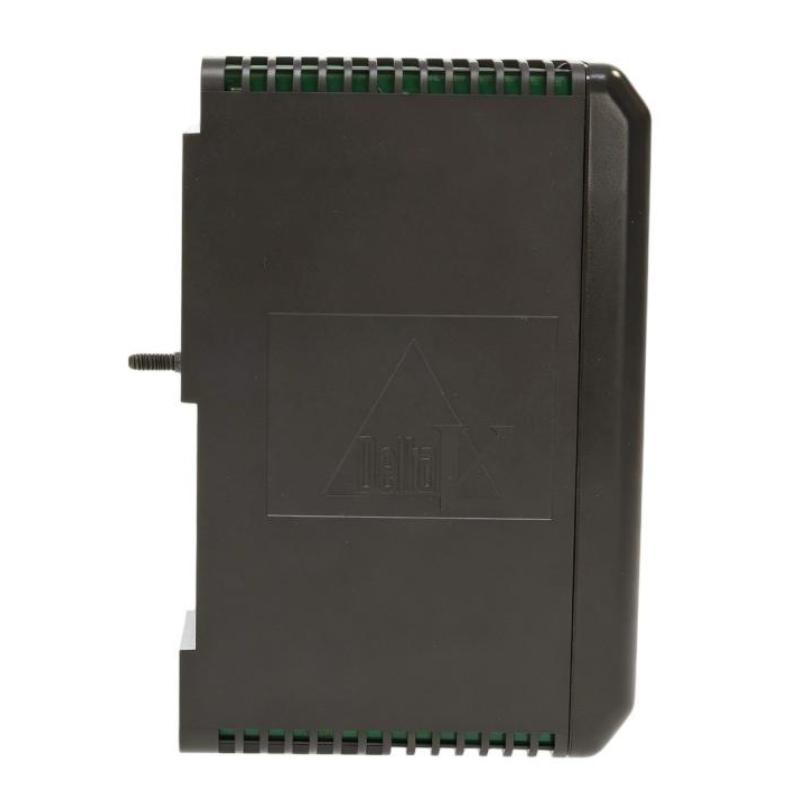

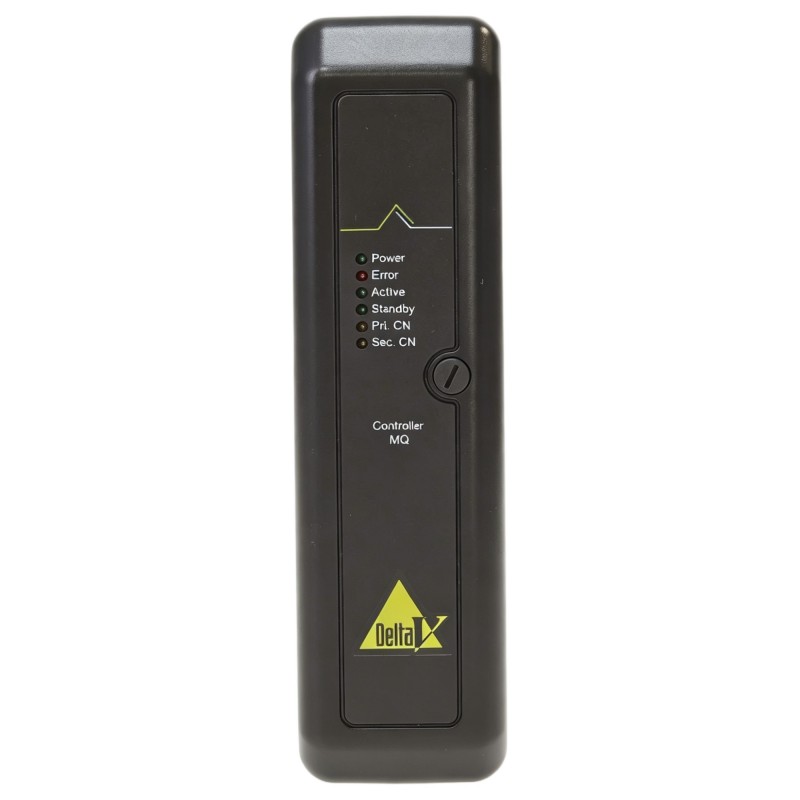

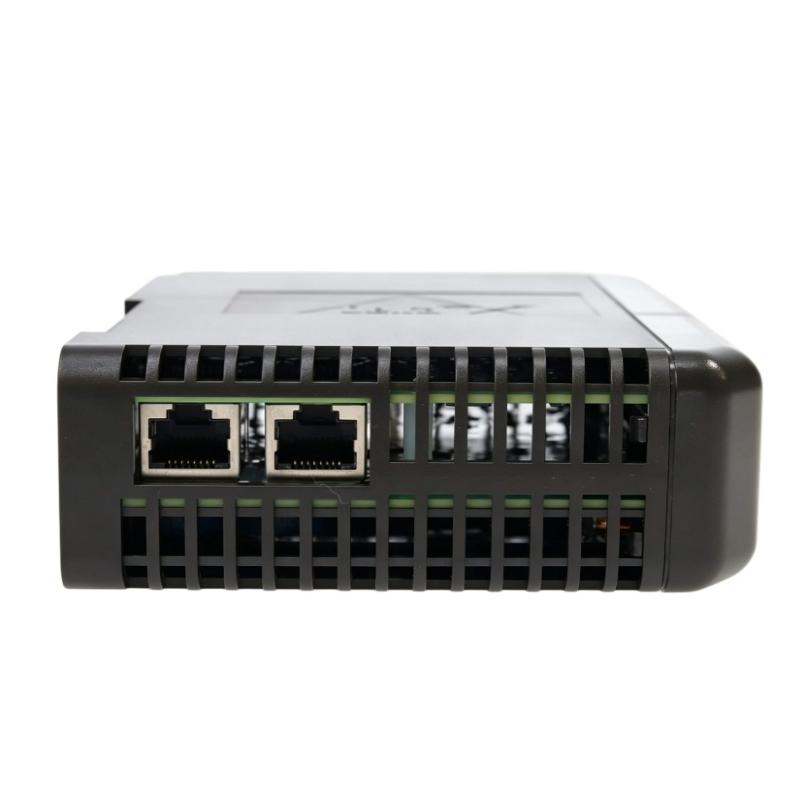

The Emerson VE3003 DeltaV M-series MQ Controller is a controller used within the DeltaV M-series distributed control system for executing control strategies and coordinating process I/O. It sits between the control application and field-level signals, handling control logic, data processing, and communication with other DeltaV system components.
In a typical process plant, the VE3003 can be used for continuous control loops, sequencing, interlocking, alarm processing, and coordination of field devices. It is suited to applications where multiple process variables must be monitored and controlled from a centralized or distributed automation architecture.
The controller works as part of the DeltaV M-series platform rather than as an isolated PLC-style device. Its operation depends on the surrounding DeltaV infrastructure, including I/O interfaces, system communication, engineering configuration, and operator-level applications.
For maintenance and replacement work, engineers should verify the DeltaV system version, controller configuration, I/O architecture, and existing control strategy before installing a replacement VE3003.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE3003 |
| Product Family | DeltaV M-series |
| Product Type | MQ Controller |
| Primary Function | Process control execution |
| System Role | DeltaV controller |
| Application | Distributed process control |
| Control Functions | Continuous control, logic, sequencing, interlocking |
| Communication | DeltaV system communication |
| Installation | DeltaV M-series control system |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.18 kg |
Product Features
- DeltaV M-series MQ Controller for distributed process control applications
- Executes configured control strategies and process logic
- Supports continuous control and sequential control functions
- Works with DeltaV I/O and system-level communication infrastructure
- Suitable for process monitoring, interlocking, alarm handling, and control-loop execution
- Integrates with DeltaV engineering and operator environments
- Appropriate for modular process-control architectures
- Can be applied in both new system configurations and maintenance replacements
- Supports distributed control where control functions are located close to the associated process I/O
Working Principle
The VE3003 operates as a control-processing node within the DeltaV architecture. Field measurements enter the DeltaV I/O system, where the signals are acquired and made available to the controller. The VE3003 then executes the configured control strategy using those process values.
A typical control path can be represented as:
Field Instruments → DeltaV I/O → VE3003 Controller → Control Strategy → DeltaV Output I/O → Final Control Elements
The controller continuously processes input values against configured control logic, setpoints, limits, and interlocks. Depending on the application, the resulting output commands can be used to regulate valves, motors, pumps, dampers, or other final control elements.
For closed-loop control, the process response returns through the I/O system and becomes the next controller input. This repeated scan-and-control cycle allows the DeltaV system to maintain process variables such as pressure, temperature, flow, or level around their configured operating targets.
Role in a DeltaV M-series Distributed Control Architecture
The VE3003 serves as the control execution layer between DeltaV I/O and higher-level system functions.
Operator Station / Engineering Station → DeltaV Control Network → VE3003 Controller → DeltaV I/O → Field Devices
| System Element | Function |
|---|---|
| Engineering Station | Creates and maintains control strategies, parameters, and system configuration |
| Operator Station | Provides process visualization, alarms, trends, and operator control |
| VE3003 Controller | Executes configured control logic and process-control algorithms |
| DeltaV I/O | Interfaces controller functions with field signals and devices |
| Field Transmitters | Measure process variables such as pressure, temperature, flow, and level |
| Control Valves | Adjust process flow according to controller commands |
| Motors and Drives | Provide controlled mechanical movement for pumps, fans, conveyors, and other equipment |
| DeltaV Control Network | Carries controller, I/O, and system-level communication |
Industrial Applications
| Application | Typical Use |
|---|---|
| Chemical Processing | Reactor control, temperature loops, pressure control, and process sequencing |
| Oil and Gas | Flow regulation, pressure control, equipment interlocks, and process monitoring |
| Refining | Unit control, valve regulation, process sequencing, and alarm handling |
| Power Generation | Boiler auxiliaries, cooling systems, fuel systems, and balance-of-plant control |
| Water and Wastewater | Pump control, level regulation, flow control, and treatment sequencing |
| Pharmaceutical Production | Batch process control, temperature regulation, and equipment sequencing |
| Food and Beverage | Mixing, heating, cooling, batching, and production-line control |
| Pulp and Paper | Flow, pressure, level, and process equipment control |
| Utilities | Distributed monitoring and control of plant utility systems |
| Manufacturing Processes | Machine coordination, material handling, process interlocks, and equipment control |
Installation and Maintenance
- Verify the controller model before installation and confirm that the replacement is an Emerson VE3003 DeltaV M-series MQ Controller.
- Check the DeltaV system configuration to ensure the controller is appropriate for the existing system architecture and software environment.
- Record the existing configuration before removing a controller from an operating system, including controller assignment and associated control strategies.
- Inspect the mounting position and confirm that the controller can be installed correctly within the DeltaV M-series system.
- Check power connections and make sure the associated system power infrastructure is correctly installed and within the required operating conditions.
- Inspect communication connections for loose terminals, damaged wiring, contamination, or other conditions that could affect controller communication.
- Verify I/O assignments after installation so that control strategies continue to reference the intended field signals.
- Check controller configuration against the project database before placing the replacement controller into service.
- Review control-loop operation after startup, paying particular attention to abnormal values, unexpected output commands, or loop oscillation.
- Test interlocks and sequences where the controller is responsible for equipment permissives, shutdown logic, or process sequencing.
- Monitor controller diagnostics during commissioning and normal operation to identify communication, configuration, or system-level faults.
- Maintain configuration backups so that controller replacement or system recovery can be completed without rebuilding the control strategy from the beginning.
Related Components
| Component | Function |
|---|---|
| DeltaV M-series I/O | Provides field signal interfaces for controller applications |
| DeltaV I/O Carrier | Supports the physical installation of compatible I/O modules |
| DeltaV Controller Power Infrastructure | Supplies operating power to the control hardware |
| DeltaV Control Network | Connects controllers with engineering and operator-level system components |
| DeltaV Engineering Station | Used for system configuration and control-strategy development |
| DeltaV Operator Station | Provides operator interaction with process graphics, alarms, and trends |
| Analog Input Modules | Acquire process measurements from transmitters |
| Analog Output Modules | Send control commands to compatible final control devices |
| Discrete I/O Modules | Handle equipment status, commands, permissives, and interlocks |
| Field Transmitters | Supply pressure, temperature, flow, level, and other process measurements |
| Control Valves | Regulate process flow based on controller output |
| Motor Control Equipment | Provides starting, stopping, and speed control for process machinery |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson VE3003 | DeltaV M-series MQ Controller | DeltaV distributed process control |
| Emerson DeltaV M-series Controllers | Process Controllers | General process automation and control execution |
| Emerson DeltaV M-series I/O | I/O Modules | Field signal acquisition and output |
| Emerson DeltaV SIS | Safety Instrumented System | Safety functions and process shutdown |
| Emerson DeltaV Engineering Tools | Engineering Software | Control strategy development and system configuration |
| Emerson DeltaV Operator Station | Operator Interface | Process monitoring and operator control |
| Emerson DeltaV Control Network Components | Communication Infrastructure | Controller and system communication |
Key Advantages
- Native fit within the DeltaV M-series control architecture
- Suitable for distributed execution of process-control strategies
- Supports both continuous control and logic-based functions
- Works with DeltaV I/O and system engineering infrastructure
- Practical for process-unit control and equipment coordination
- Useful for controller replacement and maintenance activities
- Centralizes control execution while keeping I/O distributed around the process
Technical FAQs
What type of control applications can the Emerson VE3003 handle?
The VE3003 can be used for process-control strategies involving continuous loops, logic, sequencing, equipment interlocks, alarms, and coordination of field devices within a DeltaV M-series system.
How does the VE3003 interact with DeltaV I/O?
The controller receives process data through the DeltaV I/O architecture, executes the configured control strategy, and sends resulting commands back through the appropriate output channels to field equipment.
Can the VE3003 be replaced without checking the DeltaV configuration?
A physical replacement should not be treated as a standalone hardware swap. Engineers should first verify the controller assignment, control strategy, I/O relationships, system configuration, and DeltaV software environment before returning the replacement controller to service.
What should be checked if process control does not resume after VE3003 replacement?
Check controller configuration, communication status, I/O assignments, power and network connections, controller diagnostics, and the downloaded control strategy. If the controller is communicating but the process response is abnormal, individual I/O channels and associated control-loop parameters should also be reviewed.
