Product Overview

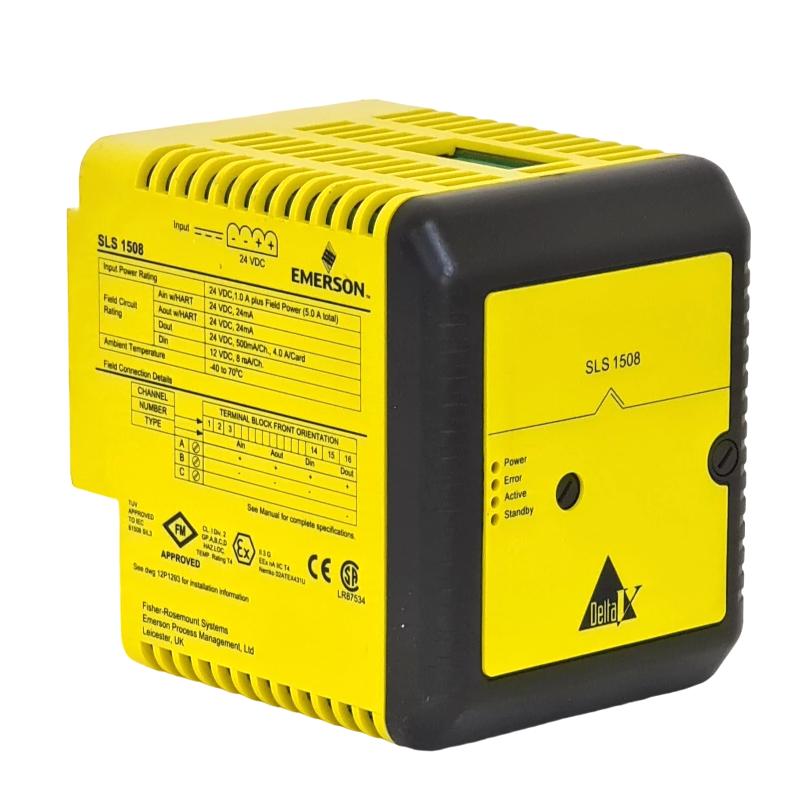

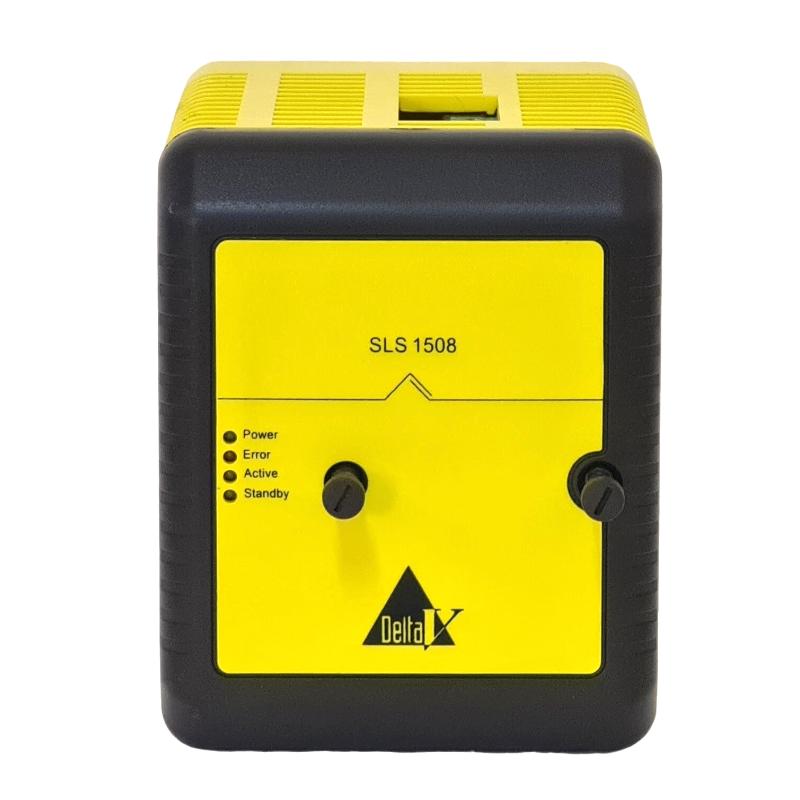

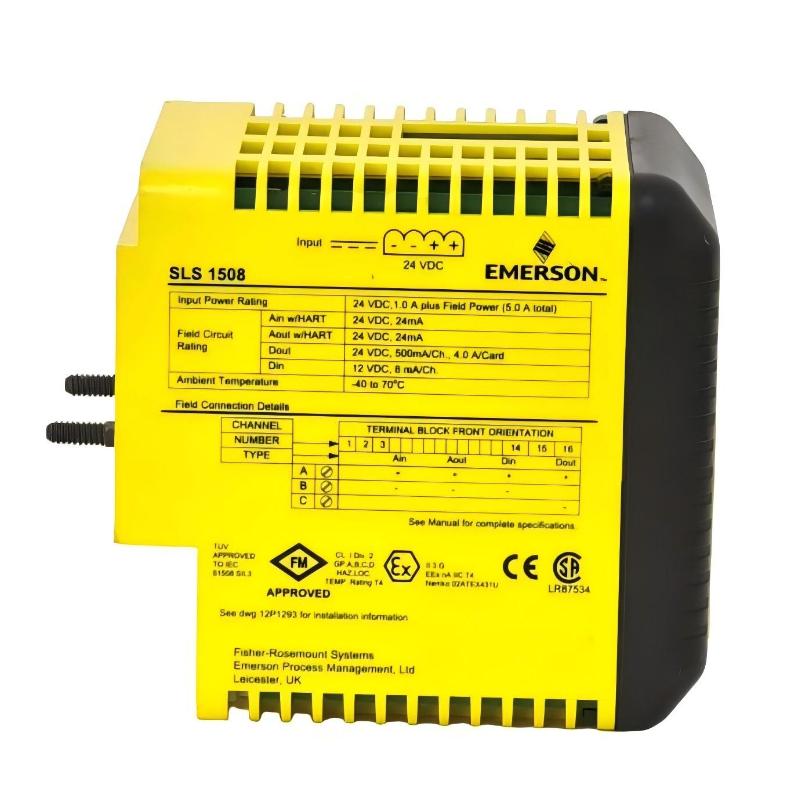

The Emerson SLS1508 KJ2201X1-BA1+KJ2201X1-HA1 is a DeltaV SIS Logic Solver used to execute safety instrumented functions within an Emerson DeltaV Safety Instrumented System. It sits between field safety signals and the application logic that determines when a process needs to be brought to a defined safe state.
The SLS1508 is suited to safety applications where the controller must evaluate process conditions and execute predefined shutdown, interlock, or protective logic. Typical examples include emergency shutdown (ESD), fire and gas protection, burner management, and critical process interlocks.
A practical installation may use the SLS1508 to monitor discrete trip signals, receive analog HART process information, and operate safety-related outputs. For example, a high-pressure condition from a transmitter can be evaluated by the SIS logic, while a confirmed shutdown condition can initiate an output command to a final control element.
The SLS1508 contains its own logic-processing capability and supports up to 16 configurable I/O channels. The channels can be used for Discrete Input, Discrete Output, HART Analog Input, and HART two-state output functions. This allows a single logic solver to handle the sensing, logic, and output requirements of a defined safety application.

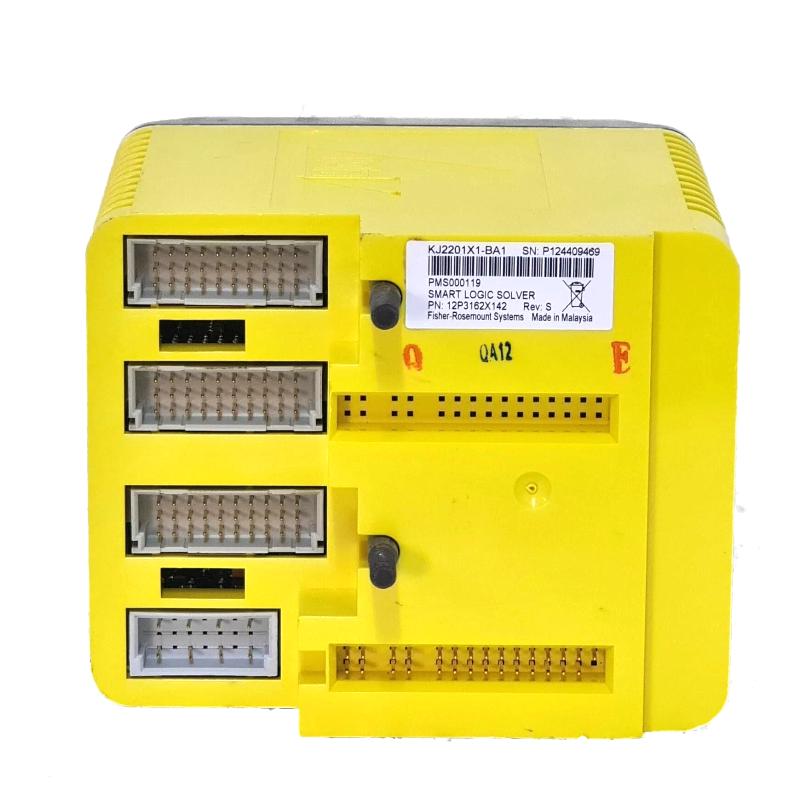

The KJ2201X1-BA1 identifies the SLS1508 Logic Solver, while KJ2201X1-HA1 is associated with its SIS terminal connection. The pair is therefore relevant when replacing or installing the complete SLS1508 field connection arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SLS1508 KJ2201X1-BA1+KJ2201X1-HA1 |
| Product Family | DeltaV SIS |
| Product Type | SIS Logic Solver |
| Logic Solver Type | Smart Logic Solver |
| Safety System | DeltaV Safety Instrumented System |
| Safety Integrity Capability | SIL 3 |
| I/O Channels | 16 |
| I/O Configuration | Discrete Input, Discrete Output, HART Analog Input, HART Two-State Output |
| Analog Input Signal | 4–20 mA |
| Field Power | 4 A maximum |
| Logic Power | 24 V DC |
| Logic Power Consumption | 1 A |
| Communication | SISnet local peer bus and remote peer communication |
| Redundancy | Redundant Logic Solver architecture |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Rating | IP20 |
| Mounting | 8-wide SIS carrier, odd-numbered slots |
| Dimensions | 83.8 × 105.5 × 110 mm |
| Weight | 1.2 kg |
Product Features
- DeltaV SIS SLS1508 Smart Logic Solver
- KJ2201X1-BA1 Logic Solver reference
- KJ2201X1-HA1 associated SIS terminal connection
- Up to 16 configurable I/O channels
- Supports Discrete Input and Discrete Output functions
- Supports HART Analog Input
- Supports HART two-state output
- SIL 3-capable safety architecture
- Supports redundant Logic Solver operation
- Dedicated SISnet communication architecture
- Built-in logic-solving capability
- Supports line fault detection on applicable I/O
- Suitable for emergency shutdown and process safety applications
- Designed for installation on the DeltaV SIS carrier architecture
Working Principle
The SLS1508 takes the field conditions used by a safety instrumented function, evaluates them against the configured SIS logic, and determines whether the corresponding safety action should be initiated.
A typical safety loop can be represented as:
Safety Sensor / Transmitter → SLS1508 → SIS Logic → Safety Output → Final Control Element
For example, a pressure transmitter can send a process value through a HART analog input. The SLS1508 evaluates that value against the configured trip conditions. If the process reaches a defined dangerous condition, the logic solver can execute the programmed safety function and command the relevant output.
Discrete inputs can be used for devices such as emergency-stop switches, fire and gas detectors, pressure switches, or other safety contacts. Outputs can then operate shutdown valves, relays, solenoids, or other final elements according to the safety application.
The logic solver also continuously monitors its own channels and system status. In a redundant configuration, paired Logic Solvers exchange information through the SIS communication architecture so that the safety system can continue operating when appropriate after a detected hardware fault.
The important distinction is that the SLS1508 is not simply a conventional PLC CPU with safety labeling. It is a dedicated component of the DeltaV SIS architecture, with its I/O, safety logic, diagnostics, redundancy, and SIS communication functions integrated into the safety system.
Role in a DeltaV SIS Control Architecture
The SLS1508 is the central logic-processing element between field safety instrumentation and final safety actions.
Safety Sensors → SIS I/O → SLS1508 → Safety Logic → Final Elements
| System Element | Function |
|---|---|
| Safety Transmitters | Provide process measurements used by safety functions |
| Discrete Safety Devices | Provide trip, alarm, or emergency status signals |
| SLS1508 | Executes configured safety instrumented logic |
| SIS Terminal Block | Provides field wiring interface for the Logic Solver |
| SISnet | Provides communication between Logic Solvers and related SIS equipment |
| DeltaV Controller | Provides the associated DeltaV control-system environment |
| Safety Output Devices | Initiate the required protective action |
| Shutdown Valve | Moves the process toward a defined safe state |
| Relay / Solenoid Interface | Interfaces SIS outputs with final control equipment |
| Engineering Workstation | Supports SIS configuration, diagnostics, and maintenance |
Redundant SLS1508 units can be installed as a pair when the safety application requires increased availability and fault tolerance. Emerson’s DeltaV SIS architecture also supports local and remote Logic Solver arrangements through its safety network architecture.
Industrial Applications
| Application | Typical Use |
|---|---|
| Emergency Shutdown Systems | Detecting hazardous conditions and initiating shutdown actions |
| Fire and Gas Systems | Processing detector signals and executing predefined protective logic |
| Burner Management | Monitoring burner-related permissives, trips, and shutdown conditions |
| Oil and Gas Facilities | Implementing critical process shutdown and protective functions |
| Chemical Processing | Handling high-pressure, high-temperature, and process safety trips |
| Refining | Executing safety functions associated with process units |
| Power Generation | Monitoring critical equipment conditions and initiating protective actions |
| Compressor Protection | Processing trip conditions associated with compressor systems |
| Wellhead and Production Systems | Executing shutdown logic based on field safety signals |
| Process Interlocking | Coordinating safety-related inputs and final control actions |
Installation and Maintenance
- Confirm the complete SLS1508 KJ2201X1-BA1+KJ2201X1-HA1 reference before replacement.
- Verify that the existing DeltaV SIS architecture supports the intended Logic Solver configuration.
- Confirm the correct SIS carrier and Logic Solver slot before installation.
- Check the associated SIS terminal block and field wiring before removing the existing unit.
- Record the current I/O channel assignments and safety function configuration.
- Verify the 24 V DC power arrangement and field power requirements.
- Confirm the redundancy arrangement when the application uses paired Logic Solvers.
- Inspect field wiring for loose connections, damaged conductors, and incorrect termination.
- Verify the configuration of Discrete Input, Discrete Output, HART Analog Input, and HART two-state output channels.
- After installation, check Logic Solver diagnostics and the status of the associated SIS channels.
- Perform the approved safety-function verification and proof-test procedure before returning the affected safety loop to service.
- Record the replacement details, configuration status, diagnostics, and proof-test results for future SIS maintenance.
Field power must be removed before connecting or disconnecting the device in applicable hazardous-area installations. The SLS1508 contains no user-serviceable parts and should not be disassembled during routine maintenance.
Related Components
| Component | Function |
|---|---|
| KJ2201X1-BA1 | SLS1508 SIS Logic Solver |
| KJ2201X1-HA1 | SIS terminal connection associated with the Logic Solver |
| SIS Terminal Blocks | Provide field wiring connections |
| 8-Wide SIS Carrier | Hosts Logic Solvers and associated SIS components |
| SISnet Components | Provide safety-system peer communication |
| DeltaV Controller | Provides the DeltaV system interface and associated control environment |
| SIS Relay Modules | Interface selected SIS outputs with external devices |
| SIS Relay Diode Module | Supports specific relay/output interface arrangements |
| SIS Voltage Monitor | Monitors selected safety-related voltage conditions |
| Safety Transmitters | Supply process measurements to safety functions |
| Shutdown Valves | Execute process isolation or shutdown actions |
The SLS1508 product architecture includes dedicated SIS components around the Logic Solver rather than treating the unit as a standalone PLC module. Relay modules, relay diode modules, and voltage-monitoring hardware can be used as associated DeltaV SIS components depending on the safety function.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SLS1508 | DeltaV SIS Smart Logic Solver | Conventional DeltaV SIS safety logic applications |
| Emerson CSLS | DeltaV SIS CHARMs Smart Logic Solver | Applications requiring Electronic Marshalling and larger distributed I/O capacity |
| Emerson SIS Relay Modules | SIS Relay Module | Safety output interfacing |
| Emerson SIS Voltage Monitor | SIS Voltage Monitor | Safety-related voltage monitoring |
| Emerson DeltaV SIS | Safety Instrumented System | Integrated process safety and shutdown applications |
| Emerson DeltaV SIS Engineering Tools | SIS Engineering Software | SIS configuration, diagnostics, and maintenance |
The SLS1508 remains a practical choice where the application is based on conventional DeltaV SIS I/O and Logic Solver architecture. The CHARMs Smart Logic Solver (CSLS) is more appropriate when the project calls for Electronic Marshalling and a substantially larger configurable I/O structure. Emerson currently identifies SLS1508 and CSLS as the two DeltaV SIS Logic Solver hardware options.
Key Advantages
- Dedicated logic solver for DeltaV SIS applications.
- Supports up to 16 configurable I/O channels.
- Handles discrete and HART-based safety signals.
- Supports redundant Logic Solver configurations.
- SIL 3-capable safety architecture.
- Integrated diagnostics for Logic Solver and channel status.
- Suitable for ESD, fire and gas, burner management, and process interlocking.
- Works with dedicated SIS carriers, terminal blocks, and safety-system components.
Technical FAQs
Why are SLS1508 Logic Solvers normally installed in redundant pairs?
Redundant SLS1508 units allow the SIS architecture to maintain safety-system availability when one Logic Solver experiences a detected fault. The paired units communicate through the SIS architecture and share the relevant I/O information required for the redundant arrangement.
What types of I/O can an SLS1508 handle?
The SLS1508 supports up to 16 configurable channels. Depending on the application, these channels can be configured for Discrete Input, Discrete Output, HART Analog Input, or HART two-state output functions.
What is the relationship between KJ2201X1-BA1 and KJ2201X1-HA1?
KJ2201X1-BA1 identifies the SLS1508 Logic Solver, while KJ2201X1-HA1 is associated with the SIS terminal connection used with the Logic Solver. When ordering a replacement assembly, the complete installed configuration should be checked rather than assuming the two references are interchangeable.
Can an SLS1508 be replaced while the DeltaV SIS system is energized?
The replacement procedure depends on the installation environment and approved DeltaV SIS maintenance procedure. In hazardous areas, field power must be removed before the device is removed or connected unless the area is confirmed to be non-hazardous. The applicable installation and safety procedure should be followed before any replacement work.
