Product Overview

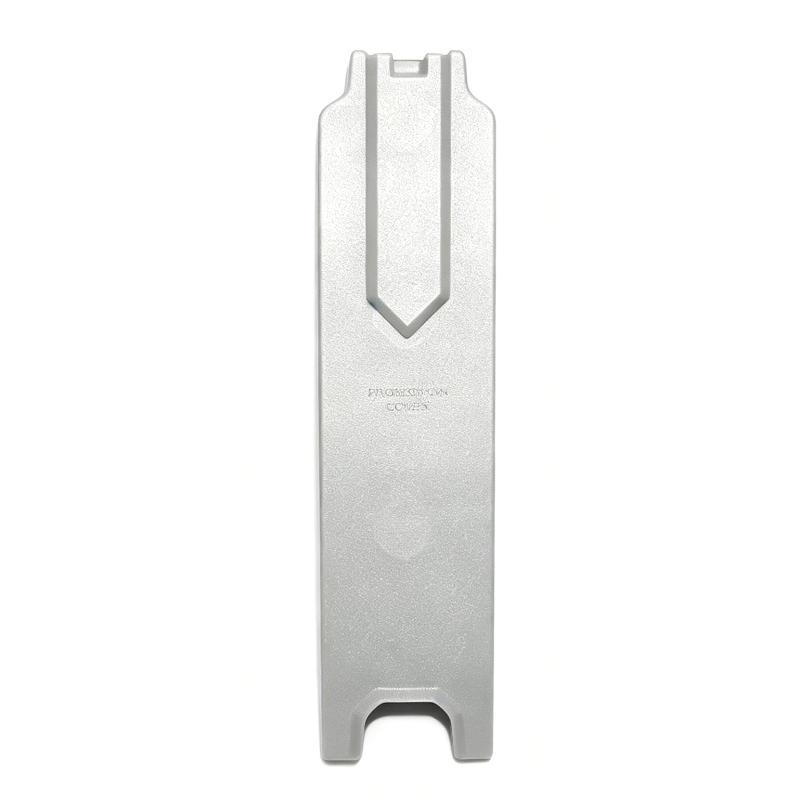

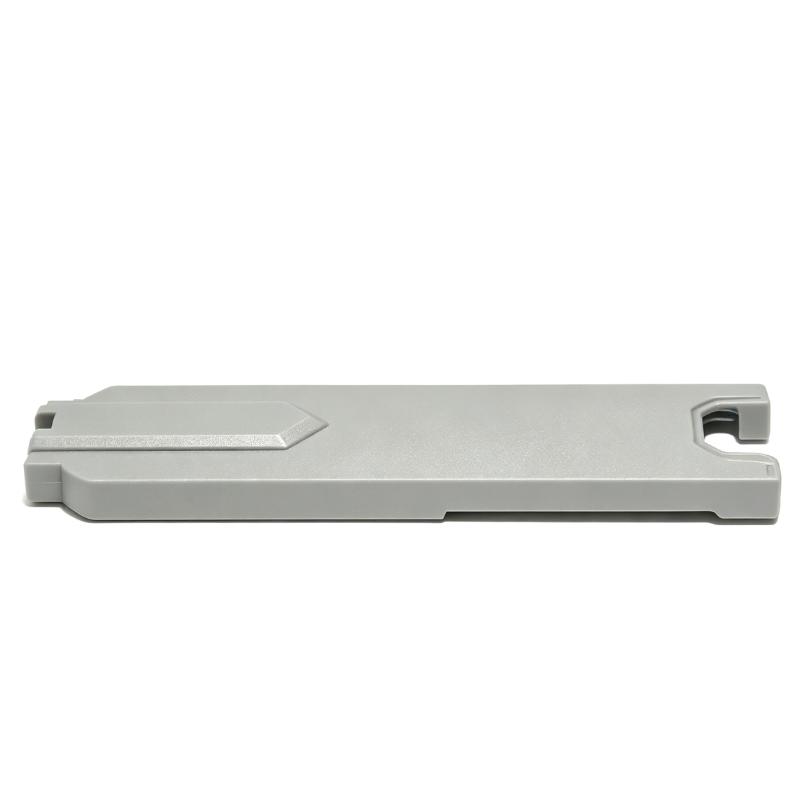

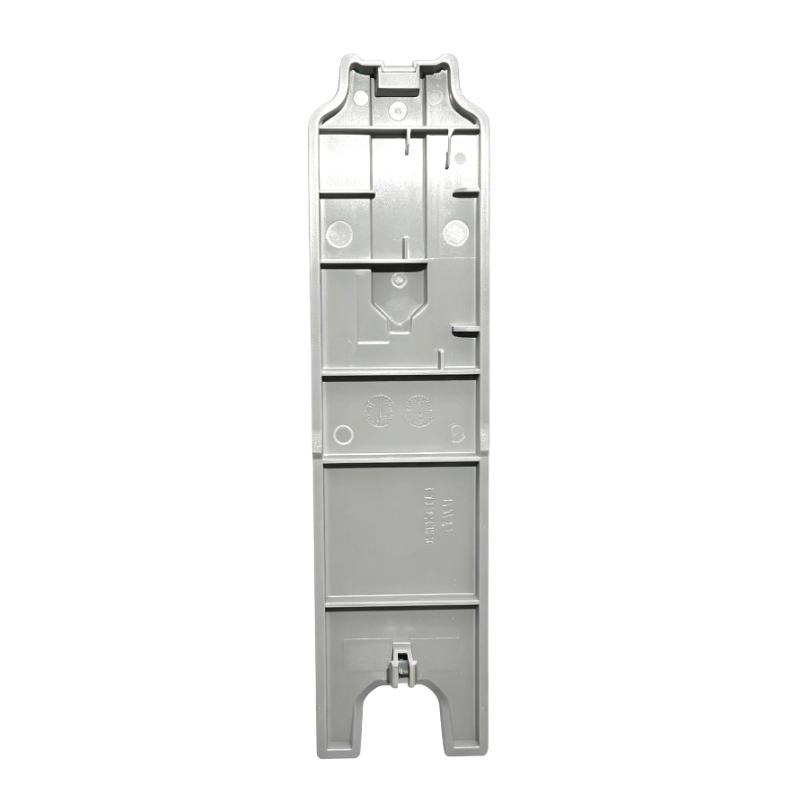

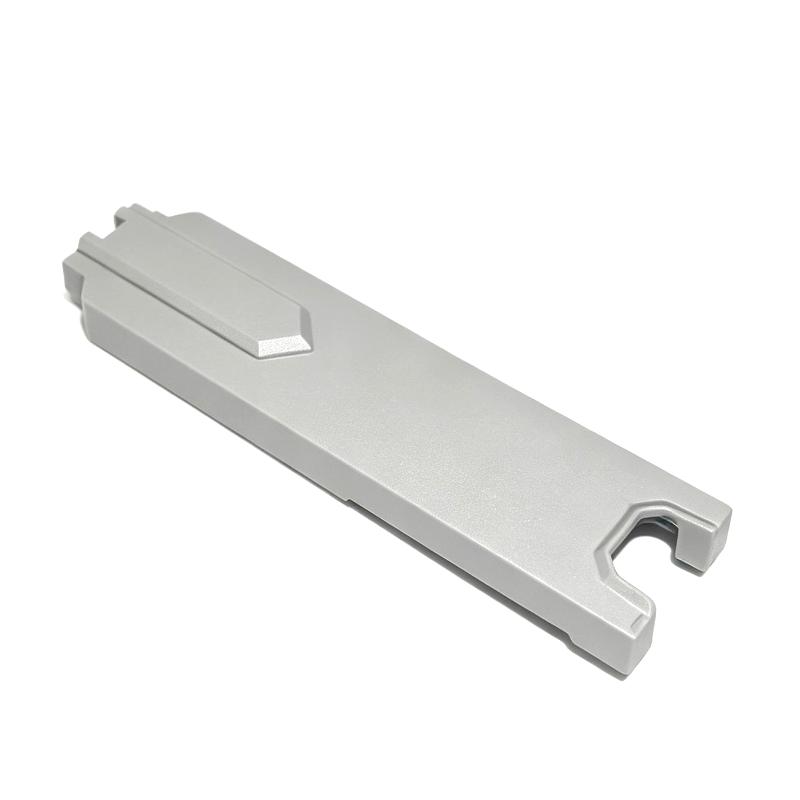

The Emerson SE6101 DeltaV S-series Carrier Blank Cap is a carrier accessory used in DeltaV S-series I/O installations to cover an unused carrier position. It is a passive mechanical component rather than an I/O signal-processing module.

The blank cap is useful when a DeltaV carrier has an available position that is not currently occupied by an active I/O component. Covering the unused position helps maintain an organized carrier assembly and prevents an open slot from being left exposed during system operation or maintenance.

In modular DeltaV installations, spare carrier positions may be intentionally left available for future expansion. The SE6101 can be used in these situations to close the unused position until an appropriate I/O component is installed.

The SE6101 should therefore be considered part of the physical S-series I/O infrastructure. It does not execute control logic, acquire field signals, or generate output commands, but instead supports the mechanical organization of the carrier assembly.

Technical Specifications

Product Features

• DeltaV S-series carrier blank cap.
• Covers an unused position on a compatible I/O carrier.
• Provides a simple mechanical closure for an unoccupied carrier location.
• Useful for systems with spare I/O positions reserved for future expansion.
• Supports an orderly carrier assembly during commissioning and operation.
• Passive component with no independent control or signal-processing function.
• Suitable for maintenance and configuration changes within compatible DeltaV I/O systems.

Working Principle

The SE6101 does not process electrical signals. Its function is mechanical: it occupies or covers an unused position on the applicable DeltaV S-series carrier.

DeltaV S-series Carrier → Unused Position → SE6101 Blank Cap

When an I/O position is not populated by an active module, the blank cap provides a physical cover for that location. This keeps the carrier assembly complete and avoids leaving an unused position visibly open.

The blank cap does not participate in the controller-to-field signal path. Once an active I/O component is required at that position, the blank cap can be removed and replaced by the appropriate compatible component according to the system configuration.

Role in a DeltaV S-series I/O Control Architecture

The SE6101 belongs to the physical infrastructure layer of the DeltaV S-series I/O system rather than the control or signal-processing layer.

DeltaV Controller → S-series I/O Carrier → I/O Module / CHARM Interface → Termination → Field Device

When a carrier position is unused, the SE6101 serves as the associated mechanical closure.

The SE6101 should not be treated as an active I/O device when documenting system signal architecture.

Industrial Applications

Installation and Maintenance

1. Confirm that the SE6101 is intended for the applicable DeltaV S-series carrier before installation.
2. Identify the unused carrier position that requires a blank cap.
3. Inspect the carrier position for damage, contamination, or foreign material.
4. Ensure that the carrier is installed and supported correctly before fitting the cap.
5. Install the SE6101 according to the carrier’s applicable mechanical arrangement.
6. Confirm that the blank cap is properly seated and does not interfere with adjacent I/O components.
7. Keep unused carrier positions covered when active I/O hardware is not installed.
8. Inspect the cap during cabinet maintenance for cracks, deformation, or looseness.
9. Check adjacent carrier and I/O components if the blank cap becomes displaced.
10. Remove the cap only when the corresponding position is being prepared for an approved system modification.
11. After installing an active I/O component, verify that the replacement hardware and carrier configuration match the DeltaV system design.
12. Following maintenance, confirm that all carrier positions and installed I/O components are correctly secured before returning the control cabinet to service.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a dedicated physical closure for an unused DeltaV S-series carrier position.
• Helps maintain an orderly modular I/O installation.
• Useful for spare positions reserved for future system expansion.
• Supports maintenance and configuration changes without leaving an unused position exposed.
• Passive construction avoids introducing another active signal-processing element into the I/O system.
• Fits naturally into DeltaV S-series carrier management.

Technical FAQs

When should a carrier blank cap be used instead of an I/O module?

The SE6101 is appropriate when a carrier position is intentionally unused and does not currently require an active I/O function. An actual I/O module should be installed only when the corresponding signal or control function is required by the DeltaV system design.

Does the SE6101 affect DeltaV signal processing?

No. The blank cap is a passive mechanical accessory and does not acquire, process, or output process signals. Signal processing occurs through the appropriate active I/O hardware installed elsewhere on the carrier.

Can the SE6101 remain installed permanently?

It can be used for an unused carrier position while that position remains unpopulated. If the system is later expanded, the cap can be removed and the appropriate compatible I/O component installed according to the approved configuration.

What should be checked if the blank cap is loose or missing?

Inspect the carrier position and adjacent components for mechanical damage or contamination, then install the appropriate replacement cap if the position is still unused. If an active I/O module is intended for that location, follow the approved DeltaV configuration rather than reinstalling the blank cap.
