Product Overview

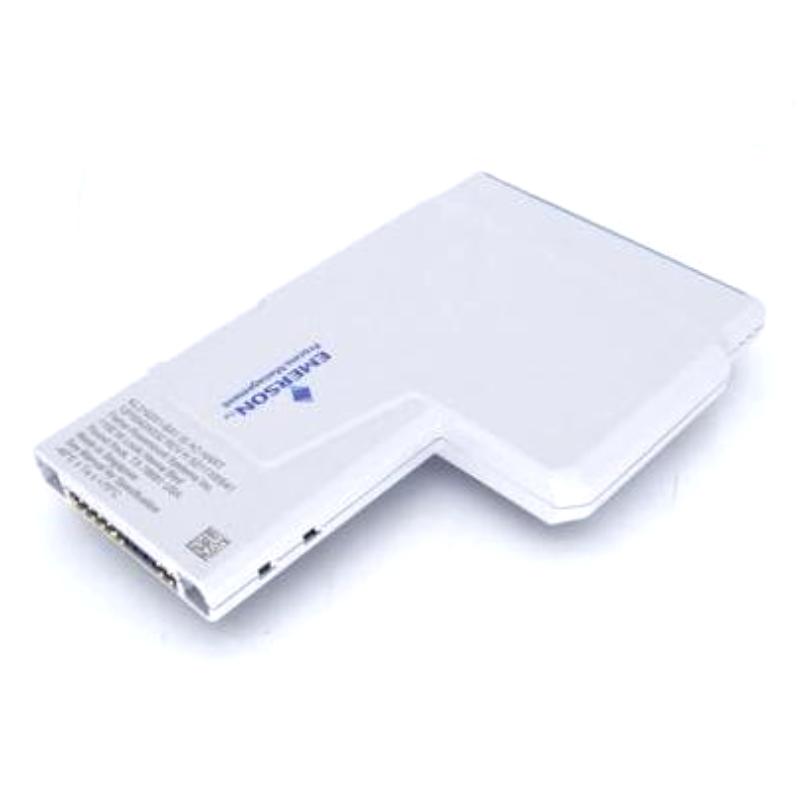

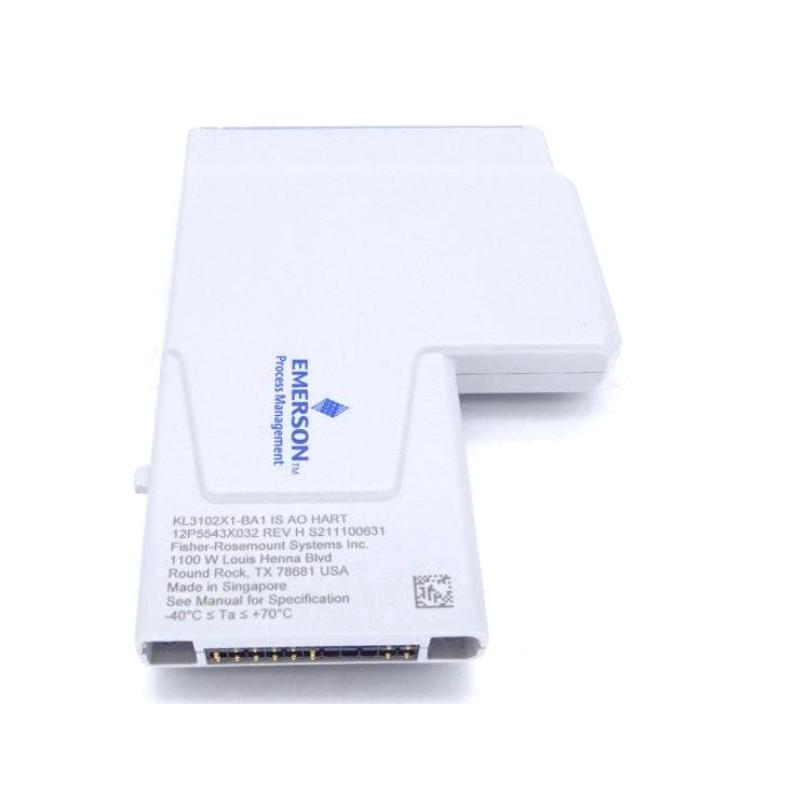

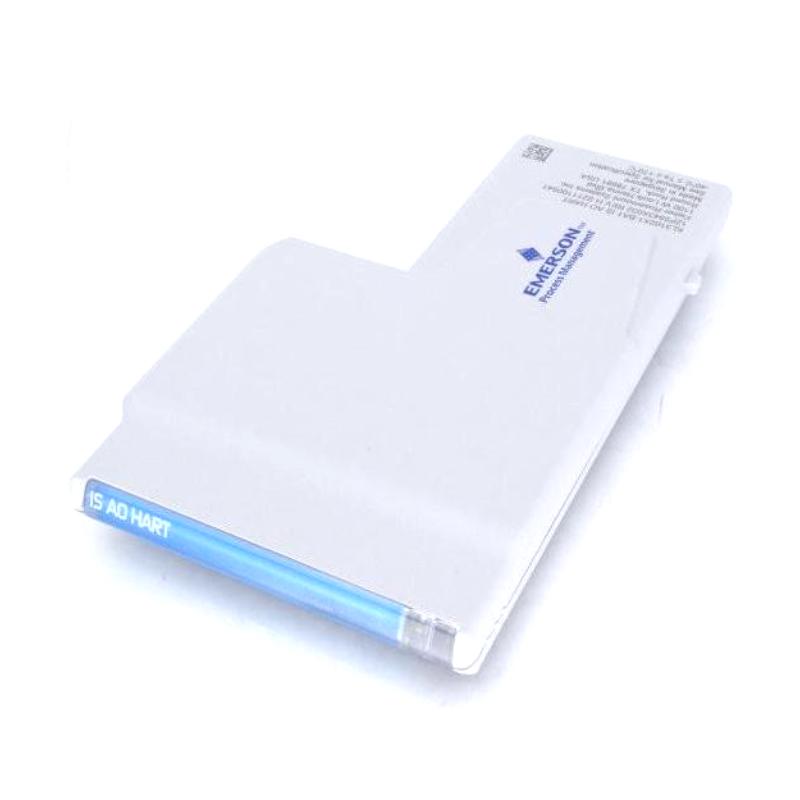

The Emerson SE4308T01 KL3102X1-BA1 DeltaV S-series Intrinsically Safe Analog Output CHARM is a CHARM I/O component for delivering analog control signals to compatible field equipment in DeltaV distributed control systems. It is intended for applications where analog output functions are required within an intrinsically safe field interface.
The module is particularly suited to process areas where field instrumentation may be installed in hazardous locations. Its CHARM-based architecture allows the I/O function to be integrated into the DeltaV system while keeping the field interface organized around the applicable termination and carrier infrastructure.
Typical applications include analog control of valves, positioners, actuators, and other final control elements. The DeltaV controller determines the required process output, while the CHARM handles the corresponding field-side analog signal interface.
The SE4308T01 KL3102X1-BA1 should be selected together with the applicable DeltaV CHARM I/O carrier, termination arrangement, field device, and intrinsic-safety requirements. Compatibility of the complete signal path is important when replacing or expanding an installed system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4308T01 KL3102X1-BA1 |
| Product Family | DeltaV S-series |
| Product Type | Intrinsically Safe Analog Output CHARM |
| Primary Function | Analog control signal output |
| System Role | Intrinsically safe analog output interface |
| Application | Process control and hazardous-area instrumentation |
| Dimensions | 98 × 60 × 40 mm |
| Weight | 0.2 kg |
Product Features
- DeltaV S-series CHARM for analog output applications.
- Intrinsically safe interface for compatible field-control applications.
- Provides analog output communication between the DeltaV system and field equipment.
- Suitable for process-control loops using compatible analog final control elements.
- Supports CHARM-based distributed I/O architectures.
- Can be used in hazardous-area instrumentation applications where the applicable intrinsic-safety architecture is required.
- Integrates with compatible DeltaV carriers and termination equipment.
- Suitable for maintenance and replacement of compatible DeltaV CHARM installations.
Working Principle
The SE4308T01 receives an analog output command from the DeltaV control system and presents the corresponding signal through the CHARM I/O architecture to the connected field circuit.
The DeltaV controller calculates the required output based on the configured control strategy, process conditions, interlocks, and operating parameters. The CHARM then handles the I/O-side signal path toward the final control element.
DeltaV Controller → CHARM I/O Carrier → SE4308T01 → Termination / Field Interface → Analog Field Device → Process
For an intrinsically safe application, the field interface must operate as part of the complete approved protection architecture. The CHARM itself should therefore not be considered independently from the associated carrier, termination components, field wiring, barriers or other applicable safety-related equipment.
A fault in the output path can appear as an incorrect valve position, missing actuator response, or deviation between the controller command and the actual process condition.
Role in a DeltaV CHARM Control Architecture
The SE4308T01 occupies the field-output layer of a DeltaV CHARM-based control system. It transfers controller-generated analog commands toward compatible field equipment while participating in the applicable hazardous-area interface arrangement.
DeltaV Controller → CHARM Carrier → SE4308T01 → Field Termination → Intrinsically Safe Field Circuit → Final Control Element
| System Element | Function |
|---|---|
| DeltaV Controller | Executes process-control logic and calculates output |
| CHARM I/O Carrier | Provides the CHARM mounting and system interface |
| SE4308T01 | Provides intrinsically safe analog output functionality |
| Termination Equipment | Connects the CHARM I/O channel with field wiring |
| Intrinsically Safe Circuit | Interfaces the output with hazardous-area equipment |
| Final Control Element | Converts the analog command into a physical process action |
| Operator Station | Displays process conditions and control status |
The intrinsic-safety requirements of the complete field circuit must be considered when configuring or modifying the installation.
Industrial Applications
| Application | Typical Use |
|---|---|
| Oil and Gas Facilities | Analog control of hazardous-area field equipment |
| Chemical Processing | Control of valves and process actuators |
| Refining Systems | Analog final-control-element commands |
| Petrochemical Plants | Hazardous-area process regulation |
| Pharmaceutical Plants | Controlled process equipment with specialized field I/O |
| Power Generation | Analog control of plant equipment |
| Process Automation | Distributed analog output functions |
| Hazardous-Area Instrumentation | Intrinsically safe analog field control |
Installation and Maintenance
- Confirm that the SE4308T01 KL3102X1-BA1 matches the intended DeltaV CHARM I/O architecture.
- Verify the associated CHARM carrier, termination equipment, controller, and field device before installation.
- Confirm that the intended field circuit meets the applicable intrinsic-safety requirements.
- Isolate the applicable control-system circuit according to the approved maintenance procedure.
- Inspect the CHARM and connection points for physical damage or contamination.
- Verify that field wiring corresponds to the approved system documentation.
- Confirm the correct CHARM channel and field termination assignment before energizing the circuit.
- Ensure the CHARM is correctly seated in the applicable carrier or mounting arrangement.
- Verify that the DeltaV controller generates the expected analog output command.
- Check the field device response using an approved commissioning or loop-test procedure.
- Investigate abnormal output behavior by checking controller configuration, CHARM status, termination, wiring, and field equipment in sequence.
- After replacement, verify the analog output, intrinsic-safety interface, field-device response, alarms, interlocks, and complete control-loop operation before returning the process to service.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV CHARM I/O Carrier | Provides the physical CHARM system interface |
| DeltaV Controller | Generates process-control commands |
| CHARM Termination Equipment | Connects I/O channels with field wiring |
| Intrinsic-Safety Interface | Maintains the required hazardous-area interface |
| Control Valve | Converts analog output into process flow control |
| Valve Positioner | Uses the output command to position a valve |
| Analog Actuator | Performs controlled mechanical movement |
| DeltaV Engineering Station | Provides configuration and diagnostics |
| DeltaV Operator Station | Displays process values and control status |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson DeltaV S-series | Distributed I/O Platform | Process control and field interfacing |
| Emerson DeltaV CHARM | Electronic Marshalling I/O | Distributed field signal interfacing |
| Emerson SE4308T01 | Analog Output CHARM | Analog field-device control |
| Emerson SE4308T01 KL3102X1-BA1 | Intrinsically Safe Analog Output CHARM | Hazardous-area analog output applications |
| Emerson DeltaV CHARM Carrier | I/O Carrier | CHARM mounting and system integration |
| Emerson DeltaV CHARM Termination | Termination Equipment | Field wiring interface |
| Emerson DeltaV S-series I/O | I/O Platform | Distributed process signal handling |
Key Advantages
- Provides analog output functionality within a DeltaV CHARM architecture.
- Supports intrinsically safe field-interface applications.
- Suitable for analog control of compatible valves, positioners, and actuators.
- Integrates field output functions into distributed DeltaV process-control systems.
- Supports hazardous-area instrumentation architectures when used with the required associated equipment.
- Allows analog field control to be organized within a CHARM-based I/O system.
Technical FAQs
What makes an analog output CHARM suitable for hazardous-area applications?
The relevant CHARM and its associated field circuit must be configured as part of an applicable intrinsic-safety architecture. The complete installation, including carriers, termination, wiring, and field equipment, must meet the requirements for the intended hazardous area.
Can the SE4308T01 directly control a valve?
It can provide the applicable analog output signal to a compatible field control circuit, but the complete valve-control loop also includes the DeltaV controller, CHARM infrastructure, termination, wiring, and the valve or positioner. Compatibility must be confirmed for the actual installation.
What should be checked if the controller shows an output command but the actuator does not respond?
Check the CHARM channel status first, followed by termination connections, field wiring, intrinsic-safety interface components, and the actuator or positioner. Comparing the controller command with the field-side signal can help locate the interruption.
Why is the exact CHARM and field-circuit combination important when replacing this module?
DeltaV CHARM installations can use different I/O functions and field-interface arrangements. A replacement should therefore match the required I/O function and the installed hazardous-area architecture rather than being selected only because the physical module appears similar.
