Product Overview

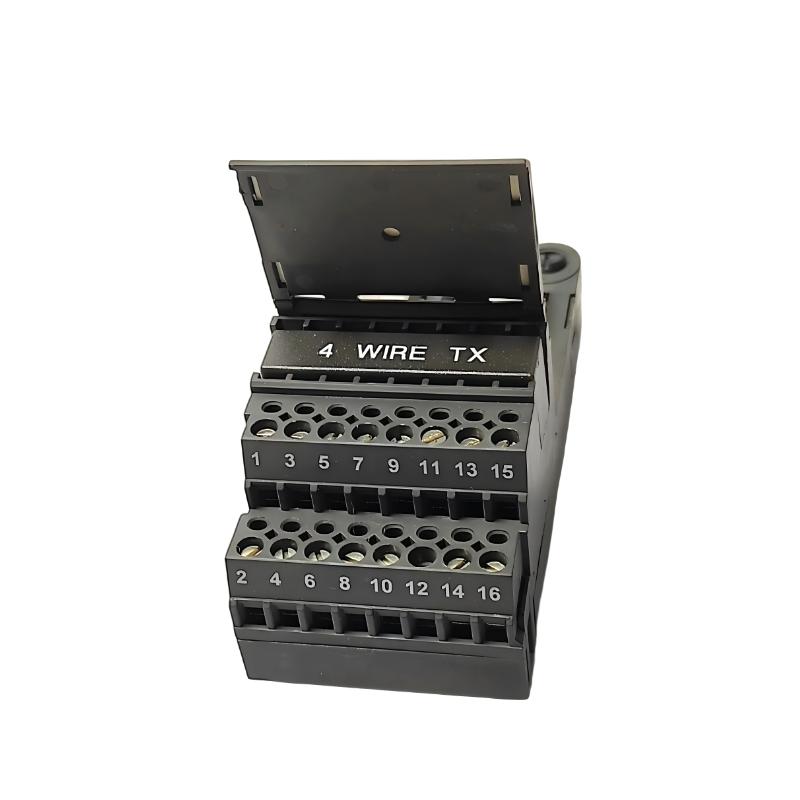

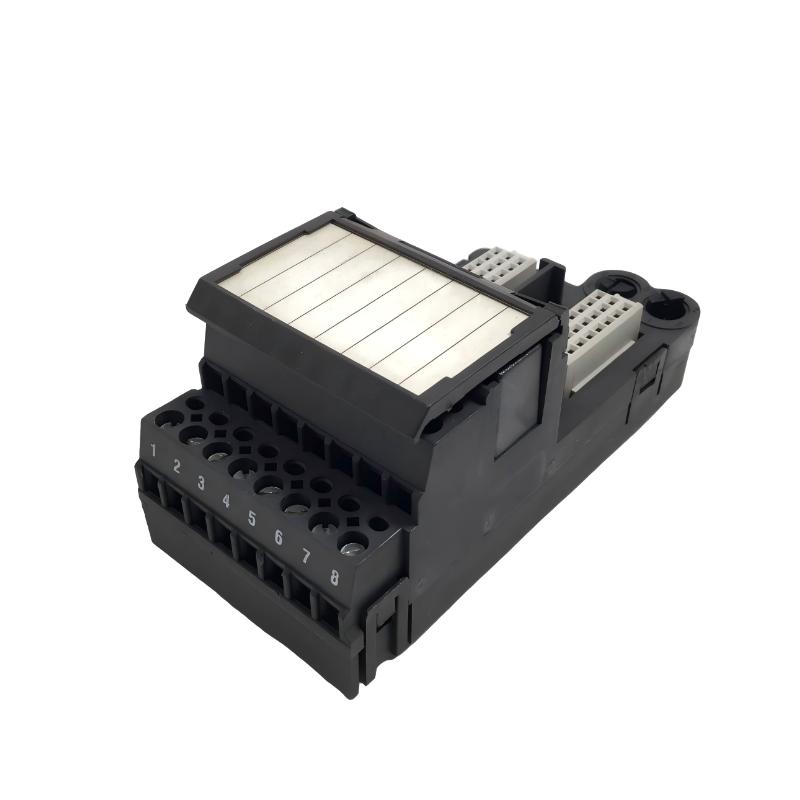

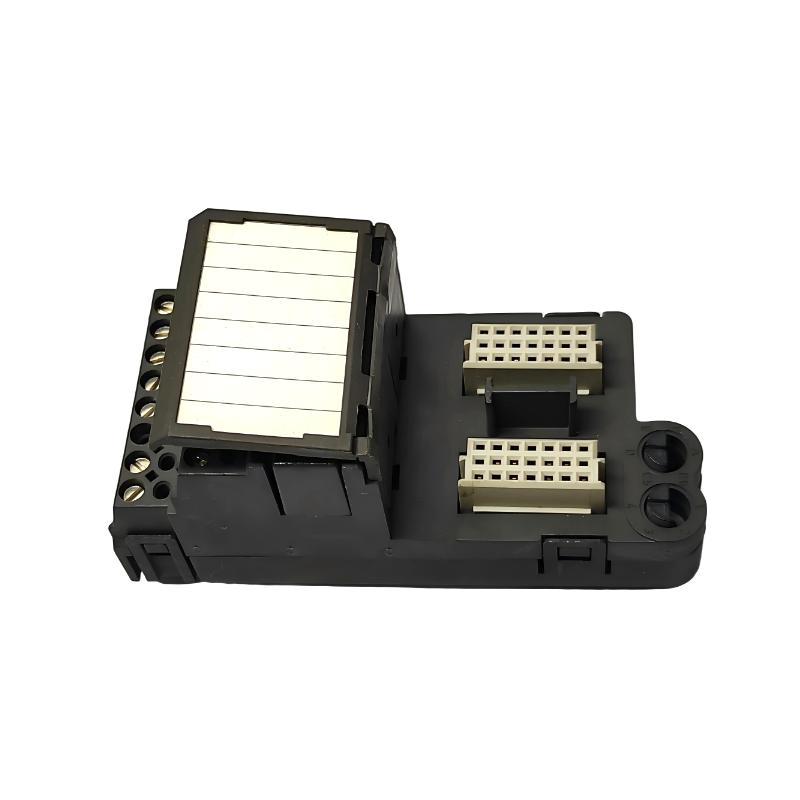

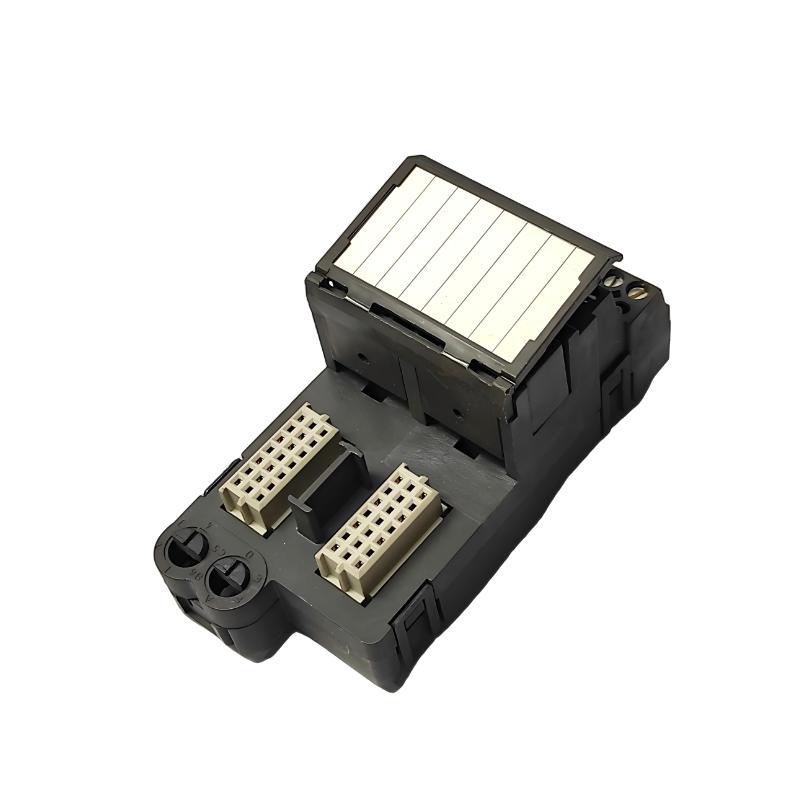

The Emerson SE4083S2B11 DeltaV S-series Redundant Analog Input Plus Card is an analog input module used in DeltaV distributed control systems where process measurements need to be acquired with redundant signal handling. It interfaces field analog signals with the DeltaV control architecture and makes measurement data available to the controller for monitoring and process control.
The redundant configuration is suited to applications where continuity of measurement acquisition is important. It can be used in process plants with critical instrumentation, allowing the control system architecture to maintain a higher level of availability than a conventional simplex analog input arrangement.
The SE4083S2B11 belongs to the DeltaV S-series I/O platform and operates together with the appropriate carrier, termination equipment, controller, and field wiring. The input card handles the acquisition side of the signal path while the DeltaV control system performs process logic, alarming, sequencing, and operator visualization.
Typical field signals can originate from transmitters and other analog instrumentation measuring process variables such as pressure, temperature, flow, level, or other continuously varying conditions. The actual signal type and field wiring arrangement should be matched to the configured DeltaV I/O system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4083S2B11 |
| Product Family | DeltaV S-series |
| Product Type | Redundant Analog Input Plus Card |
| Primary Function | Analog process signal acquisition |
| System Role | Redundant analog input interface |
| Application | Process control and industrial automation |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.29 kg |
Product Features
- DeltaV S-series redundant analog input card.
- Supports acquisition of analog process signals within the DeltaV I/O architecture.
- Redundant configuration for applications requiring higher I/O availability.
- Interfaces field instrumentation with the DeltaV control system.
- Suitable for continuous process-variable monitoring.
- Works with compatible S-series I/O carriers and termination arrangements.
- Applicable to critical process instrumentation and distributed control applications.
- Can support control-system architectures where continuity of analog signal acquisition is important.
Working Principle
The SE4083S2B11 receives analog measurement signals from connected field instrumentation through the DeltaV I/O interface. The input circuitry processes the incoming signal so that the associated DeltaV controller can use the measurement as process data.
In a redundant arrangement, the input path is coordinated with the corresponding redundant I/O architecture so that the control system can maintain signal availability when an applicable hardware path or component requires attention.
Field Transmitter → Termination / I/O Interface → SE4083S2B11 → DeltaV Controller → Control Logic / Alarm → HMI / Operator Station
The card itself does not determine the complete process response. The controller interprets the acquired value according to the configured control strategy, alarm limits, interlocks, and sequencing logic.
For troubleshooting, the field transmitter, wiring, termination, input card, controller configuration, and displayed process value should be considered as one complete measurement chain.
Role in a DeltaV S-series Control Architecture
The SE4083S2B11 occupies the analog signal acquisition layer of the DeltaV S-series I/O architecture. Its purpose is to bring process measurements from the field into the distributed control system while supporting the applicable redundant I/O arrangement.
Field Instrumentation → Termination → S-series Analog I/O → DeltaV Controller → Engineering / Operator Station
| System Element | Function |
|---|---|
| Field Transmitter | Measures the physical process variable |
| Termination Equipment | Provides the field wiring interface |
| SE4083S2B11 | Acquires analog process measurement signals |
| S-series I/O Carrier | Provides the card’s physical system interface |
| DeltaV Controller | Executes control, alarm, and process logic |
| Operator Station | Displays process values, alarms, and operating information |
| Engineering Station | Provides system configuration and diagnostics |
The redundant input arrangement should be evaluated together with the associated carrier, termination, controller, and field instrumentation rather than as an isolated module.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Plants | Acquisition of continuous process measurements |
| Oil and Gas Systems | Monitoring pressure, flow, temperature, and level |
| Chemical Processing | Analog measurement for process control |
| Power Generation | Monitoring critical plant process variables |
| Water and Wastewater | Acquisition of level, pressure, and flow signals |
| Pharmaceutical Manufacturing | Continuous process instrumentation |
| Refining Systems | Analog input from field transmitters |
| Critical Utility Systems | Redundant measurement acquisition |
Installation and Maintenance
- Confirm that the SE4083S2B11 matches the intended DeltaV S-series redundant I/O configuration.
- Verify the associated carrier, termination equipment, controller, and field instrumentation before installation.
- Isolate the applicable control-system circuit according to the approved maintenance procedure.
- Inspect the card and its connection points for visible damage or contamination.
- Confirm that field wiring corresponds to the approved DeltaV system documentation.
- Verify that redundant I/O connections are assigned to the intended system channels.
- Ensure that the card is correctly seated in the applicable I/O carrier before energizing the system.
- Check field termination points for loose connections, damaged conductors, or incorrect channel assignments.
- Verify that the expected analog process value is received by the DeltaV controller.
- Compare the displayed measurement with the field instrument or an approved test source during commissioning.
- Investigate unstable readings by checking the transmitter, wiring, termination, I/O card, and controller configuration in sequence.
- After replacement, verify redundant I/O operation, signal acquisition, alarms, and controller response before returning the process to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV S-series I/O Carrier | Provides the physical interface for the I/O card |
| DeltaV Controller | Executes process-control and system logic |
| S-series Termination Equipment | Connects field wiring to the I/O architecture |
| Analog Process Transmitter | Generates the measured process signal |
| Field Instrumentation | Provides process measurements |
| DeltaV Engineering Station | Configures and diagnoses the control system |
| DeltaV Operator Station | Displays process values and alarms |
| Redundant I/O Infrastructure | Supports higher-availability signal acquisition |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson DeltaV S-series | Distributed I/O Platform | Process control and field signal acquisition |
| Emerson SE4035S2B1 | Redundant Analog Output Card | Redundant analog signal output |
| Emerson SE4083S2B11 | Redundant Analog Input Plus Card | Redundant analog signal acquisition |
| Emerson SE4053S2B11 | Simplex Analog Input Plus Card | Analog process signal acquisition |
| Emerson SE4055S2B5 | Simplex Analog Output Plus Card | Analog signal output |
| Emerson SE4005S2B3 | Analog Output Card | DeltaV analog output applications |
| Emerson SE4051S2T2B5 | Simplex Discrete Input Card | Discrete field signal acquisition |
| Emerson SE4082S1T2B8 | Redundant Discrete Output Card | Redundant discrete control outputs |
Key Advantages
- Provides redundant analog signal acquisition within the DeltaV S-series platform.
- Suitable for process measurements where I/O availability is a consideration.
- Integrates field instrumentation into DeltaV control and monitoring architectures.
- Supports continuous analog process-variable acquisition.
- Can be applied to critical instrumentation in distributed process-control systems.
- Works with the broader S-series carrier, termination, controller, and operator infrastructure.
Technical FAQs
What is the difference between a redundant analog input card and a simplex analog input card?
A redundant analog input arrangement uses an architecture intended to maintain signal acquisition availability through coordinated redundant hardware paths. A simplex input card uses a single I/O path, so the appropriate choice depends on the required system availability and DeltaV architecture.
What field instruments can be connected to the SE4083S2B11?
The card can be used with compatible analog field instrumentation such as process transmitters. The actual transmitter type, signal characteristics, termination arrangement, and channel configuration must match the applicable DeltaV I/O specification.
What should be checked if one process measurement is missing while the rest of the system operates normally?
Start with the affected field transmitter and its wiring, then check the termination point, I/O channel assignment, SE4083S2B11 status, controller configuration, and displayed process value. Comparing the affected channel with a known-good channel can help isolate the fault.
When is a redundant analog input architecture worth considering?
It is particularly useful for process measurements where loss of an input path could affect monitoring, control, or plant operation. The decision should consider process criticality, required availability, maintenance strategy, and the overall DeltaV redundant I/O architecture.
