Product Overview

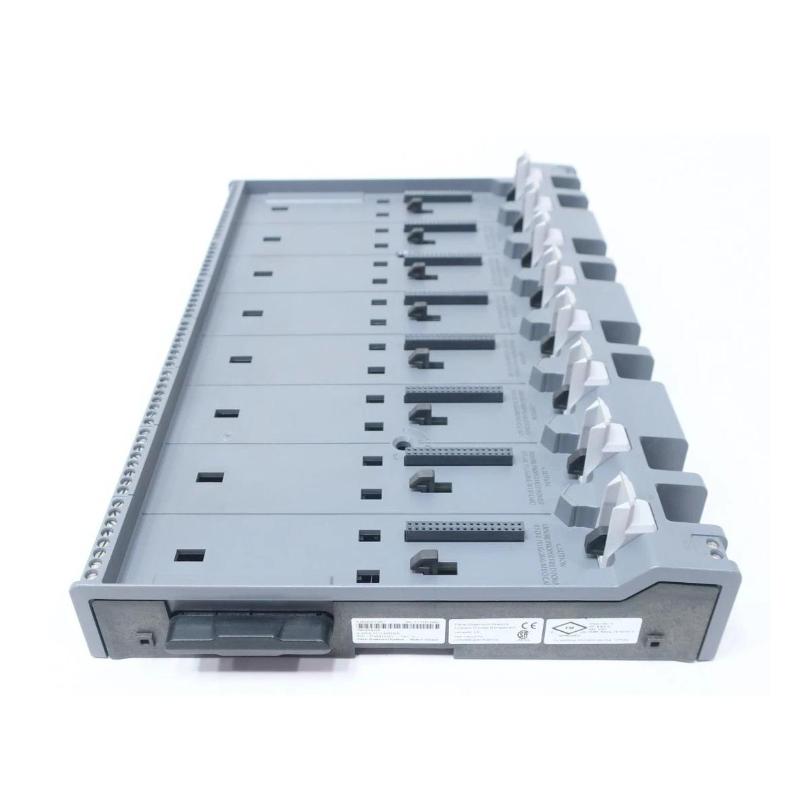

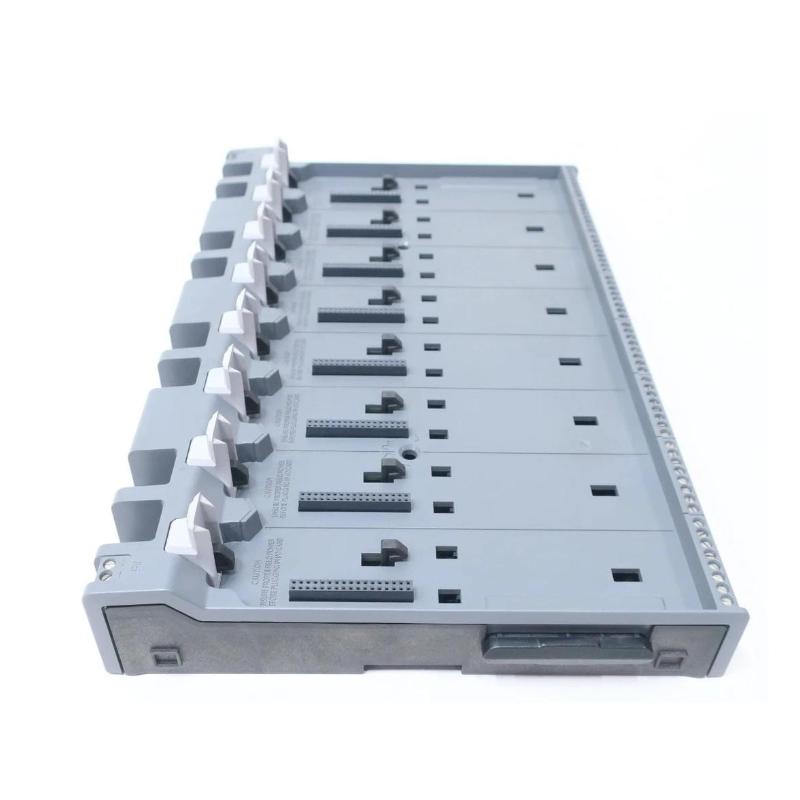

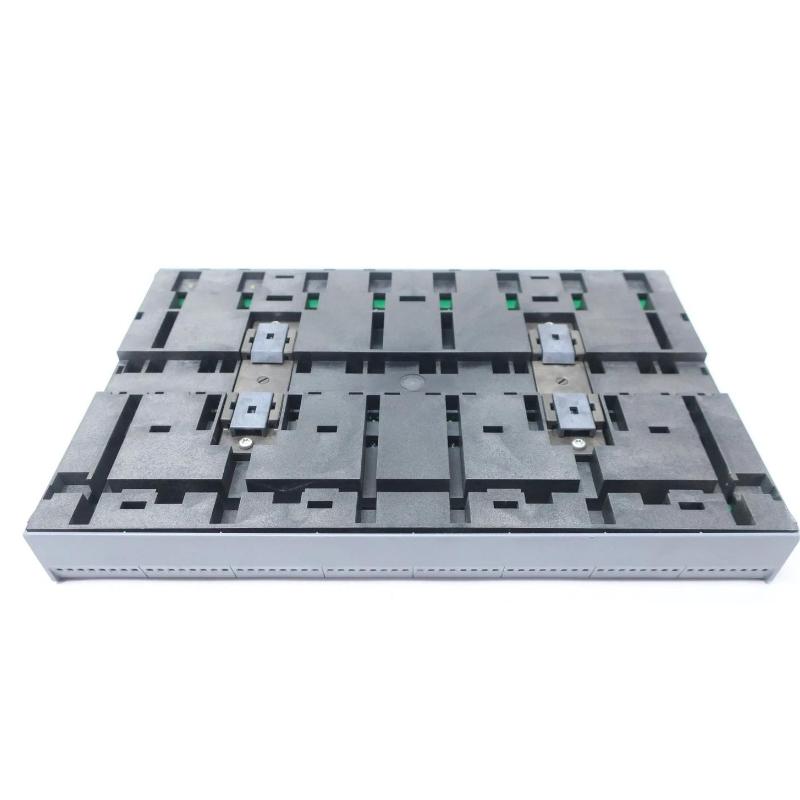

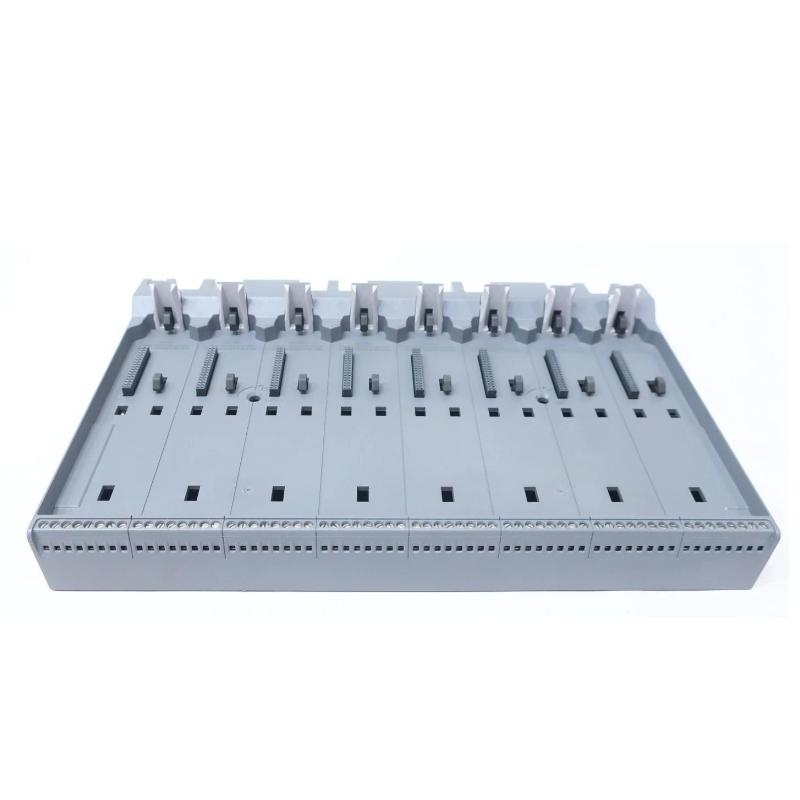

The Emerson SE4059E0C0 is a DeltaV S-series 8-Wide I/O Interface Carrier used to provide the physical platform for connecting S-series I/O interface components within a DeltaV control system. Unlike an individual input or output card, the carrier serves as part of the I/O infrastructure that organizes and supports the associated interface modules.
The 8-wide configuration allows multiple S-series I/O interface positions to be arranged within a common carrier assembly. This is useful in DeltaV control cabinets where several I/O points need to be grouped into a structured and serviceable hardware arrangement.
The carrier sits between the DeltaV control-system infrastructure and the connected I/O interface hardware. Field signals are handled through the appropriate I/O cards and termination arrangements, while the carrier provides the physical and electrical interconnection needed to assemble the I/O section.
For commissioning and maintenance, the carrier should be considered as part of the complete S-series I/O assembly. A problem affecting several channels or multiple installed I/O interfaces may require inspection of the carrier, connections, module seating, and associated termination hardware rather than only the individual I/O cards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4059E0C0 |
| Product Family | DeltaV S-series |
| Product Type | 8-Wide I/O Interface Carrier |
| Primary Function | S-series I/O interface and carrier support |
| System Role | DeltaV S-series I/O infrastructure |
| Application | Process control and industrial automation |
| Configuration | 8-Wide |
| Dimensions | 162 × 41.8 × 199.3 mm |
| Weight | 0.29 kg |
Product Features
- 8-wide I/O interface carrier for the Emerson DeltaV S-series platform
- Provides a common physical arrangement for S-series I/O interface components
- Supports organized installation of multiple I/O positions
- Forms part of the DeltaV S-series I/O infrastructure
- Suitable for centralized control cabinets and distributed I/O arrangements
- Simplifies physical organization of associated I/O hardware
- Supports installation, replacement, and maintenance of S-series I/O assemblies
- Works with compatible DeltaV I/O interface and termination components
Working Principle
The SE4059E0C0 does not perform analog measurement or discrete signal processing by itself. Its primary role is to provide the carrier and interconnection structure for the associated S-series I/O interface components.
I/O modules installed within the carrier exchange system-side information with the DeltaV control architecture while their field-side signals are connected through the appropriate termination arrangement. The carrier maintains the physical and electrical relationship between these components.
DeltaV Controller → S-series I/O Infrastructure → SE4059E0C0 Carrier → I/O Interface Components → Termination → Field Devices
During operation, the carrier itself does not decide control actions. The installed I/O interfaces handle the actual input or output functions, while the DeltaV controller executes the configured process logic. The carrier provides the infrastructure that allows these components to operate as an integrated I/O section.
Role in a DeltaV S-series I/O Architecture
The SE4059E0C0 occupies the infrastructure layer of the DeltaV S-series I/O architecture. It supports the installation and interconnection of multiple I/O interface positions rather than acting as a standalone signal-processing card.
DeltaV Controller → S-series I/O Infrastructure → SE4059E0C0 → I/O Cards / Interfaces → Termination Assembly → Field Equipment
| System Element | Function |
|---|---|
| DeltaV Controller | Executes process control and sequencing logic |
| S-series I/O Infrastructure | Provides the system-level I/O platform |
| SE4059E0C0 | Supports the 8-wide I/O interface arrangement |
| S-series I/O Interfaces | Acquire or generate configured field signals |
| Termination Assembly | Connects I/O channels with field wiring |
| Field Instruments | Provide process measurements |
| Field Actuators | Perform commanded process actions |
| HMI / Operator Station | Displays process and equipment information |
Because the carrier is shared infrastructure, incorrect installation or poor connections can potentially affect multiple I/O positions. Carrier-level inspection is therefore useful when several associated channels show abnormal behavior simultaneously.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Structured installation of DeltaV I/O hardware |
| Oil & Gas Facilities | Centralized process I/O cabinet organization |
| Chemical Processing | Grouping multiple process I/O interfaces |
| Power Generation | I/O infrastructure for plant control systems |
| Water Treatment | Organized installation of process I/O equipment |
| Manufacturing Systems | Machine and process I/O expansion |
| Distributed Control | Structured arrangement of distributed I/O points |
| Control Cabinets | Physical support for multiple S-series interfaces |
Installation and Maintenance
- Verify the SE4059E0C0 model and intended DeltaV S-series architecture before installation.
- Confirm that the carrier arrangement matches the required number and type of installed I/O interfaces.
- Isolate the relevant control-system power before handling the carrier or associated modules.
- Inspect the carrier and mounting area for mechanical damage or contamination.
- Secure the carrier correctly within the designated control-panel location.
- Verify that associated I/O interfaces are correctly positioned and seated.
- Check interconnections between the carrier and installed I/O components.
- Confirm that termination assemblies and field wiring correspond to the intended I/O positions.
- Apply system power and verify that the installed I/O infrastructure is recognized correctly.
- Investigate multiple-channel communication or I/O problems by checking carrier connections as well as individual cards.
- Inspect carrier connections during scheduled maintenance for looseness, damage, or abnormal mechanical conditions.
- After replacement or reconfiguration, verify all affected I/O positions and associated field signals before returning the system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Emerson DeltaV Controller | Executes process-control logic |
| DeltaV S-series I/O Interfaces | Provides configured input and output functions |
| S-series I/O Cards | Handles analog or discrete process signals |
| S-series Termination Assemblies | Interfaces I/O channels with field wiring |
| Field Transmitters | Provide analog process measurements |
| Control Valves | Receive control signals for process regulation |
| Discrete Field Devices | Provide or receive on/off control signals |
| Interposing Relays | Provides field-side signal interfacing |
| HMI / Operator Station | Displays process and equipment status |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SE4059E0C0 | 8-Wide I/O Interface Carrier | S-series I/O infrastructure |
| Emerson DeltaV S-series I/O Carriers | I/O Interface Carriers | I/O system expansion and organization |
| Emerson DeltaV S-series AI Cards | Analog Input Cards | Process-variable acquisition |
| Emerson DeltaV S-series AO Cards | Analog Output Cards | Continuous process control |
| Emerson DeltaV S-series DI Cards | Discrete Input Cards | Discrete status acquisition |
| Emerson DeltaV S-series DO Cards | Discrete Output Cards | Discrete actuator control |
| Emerson DeltaV S-series Termination | Termination Assemblies | Field signal termination |
Key Advantages
- Provides an 8-wide carrier arrangement for DeltaV S-series I/O interfaces.
- Supports organized installation of multiple I/O positions.
- Forms part of the physical infrastructure connecting I/O interfaces with termination equipment.
- Simplifies cabinet-level organization of DeltaV I/O hardware.
- Supports maintenance and replacement of S-series I/O assemblies.
- Helps maintain a structured I/O architecture for process-control systems.
Technical FAQs
What is the difference between the SE4059E0C0 and an S-series I/O card?
The SE4059E0C0 is an I/O interface carrier rather than a signal-processing input or output card. It provides the physical and electrical infrastructure for associated S-series I/O interface components.
What does the 8-Wide configuration mean?
The 8-Wide designation identifies the carrier arrangement and its capacity for the associated S-series I/O interface positions. It should not be interpreted as eight analog or discrete signal channels.
Can a carrier problem affect multiple I/O channels?
Yes. Because the carrier forms part of the shared I/O infrastructure, a connection or interconnection problem can potentially affect more than one installed interface. If several channels or modules exhibit related symptoms, the carrier and its connections should be inspected.
What should be checked when replacing an SE4059E0C0?
Verify the carrier model, mounting arrangement, installed I/O interfaces, interconnections, and termination positions. After replacement, confirm that the affected S-series I/O components are correctly recognized and that their associated field signals operate as expected.
