Product Overview

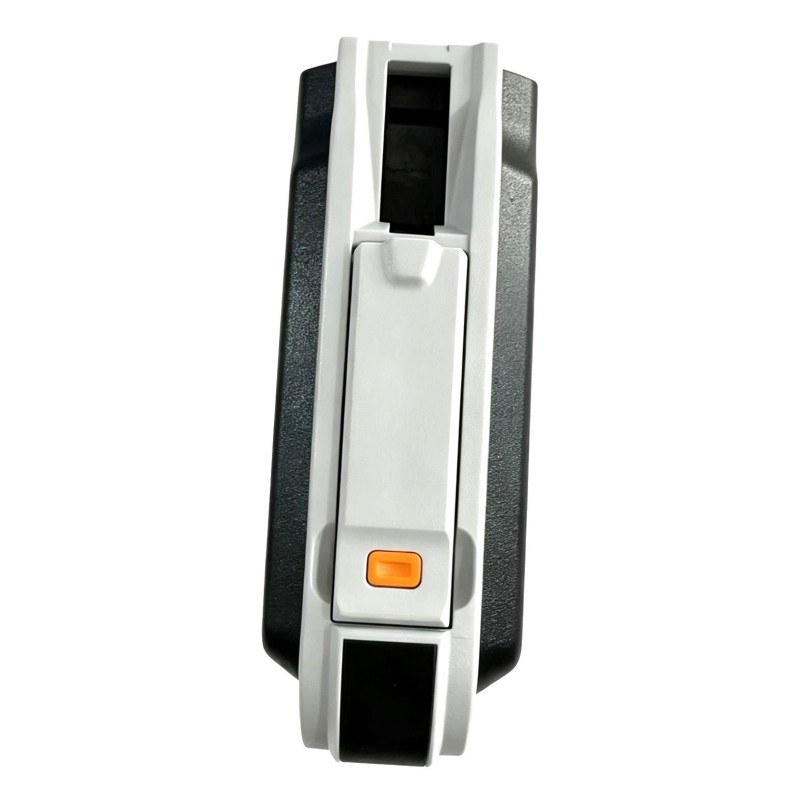

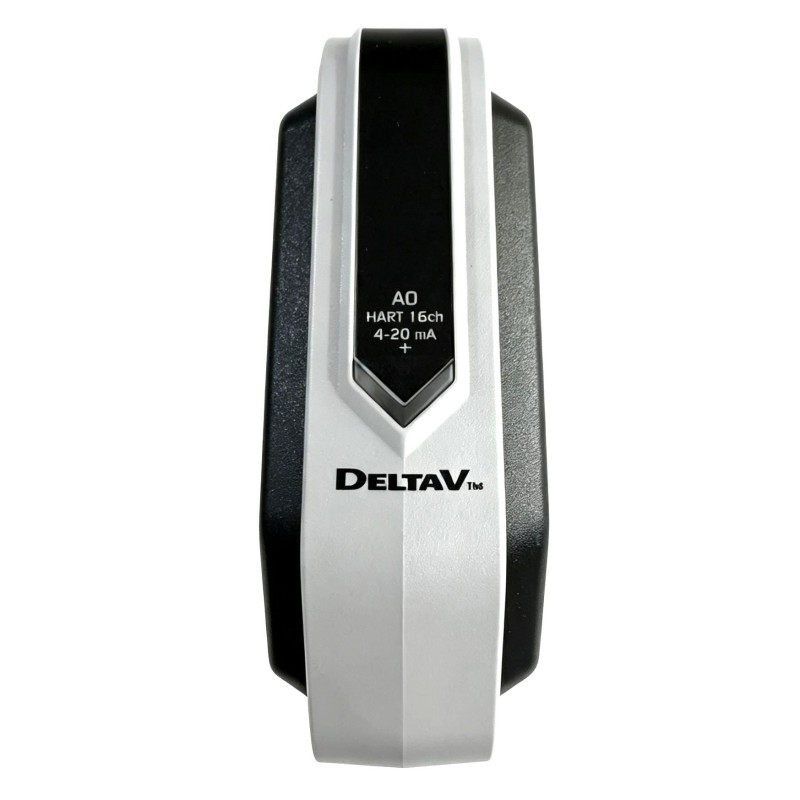

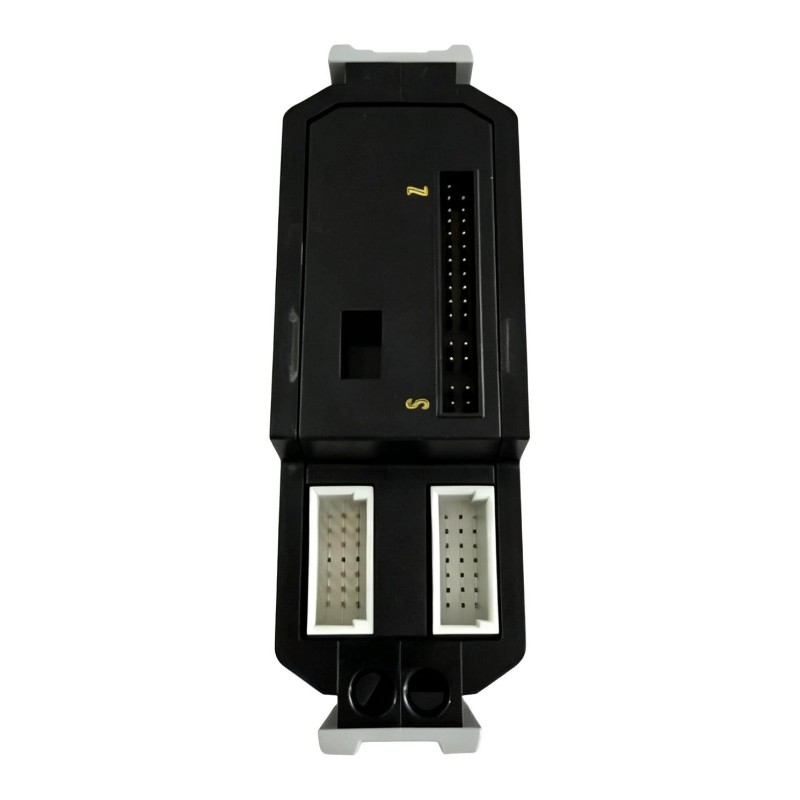

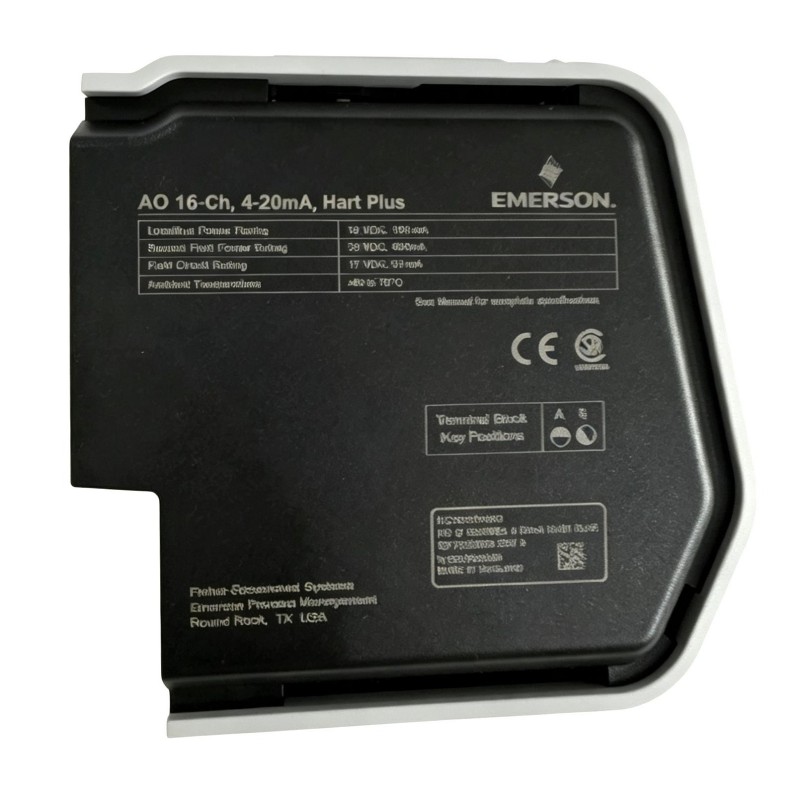

The Emerson SE4055S2B5 is a DeltaV S-series Simplex Analog Output Plus Card used to send continuous control signals from the DeltaV control system to compatible field equipment. It is suited to process applications where a controller must continuously adjust a field device rather than simply issue an on/off command.
In a typical control loop, the DeltaV controller calculates the required output based on the process variable, setpoint, control strategy, and configured operating conditions. The SE4055S2B5 transfers the resulting analog output through the S-series I/O infrastructure and termination arrangement to the associated field circuit.
Typical receiving devices include control valve positioners, variable-speed equipment interfaces, dampers, actuators, and other equipment that responds to an analog command. The output therefore forms the final electronic stage of a control loop before the command reaches the field actuator.
The simplex configuration is appropriate for control architectures where a single analog output path is used. During commissioning, the commanded output value can be compared with the actual field response to verify channel configuration, termination, wiring, and actuator operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4055S2B5 |
| Product Family | DeltaV S-series |
| Product Type | Simplex Analog Output Plus Card |
| Primary Function | Analog process control output |
| System Role | DeltaV S-series analog output interface |
| Application | Process control and industrial automation |
| Configuration | Simplex |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.65 kg |
Product Features
- Simplex analog output card for the Emerson DeltaV S-series platform
- Provides continuous control signals to compatible field equipment
- Suitable for modulating process-control applications
- Interfaces DeltaV control strategies with analog field actuators
- Supports centralized control of continuously adjustable equipment
- Suitable for control valves, actuator interfaces, and variable-speed equipment
- Integrates with S-series I/O infrastructure and termination arrangements
- Supports channel-level commissioning and output verification
Working Principle
The SE4055S2B5 receives an analog output command generated by the DeltaV control strategy and transfers the corresponding control signal toward the field device.
The controller continuously determines the required output based on the configured control loop. The SE4055S2B5 then handles the I/O portion of that command, passing the signal through the associated termination and field wiring. The connected actuator or interface converts the analog command into a corresponding physical adjustment.
DeltaV Controller → SE4055S2B5 → S-series Termination / Field Interface → Actuator → Process
For example, a controller may increase an output command when additional valve opening is required. The field-side actuator responds to the changing signal and adjusts the valve position, which changes the process condition. Feedback from the process can then return through an analog input path to close the control loop.
Role in a DeltaV Analog Control Architecture
The SE4055S2B5 occupies the analog output stage between DeltaV control logic and continuously adjustable field equipment. It does not independently determine the control action; the controller establishes the required output according to the configured process strategy.
Process Measurement → DeltaV Controller → SE4055S2B5 → Termination Assembly → Field Actuator → Process
| System Element | Function |
|---|---|
| Field Instrument | Provides process measurement feedback |
| DeltaV Controller | Calculates the required control output |
| SE4055S2B5 | Generates the configured analog output signal |
| S-series I/O Platform | Provides the associated I/O infrastructure |
| Termination Assembly | Interfaces the output channel with field wiring |
| Valve / Actuator | Converts the analog command into physical movement |
| Process Equipment | Responds to the resulting control action |
| HMI / Operator Station | Displays control-loop and operating information |
The simplex arrangement uses a single analog output path, making the card suitable for control loops where redundant output hardware is not required.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Continuous adjustment of process variables |
| Control Valve Systems | Modulating valve position |
| Flow Regulation | Continuous flow-control commands |
| Pressure Control | Adjustment of valves or regulating equipment |
| Temperature Control | Modulating heating or cooling equipment |
| Level Control | Continuous control of level-regulating devices |
| Variable-Speed Equipment | Analog command to compatible speed interfaces |
| Oil & Gas Facilities | Modulating process equipment |
| Chemical Processing | Continuous control of process actuators |
| Power Generation | Analog control of plant equipment |
Installation and Maintenance
- Verify the SE4055S2B5 model and intended DeltaV S-series configuration before installation.
- Confirm the assigned output channel against the configured control strategy.
- Isolate the relevant field circuit before handling the card or termination wiring.
- Check the S-series carrier and termination arrangement for correct installation.
- Verify field wiring between the termination assembly and connected actuator.
- Confirm that the receiving device is suitable for the configured analog output circuit.
- Check terminal connections for loose, damaged, or incorrectly landed conductors.
- Apply system power and verify that DeltaV recognizes the output card correctly.
- Test the output channel using an approved commissioning procedure.
- Compare commanded output values with the actual response of the connected field device.
- If the actuator does not respond correctly, check the controller command, output channel, termination, wiring, and field device separately.
- After replacement or maintenance, repeat the required output and control-loop tests before returning the process to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Emerson DeltaV Controller | Executes process-control calculations |
| DeltaV S-series I/O Infrastructure | Provides the I/O platform for the card |
| S-series Termination Assembly | Interfaces output channels with field wiring |
| Control Valve Positioners | Converts analog commands into valve movement |
| Electric Actuator Interfaces | Controls continuously adjustable equipment |
| Variable-Speed Drive Interfaces | Receives analog speed or control references |
| Process Transmitters | Provide feedback for closed-loop control |
| Field Wiring | Carries analog output signals to connected devices |
| HMI / Operator Station | Displays process and control-loop information |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SE4055S2B5 | Simplex Analog Output Plus Card | Continuous process control |
| Emerson DeltaV S-series AO Cards | Analog Output Cards | Analog actuator control |
| Emerson DeltaV S-series AI Cards | Analog Input Cards | Process-variable acquisition |
| Emerson DeltaV S-series DI Cards | Discrete Input Cards | Discrete status acquisition |
| Emerson DeltaV S-series DO Cards | Discrete Output Cards | Discrete actuator control |
| Emerson DeltaV S-series I/O Carriers | I/O Carrier | S-series I/O system expansion |
| Emerson DeltaV S-series Termination | Termination Assembly | Field signal termination |
Key Advantages
- Provides simplex analog output control within the DeltaV S-series architecture.
- Supports continuous adjustment of compatible process equipment.
- Suitable for modulating valves, actuators, and variable-speed interfaces.
- Connects DeltaV control strategies with analog field devices.
- Supports channel-level commissioning and control-loop verification.
- Integrates into the broader DeltaV S-series I/O and termination architecture.
Technical FAQs
What is the SE4055S2B5 used for in a DeltaV control loop?
It provides the analog output stage that transfers a continuous control command from the DeltaV system toward a compatible field actuator or interface.
How is an analog output different from the discrete output provided by an S-series DO card?
An analog output allows the commanded value to vary continuously within the configured signal range, while a discrete output represents defined switching states. Analog output is therefore suitable for modulating equipment such as control valves and compatible actuators.
What should be checked if the DeltaV output changes but the field actuator does not move?
Check the output channel configuration first, followed by the termination assembly, field wiring, actuator interface, and receiving device. Comparing the commanded output with the actual field-side response can help isolate the problem.
When is a simplex analog output architecture appropriate?
A simplex arrangement is appropriate when the control strategy uses a single analog output path and the application does not require redundant output hardware. The redundancy requirements of the overall process-control system should be considered when selecting the I/O architecture.
