Product Overview

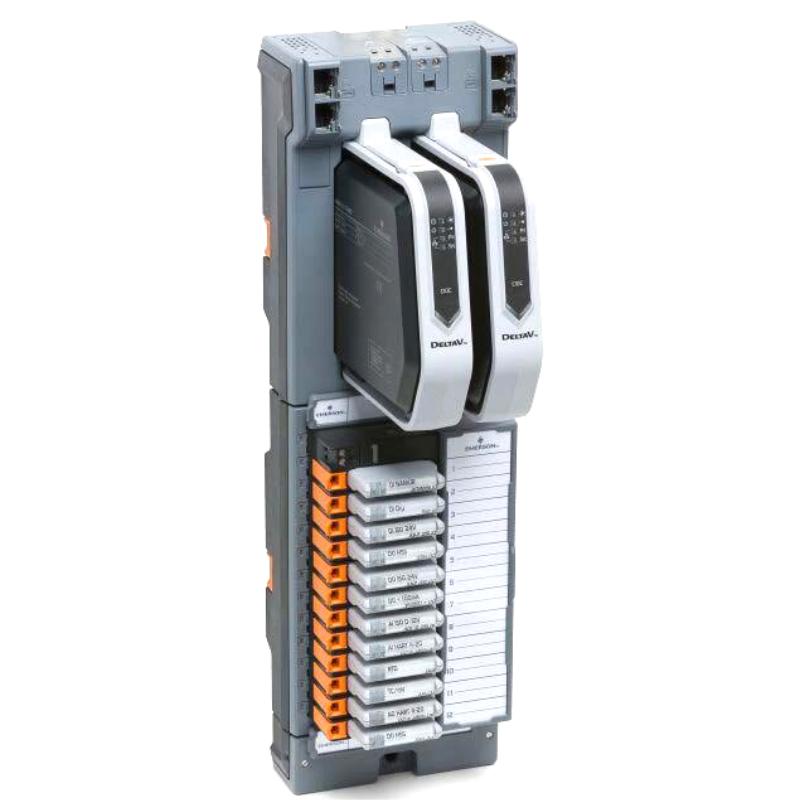

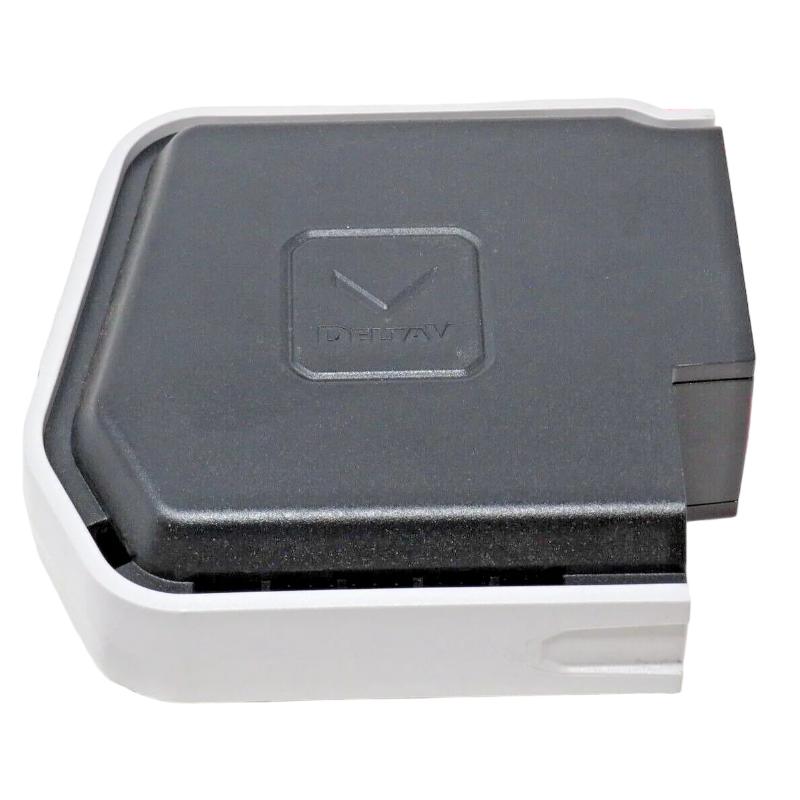

The Emerson SE4051S2T2B5 DeltaV S-series Simplex Discrete Input Card is a discrete input module used in DeltaV S-series distributed control systems. It accepts discrete field signals and makes equipment states, switch positions, and other on/off conditions available to the DeltaV control system.
The card can be used for signals generated by field switches, auxiliary contacts, limit switches, proximity devices, and similar discrete instruments. These signals can be used by the DeltaV controller for equipment sequencing, permissive logic, interlocking, status indication, and alarm handling.
In a typical process control cabinet, the SE4051S2T2B5 works together with the S-series carrier, termination components, field wiring, and DeltaV controller. The input card handles the field-side discrete signal interface while the controller applies the configured control strategy.
For maintenance and troubleshooting, the complete signal path should be considered rather than treating the input card as an isolated component. A missing input indication may originate from the field device, wiring, termination assembly, card, or DeltaV configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4051S2T2B5 |
| Product Family | DeltaV S-series |
| Product Series | S-series |
| Product Type | Simplex Discrete Input Card |
| Primary Function | Discrete field signal input |
| System Role | Distributed I/O input |
| Typical Application | Discrete status and event monitoring |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.45 kg |
Product Features
- DeltaV S-series discrete input card
- Simplex discrete input configuration
- Interfaces field on/off signals with the DeltaV control system
- Suitable for equipment status monitoring
- Supports signals used in sequencing and interlock logic
- Compatible with the DeltaV S-series I/O architecture
- Suitable for process and industrial automation systems
- Supports centralized monitoring of discrete field conditions
Working Principle
The SE4051S2T2B5 receives discrete signals from field devices through the associated termination and wiring arrangement. The card acquires the input state and transfers the corresponding status into the DeltaV S-series I/O system.
Field Device → Termination → SE4051S2T2B5 → DeltaV S-series I/O → Controller → HMI / SCADA
For example, an auxiliary contact from a motor starter can indicate whether the motor is running or stopped. A limit switch can report the position of a mechanical assembly, while a process switch can indicate that a configured operating condition has been reached.
The DeltaV controller uses these input states according to the configured control strategy. A discrete input may therefore become part of an equipment status display, permissive, interlock, sequence condition, or alarm.
When troubleshooting an abnormal input, the signal should be traced from the field device through the termination and card toward the controller. This helps separate field wiring problems from I/O hardware or configuration issues.
Role in a DeltaV S-series Control Architecture
The SE4051S2T2B5 occupies the discrete input section of the DeltaV S-series distributed I/O architecture. It provides the interface through which discrete field conditions enter the control system.
Field Devices → Termination Assembly → SE4051S2T2B5 → S-series I/O Infrastructure → DeltaV Controller → Operator Interface
| System Element | Function |
|---|---|
| Field Devices | Generate discrete status or event signals |
| Termination Assembly | Connects field wiring to the I/O system |
| SE4051S2T2B5 | Acquires and interfaces discrete input signals |
| S-series I/O Infrastructure | Provides the connection between I/O hardware and the control system |
| DeltaV Controller | Processes input states within the configured control strategy |
| HMI / Operator Station | Displays equipment status, alarms, and process information |
| Control Logic | Uses discrete inputs for sequencing, permissives, alarms, and interlocks |
The SE4051S2T2B5 handles input acquisition rather than executing the overall process-control strategy. Control decisions remain within the configured DeltaV control application.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control | Monitoring equipment and process status |
| Oil & Gas | Receiving discrete field and equipment signals |
| Chemical Processing | Monitoring switches, alarms, and interlocks |
| Power Generation | Equipment status and operating-condition indication |
| Water Treatment | Pump, valve, and equipment status monitoring |
| Manufacturing | Machine and production-line status acquisition |
| Compressor Systems | Monitoring auxiliary contacts and operating states |
| Material Handling | Conveyor, limit switch, and equipment monitoring |
Installation and Maintenance
- Verify that the replacement card is the correct SE4051S2T2B5 model before installation.
- Confirm that the card is suitable for the existing DeltaV S-series configuration.
- Isolate the applicable I/O section according to the site’s maintenance procedures.
- Identify the associated carrier and termination assembly before removing the existing card.
- Document the relevant field wiring and input assignments before disconnection.
- Inspect the card connector and mounting interface for contamination or physical damage.
- Install the SE4051S2T2B5 correctly in the designated S-series position.
- Verify the connection between the input card and associated termination components.
- Restore system power according to the approved commissioning procedure.
- Confirm that the DeltaV system correctly recognizes the installed input card.
- Test representative field devices and verify the corresponding input states.
- Check configured alarms, permissives, interlocks, and sequences before returning the system to normal operation.
Related Components
| Component | Function |
|---|---|
| DeltaV Controller | Executes configured process-control strategies |
| DeltaV S-series Carrier | Provides the physical I/O mounting and interconnection structure |
| Discrete Termination Assembly | Connects field wiring to the I/O system |
| Field Switches | Provides discrete process or equipment status |
| Limit Switches | Reports mechanical position |
| Proximity Sensors | Provides discrete detection signals |
| Auxiliary Contacts | Reports equipment or starter status |
| Operator Station | Displays configured input states and alarms |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson SE4051 Series | DeltaV S-series Discrete Input Card | Discrete field signal monitoring |
| Emerson SE4053 Series | DeltaV S-series Discrete Output Card | Discrete equipment control |
| Emerson SE4005 Series | DeltaV S-series Analog Output Card | Analog output applications |
| Emerson SE4006P2 | DeltaV S-series Serial Interface Card | Serial device communication |
| Emerson SE4035 Series | DeltaV S-series Redundant Analog Output Card | Redundant analog output applications |
| Emerson SE4050E2C0 | DeltaV S-series 8-Wide I/O Interface Carrier | S-series I/O mounting and interconnection |
Key Advantages
- Provides a dedicated interface for discrete field inputs
- Integrates equipment status information into the DeltaV S-series architecture
- Suitable for sequencing, permissive, interlock, and alarm applications
- Uses a simplex input configuration
- Works with compatible S-series carrier and termination components
- Supports straightforward field-signal troubleshooting
- Suitable for distributed process and industrial control systems
Technical FAQs
What is the SE4051S2T2B5 used for in a DeltaV system?
The SE4051S2T2B5 is used to acquire discrete field conditions and transfer their states into the DeltaV control system. Typical signals include equipment status contacts, switches, limit devices, and other compatible on/off signals.
What happens if a field device changes state but the DeltaV input does not change?
The signal path should be checked from the field device through the field wiring and termination assembly to the SE4051S2T2B5. The DeltaV configuration and input status should then be checked to determine whether the issue is related to wiring, I/O hardware, or configuration.
Is the SE4051S2T2B5 a control output module?
No. It is a discrete input card. It acquires field-side discrete states and sends them into the DeltaV control architecture. Output commands require the appropriate DeltaV output hardware.
What should be verified when replacing the SE4051S2T2B5?
Verify the card model, S-series carrier, termination arrangement, field connections, input assignments, and DeltaV configuration. After installation, representative input signals should be tested before the associated control functions are returned to normal operation.
